Jade Range (Middleby)

Jade Range Bistro JBR-2-24G 36" Gas Restaurant Range with (2) Open Burners and 24" Griddle, Cabinet Base

SKU: JBR-2-24G
$9,672.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Jade Range Bistro JBR-2-24G 36" Gas Restaurant Range with (2) Open Burners and 24" Griddle, Cabinet Base

Shallow Depth, Full-Size, Manual Griddle Control

Designed for demanding commercial kitchens, the Jade Range Bistro JBR-2-24G combines versatile cooking power with durable, all-welded stainless steel construction.

  • Features (2) 30,000 BTU cast iron open top burners for high-performance cooking.
  • Equipped with a 24" wide, 1" thick polished steel griddle with (2) 24,000 BTU burners for even heat distribution.
  • Offers a practical open cabinet base for convenient storage of kitchen essentials.
  • Constructed from heavy-duty 14 gauge all-welded stainless steel for long-lasting durability.
  • Includes a 3/4" gas regulator and 6" adjustable legs for easy installation and leveling.
  • Boasts a total output of 108,000 BTU for robust cooking capabilities.

Overall Dimensions:

36.0"W x 31.0"D x 36.0"H

Product Weight:

370.0 lb

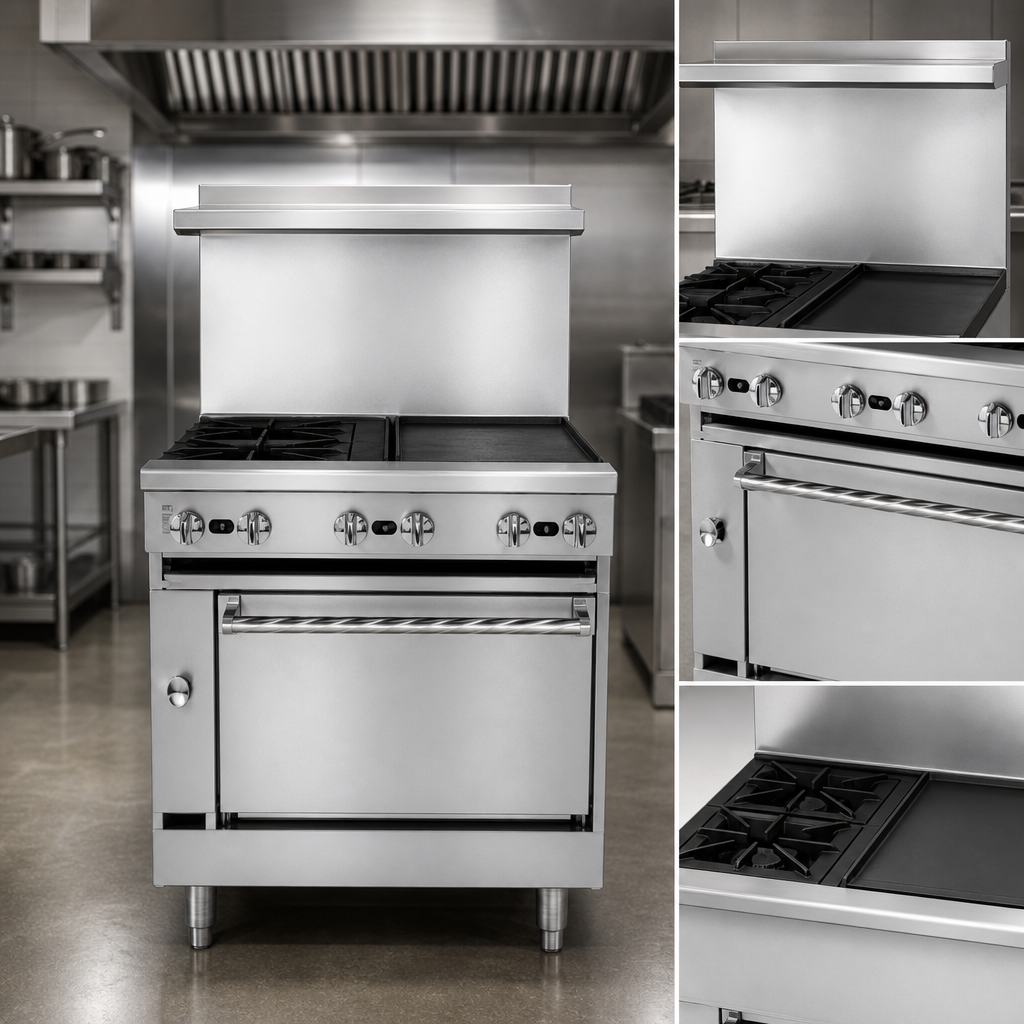

Heavy-Duty Construction

Built with 14 gauge all-welded stainless steel for exceptional strength and longevity, ideal for demanding commercial environments.

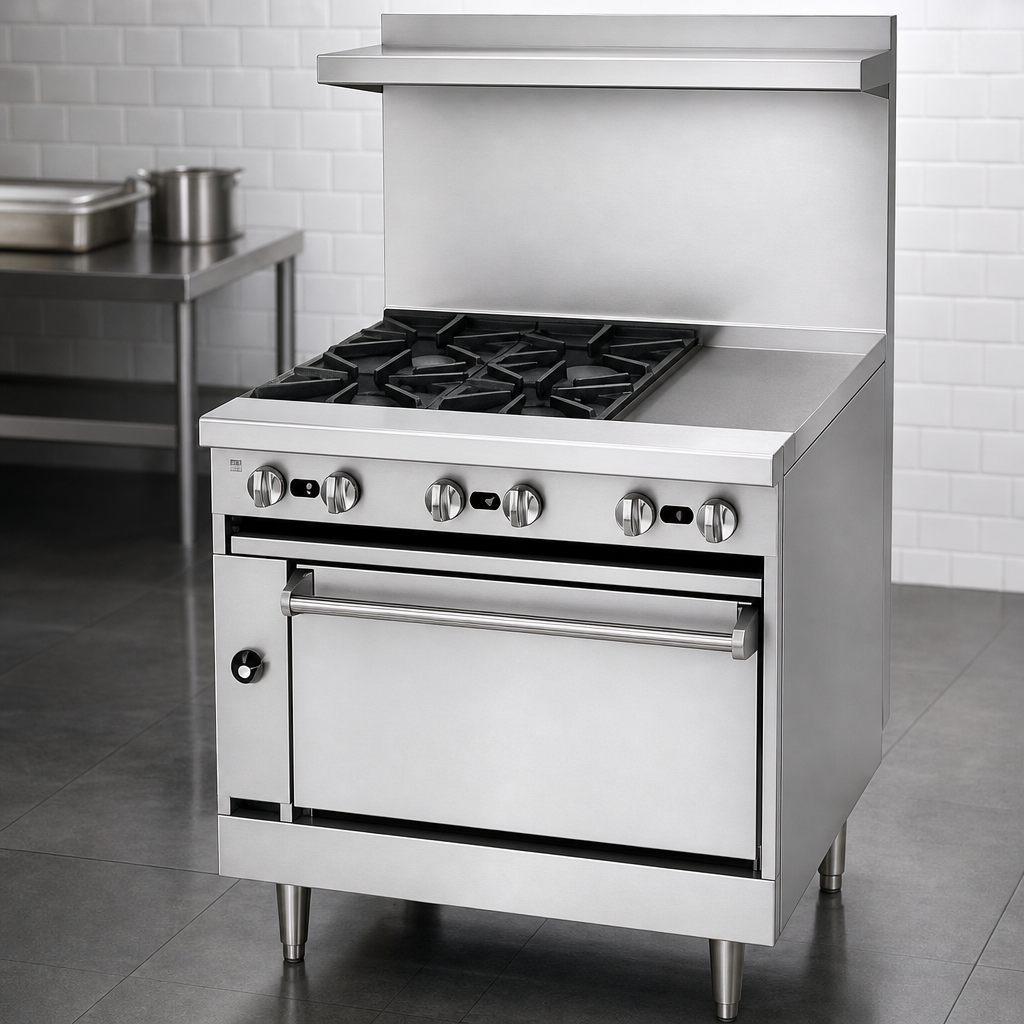

Stainless Steel Exterior

Features a stainless steel front, sides, tray bed, and stub back, providing a professional appearance and easy cleaning.

High-Performance Open Burners

Equipped with two 30,000 BTU easy-clean cast iron open burners, each with 12" x 12" lift-off steel grates for versatile cooking and easy maintenance.

Integrated 24" Griddle

Includes a 24-inch wide griddle with a 1-inch thick, highly polished steel plate and two 24,000 BTU burners (one every 12 inches) for consistent heat across the cooking surface.

Manual Griddle Controls

Griddle features manual controls, providing straightforward operation without a temperature thermostat.

Open Cabinet Base

The open cabinet base, constructed of 14 gauge all-welded steel, provides convenient and accessible storage.

Adjustable Legs

Comes with 6" adjustable legs for proper leveling and stability on various floor surfaces.

Gas Regulator Included

A 3/4" gas regulator is provided to ensure safe and efficient gas flow to the unit.

Type Restaurant Range
Style Heavy-Duty, Shallow Depth
Installation Type Floor Model (With 6" Adjustable Legs)
BTU 108,000 BTU
Gas Connection Size 3/4 Inch
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. (minimum)
Gas Inlet Pressure (Propane) 10 Inches W.C. (minimum)
Gas Inlet Pressure (Maximum) 14 Inches W.C. (maximum)
Controls Manual
Cooking Surface (2) Open Burners, (1) 24" Griddle
Pan Capacity (2) 12" x 12" Grates
Griddle Plate Thickness 1 Inch
Material Stainless Steel
Exterior Finish Stainless Steel Front, Sides, Tray Bed, Stub Back
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 36 Inches
Shipping Depth 31 Inches
Shipping Height 36 Inches
Shipping Weight 370 LBS

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This gas-powered range can be configured for either Natural Gas or Propane. You must specify the desired gas type when placing your order to ensure the unit is set up correctly.
No, the JBR-2-24G model with a cabinet base is a purely gas-powered range and does not require an electrical connection for operation. Electrical connections are typically only needed for models with convection oven bases.
The 24-inch griddle features a 1-inch thick, highly polished steel plate and is equipped with two 24,000 BTU burners, one for every 12 inches of griddle surface, ensuring efficient and even heating. It has manual controls.
The JBR-2-24G model comes with an open cabinet base, constructed from 14 gauge all-welded steel, providing convenient storage space for kitchen items.
Yes, if the installation location is above 2,000 feet, you must specify the altitude when ordering. This ensures that the unit is properly adjusted for optimal performance in high-altitude environments.
This range includes two 30,000 BTU easy-clean cast iron open burners, each featuring 12" x 12" lift-off steel grates for robust cooking and easy maintenance.
