Jade Range Bistro JBR-12G-4-36C 36" Gas Restaurant Range with 4 Open Burners, 12" Griddle, and Convection Oven

SKU: JBR-12G-4-36C
$14,761.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Jade Range Bistro JBR-12G-4-36C 36" Gas Restaurant Range with 4 Open Burners, 12" Griddle, and Convection Oven

Full-Size, Shallow Depth, Natural Gas, Floor Model

Designed for demanding commercial kitchens, the Jade Range Bistro JBR-12G-4-36C offers versatile cooking with powerful open burners, a precise griddle, and an efficient convection oven.

  • Equipped with four 30,000 BTU cast iron open burners for high-performance cooking.
  • Features a 12-inch wide, 1-inch thick polished steel griddle with a 24,000 BTU burner for even heating.
  • Includes a 30,000 BTU convection oven with a 14 gauge stainless steel interior and adjustable thermostat.
  • Constructed with durable 14 gauge stainless steel front, sides, and stub back for commercial longevity.
  • Comes with a single chrome-plated oven rack and 6-inch adjustable legs for convenience.
  • CSA-us and NSF certified, ensuring safety and sanitation standards are met.

Overall Dimensions:

36.0"W x 34.0"D x 36.0"H

Product Weight:

565.0 lb

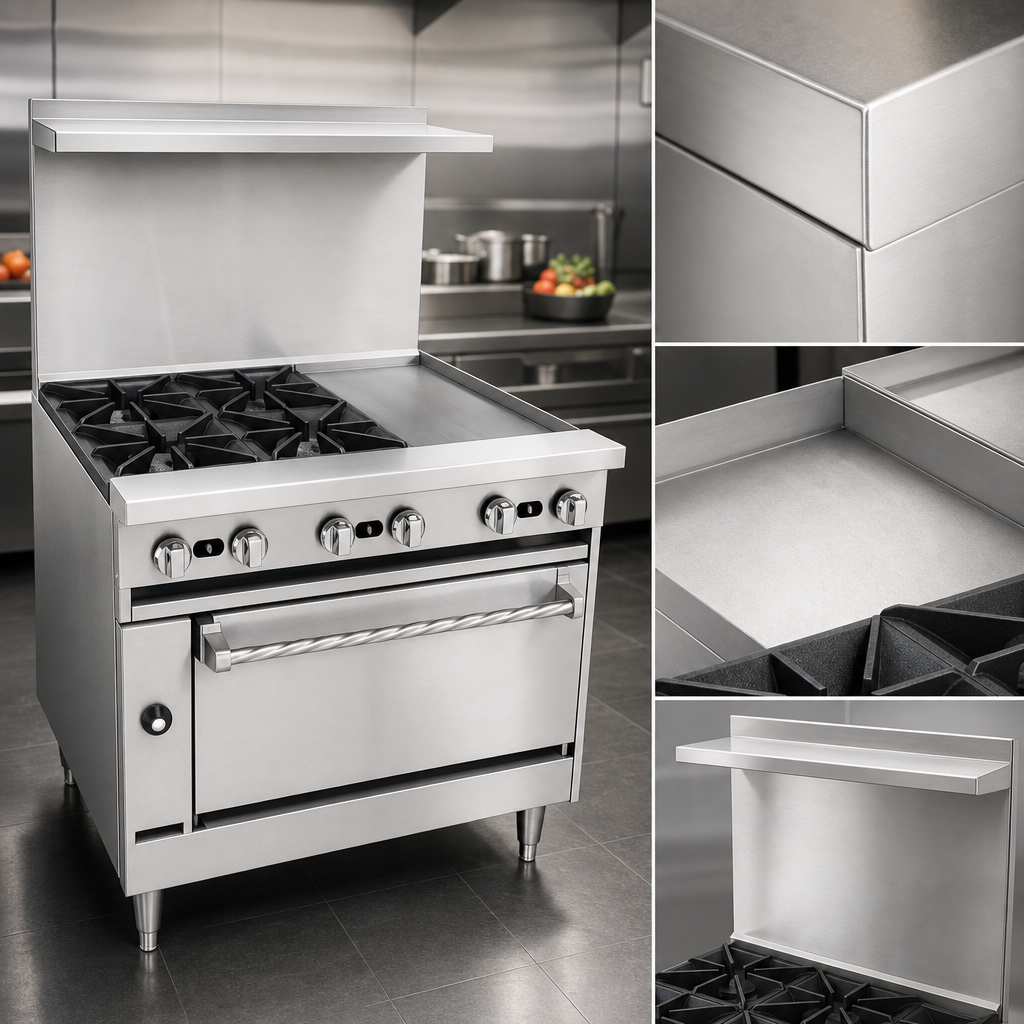

Heavy-Duty Construction

Built with 14 gauge all-welded stainless steel construction, including the front, sides, tray bed, and stub back, ensuring durability and ease of cleaning in a commercial environment.

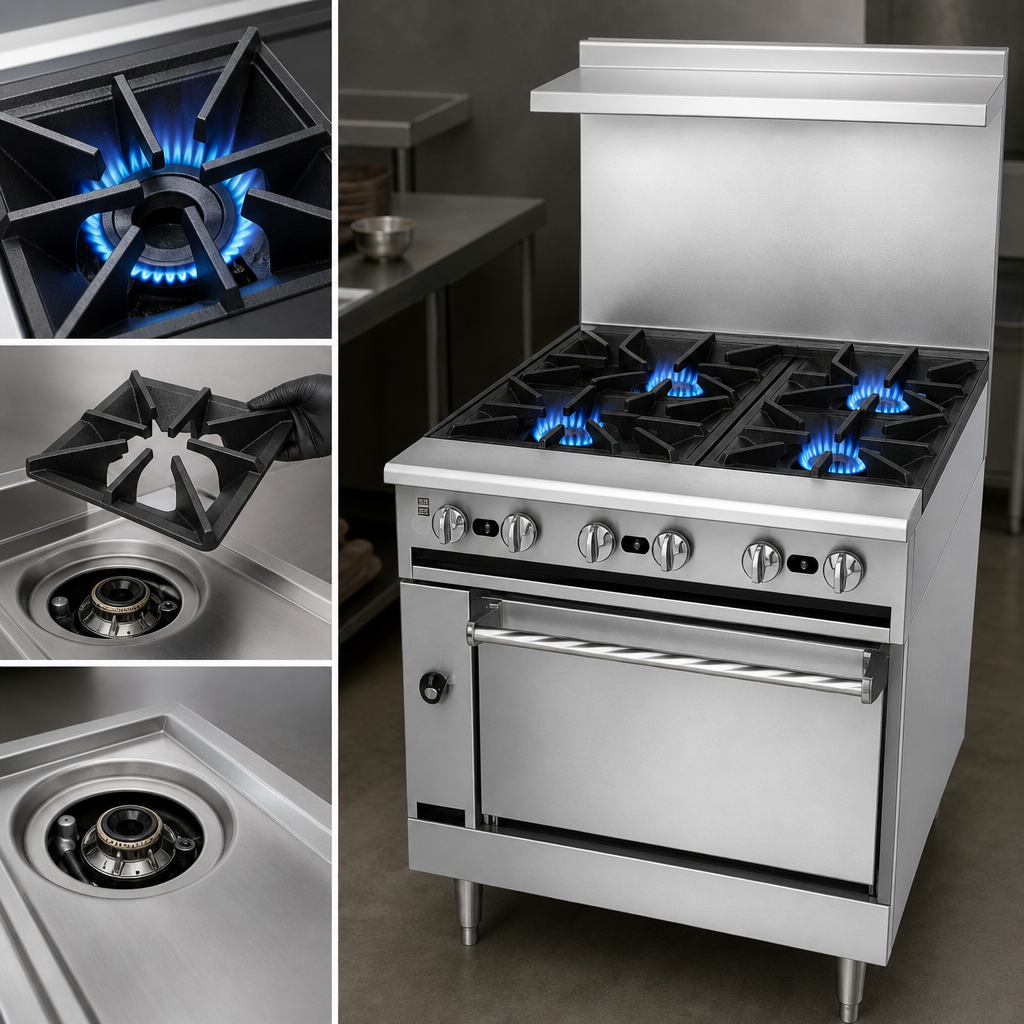

High-Performance Open Burners

Four easy-clean 30,000 BTU cast iron open burners are designed for efficient and powerful cooking, each featuring a 12" x 12" lift-off steel grate for easy maintenance.

Integrated 12-inch Griddle

Features a 12-inch wide griddle with a 1-inch thick highly polished steel plate and a 24,000 BTU burner, providing consistent and even heat distribution for various griddle-cooked items.

Convection Oven Base

The base includes a convection oven with a 14 gauge stainless steel interior, a 30,000 BTU/hr burner, and a 1/4 HP 115V blower motor for uniform heating. The oven interior measures 27-3/4" W x 13-1/2" H x 20-1/2" D.

Chrome-Plated Oven Rack

Each convection oven is supplied with one chrome-plated oven rack, featuring wires curled and welded around the main frame for durability and safety.

Adjustable Thermostat

The convection oven features a thermostat that adjusts from 150°F to 500°F, allowing for precise temperature control for a wide range of baking and roasting tasks.

Reliable Ignition

Equipped with an electronic spark ignitor, activated by a power switch, to reliably ignite the standing pilot for the oven.

Stainless Steel Components

All gas tubing throughout the unit and pilot tips are made of stainless steel for enhanced durability and longevity.

Gas Pressure Regulator

Includes a 3/4" gas regulator, ensuring proper and safe gas pressure for operation.

Type Restaurant Range
Style Shallow Depth
Installation Type Floor Model (With 6" Adjustable Legs)
Cooking Surface Width 36 Inches
Open Burners 4
Open Burner BTU 30,000 BTU Per Burner
Griddle Size 12 Inches
Griddle Plate Thickness 1 Inch
Griddle BTU 24,000 BTU
Convection Oven BTU 30,000 BTU
BTU 174,000 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 Inch
Gas Inlet Pressure 5 Inches W.C. (Natural Gas)
Controls Manual (Burners/Griddle), Thermostatic (Oven)
Temperature Range 150°F to 500°F (Convection Oven)
Convection Oven Interior Finish 14 Gauge Stainless Steel
Convection Oven Interior Width 27-3/4 Inches
Convection Oven Interior Height 13-1/2 Inches
Convection Oven Interior Depth 20-1/2 Inches
Pan Capacity 1 Oven Rack
Material Stainless Steel (Front, Sides, Tray Bed, Stub Back)
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 4.0 Amps
Cord Length 6 Feet
Plug Type NEMA 5-15P
Shipping Weight 565 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer's standard warranty

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JBR-12G-4-36C range includes a convection oven base with a 14 gauge stainless steel interior, a 30,000 BTU/hr burner, and a 1/4 HP 115V blower motor. It has an adjustable thermostat from 150°F to 500°F.
The convection oven interior measures 27-3/4 inches wide, 13-1/2 inches high, and 20-1/2 inches deep.
The convection oven requires a 115V, 60 Hz, 1-phase electrical connection, drawing 4.0 amps. It comes with a 6-foot cord and a 3-prong plug (NEMA 5-15P).
The 12-inch griddle has one 24,000 BTU burner. Each of the four open burners provides 30,000 BTU. The convection oven adds another 30,000 BTU, making the total BTU output 174,000 BTU.
Yes, while typically configured for Natural Gas (5" W.C. minimum operating pressure), the unit can be specified for Propane gas (10" W.C. minimum operating pressure) when ordering. It requires a 3/4" gas connection and includes a gas appliance regulator.
