Jade Range (Middleby)

Bistro 72-Inch Shallow-Depth Heavy-Duty Gas Restaurant Range with 12 Open Burners, Standard Oven, and Convection Oven

SKU: JBR-12-3636C
$25,366.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

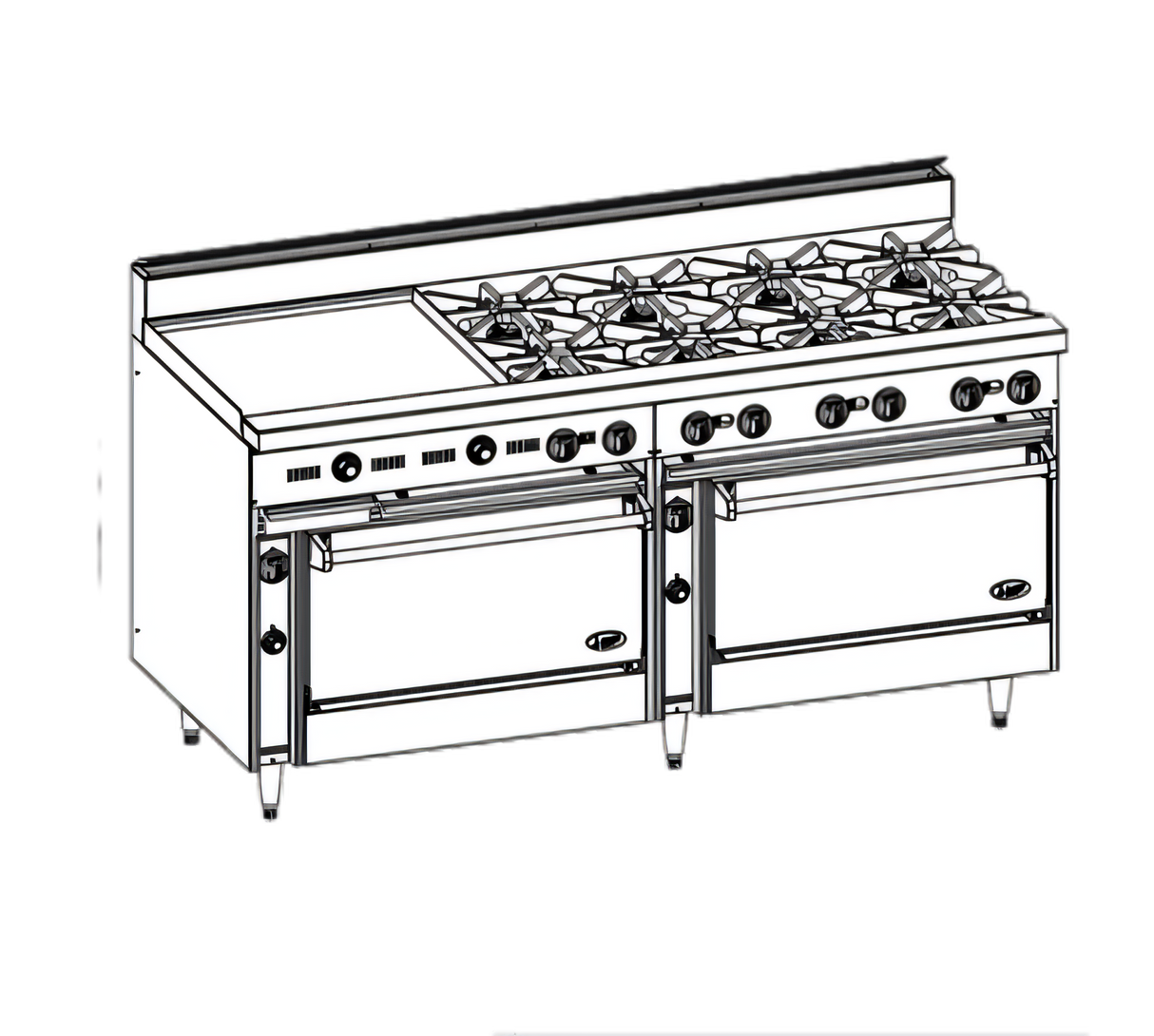

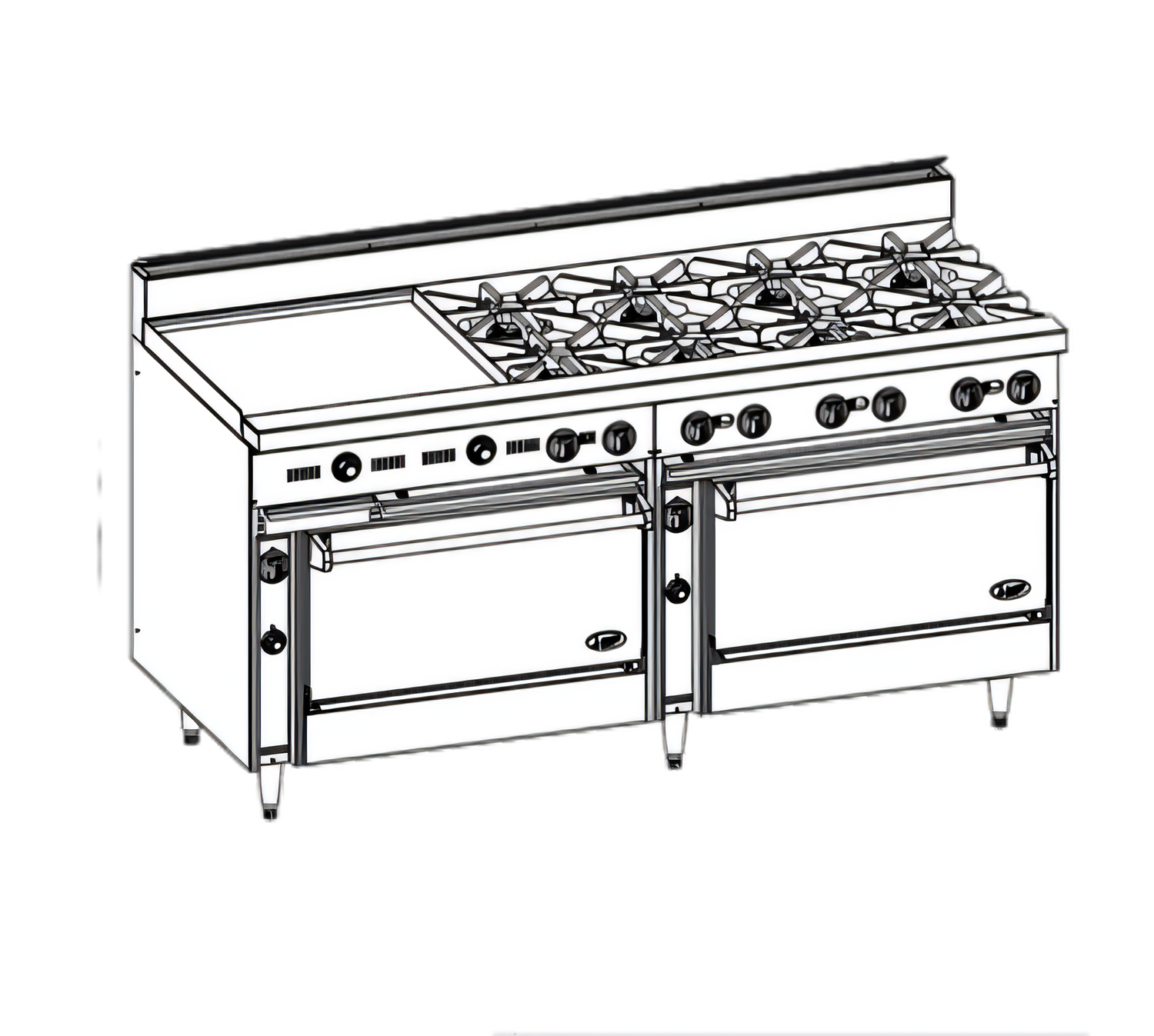

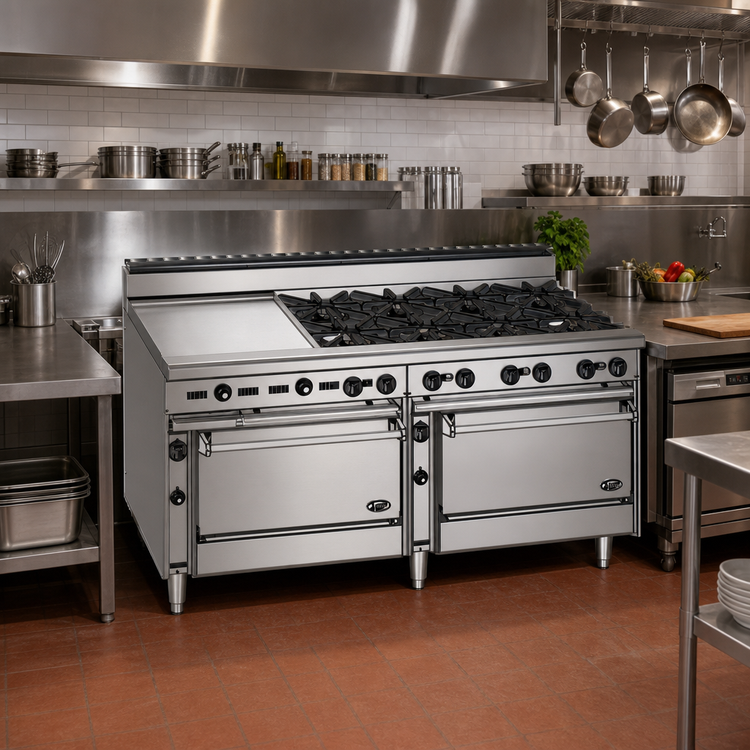

Bistro 72-Inch Shallow-Depth Heavy-Duty Gas Restaurant Range with 12 Open Burners, Standard Oven, and Convection Oven

Stainless Steel, Stub Back, Adjustable Legs

This heavy-duty 72-inch gas range combines high-output open burners with both standard and convection ovens to handle a wide range of cooking tasks in one unit.

  • 12 cast iron open burners deliver 30,000 BTU each for powerful top-side cooking.
  • Includes one standard oven and one convection oven for baking, roasting, and finishing.
  • Stainless steel front, sides, tray bed, and stub back provide durability and easy cleanup.
  • Chrome-plated oven racks and removable stainless steel oven interiors simplify maintenance.
  • Convection oven operates on 115V/60/1 power with a 6-foot cord and 3-prong plug.
  • 6-inch adjustable legs help level the range during installation.

Overall Dimensions:

72.0"W x 31.0"D x 36.0"H

Product Weight:

1075.0 lb

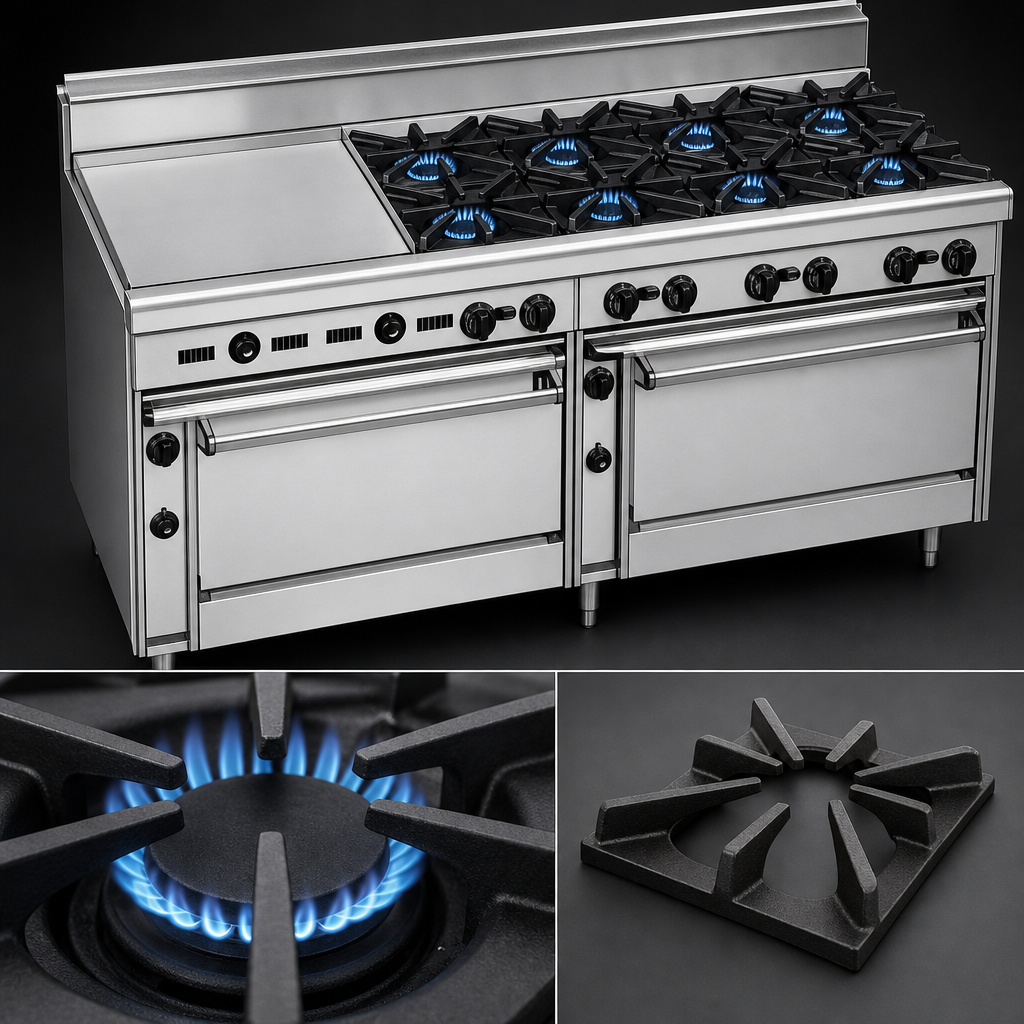

12 High-Output Open Burners

Cast iron open burners deliver 30,000 BTU each and are paired with 12" x 12" lift-off steel grates.

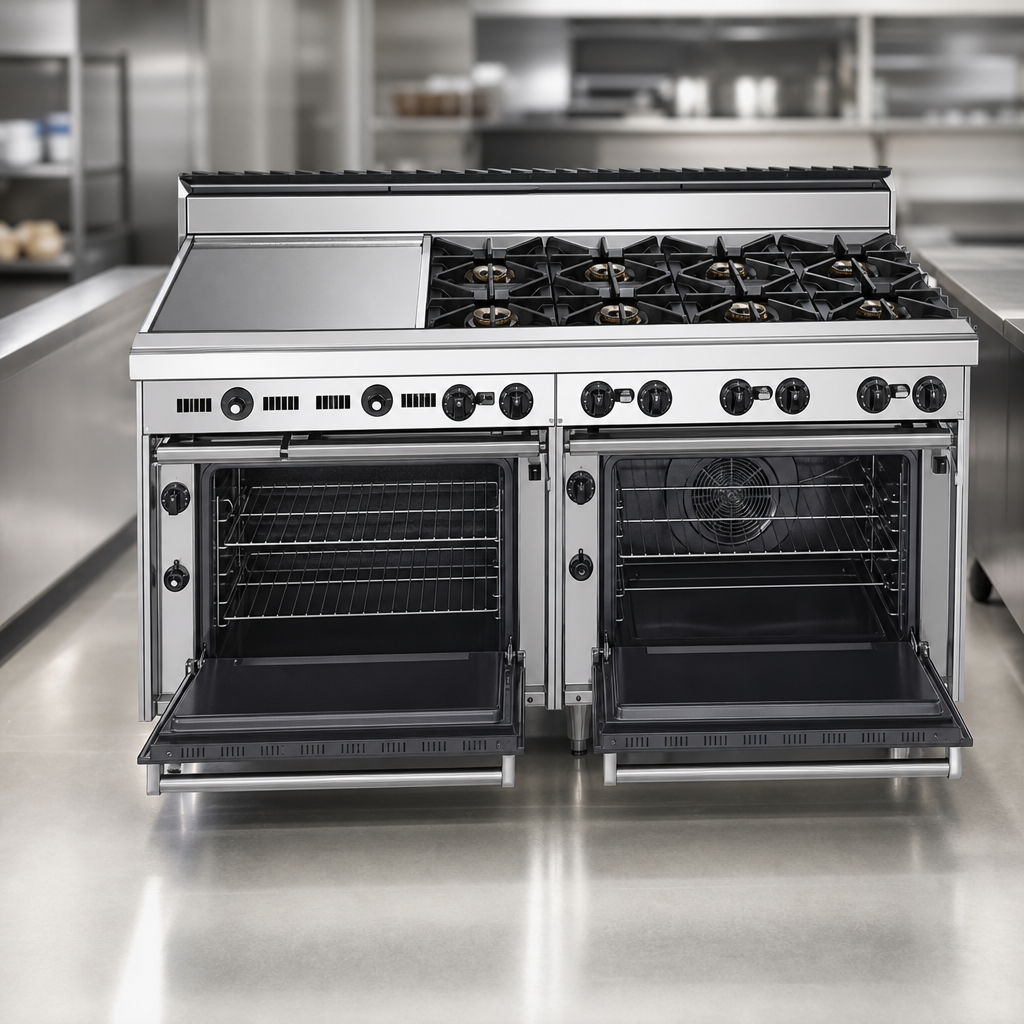

Dual Oven Base

Configured with one standard oven and one convection oven to expand cooking flexibility on a single range.

Stainless Steel Construction

Built with stainless steel front, sides, tray bed, stub back, and removable oven interiors for long-term durability.

Chrome-Plated Oven Racks

One chrome-plated rack is supplied per oven, with curled and welded wires for safer handling.

Convection Oven Electrical Service

Convection oven section uses 115V/60/1 power, draws 4.0 amps, and includes a 6-foot cord with a 3-prong plug.

Cool-Zone Oven Control

Oven control is located in a cool zone to help reduce heat exposure at the control area.

Gas Utility Connections

Unit uses two 3/4-inch gas connections and is supplied with two 3/4-inch gas regulators.

Adjustable Legs

6-inch adjustable legs provide leveling flexibility on the floor.

Voltage 115 Volts
Amps 4.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type 3-Prong Plug
Cord Length 6 Feet
BTU 420,000 BTU
Gas Connection Size 2 x 3/4 Inch
Controls Infinite
Type Gas Range
Style Heavy-Duty
Installation Type Floor Model
Material Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 72 Inches
Shipping Depth 31 Inches
Shipping Height 36 Inches
Shipping Weight 1075 lb.

Frequently Asked Questions

It includes 12 open burners, one standard oven, and one convection oven.
The unit is rated at 420,000 BTU total.
The convection oven uses 115V/60/1 power, draws 4.0 amps, and comes with a 6-foot cord and 3-prong plug.
It uses two 3/4-inch gas connections and is supplied with two 3/4-inch gas regulators.
The sheet lists 5" W.C. minimum for natural gas, 10" W.C. minimum for propane, and 14" W.C. maximum.
