Jade Range (Middleby)

Bistro 72-Inch Shallow-Depth Heavy-Duty Gas Restaurant Range with 12 Open Burners and 2 Standard Ovens

SKU: JBR-12-3636
$20,276.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Bistro 72-Inch Shallow-Depth Heavy-Duty Gas Restaurant Range with 12 Open Burners and 2 Standard Ovens

Stainless Steel Front and Sides, Stub Back, 420,000 BTU Total

Built for busy commercial kitchens, this 72-inch gas range combines 12 high-output open burners with two standard ovens in a durable stainless steel chassis.

  • 12 cast iron open burners deliver 30,000 BTU each for fast, even heat.
  • Two standard ovens add bake, roast, and hold capacity below the cooktop.
  • Shallow-depth, heavy-duty construction helps the range fit tighter kitchen lines.
  • Stainless steel front, sides, tray bed, and stub back support durability and cleanup.
  • Includes one chrome-plated rack per oven, adjustable legs, and two gas regulators.

Overall Dimensions:

72.0"W x 31.0"D x 36.0"H

Product Weight:

1050.0 lb

High-Output Open Burners

Twelve cast iron open burners provide 30,000 BTU each, with 12" x 12" lift-off steel grates for durable everyday use.

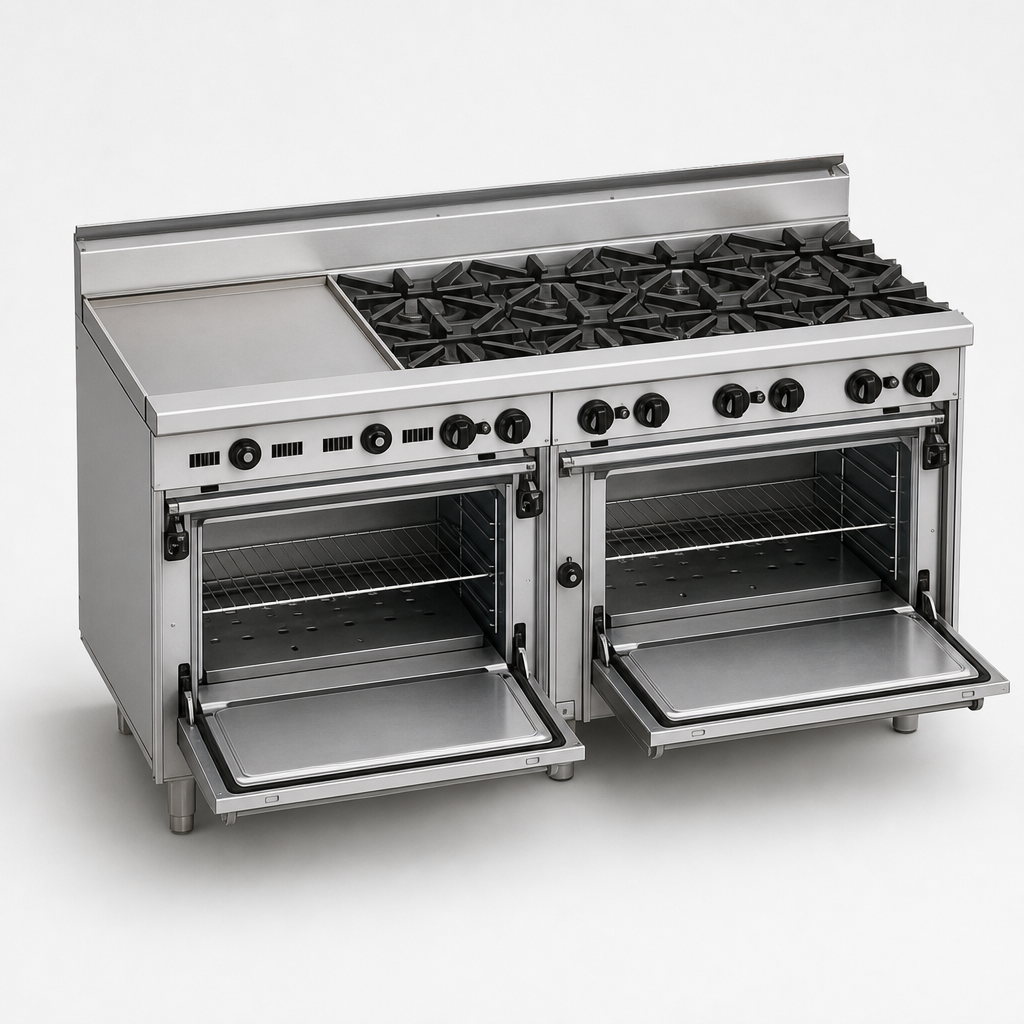

Two Standard Oven Bases

The unit includes (2) standard ovens with stainless steel lining and removable oven interiors.

Chrome-Plated Oven Racks

Each oven includes one chrome-plated rack with curled and welded wires for a smoother, safer surface.

Wide Oven Temperature Range

Oven thermostats adjust from 150°F to 500°F, with a 30,000 BTU/hr burner per oven.

Heavy-Duty Stainless Steel Construction

Built with 14-gauge stainless steel all-welded construction and stainless steel front, sides, tray bed, and stub back.

Cool-Zone Oven Controls

Oven controls are located in a cool zone to help improve usability.

Stainless Steel Gas Components

Stainless steel gas tubing and stainless steel pilot tips are used throughout the unit.

Utility Setup

The range includes (2) 3/4-inch gas regulators and requires gas type to be specified when ordering.

Type Restaurant Range
Style Shallow Depth Heavy-Duty
Installation Type Floor Model
BTU 420,000 BTU
Gas Connection Size 2 x 3/4 Inch
Gas Inlet Pressure Natural Gas: 5 Inches W.C. Minimum; Propane: 10 Inches W.C. Minimum; 14 Inches W.C. Maximum
Material Stainless Steel
Interior Finish Stainless Steel
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It has 12 open burners and (2) standard ovens.
Each open burner is rated at 30,000 BTU, and the unit has a total output of 420,000 BTU.
The manufacturer says to specify the gas type when ordering; the unit can be configured for natural gas or propane.
Each standard oven thermostat adjusts from 150°F to 500°F.
The unit uses (2) 3/4-inch gas connections. Required operating pressure is 5 inches W.C. minimum for natural gas or 10 inches W.C. minimum for propane, with 14 inches W.C. maximum.
Available accessories and options include a stainless steel high shelf, stainless steel high riser, 6-inch casters, 36-inch or 48-inch flex hoses with quick disconnect and restraining device, and an additional oven rack.
