Jade Range Bistro 72-Inch Shallow-Depth Commercial Gas Range with 12 Open Burners, Standard Oven, and Cabinet Base

Heavy-Duty Stainless Steel Construction, Stub Back, 6-Inch Adjustable Legs

This 72-inch Bistro range combines 12 open burners, a standard oven, and cabinet storage in a shallow-depth footprint built for busy commercial kitchens.

  • 72-inch shallow-depth footprint delivers a full cooking line without taking up extra floor space.
  • 12 cast iron open burners each produce 30,000 BTU for high-volume range cooking.
  • Standard oven base includes a removable stainless steel interior and one chrome-plated rack.
  • Open cabinet base adds durable under-range storage for pans and supplies.
  • Stainless steel front, sides, tray bed, and stub back are built for long-term commercial use.
  • 6-inch adjustable legs and supplied gas regulators help simplify installation and leveling.

Overall Dimensions:

72.0"W x 31.0"D x 36.0"H

Product Weight:

835.0 lb

12 High-Output Open Burners

Twelve cast iron easy-clean burners deliver 30,000 BTU each and use 12 x 12-inch lift-off steel grates.

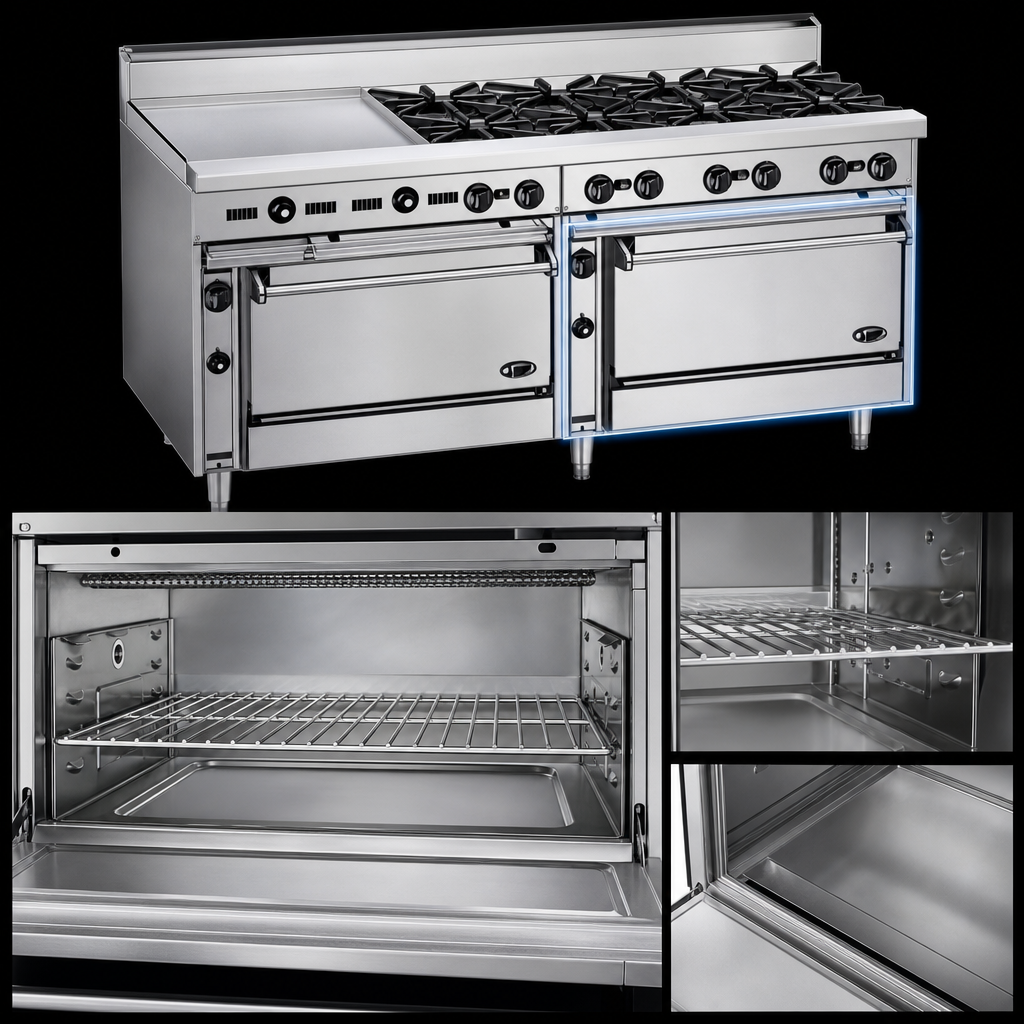

Standard Oven With Chrome Rack

Single standard oven includes stainless steel lining, removable sides and bottom without tools, a thermostat from 150°F to 500°F, and one chrome-plated rack.

Open Cabinet Base

One cabinet base is built from 14-gauge all-welded steel for durable under-range storage.

Stainless Steel Construction

Front, sides, tray bed, and stub back are stainless steel, with stainless steel gas tubing and pilot tips throughout.

Shallow-Depth Footprint

The 72-inch wide, shallow-depth design helps maximize cooking capacity while conserving floor space.

Installation-Ready Gas Hardware

Includes two 3/4-inch gas regulators and 6-inch adjustable legs; gas type must be specified when ordering.

Type Commercial Gas Range
Style Shallow Depth
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
BTU 390,000 BTU
Gas Connection Size 2 x 3/4 Inches
Gas Inlet Pressure 5 Inches W.C. Minimum Natural Gas; 10 Inches W.C. Minimum Propane; 14 Inches W.C. Maximum
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes 12 open burners, one standard oven, one cabinet base, one chrome-plated rack, and 6-inch adjustable legs.
Total output is 390,000 BTU.
The standard oven thermostat adjusts from 150°F to 500°F.
The unit uses two 3/4-inch gas connections and must be connected with the supplied gas appliance regulator.
Yes. Specify the gas type when ordering, and specify altitude if the installation is above 2,000 feet.
Yes. One chrome-plated rack is supplied with the standard oven.
