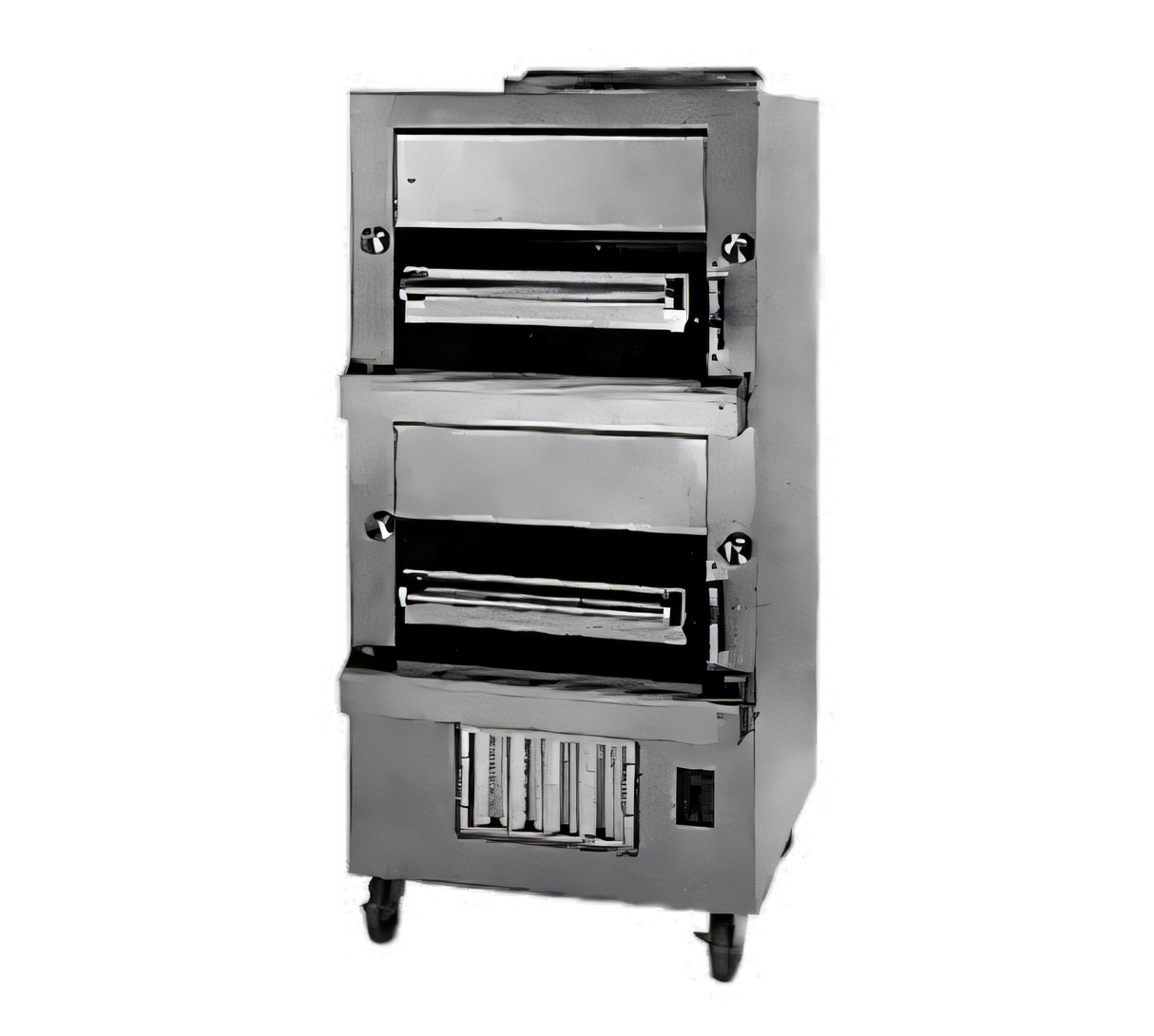

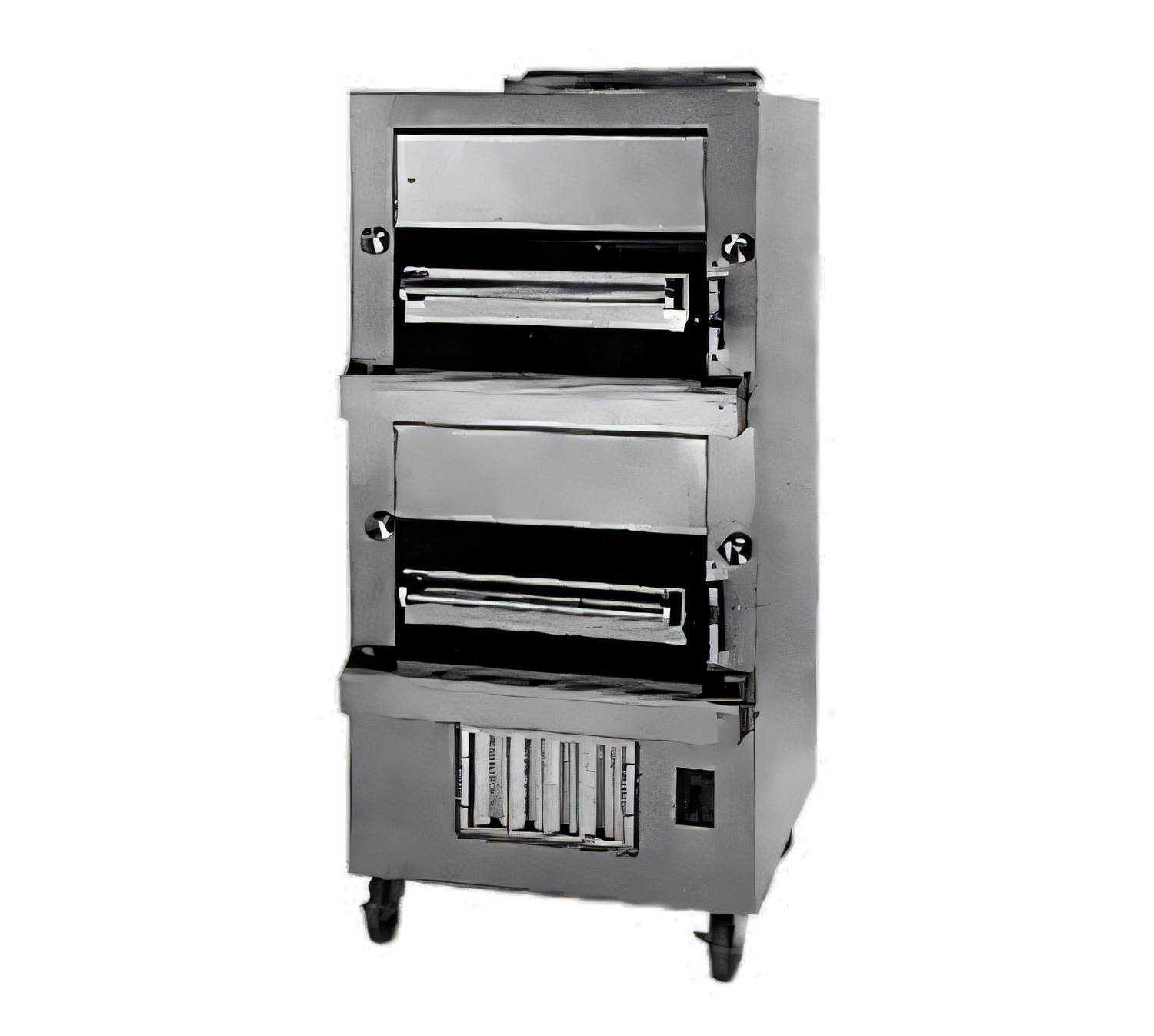

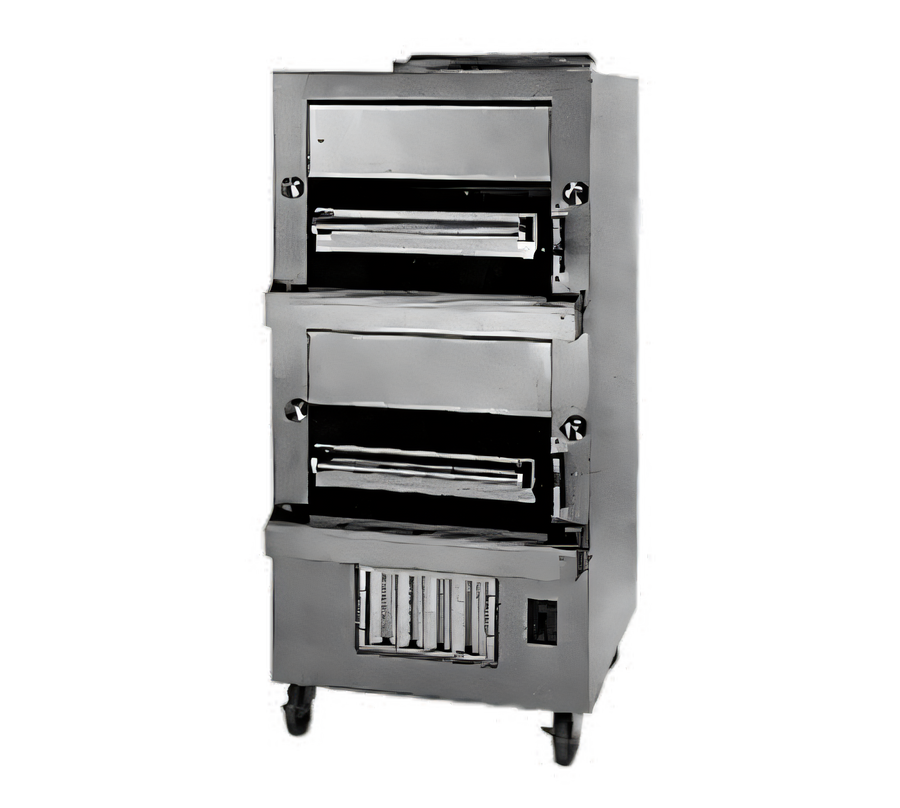

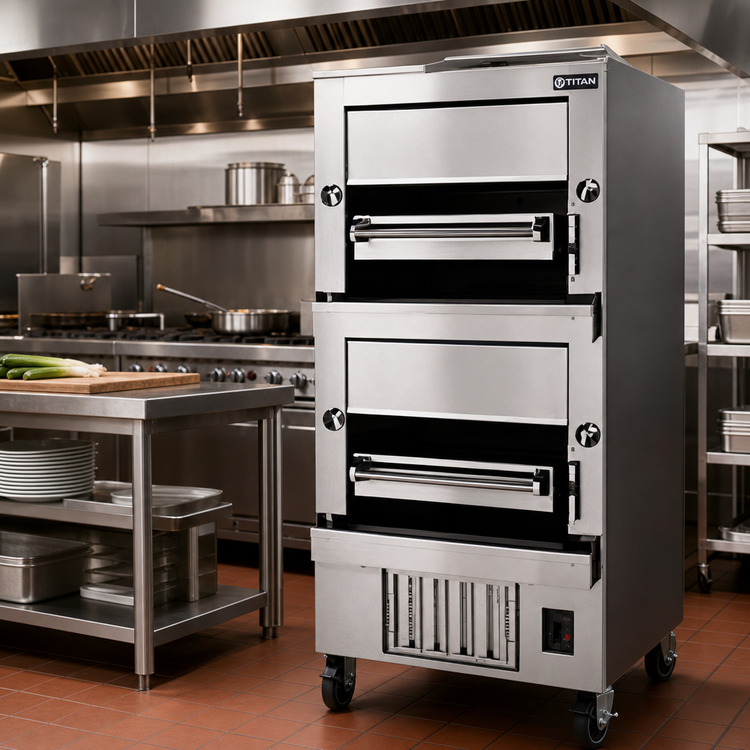

Titan JBB-236 Double Deck Full-Size Gas Infrared Banquet Broiler
Full-Size, Natural Gas or Propane, Double Deck
Designed for high-volume banquet operations, the Titan JBB-236 provides consistent, powerful infrared broiling across two spacious decks.
- Equipped with eight 26,000 BTU/hr infrared burners (four per deck) for intense, even heat.
- Features a high-volume blower with a washable, removable filter for optimal performance and easy maintenance.
- Includes two large, two-piece lift-out broiler grids (24-1/4" x 13-1/4" each) for easy cleaning and handling.
- Constructed from durable 14 gauge all-welded stainless steel for a long lifespan in demanding commercial kitchens.
- Roll-out grid carriages with roller bearings ensure smooth operation and safe food loading/unloading.
- Comes with a 6-foot cord and 3-prong plug for the blower's electrical connection.
Overall Dimensions:
36.0"W x 38.25"D x 69.0"HProduct Weight:

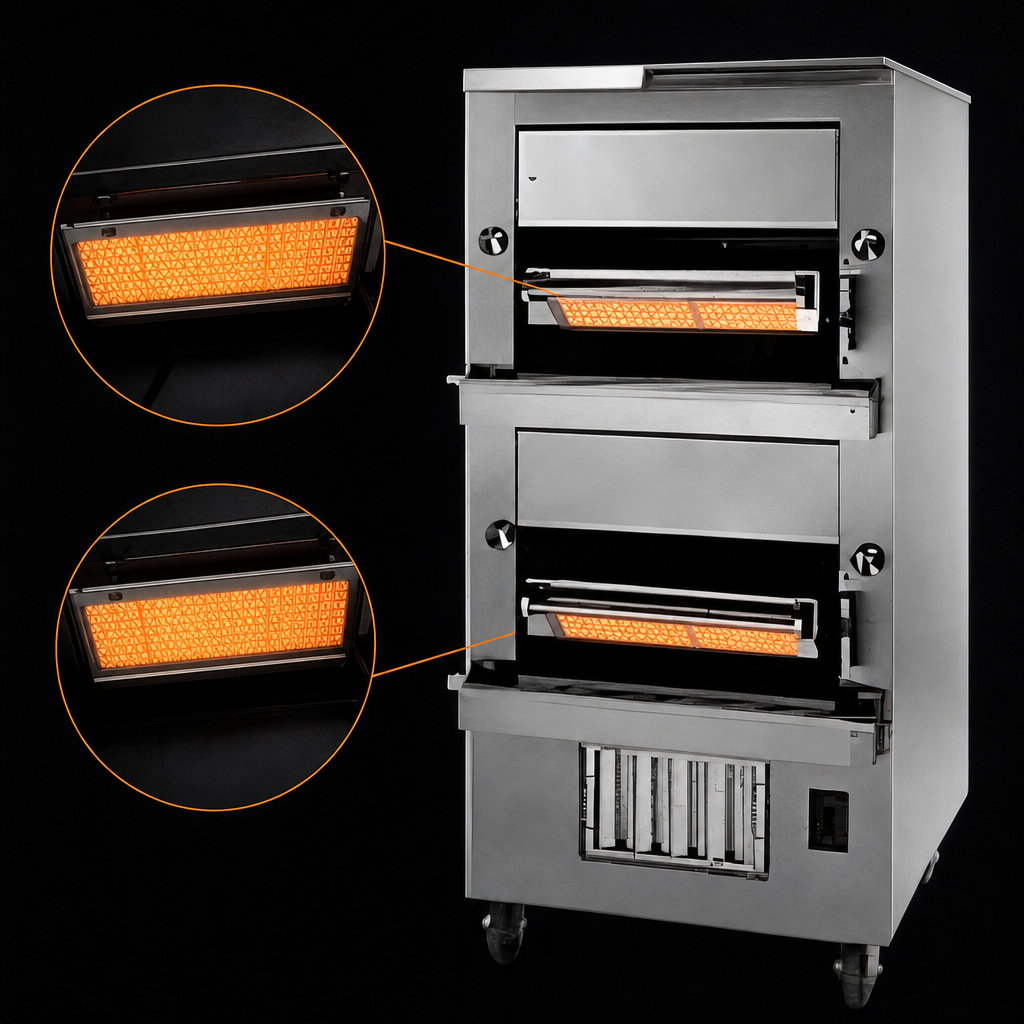

1000.0 lbInfrared Burners
Eight 26,000 BTU/hr infrared burners with ceramic tiles, providing powerful and consistent heat distribution (four burners per deck).

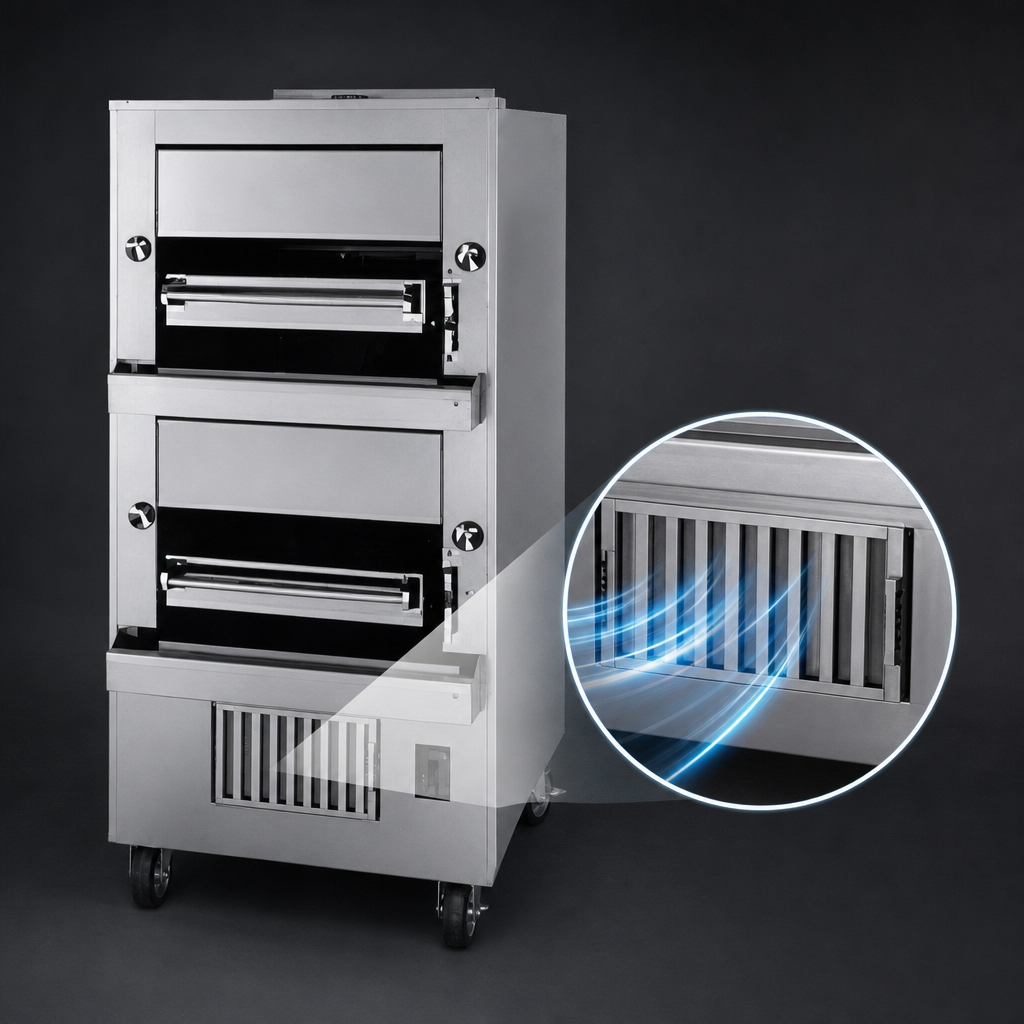

High Volume Blower
Includes a high volume blower for filtered primary air, essential for optimal burner performance and efficiency.
Easy Clean Air Filter
The blower is equipped with an easy-clean, washable, and removable air filter for simple maintenance.
Large Lift-Out Broiler Grids
Each deck is supplied with one large, 2-piece lift-out broiler grid, measuring 24-1/4" x 13-1/4", designed for easy handling and cleaning.
Roller Bearing Grid Carriage
Grid carriages glide smoothly on roller bearings, making it easy to pull out and push in for loading and unloading.
Large Capacity Drip Trays
One large capacity drip tray is provided per deck to collect grease and drippings, facilitating cleanup.
Durable Stainless Steel Construction
The broiler features a 14 gauge all-welded body construction with a stainless steel front, sides, and top for superior durability and hygiene.
Stainless Steel Gas Tubing
All gas tubing throughout the unit is constructed from stainless steel for enhanced longevity and reliability.
Adjustable Legs
Equipped with 6" stainless steel adjustable legs to ensure proper leveling and height customization.
Gas Pressure Regulator Included
A 3/4" gas pressure regulator is supplied with the unit, connecting to a 3/4" rear gas connection.
Certifications & Compliance
Warranty & Protection
1-year parts and labor
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
