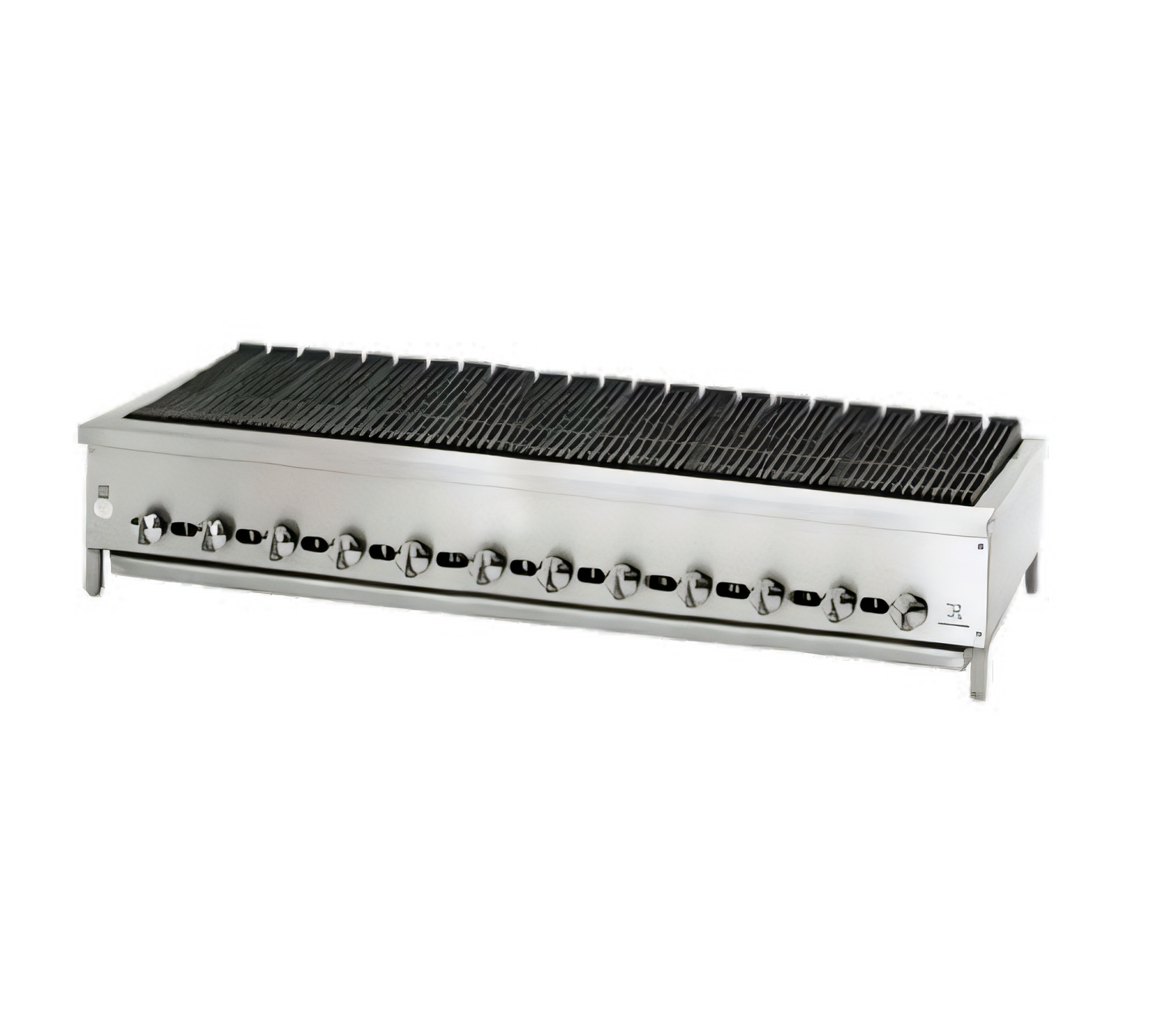

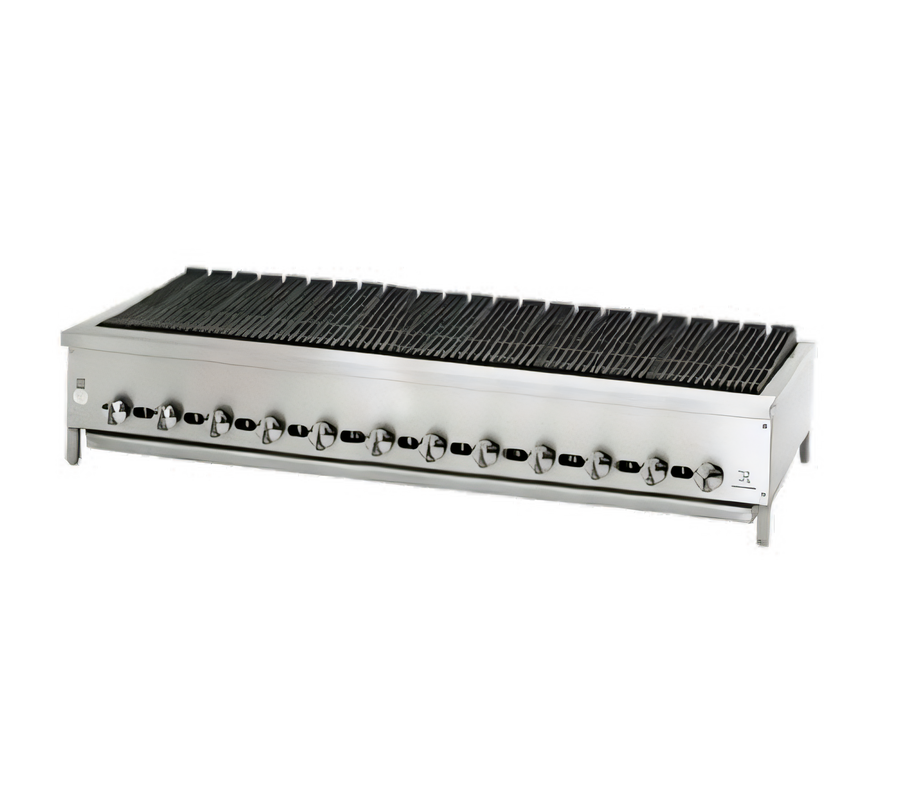

Jade Range Supreme JB-72 72-Inch Countertop Gas Radiant Charbroiler

Full-Size, Natural Gas Ready, Manual Controls

Achieve superior grilling performance with the robust Jade Range Supreme JB-72 charbroiler, designed for heavy-duty commercial kitchen operations.

  • 72-inch wide charbroiler provides ample cooking space for high-volume demands.
  • Equipped with 12 powerful 15,000 BTU/hr burners, totaling 180,000 BTU for intense heat.
  • Heavy-duty cast iron grates with built-in grease guides channel away excess fat, reducing flare-ups.
  • Infinite manual gas valves offer precise heat control for each burner, ensuring consistent cooking results.
  • Durable 14 gauge all-welded stainless steel construction for long-lasting commercial use.
  • Features stainless steel front, sides, plate shelf, and adjustable legs for convenience and stability.

Overall Dimensions:

72.0"W x 27.0"D x 13.0"H

Product Weight:

650.0 lb

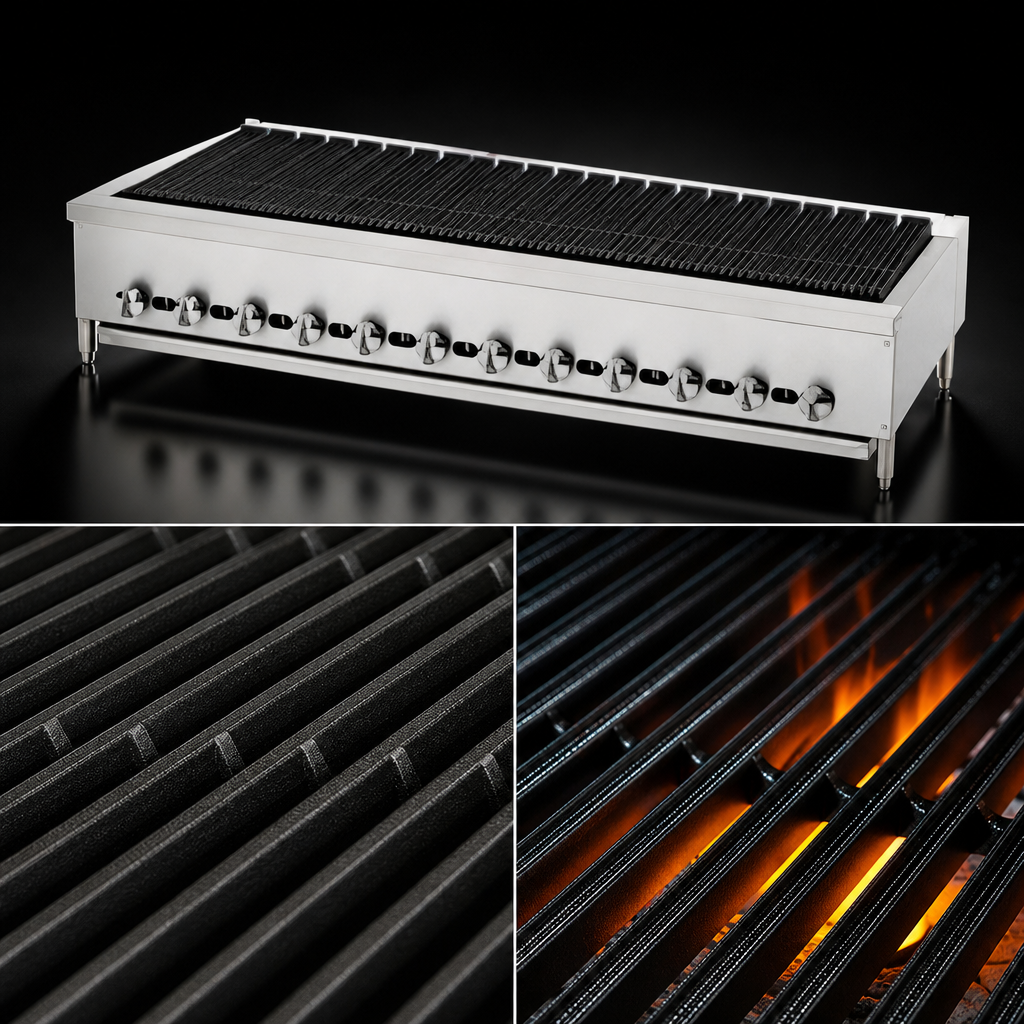

Heavy-Duty Cast Iron Grates

Four-bar cast iron top grates feature built-in grease guides that channel away excess fat and reduce uncomfortable flare-ups for cleaner cooking.

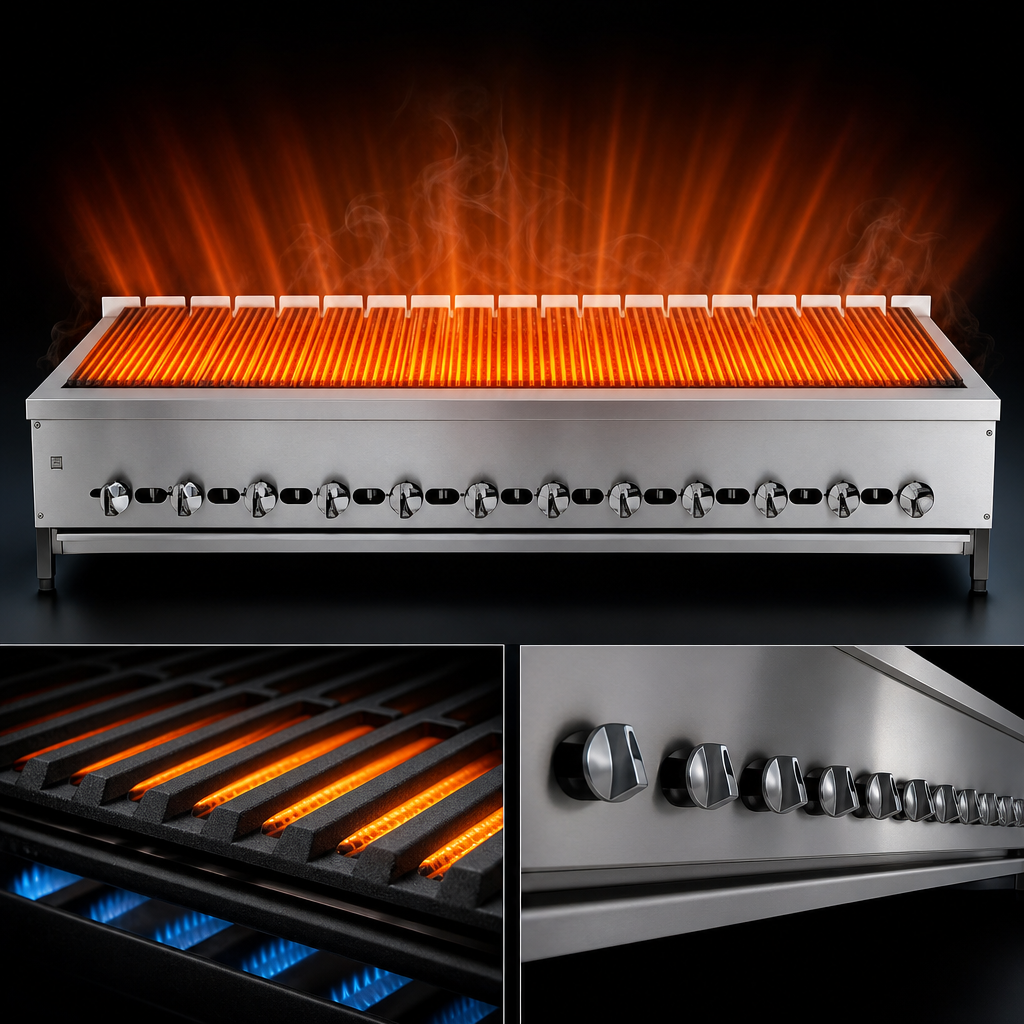

Powerful Radiant Heating

Utilizes heavy-duty cast iron burner radiants and one 15,000 BTU/hr burner every 6 inches of broiler width, ensuring even heat distribution and consistent charring.

Precise Manual Controls

Each burner is equipped with an infinite control manual gas valve, allowing chefs to finely tune heat levels across different cooking zones.

Durable Construction

Constructed with a 12 gauge all-welded firebox and 14 gauge all-welded stainless steel front, sides, and plate shelf for maximum durability and easy cleaning in demanding commercial environments.

Integrated Grease Management

Includes two separate 14 gauge steel drip pans designed to further control flare-ups and simplify grease collection.

Adjustable & Stable Design

Features stainless steel legs with adjustable feet welded directly to the body, providing stability and allowing for custom height adjustments.

Corrosion-Resistant Pilots

Each burner is furnished with a stainless steel pilot tip, designed to resist corrosion and ensure reliable ignition.

Type Radiant Charbroiler
Style Restaurant Series
Installation Type Countertop
Width 72 Inches
Depth 27 Inches
Height 13 Inches
Weight 650 lb.
BTU 180,000 BTU
Burners 12
Gas Type Natural Gas (Convertible to Propane)
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure Natural Gas 5 Inches W.C. (min), Propane 10 Inches W.C. (min)
Controls Infinite Manual
Material Stainless Steel
Grates Heavy Duty Cast Iron
Radiants Heavy Duty Cast Iron
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 72 Inches
Shipping Depth 27 Inches
Shipping Height 13 Inches
Shipping Weight 700 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JB-72 is set up for Natural Gas as standard, but can be converted to Propane. You must specify the type of gas when ordering.
The JB-72 is a gas-powered unit, operating at 180,000 BTU, and does not require an electrical connection. It requires a 3/4 inch NPT gas connection and operating pressures of 5 inches W.C. minimum for Natural Gas or 10 inches W.C. minimum for Propane Gas, with a maximum of 14 inches W.C. for either.
The JB-72 charbroiler features 12 burners, with one 15,000 BTU/hr burner installed every 6 inches of broiler width, providing even and powerful heat across the cooking surface.
The charbroiler comes standard with heavy-duty 4-bar cast iron top grates, which include built-in grease guides to effectively channel away excess fat and minimize flare-ups.
Yes, but you must specify your altitude when ordering if it is above 2,000 feet, as adjustments may be necessary for proper operation.
