Jade Range (Middleby)

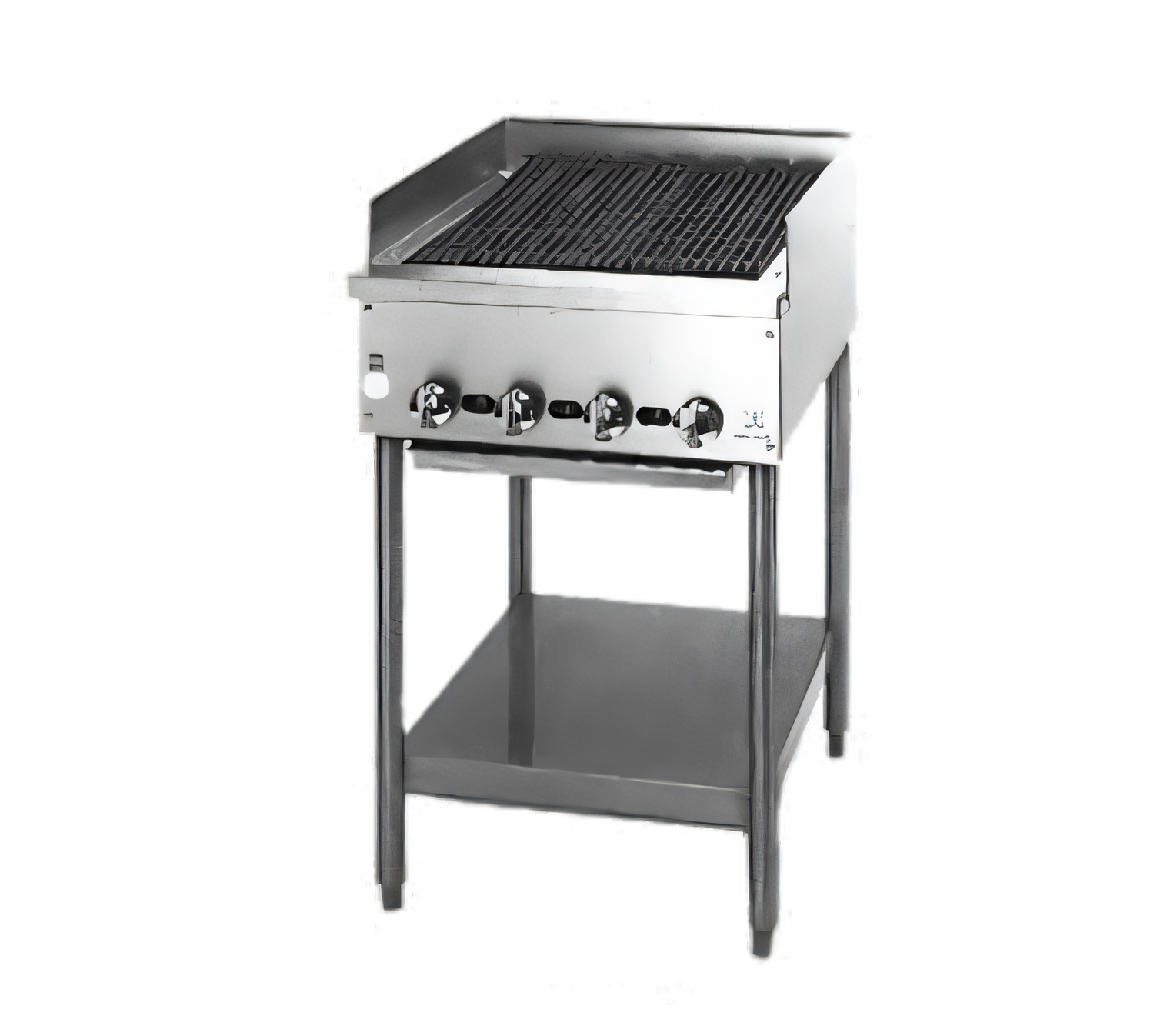

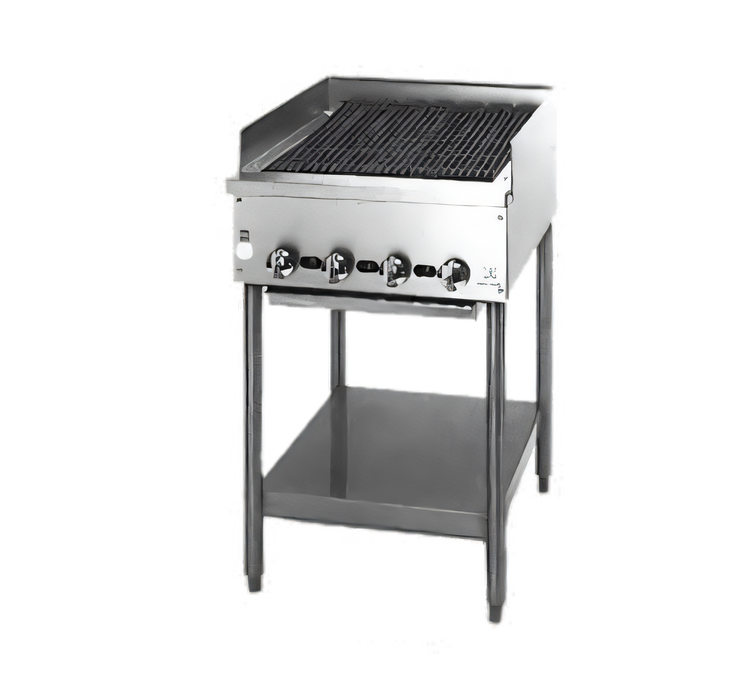

Jade Range Supreme JB-54-F 54-Inch Radiant Gas Charbroiler with Stand

SKU: JB-54-F
$14,956.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Grills Gas Charbroilers Jade Range (Middleby) New Arrivals Restaurant Equipment

Jade Range Supreme JB-54-F 54-Inch Radiant Gas Charbroiler with Stand

Floor Model, Natural Gas or Propane, Standard Depth

Deliver consistent, high-performance grilling with the robust Jade Range Supreme JB-54-F charbroiler, designed for demanding commercial kitchens.

  • Heavy-duty 54-inch wide charbroiler for high-volume cooking.
  • Features 9 high-efficiency 15,000 BTU/hr burners with individual infinite manual controls.
  • Equipped with cast iron radiants and grates for superior heat distribution and searing.
  • Built-in grease guides on grates and separate steel drip pans simplify cleaning and reduce flare-ups.
  • Durable all-welded stainless steel construction for longevity and ease of maintenance.
  • Floor model design with stainless steel legs and an undershelf for convenience and storage.

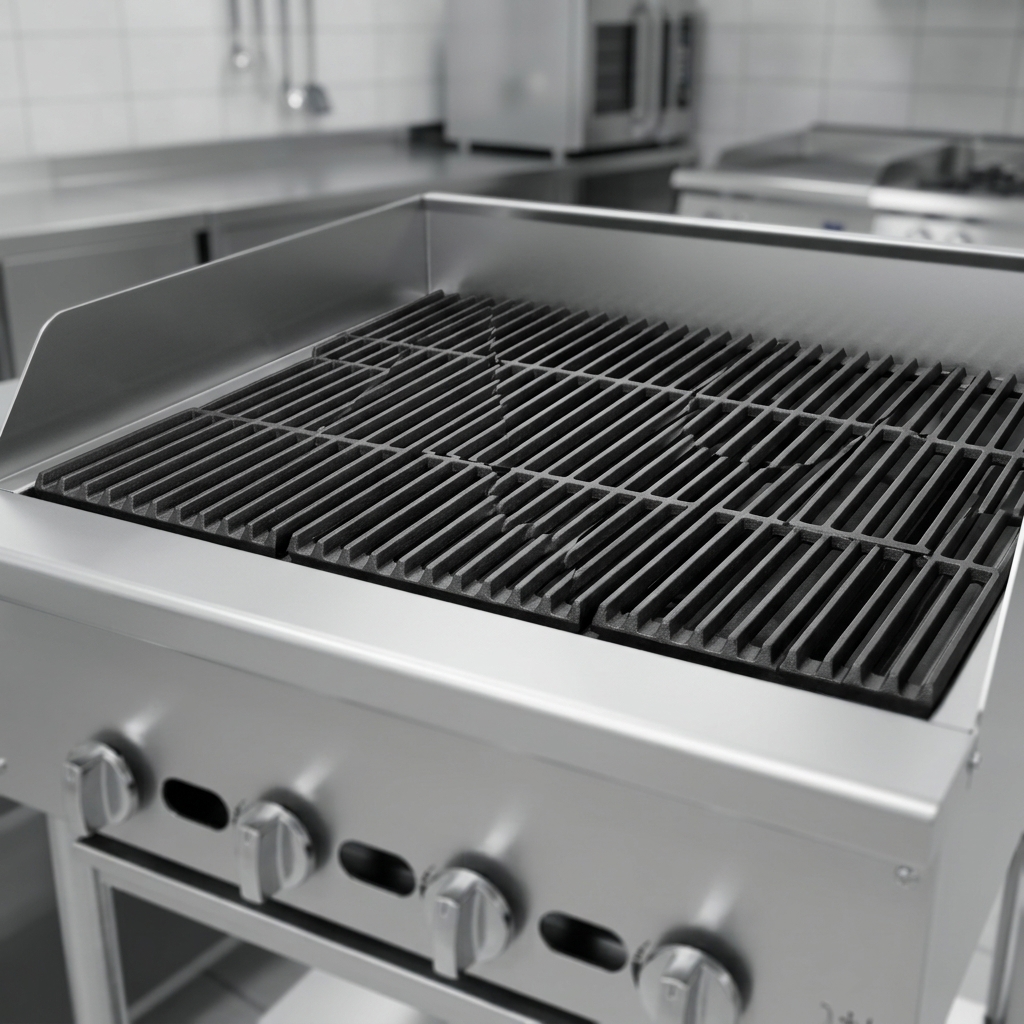

Heavy-Duty Cast Iron Grates

Four-bar cast iron top grates include built-in grease guides that channel away excess fat, significantly reducing flare-ups for safer and cleaner operation.

Observe the robust, four-bar cast iron grates with built-in grease guides, engineered for cleaner and safer charbroiling.

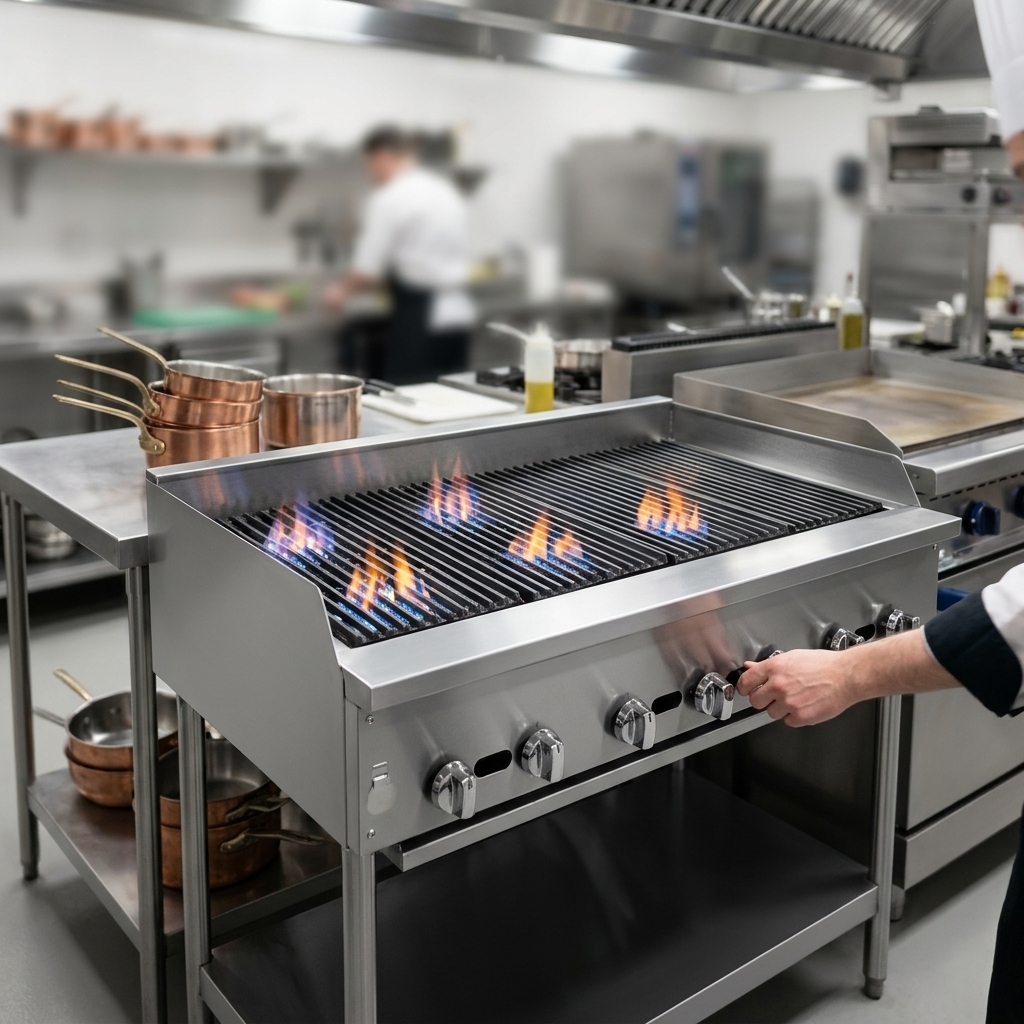

Powerful Burners with Precise Control

Features nine 15,000 BTU/hr burners, one every 6 inches of broiler width, each controlled by an independent infinite manual gas valve for precise heat management across the cooking surface.

Master your grill with nine powerful, independently controlled 15,000 BTU/hr burners for ultimate precision and consistent charbroiled excellence.

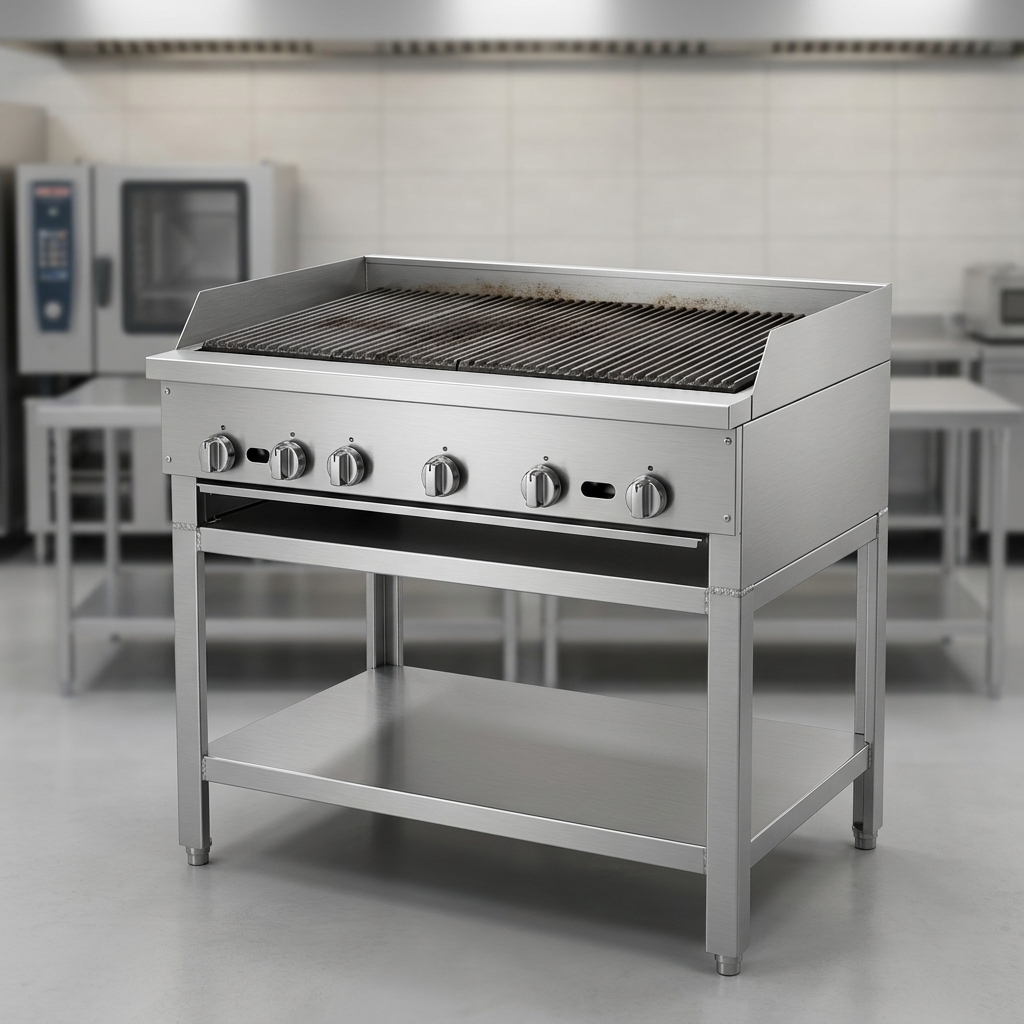

Robust Construction

Constructed with a 12-gauge all-welded firebox and 14-gauge all-welded body, ensuring exceptional durability and longevity in a demanding commercial environment. Exterior features a stainless steel front, sides, and plate shelf.

Discover the exceptional durability and longevity of this charbroiler, built with a robust, all-welded stainless steel construction.

Efficient Grease Management

Equipped with two separate 14-gauge steel drip pans to effectively collect grease, control flare-ups, and simplify cleanup.

Corrosion-Resistant Pilots

Each burner is furnished with a stainless steel pilot tip, designed to resist corrosion and ensure reliable ignition.

Included Gas Regulator

A 3/4-inch gas regulator is shipped loose with the unit and must be installed for proper operation and safety.

Floor Model Design

Comes with 25-inch stainless steel legs with adjustable feet welded to the body, and an undershelf for convenient floor-standing installation and storage.

Specifications

Type Radiant Charbroiler
Style Heavy Duty
Installation Type Floor Model (With Stand)
Cooking Surface Width 54 Inches
Pan Capacity 9 Burners
BTU 135,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch
Gas Inlet Pressure 5-10 Inches W.C. (Minimum), 14 Inches W.C. (Maximum)
Controls Infinite Manual
Material Stainless Steel, Cast Iron
Exterior Finish Stainless Steel
Shipping Width 54 Inches
Shipping Depth 27 Inches
Shipping Height 36 Inches
Shipping Weight 550 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Overall Dimensions:

54.0"W x 27.0"D x 36.0"H

Product Weight:

550.0 lb
Manufacturer Jade Range (Middleby)
Brand name Supreme
Certifications ["NSF", "CSAus"]
Height 36.0in
Width 54.0in
Depth 27.0in
Shipping Weight 550.0lbs
Exterior Finish stainless steel front & sides
Heat radiants, cast iron
Depth (front - back) 27"
Width (side - side) OA 49 - 60"
Grid flat or tilt, cast iron
Base open stand
Specifications Supreme™ Charbroiler, gas, floor model, 54", cast iron radiants & grates, infinite manual controls, built-in grease channels, stainless steel sides, front & plate shelf, 25" legs & undershelf, 135,000 BTU, CSAus, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JB-54-F charbroiler can operate on either Natural Gas or Propane, but the specific gas type must be specified when ordering to ensure proper configuration.
For Natural Gas, a minimum operating pressure of 5 inches W.C. is required. For Propane Gas, a minimum operating pressure of 10 inches W.C. is required. The maximum pressure for both is 14 inches W.C.
Yes, a 3/4-inch gas regulator is supplied with the unit, shipped loose, and must be installed for safe and proper operation.
The JB-54-F charbroiler has 9 burners, with one 15,000 BTU/hr burner every 6 inches of broiler width, totaling 135,000 BTU.
The charbroiler features a 12-gauge all-welded firebox, 14-gauge all-welded construction for the body, and stainless steel for the front, sides, plate shelf, gas tubing, and pilot tips. The grates and burner radiants are heavy-duty cast iron.
