Jade Range (Middleby)

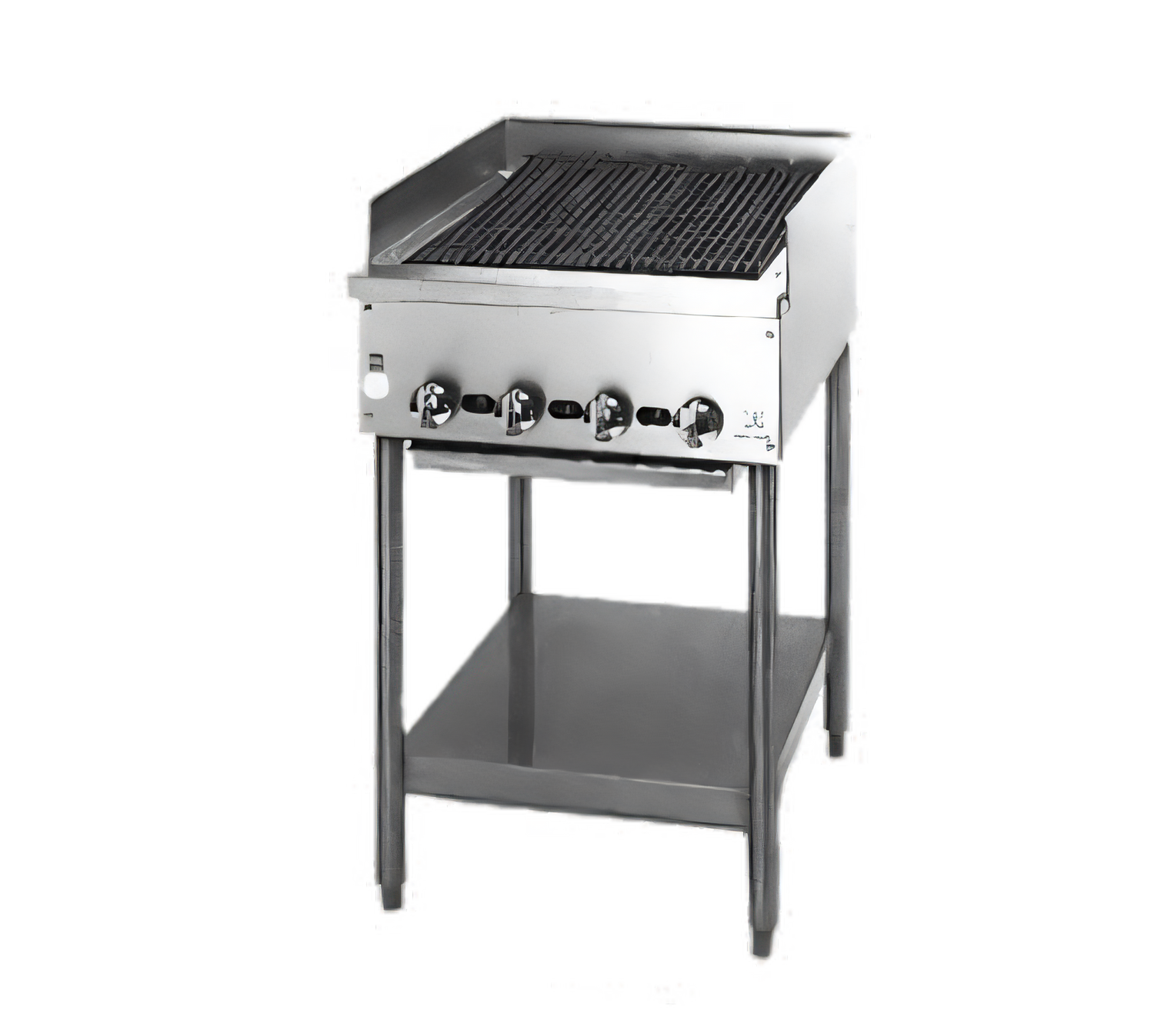

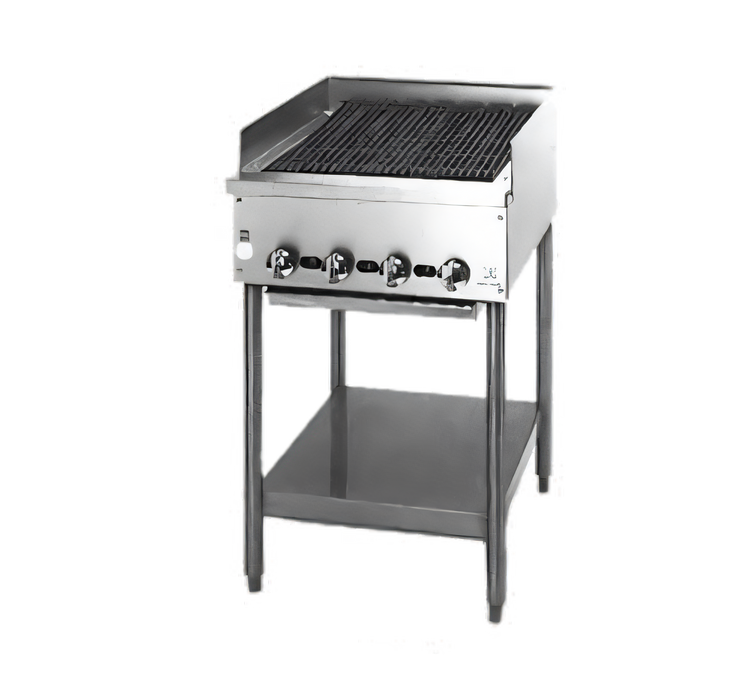

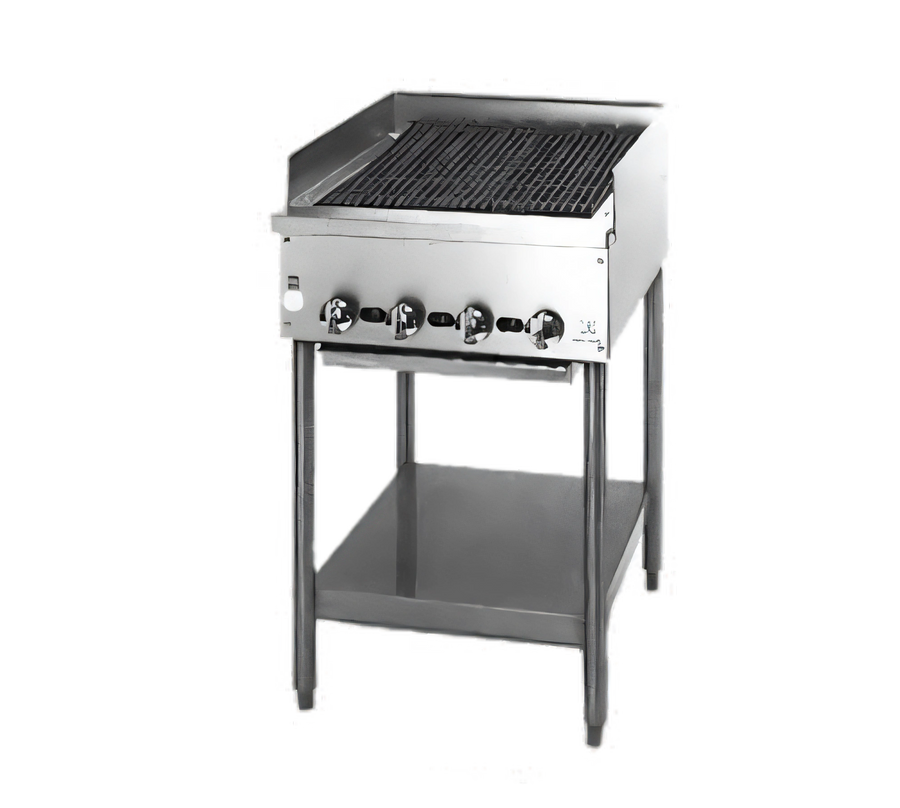

Jade Range Supreme JB-48-F 48 Inch Gas Floor Model Radiant Charbroiler

SKU: JB-48-F
$11,737.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Grills Gas Charbroilers Jade Range (Middleby) New Arrivals Restaurant Equipment

Jade Range Supreme JB-48-F 48 Inch Gas Floor Model Radiant Charbroiler

Full-Size, Natural Gas or Propane, Standard Depth

Achieve superior grilling results with the heavy-duty Jade Range Supreme JB-48-F charbroiler, designed for demanding commercial kitchens.

  • 48-inch wide charbroiler with 8 powerful 15,000 BTU/hr burners for consistent heat.
  • Heavy-duty cast iron grates with built-in grease guides minimize flare-ups and channel excess fat.
  • Infinite manual controls provide precise temperature management for each burner.
  • Durable stainless steel front, sides, and plate shelf ensure longevity and easy cleaning.
  • Floor model design with 25-inch legs and an undershelf for convenient storage.

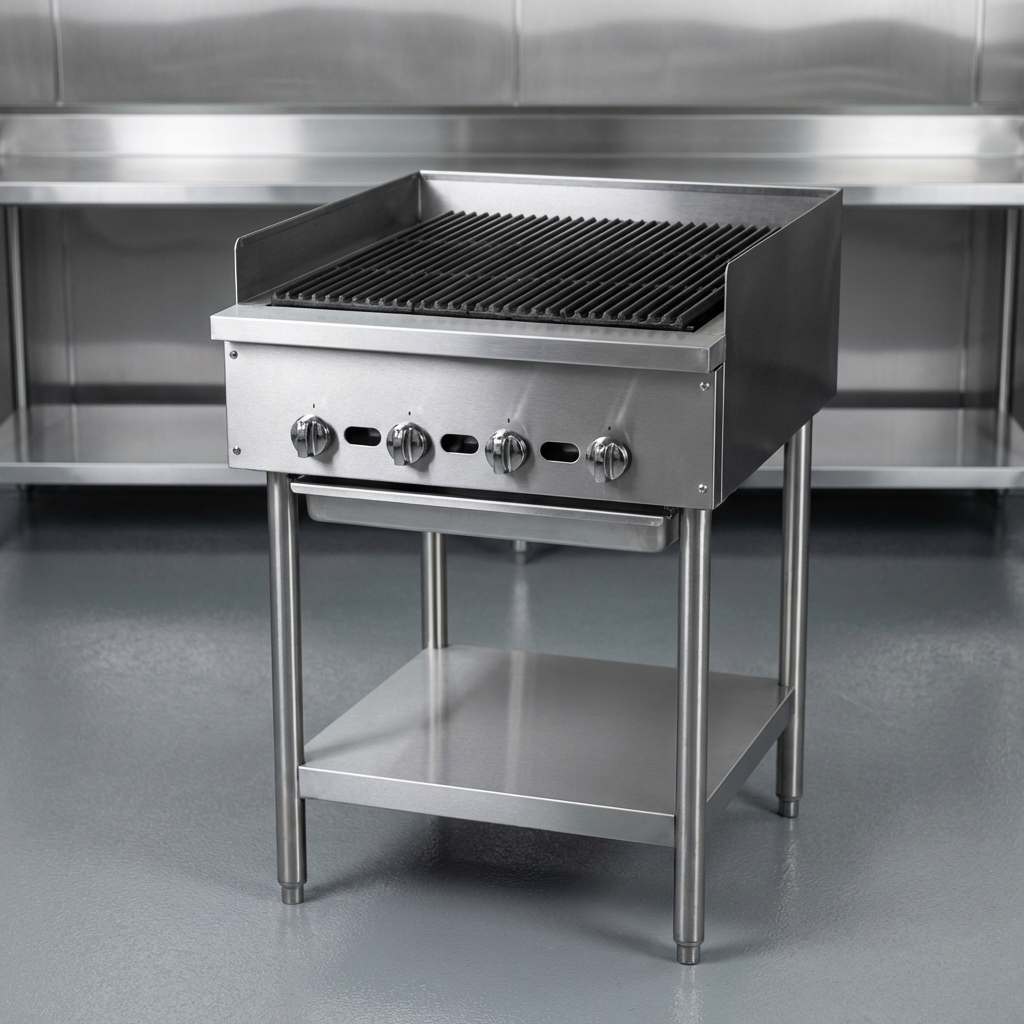

Stainless Steel Construction

Features a stainless steel front, sides, and plate shelf for enhanced durability and effortless cleaning, ideal for commercial environments.

Showcasing its robust stainless steel construction, this charbroiler offers exceptional durability and effortless cleaning for any busy commercial kitchen.

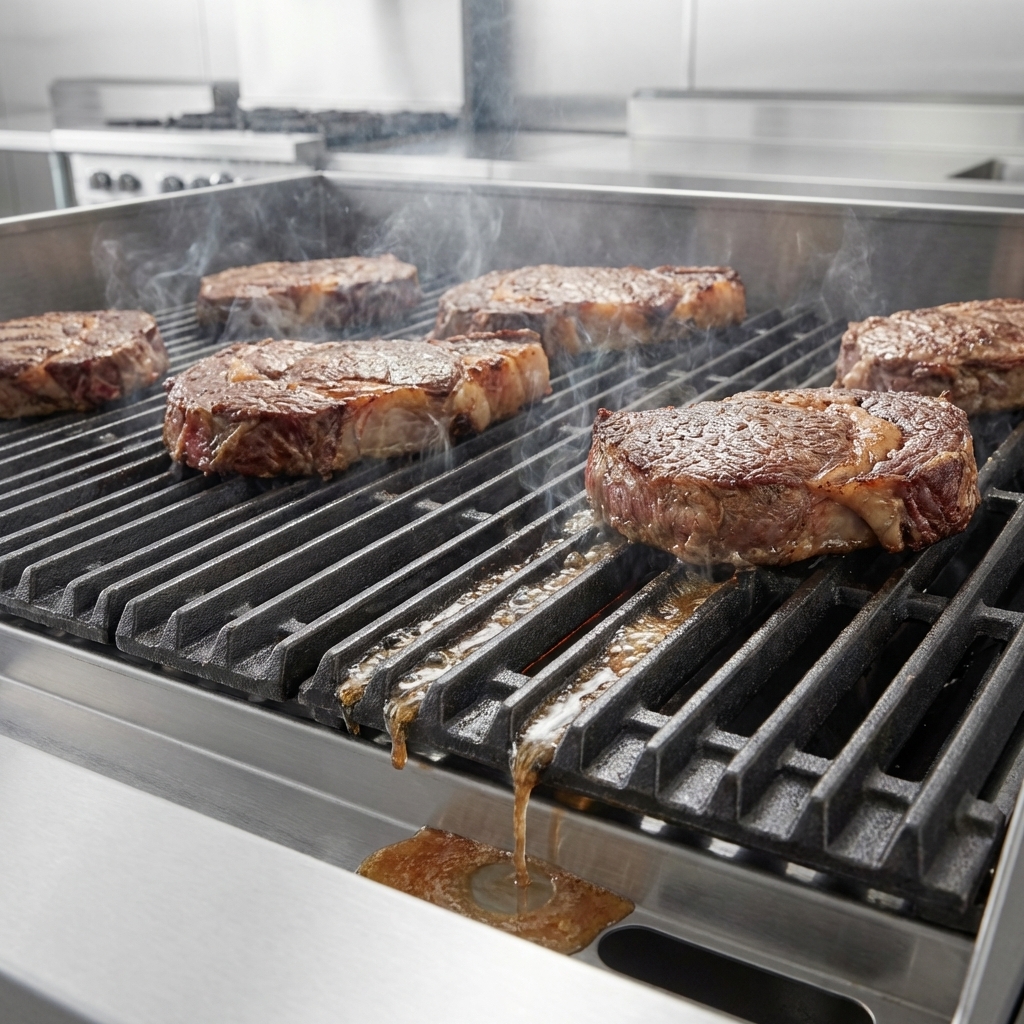

Heavy Duty Cast Iron Grates

Equipped with 4-bar cast iron top grates that include built-in grease guides, effectively channeling away excess fat to reduce unwanted flaring.

Showcasing the robust 4-bar cast iron grates, this charbroiler efficiently channels away excess grease for cleaner cooking.

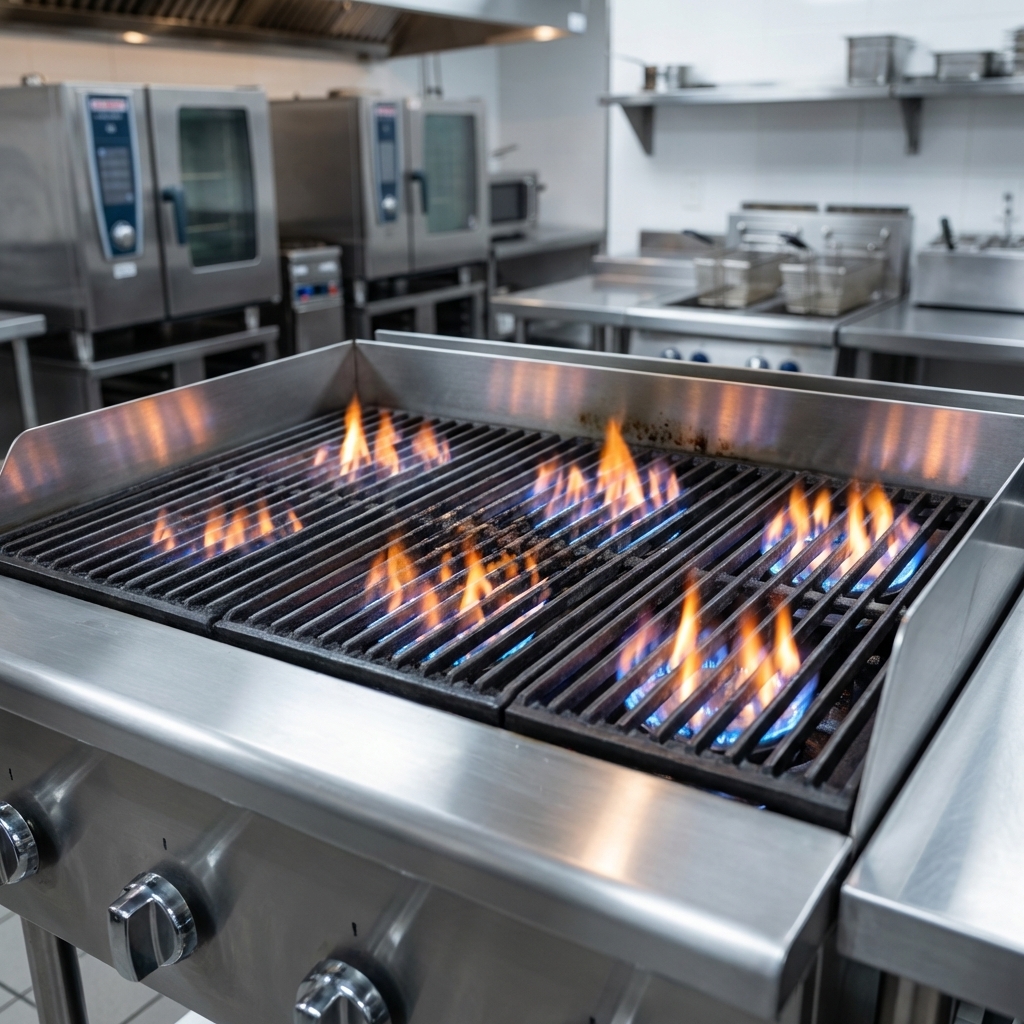

Powerful Gas Burners

Utilizes eight 15,000 BTU/hr burners, strategically placed every 6 inches of broiler width for consistent and powerful heating across the entire cooking surface.

Experience consistent, powerful heat across the entire cooking surface with the charbroiler's robust gas burners.

Infinite Manual Gas Valves

Each burner is controlled by an individual infinite manual gas valve, offering precise heat adjustment and control over different cooking zones.

Heavy Duty Cast Iron Radiants

Includes heavy-duty cast iron burner radiants that ensure even heat distribution and retention for superior grilling performance.

All-Welded Firebox

Constructed with a 12 gauge all-welded firebox, providing a robust and durable structure designed for high-volume commercial use.

Dual Steel Drip Pans

Features two separate 14 gauge steel drip pans designed to collect grease and drippings, helping to control flare-ups and simplify cleanup.

Stainless Steel Gas Tubing

All internal gas tubing is made from stainless steel, ensuring longevity and resistance to corrosion.

Stainless Steel Pilot Tips

Equipped with stainless steel pilot tips that resist corrosion, ensuring reliable ignition and operation.

Stainless Steel Legs with Adjustable Feet

The unit is supported by stainless steel legs with adjustable feet, welded directly to the body for maximum stability and ease of leveling.

Included Gas Regulator

A 3/4 inch gas regulator is supplied with the unit and must be installed for proper and safe operation.

Specifications

Type Charbroiler
Style Radiant
Installation Type Floor Model (With Stand)
Cooking Surface Width 48 Inches
Burners 8
BTU Per Burner 15,000 BTU
BTU 120,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. (minimum)
Gas Inlet Pressure (Propane) 10 Inches W.C. (minimum)
Gas Inlet Pressure (Maximum) 14 Inches W.C.
Controls Infinite Manual
Material Stainless Steel
Interior Finish Welded Steel Firebox
Finish Stainless Steel
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 48 Inches
Shipping Depth 27 Inches
Shipping Height 36 Inches
Shipping Weight 500 lb.

Overall Dimensions:

48.0"W x 27.0"D x 36.0"H

Product Weight:

500.0 lb
Manufacturer Jade Range (Middleby)
Brand name Supreme
Certifications ["NSF", "CSAus"]
Height 36.0in
Width 48.0in
Depth 27.0in
Shipping Weight 500.0lbs
Grid flat or tilt, cast iron
Heat radiants, cast iron
Width (side - side) OA 37 - 48"
Exterior Finish stainless steel front & sides
Depth (front - back) 27"
Base open stand
Specifications Supreme™ Charbroiler, gas, floor model, 48", cast iron radiants & grates, infinite manual controls, built-in grease channels, stainless steel sides, front & plate shelf, 25" legs & undershelf, 120,000 BTU, CSAus, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Jade Range Supreme JB-48-F charbroiler can be configured for either Natural Gas or Propane. It is crucial to specify the desired gas type when placing an order.
The JB-48-F model is equipped with 8 burners, each providing 15,000 BTU/hr, resulting in a total output of 120,000 BTU/hr.
Yes, for Natural Gas, a minimum operating pressure of 5 inches W.C. is required. For Propane Gas, a minimum of 10 inches W.C. is necessary. The maximum allowable operating pressure is 14 inches W.C.
Yes, a 3/4 inch gas regulator is provided with the unit. It is shipped loose and MUST be installed for the charbroiler to operate correctly and safely.
The charbroiler features heavy-duty cast iron grates and radiants, a 12 gauge all-welded firebox, and a 14 gauge all-welded construction with a stainless steel front, plate shelf, and sides for durability and hygiene.
