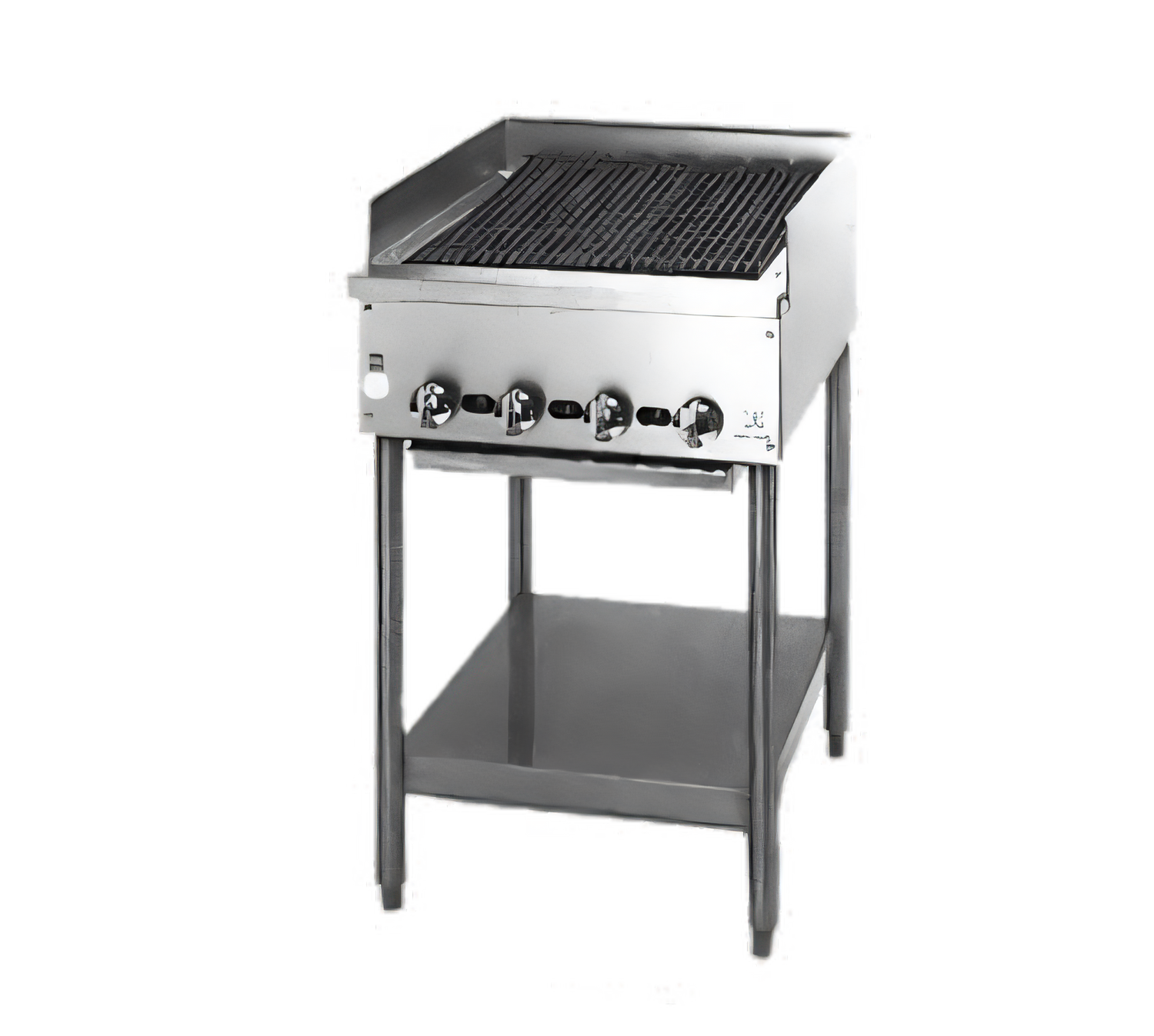

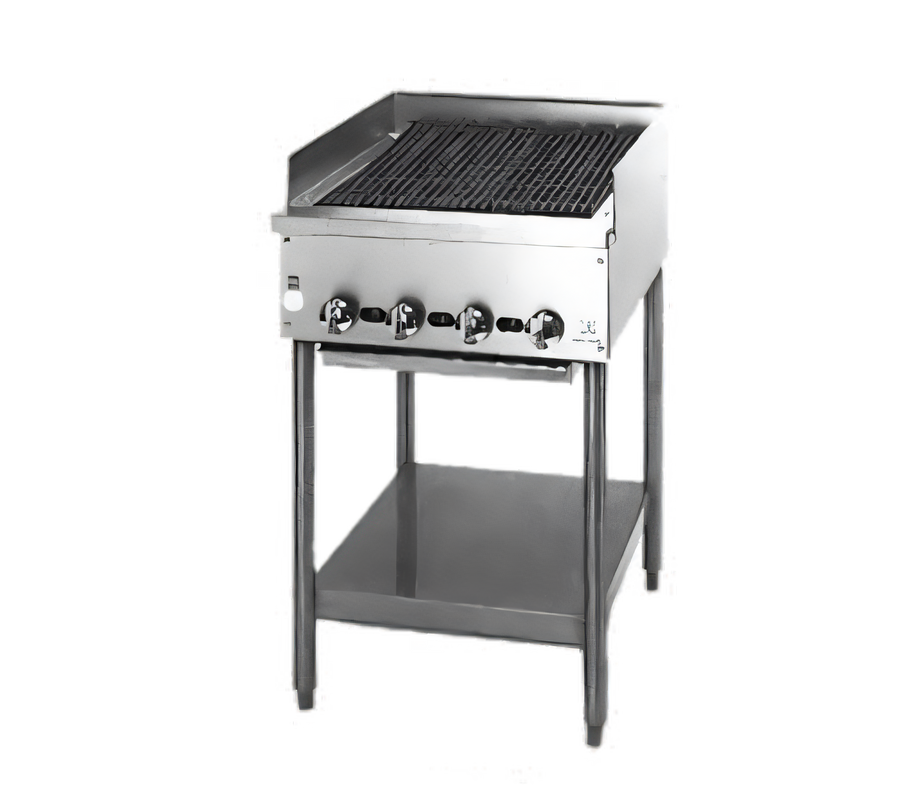

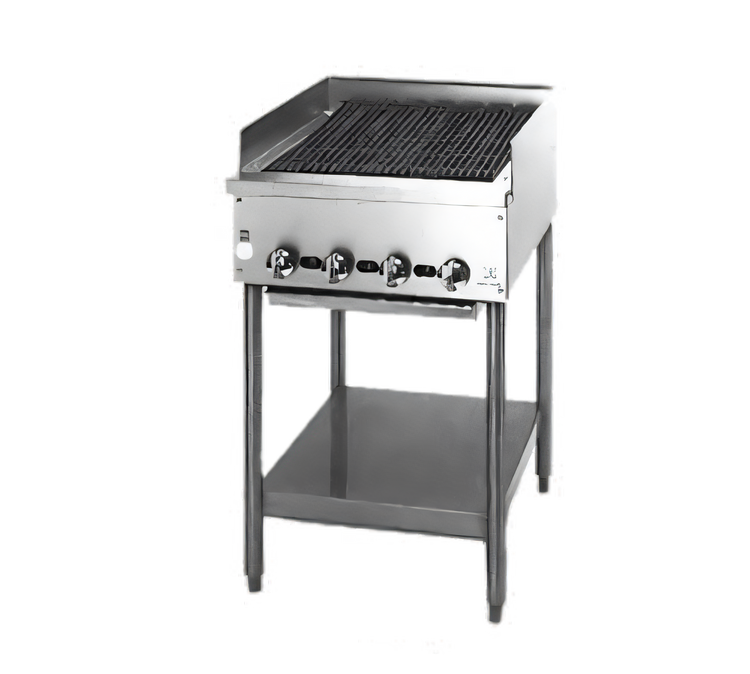

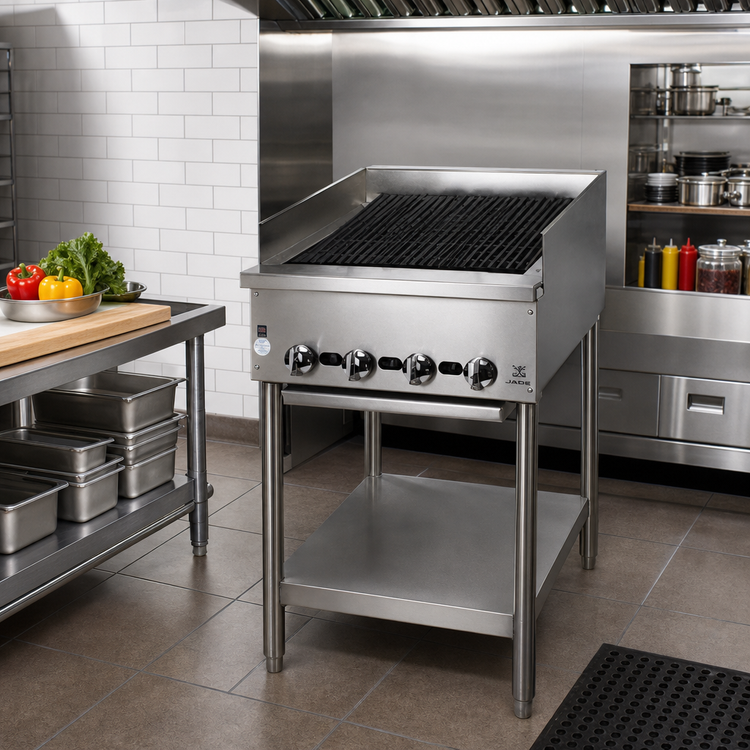

Jade Supreme JB-36-F 36" Radiant Gas Floor Model Charbroiler

Full-Size, Natural Gas or Propane, Standard Depth

Engineered for high-volume commercial kitchens, the Jade Supreme JB-36-F charbroiler delivers powerful, precise grilling with exceptional durability.

  • Equipped with six 15,000 BTU/hr burners for a total of 90,000 BTU, ensuring rapid heating and consistent cooking performance.
  • Heavy-duty cast iron grates with built-in grease guides channel away excess fat, reducing flare-ups and simplifying cleaning.
  • Individual infinite control manual gas valves provide precise heat management across the 36-inch cooking surface.
  • Robust 12-gauge all-welded firebox and stainless steel construction on the front, sides, and plate shelf offer superior durability.
  • Includes a 3/4 inch gas regulator and comes as a floor model with 25-inch legs and an undershelf for convenient placement.
  • Designed for commercial use, offering reliable performance for charbroiling a variety of foods.

Overall Dimensions:

36.0"W x 27.0"D x 36.0"H

Product Weight:

400.0 lb

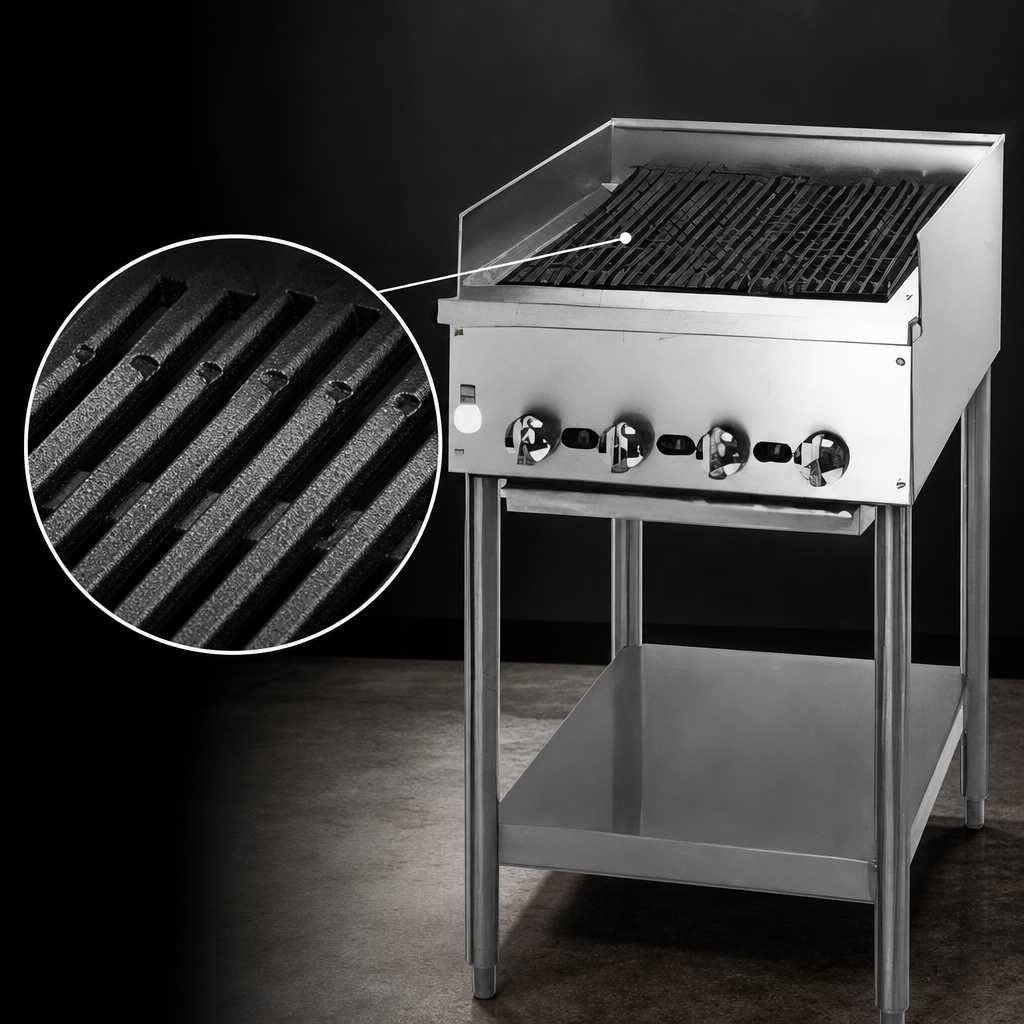

Heavy Duty Cast Iron Grates

Features 4-bar cast iron top grates with built-in grease guides that efficiently channel away excess fat, minimizing flare-ups and ensuring healthier cooking.

Powerful Burner System

Equipped with six 15,000 BTU/hr burners, strategically placed every 6 inches of the broiler width, delivering a total of 90,000 BTU for intense and even heat distribution.

Infinite Manual Controls

Each burner is controlled by an independent infinite manual gas valve, allowing precise temperature adjustment for different cooking zones.

Durable Construction

Built with a 12-gauge all-welded firebox and 14-gauge all-welded construction, featuring stainless steel front, sides, and plate shelf for long-lasting commercial use.

Efficient Grease Management

Two separate 14-gauge steel drip pans are provided to collect grease, further controlling flare-ups and making cleanup easier.

Corrosion-Resistant Pilots

Each burner is furnished with a stainless steel pilot tip designed to resist corrosion, ensuring reliable ignition.

Floor Model Design

Comes as a floor model with 25-inch stainless steel legs and an undershelf, providing a sturdy base and additional storage space.

Integrated Gas Regulator

A 3/4 inch gas regulator is supplied (shipped loose, must be installed) to ensure proper and safe gas operation.

Type Charbroiler
Style Radiant
Installation Type Floor Model (With 25 Inch Legs and Undershelf)
BTU 90,000 BTU
Burners 6
Controls Infinite Manual
Gas Type Natural Gas or Propane (Field Convertible)
Gas Connection Size 3/4 Inch
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. Minimum
Gas Inlet Pressure (Propane) 10 Inches W.C. Minimum
Material Stainless Steel
Exterior Finish Stainless Steel Front and Sides
Grid Material Cast Iron
Radiant Material Cast Iron
Cooking Surface Width 36 Inches
Cooking Surface Depth 26 Inches
Compartments 1
Shipping Width 36 Inches
Shipping Depth 27 Inches
Shipping Height 36 Inches
Shipping Weight 400 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This charbroiler is designed to operate on either Natural Gas or Propane, but the type of gas must be specified when ordering. It comes with a 3/4 inch gas regulator that must be installed.
For Natural Gas, a minimum of 5 inches W.C. operating pressure is required. For Propane Gas, a minimum of 10 inches W.C. operating pressure is required, with a maximum of 14 inches W.C.
The JB-36-F model has six 15,000 BTU/hr burners, resulting in a total BTU output of 90,000 BTU.
Yes, this charbroiler features heavy-duty cast iron top grates and heavy-duty cast iron burner radiants designed for durability and high performance in a commercial setting.
Yes, as a floor model, the JB-36-F is supplied with 25-inch legs and an undershelf, providing convenient storage space beneath the unit.
