Jade Range (Middleby)

Jade Range Supreme JB-24 24-Inch Gas Radiant Countertop Charbroiler

SKU: JB-24
$5,990.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Grills Gas Charbroilers Jade Range (Middleby) New Arrivals Restaurant Equipment

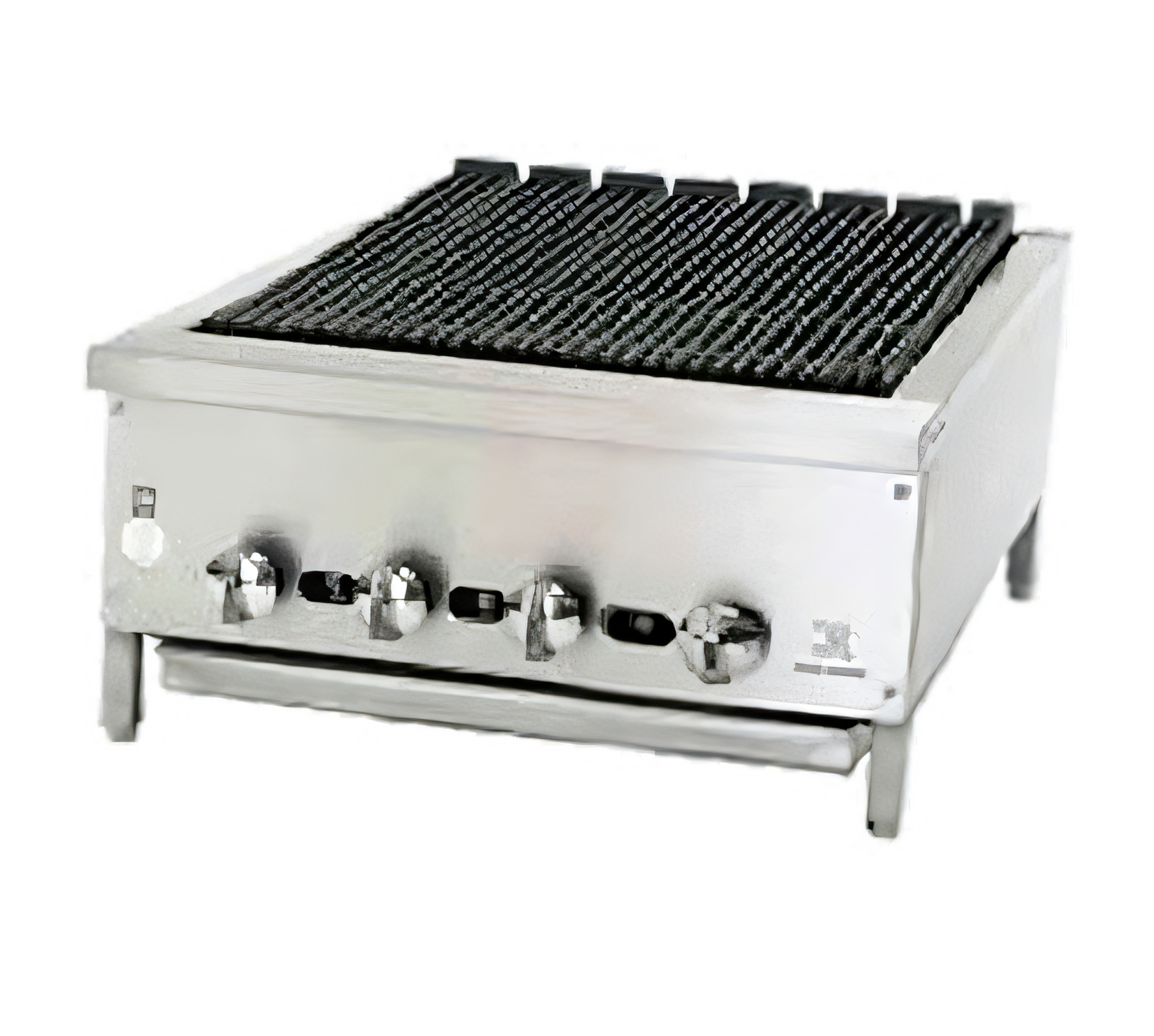

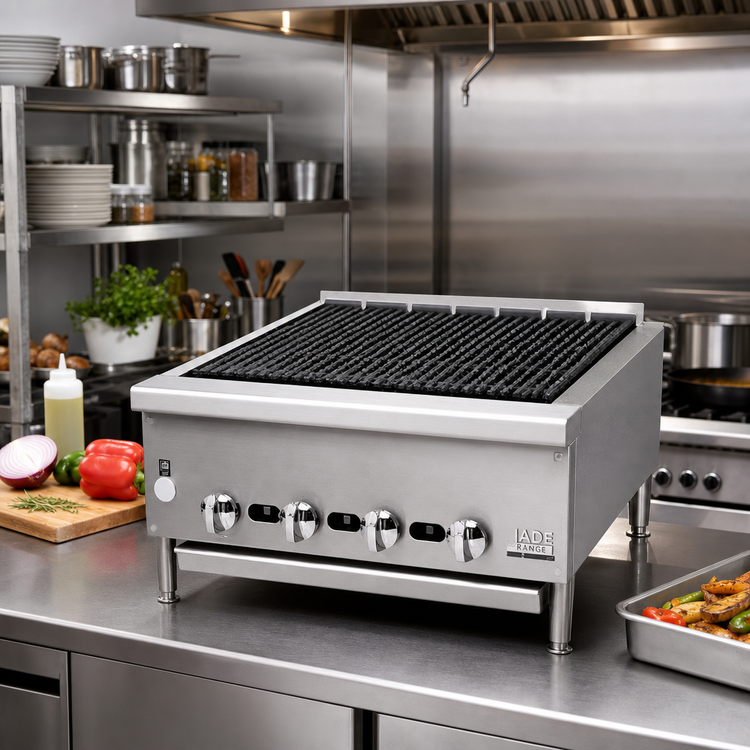

Jade Range Supreme JB-24 24-Inch Gas Radiant Countertop Charbroiler

Countertop, Radiant Heat, 60,000 BTU

Experience superior grilling performance and durability with the Jade Range Supreme JB-24 charbroiler, designed for heavy-duty commercial kitchen demands.

  • Equipped with heavy-duty cast iron grates and radiants for even heat distribution and professional searing.
  • Features four 15,000 BTU/hr burners, providing a total of 60,000 BTU for powerful cooking.
  • Individual infinite manual controls for each burner offer precise temperature management across the 24-inch cooking surface.
  • Built-in grease guides on grates and separate steel drip pans reduce flare-ups and simplify cleaning.
  • Constructed with robust stainless steel exterior and all-welded firebox for long-lasting commercial use.
  • Countertop design with adjustable legs provides flexibility for various kitchen layouts.

Overall Dimensions:

24.0"W x 27.0"D x 13.0"H

Product Weight:

300.0 lb

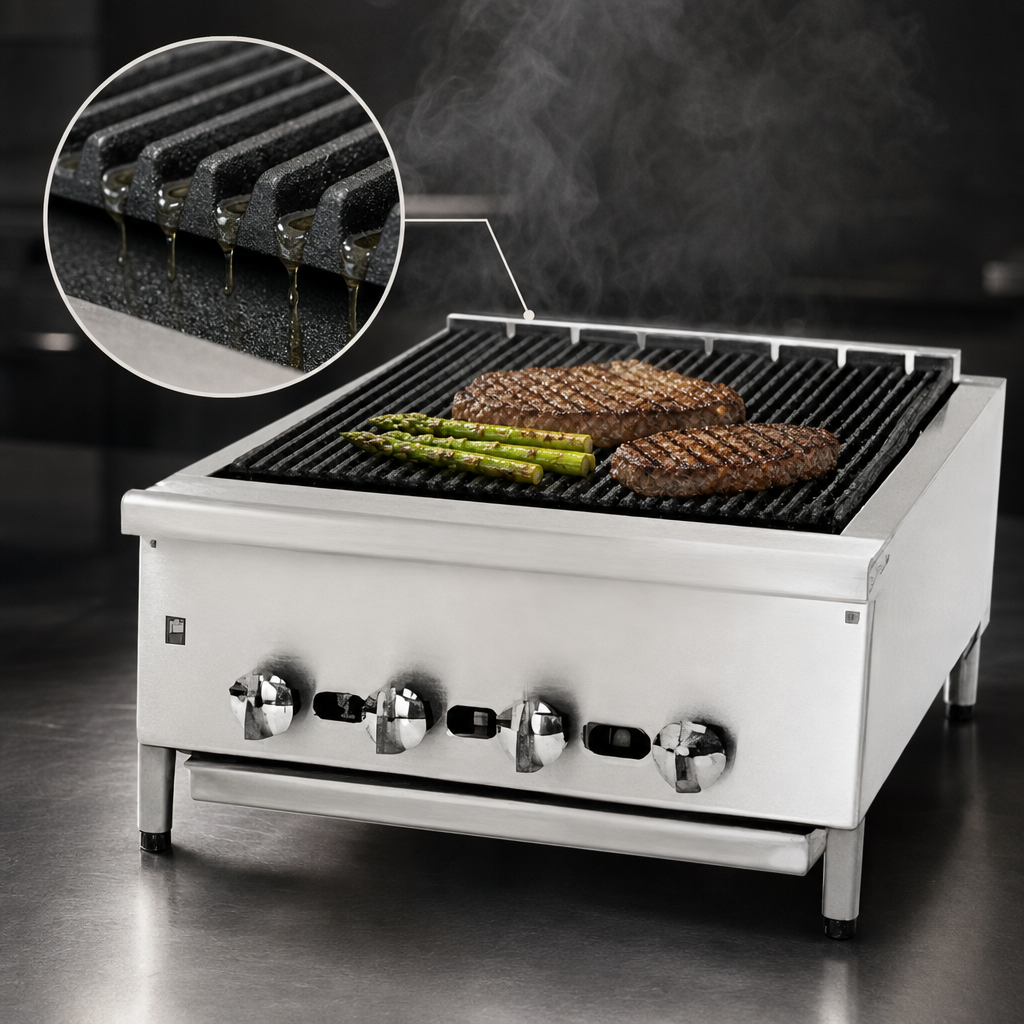

Heavy Duty Cast Iron Grates

Four bar cast iron top grates with built-in grease guides efficiently channel away excess fat, reducing flare-ups and ensuring healthier cooking.

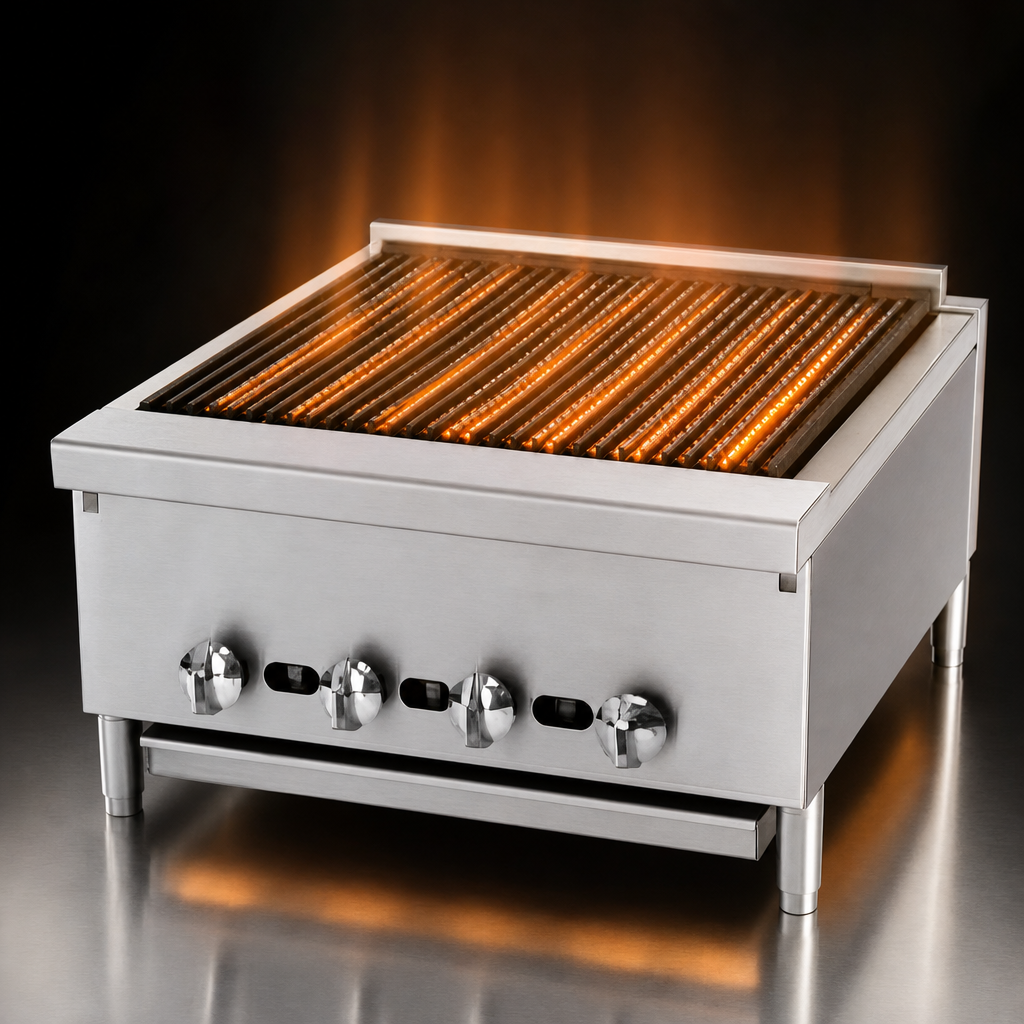

Powerful Radiant Heating

One 15,000 BTU/hr burner every 6 inches of broiler width, paired with heavy-duty cast iron burner radiants, delivers intense and consistent heat.

Precise Heat Control

Each burner is equipped with an infinite control manual gas valve, allowing for independent and precise temperature adjustments for different cooking zones.

Durable Construction

Features a 12 gauge all-welded firebox and 14 gauge all-welded construction with stainless steel front, sides, and plate shelf for robust commercial performance.

Easy Grease Management

Includes two separate 14 gauge steel drip pans to control flare-ups and collect grease, simplifying cleanup.

Corrosion Resistant Components

Stainless steel gas tubing throughout and stainless steel pilot tips resist corrosion for extended lifespan.

Adjustable Legs

Stainless steel legs with adjustable feet are welded to the body, allowing for stable installation on various surfaces.

Type Charbroiler
Style Radiant
Installation Type Countertop
Width 24 Inches
Depth 27 Inches
Height 13 Inches
Weight 300 lb.
BTU 60,000 BTU
Burners 4
Controls Infinite Manual
Gas Type Natural Gas
Gas Connection Size 3/4 Inch
Gas Inlet Pressure 5 Inches W.C. (Natural Gas Min)
Material Stainless Steel and Cast Iron
Interior Finish 12 Gauge All Welded Firebox
Shipping Width 24 Inches
Shipping Depth 27 Inches
Shipping Height 13 Inches
Shipping Weight 250 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JB-24 typically comes configured for Natural Gas, requiring a minimum operating pressure of 5 inches W.C. However, it can also be ordered for Propane gas, which requires a minimum operating pressure of 10 inches W.C.
The JB-24 charbroiler is equipped with four 15,000 BTU/hr burners, totaling 60,000 BTU, allowing for multiple cooking zones.
Yes, the heavy-duty cast iron grates feature built-in grease guides that channel away excess fat. Additionally, the unit includes two separate 14 gauge steel drip pans for easy removal and cleaning, helping to control flare-ups.
The JB-24 is a countertop model by default. However, Jade Range offers an option to convert it to a floor model by adding '-F' to the model number, which would then allow for accessories like casters.
The Jade Range Supreme JB-24 requires a 3/4 inch gas connection and must be connected with the supplied gas appliance regulator for proper operation.
