Jade Range (Middleby)

Jade Range Supreme 12-Inch Countertop Radiant Gas Charbroiler

SKU: JB-12
$4,875.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Grills Gas Charbroilers Jade Range (Middleby) New Arrivals Restaurant Equipment

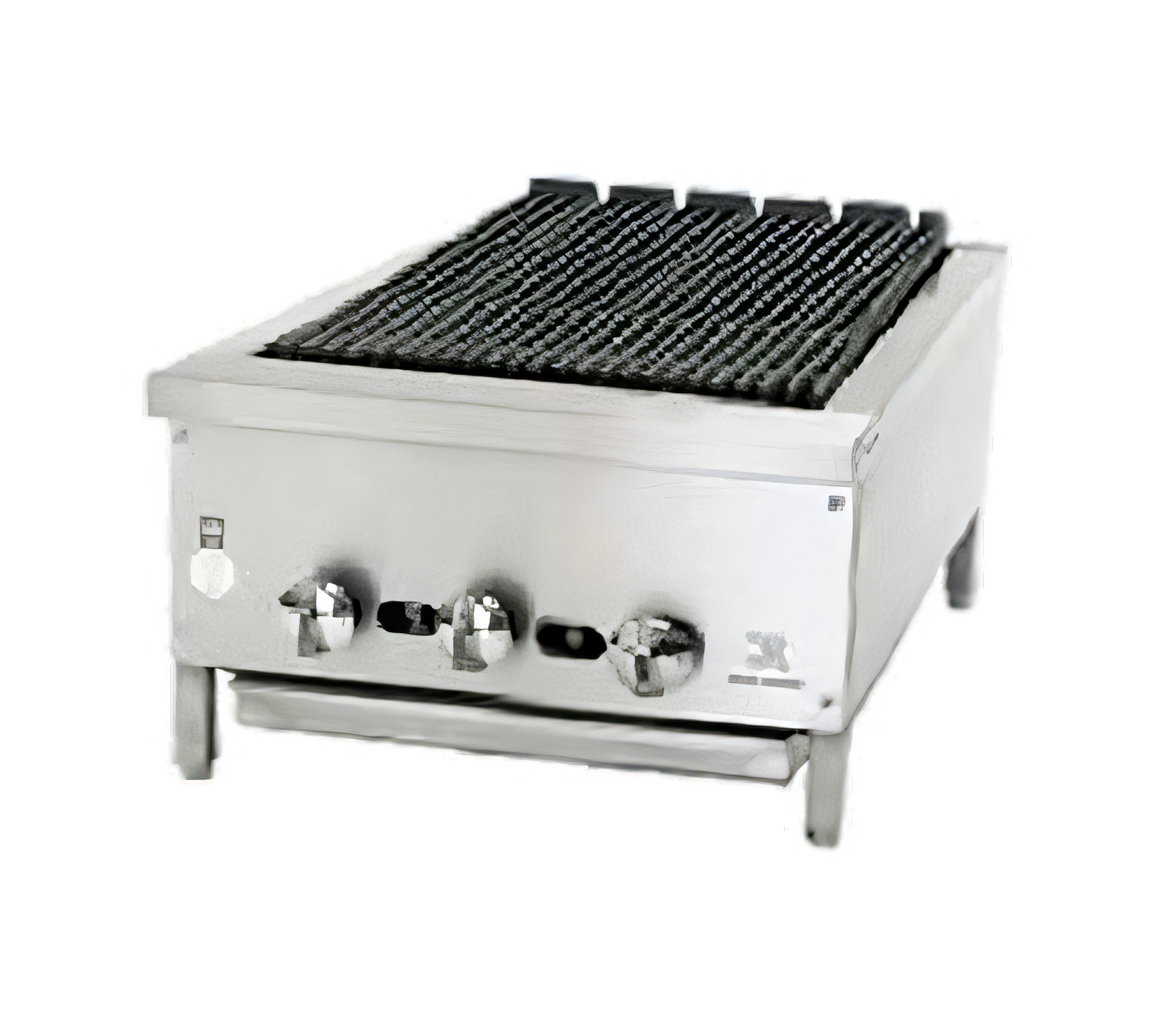

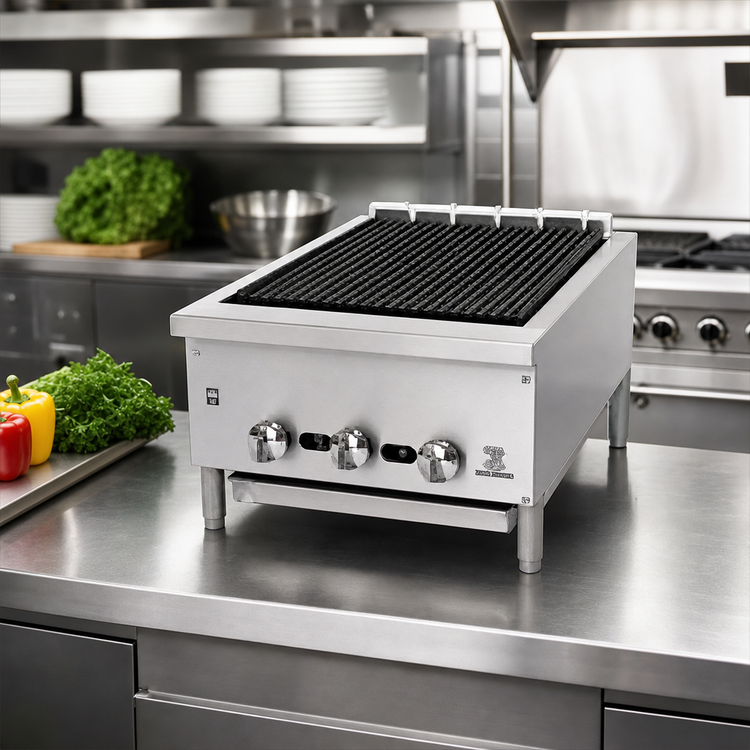

Jade Range Supreme 12-Inch Countertop Radiant Gas Charbroiler

Cast Iron Grates and Radiants, Infinite Manual Controls, 30,000 BTU

This compact radiant charbroiler packs 30,000 BTU of precise heat and durable cast iron cooking surfaces into a 12-inch countertop footprint.

  • Compact 12-inch countertop charbroiler for tight commercial kitchen spaces
  • Two 15,000 BTU burners deliver 30,000 BTU/hr of radiant cooking power
  • Heavy-duty cast iron grates and radiants help promote even heat and reduce flare-ups
  • Infinite manual controls give each burner precise heat adjustment
  • Stainless steel sides, front, and plate shelf support durability and easy cleanup
  • Built-in grease channels, drip pans, and adjustable legs aid operation and maintenance

Overall Dimensions:

12.0"W x 27.0"D x 13.0"H

Product Weight:

200.0 lb

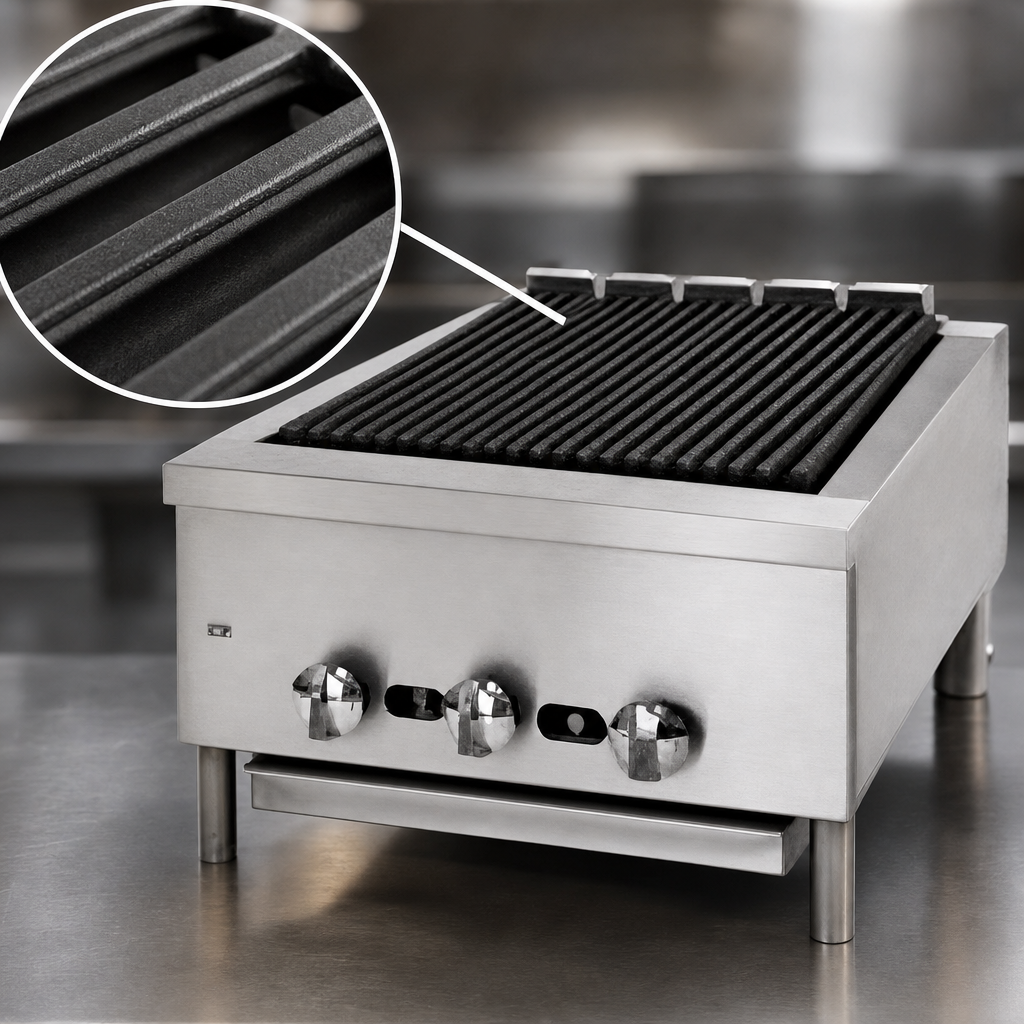

Cast Iron Top Grates

Heavy-duty 4-bar cast iron grates include built-in grease guides to help channel drippings away and reduce flare-ups.

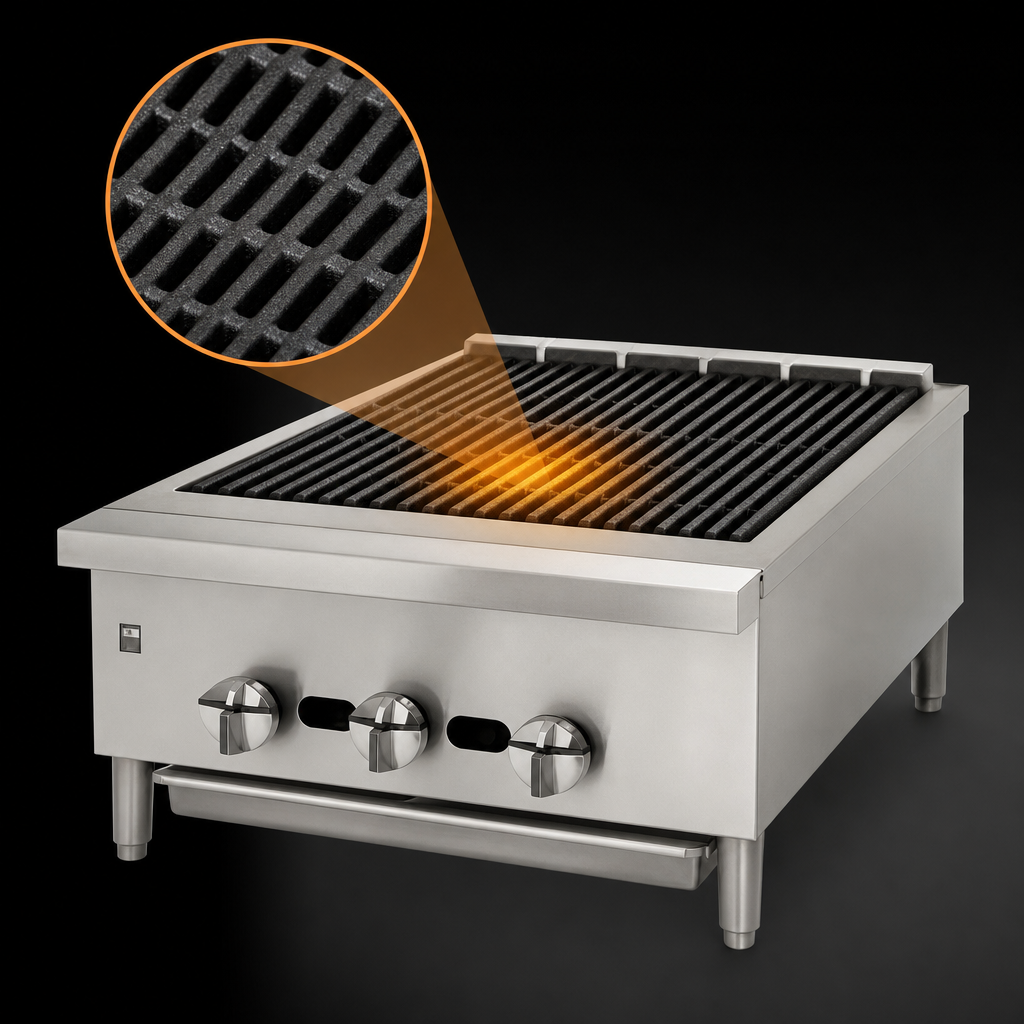

Cast Iron Burner Radiants

Durable cast iron radiants support even radiant heat performance for charbroiling.

Infinite Manual Gas Valves

Individual manual controls at each burner provide precise heat adjustment.

High-Output Burner Layout

One 15,000 BTU/hr burner is provided every 6 inches of broiler width for consistent coverage.

All-Welded Firebox

12-gauge welded firebox construction is built for demanding commercial use.

Stainless Steel Construction

Stainless steel sides, front, and plate shelf improve durability and simplify cleanup.

Grease Management

Two 14-gauge steel drip pans and built-in grease channels help control flare-ups and collect drippings.

Adjustable Legs

Stainless steel legs with adjustable feet help level the unit during installation.

Gas Regulator Included

A 3/4-inch gas regulator ships loose and must be installed for proper operation.

Type Charbroiler
Style Radiant
Installation Type Countertop
Controls Infinite Manual
BTU 30,000 BTU/hr
Gas Connection Size 3/4 Inch
Material Stainless Steel
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It uses a radiant system with heavy-duty cast iron grates and cast iron burner radiants.
The unit delivers 30,000 BTU/hr total, with one 15,000 BTU/hr burner every 6 inches of broiler width.
The unit uses a 3/4-inch gas connection. Required operating pressure is 5 inches W.C. minimum for natural gas, 10 inches W.C. minimum for propane, and 14 inches W.C. maximum.
Yes. Add "-F" to the model number to order the floor model version.
Available options include wrap-around splash guards, an extended plate shelf, an 8-inch deep poly cutting board, a fish grate, casters for floor models, and flex hose with quick disconnect and restraining device.
