Key specifications

BTU
30,000 BTU
Dimensions
12.0"W × 27.0"D × 36.0"H
Type
Charbroiler
Style
Radiant
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Jade Range SKU: JB-12-F

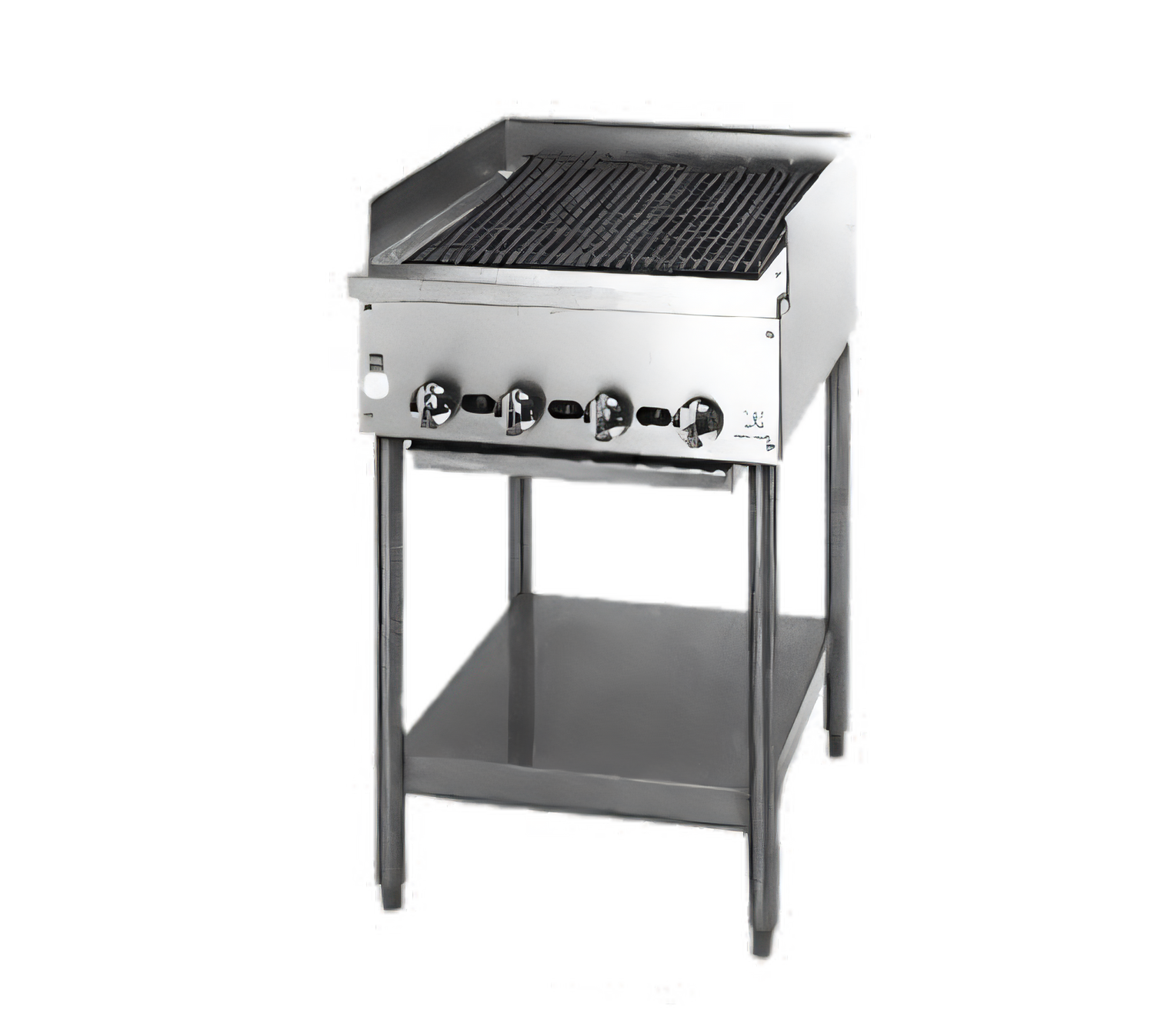

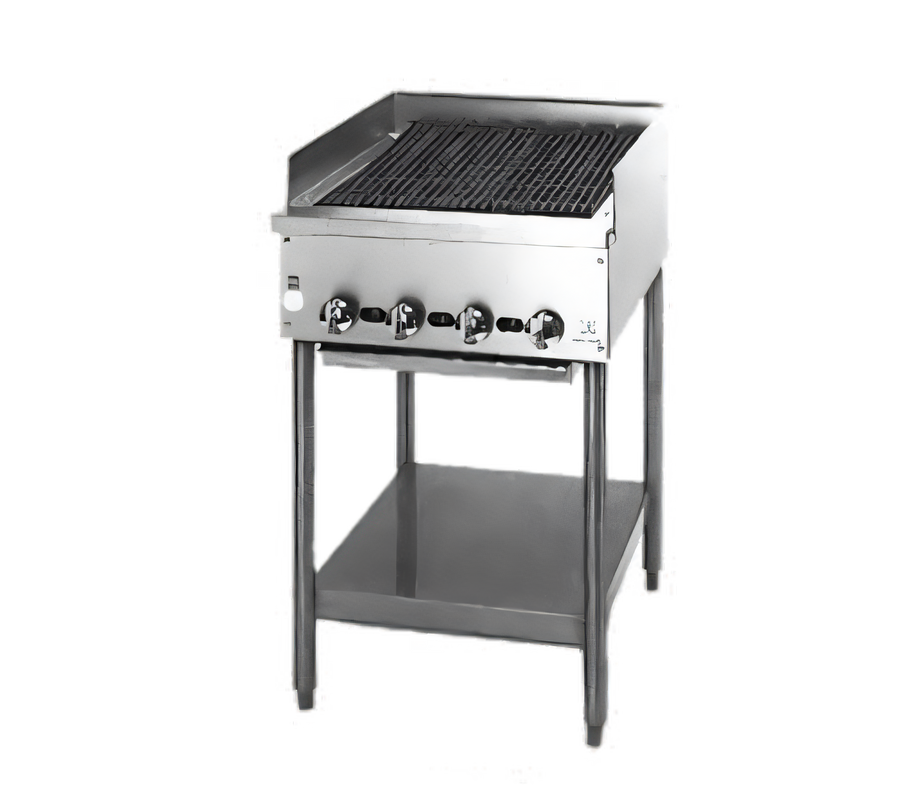

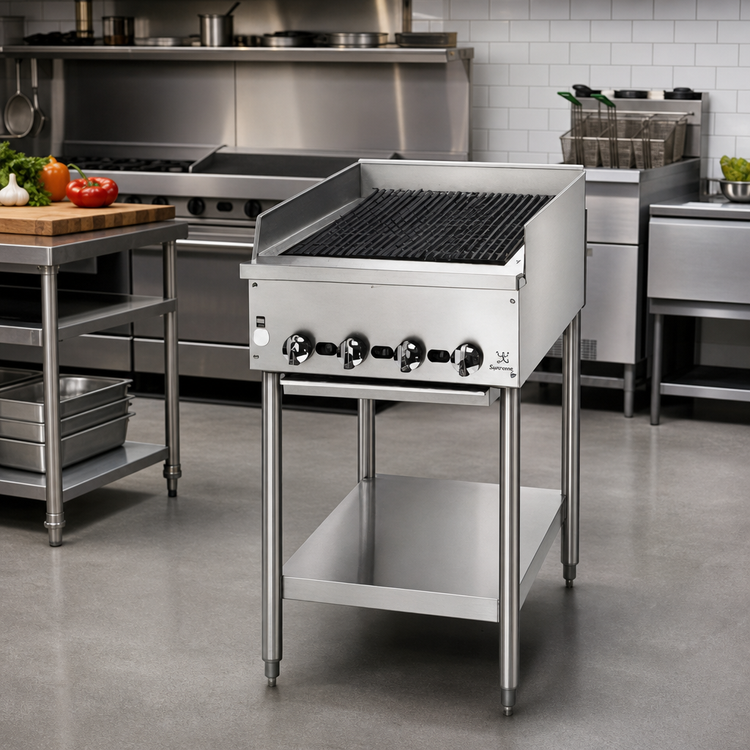

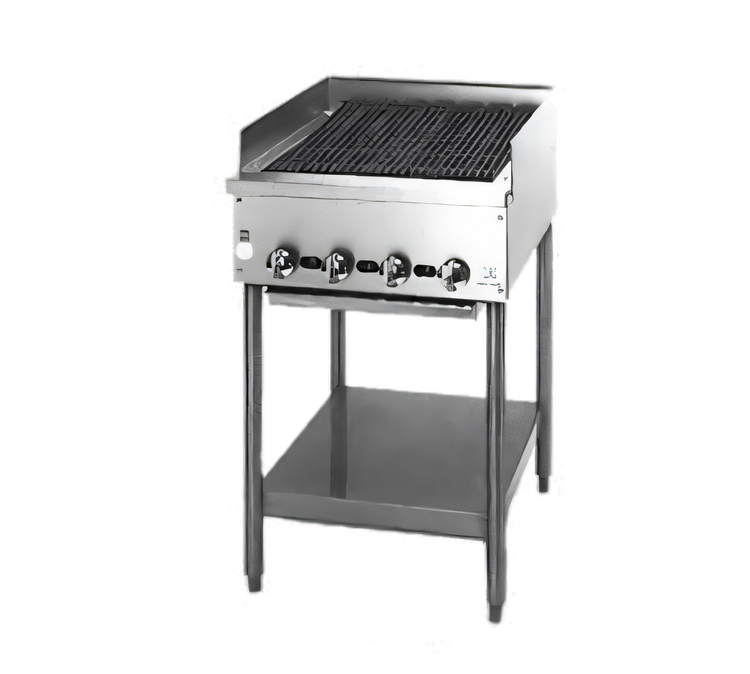

Jade Range Supreme JB-12-F 12-Inch Radiant Gas Charbroiler

$5,454.00
/each
Estimated to ship in 16–19 business days
Base
Gas type
Gas Connector
Included: Jade Range warranty One-year limited warranty covering parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $504/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Style Radiant
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Size 12 Inches
BTU 30,000 BTU
Burner Count 2
Burner Output 15,000 BTU/hr Per Burner
Controls Infinite Manual Gas Valves
Grate Material Cast Iron
Grate Configuration Flat or Tilt
Radiant Material Cast Iron
Shelf Configuration Plate Shelf and Undershelf
Leg Height 25 Inches
Drip Pan Count 2
Gas Connection 3/4 Inch
Firebox Construction 12 Gauge Welded

Description

The Jade Range Supreme JB-12-F is a 12-inch gas floor-model radiant charbroiler with two 15,000 BTU/hr burners for 30,000 BTU total output.

It features heavy-duty cast-iron grates and burner radiants, infinite manual gas controls, built-in grease channels, stainless-steel front and sides, a plate shelf, 25-inch legs, and an undershelf.

  • Two separate steel drip pans help manage grease and flare-ups.
  • A 3/4-inch gas regulator is supplied loose and must be installed for proper operation.

Overall Dimensions:

12.0"W x 27.0"D x 36.0"H

Product Weight:

200.0 lb

Radiant Cooking

Heavy-duty cast-iron burner radiants provide radiant charbroiling.

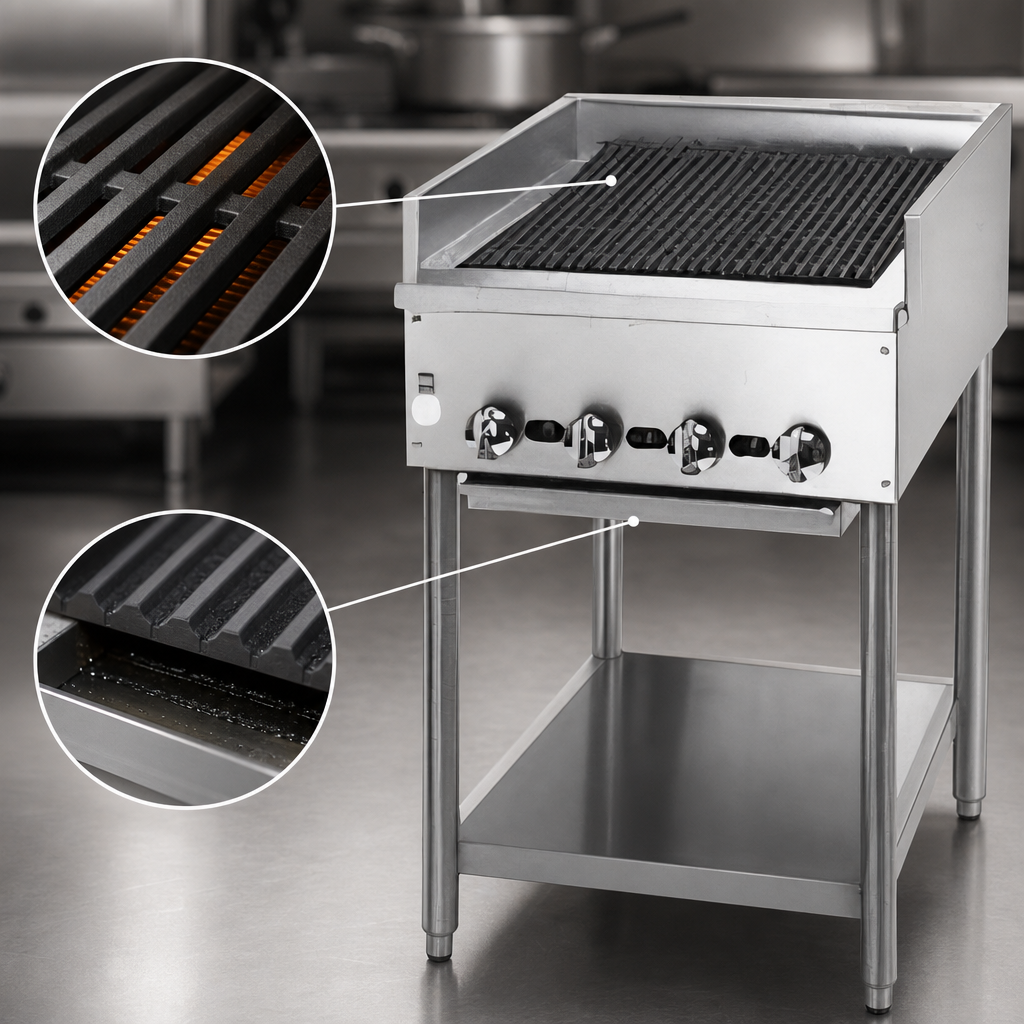

Cast-Iron Grates

Four-bar cast-iron top grates are available in a flat or tilt configuration and include built-in grease guides.

Manual Gas Controls

Infinite manual gas valves control each burner.

Burner Output

The 12-inch model has two burners rated at 15,000 BTU/hr each.

Grease Management

Built-in grease channels and two separate drip pans help manage grease and flare-ups.

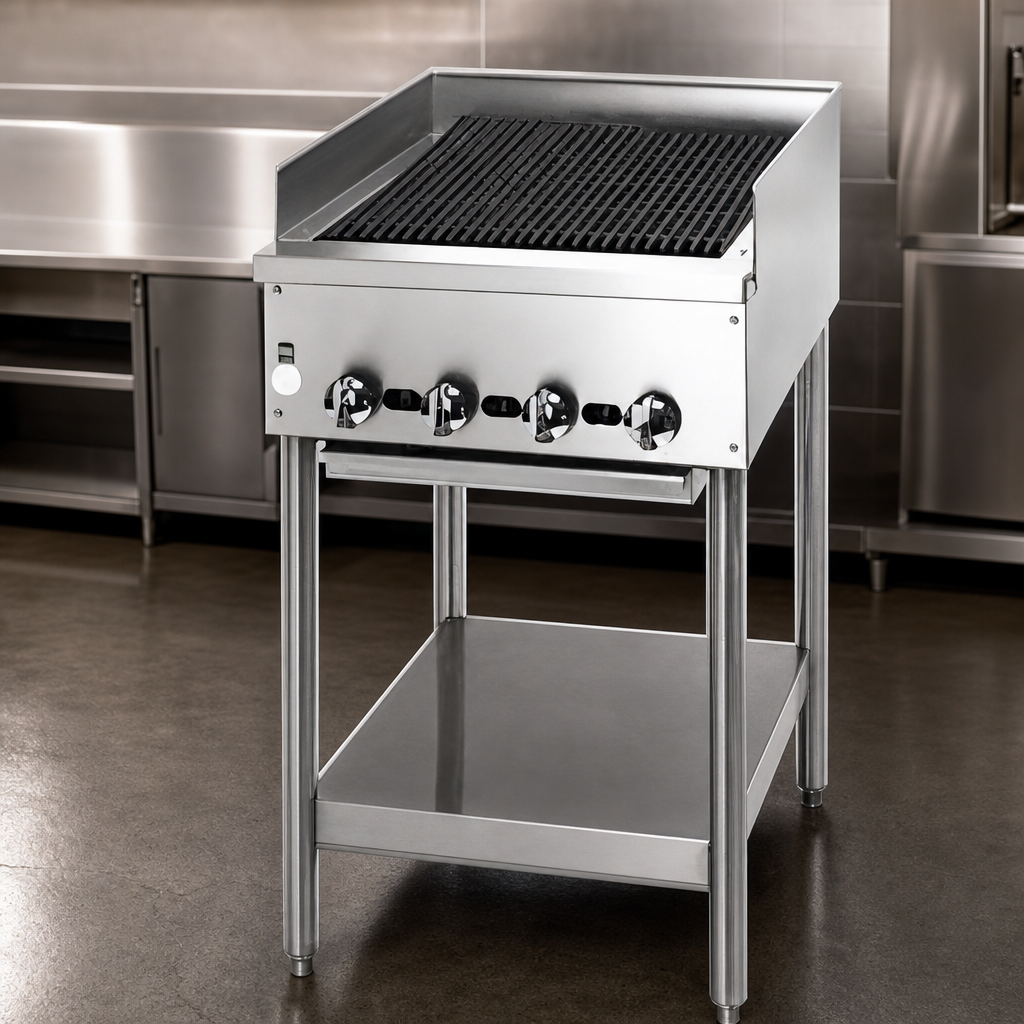

Stainless-Steel Exterior

The front, sides, and plate shelf are stainless steel.

Floor Stand

The floor model includes 25-inch legs with an undershelf.

Gas Regulator

A 3/4-inch gas regulator is supplied loose and must be installed for proper operation.

Frequently Asked Questions

Yes. The -F designation identifies the floor-model version, with 25-inch legs and an undershelf.
The unit has two 15,000 BTU/hr burners for a total output of 30,000 BTU.
Yes. Both the top grates and burner radiants are cast iron.
It uses infinite manual gas valves, with one control at each burner.
A 3/4-inch gas regulator is supplied loose and must be installed for proper operation.
The documentation requires the gas type to be specified when ordering and lists natural gas and propane operating pressures.
