Jackson WWS TEMPSTAR W/O TempStar® Dishwashers
Description

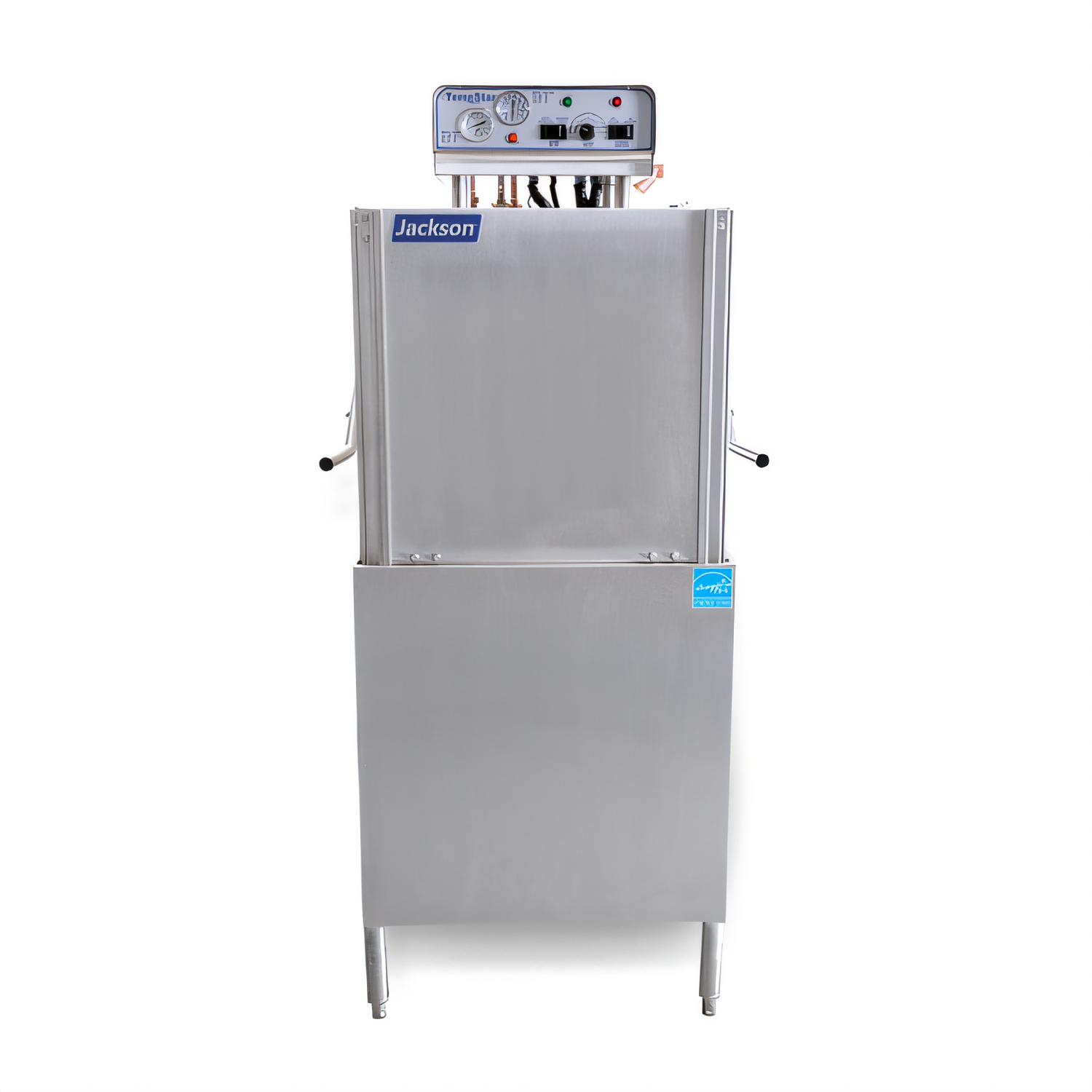

Jackson TempStar® High-Temp Door-Type Dishwasher – No Booster
Universal straight-thru / corner configuration • cETLus • ETL-Sanitation • ENERGY STAR®Engineered for busy commercial kitchens that already have a 180 °F (82 °C) hot-water system, the TempStar® delivers Jackson’s legendary Clean the First Time® results while sipping just 0.90 gal of fresh water per rack. Four cycle lengths, rugged stainless-steel construction and a convertible design make it the go-to solution for warewashing flexibility and long-term savings.
Key Features

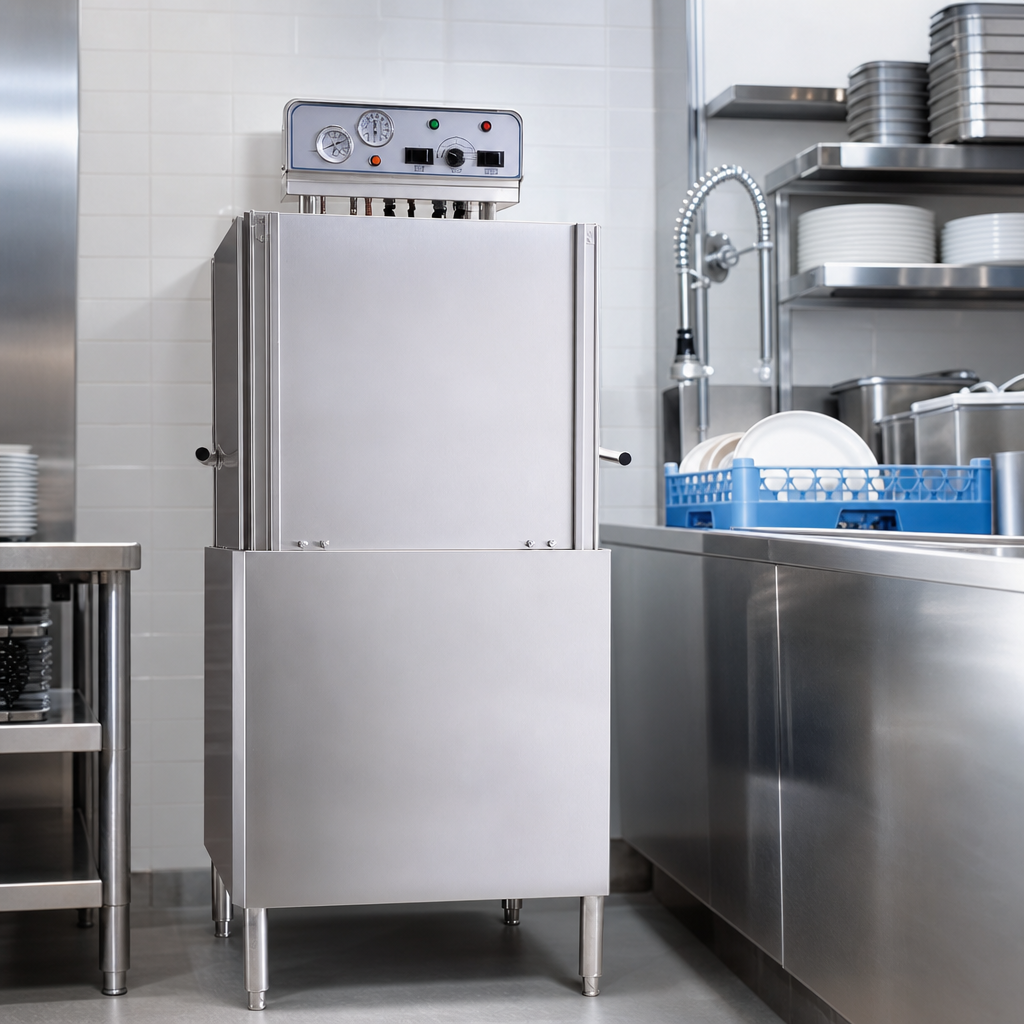

- High-temperature sanitizing (facility must supply 180 °F rinse water)

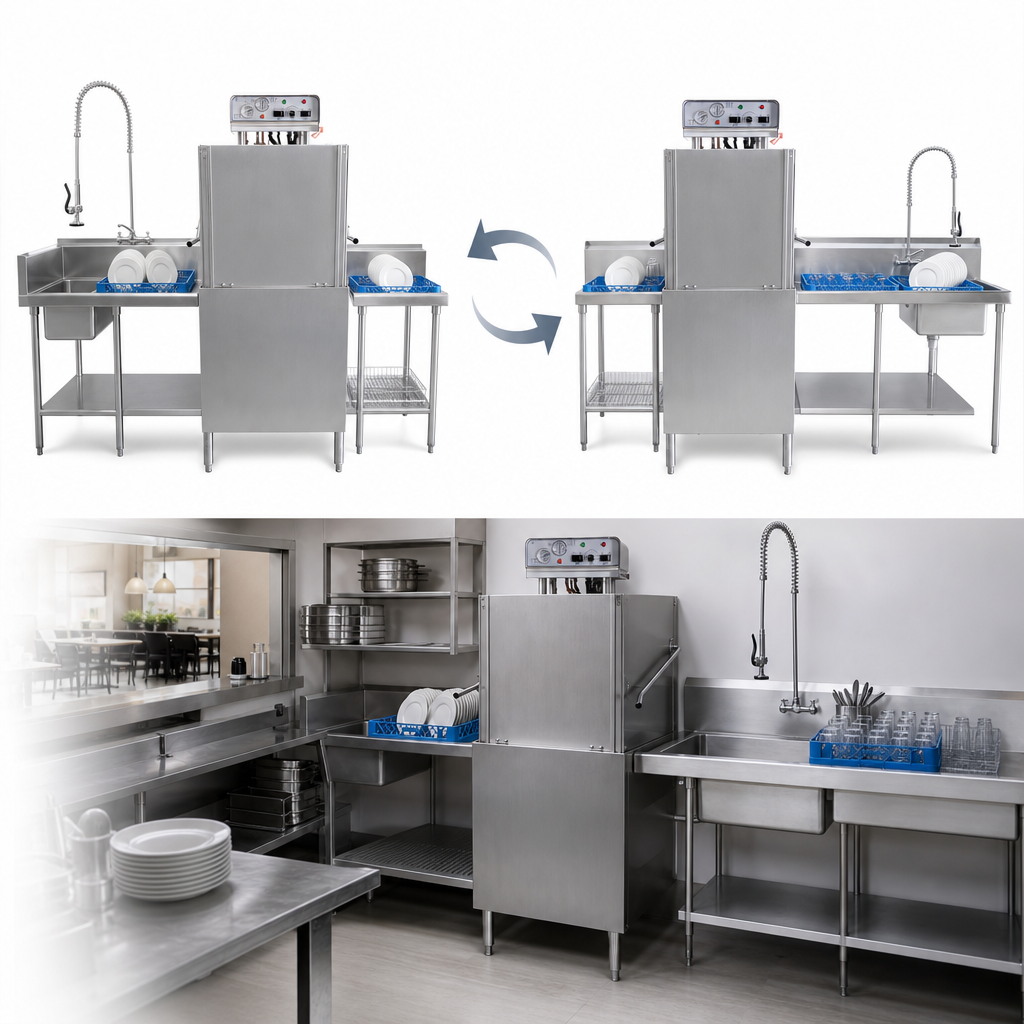

- Universal field-convertible: straight-thru or corner layout (kit required)
- Electro-mechanical, top-mounted controls—easy to read & keep dry
- Four selectable timed cycles: Normal, Medium, Heavy & Extra-Heavy
- Automatic tank fill & door-actuated start for hands-free operation
- 1 HP self-draining stainless-steel wash pump for consistent pressure
- Interchangeable stainless wash/rinse arms screw out for quick cleaning
- Large stainless scrap basket helps keep wash water cleaner, longer
- Accepts 20 × 20 in racks & 18 × 26 in sheet pans (17-1/4 in clearance)
- Single-point utility connections & adjustable bullet feet for fast install
- ENERGY STAR® qualified – uses only 0.90 gal per rack
Performance
| Rated capacity* | Approx. 58 racks / hr (NSF-rated up to 63) |
|---|---|
| Water usage | 0.90 gal per rack • ≈ 56 gal / hr |
| Cycle times | Normal 57 s • Medium 117 s • Heavy 177 s • Extra-Heavy 297 s |
| Wash temperature (min.) | 150 °F / 66 °C |
| Final rinse temperature | 180 °F / 82 °C (supplied by facility) |
Electrical (No-Booster Models)
| Voltage / Phase | Total Load | Min. Circuit Ampacity |
|---|---|---|
| 208 V 60 Hz 3φ | 16.4 A | 17.6 A |
| 230 V 60 Hz 3φ | 17.6 A | 18.8 A |
| 460 V 60 Hz 3φ | 7.5 A | 7.8 A |
| 208 V 60 Hz 1φ | 24.7 A | 25.9 A |
| 230 V 60 Hz 1φ | 26.8 A | 28.0 A |
Dimensions & Weight
| W × D × H (door closed) | 32 × 29 × 64 3⁄8 in (813 × 737 × 1635 mm) |
|---|---|
| Height – door open | 76 in (1930 mm) |
| Inside clearance | 17 1⁄4 in (438 mm) |
| Shipping weight | 263 lb (120 kg) |
Certifications
- ENERGY STAR® qualified
- cETLus (electrical safety)
- ETL-Sanitation to NSF/ANSI 3
Warranty
Backed by Jackson’s 1-year parts & labor warranty when registered and serviced by an authorized Jackson agent.
Popular Options & Accessories
- Pressure regulator or water hammer arrestor
- Drain-water tempering kit
- 36-compartment glass rack, peg rack or combination rack
- Security package & door interlock
- Flanged feet or false panel for corner installations
*NSF capacity based on a 5-second rack load/unload time.
