Jackson WWS TEMPSTAR VENTLESS (VER) TempStar® Undercounter Dishwashers
Description

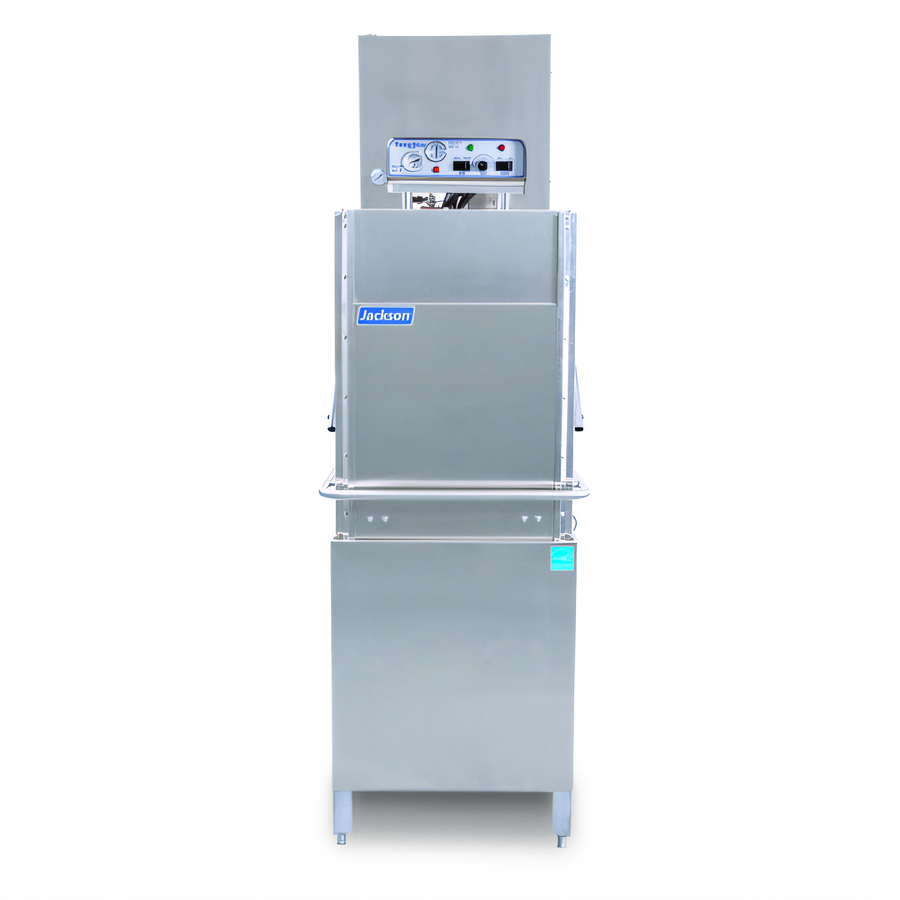

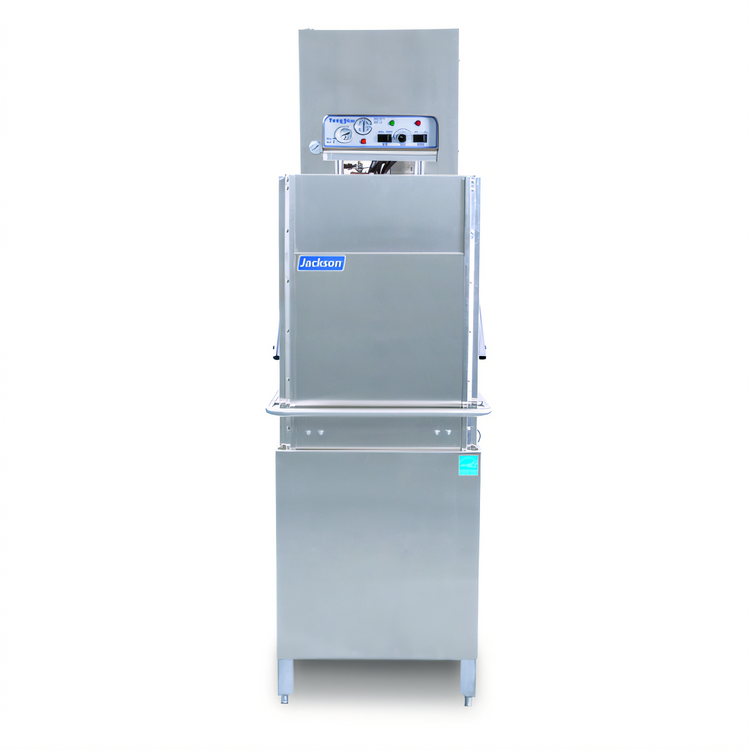

Jackson TempStar® VER Ventless High-Temperature Door-Type Dishwasher
Energy Recovery • 41 racks/hr • 0.89 gal per rackTurn rising steam into free energy and eliminate the cost of a condensate hood. The TempStar® VER delivers NSF-approved sanitation with a built-in 70 °F booster heater, cleans up to 1,025 dishes per hour, and runs on a single cold-water connection—ideal for busy kitchens that demand efficiency and savings.
Key Features
- Ventless design – no hood required

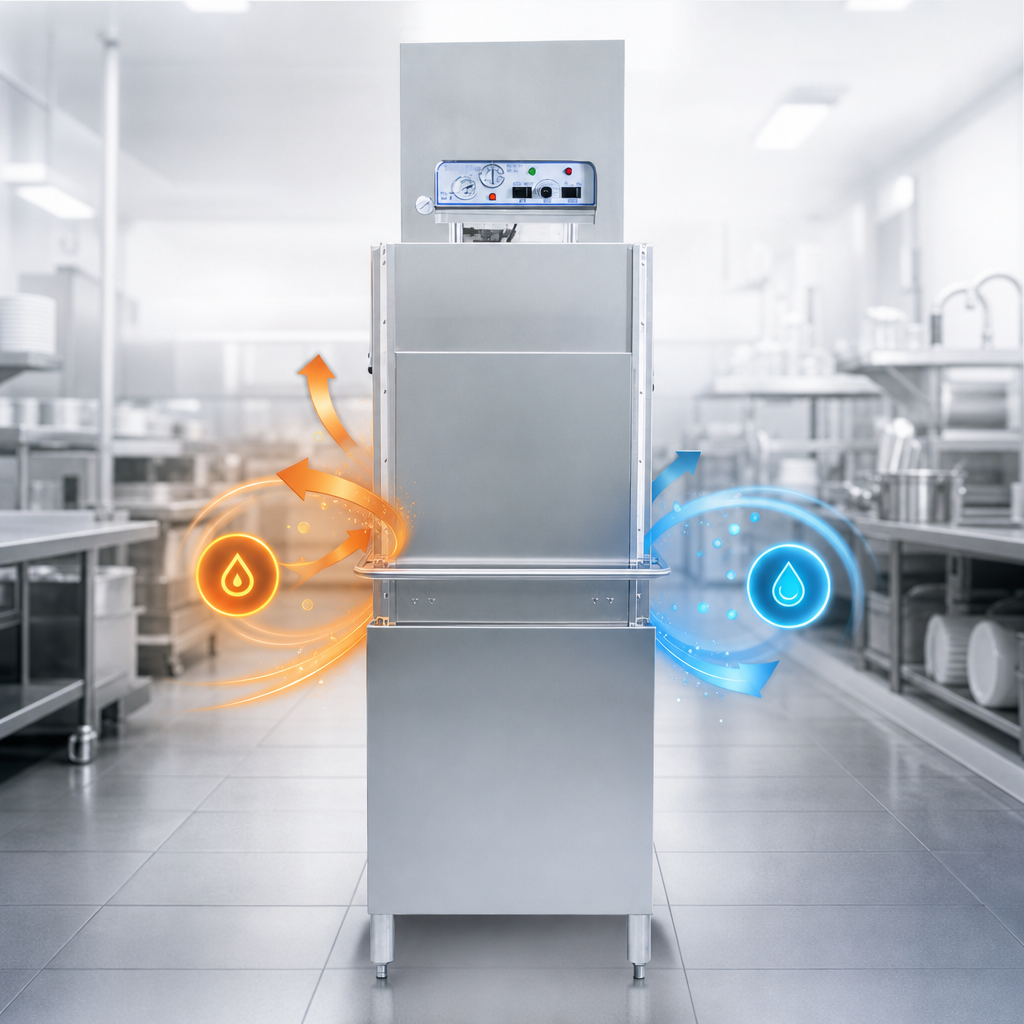

- Two-pass Energy Recovery System pre-heats incoming rinse water with captured steam

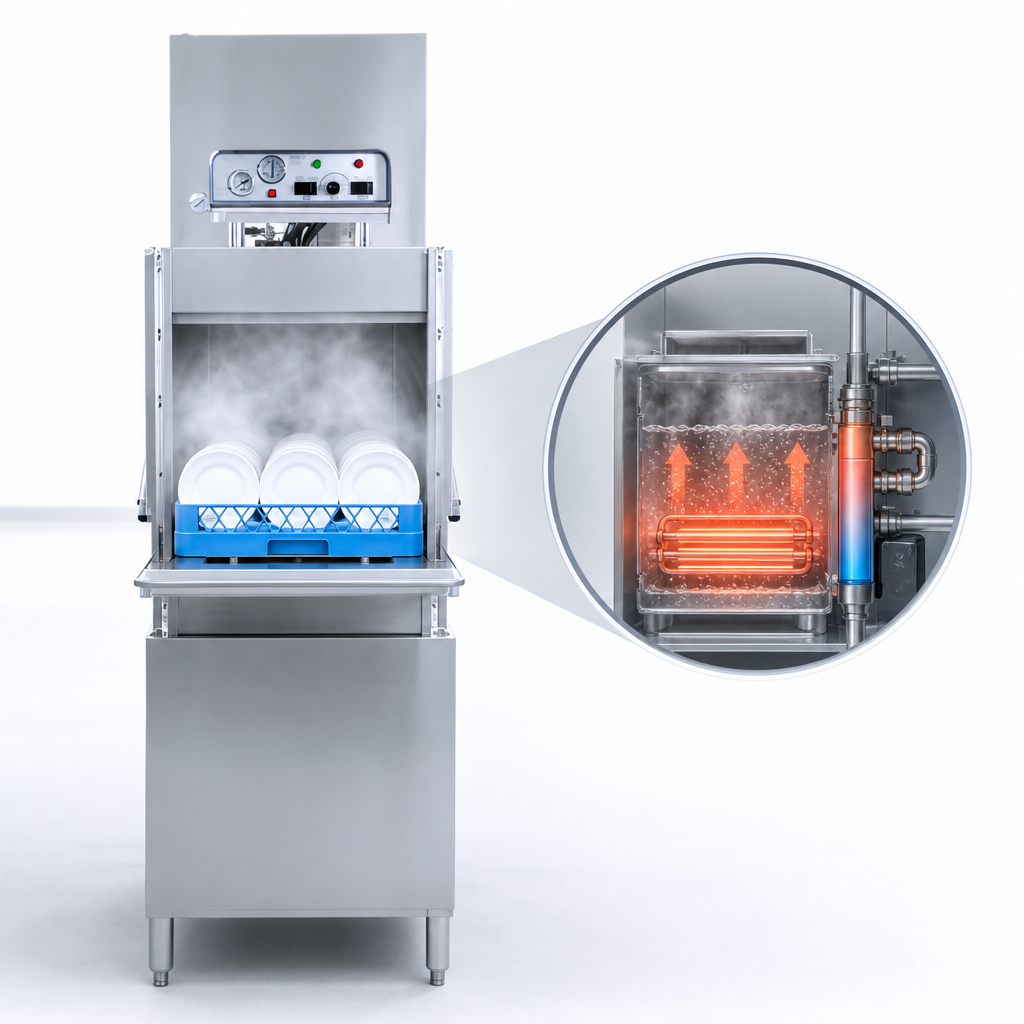

- Built-in 70 °F (38.9 °C) rise booster heater with Sani-Sure™ final-rinse assurance
- Universal hood – field convertible between straight-thru and corner (kit required)
- Four selectable cycles (Normal, Medium, Heavy, Extra-Heavy) + dedicated delime mode
- Cold-water hookup only, automatic tank fill & door-actuated start
- Door interlock for operator safety during the wash cycle
- 1 HP self-draining stainless-steel wash pump & low-watt-density tank heater
- ENERGY STAR®, cETLus & ETL-Sanitation listed
Performance & Capacity
| Racks per hour | 41 (39 with NSF load time) |
|---|---|
| Water use | 0.89 gal per rack • 36.5 gal per hour |
| Dishes per hour | 1,025 |
| Glasses per hour | 1,476 |
| Wash temperature (min.) | 150 °F / 66 °C |
| Rinse temperature (min.) | 180 °F / 82 °C |
| Cycle times (sec) | 87 • 147 • 207 • 327 (Normal → Extra-Heavy) |
Dimensions
| Width | 32" (813 mm) |
|---|---|
| Depth | 30 7⁄8" (785 mm) |
| Height | 82" (2,083 mm) |
| Inside clearance | 17 1⁄4" (438 mm) |
| Drain height | 14" (356 mm) |
| Net weight | 345 lb (156 kg) |
Utility Connections
| Water inlet | 3⁄4" NPT – cold water 40-90 °F, 10 PSI min. |
|---|---|
| Drain connection | 1 1⁄2" NPT |
| Electrical | Single-point connection (see options below) |
| Pressure regulator | Included (installer-mounted) |
Electrical Options
| 208 V / 60 Hz / 1 PH | 75.2 A • 80 A OCP |
|---|---|
| 208 V / 60 Hz / 3 PH | 45.6 A • 50 A OCP |
| 230 V / 60 Hz / 1 PH | 82.7 A • 90 A OCP |
| 230 V / 60 Hz / 3 PH | 49.8 A • 60 A OCP |
| 460 V / 60 Hz / 3 PH | 23.6 A • 30 A OCP |
Included with Your TempStar®
- Large removable stainless-steel scrap basket
- 20" × 20" open rack
- Adjustable bullet feet
- User, installation & service documentation
Popular Options & Accessories
- 460 V electrical kit
- Single-phase conversion kit
- Drain-water tempering kit
- Water hammer arrestor
- False panel for corner installations
- 36-compartment peg or combination racks
- Security package
- Scaltrol™ scale-control system
Warranty
1-year limited parts & labor warranty when registered within the United States or Canada. Full terms available upon request.
