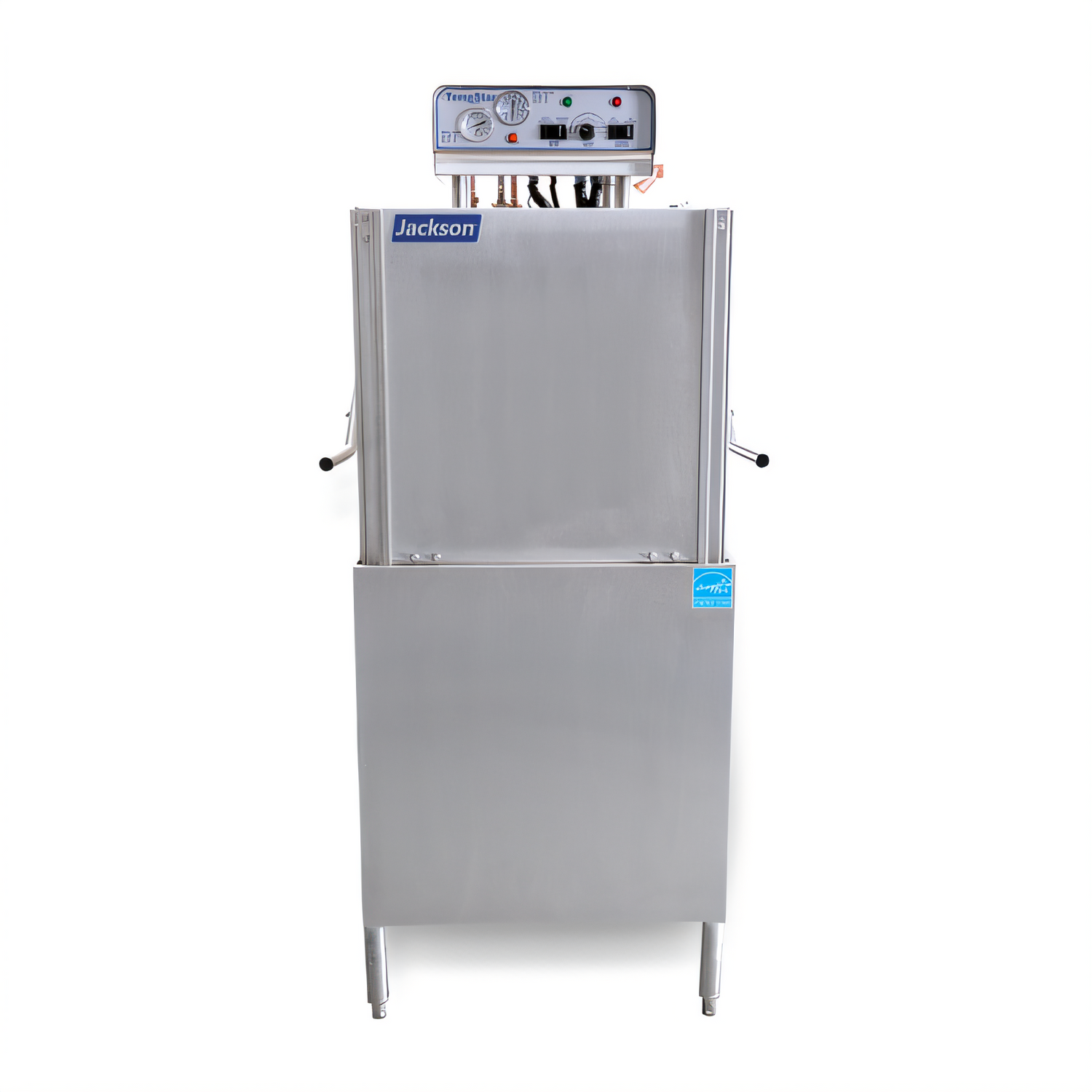

Jackson TempStar® Door-Type Dishwasher
High-temperature • 63 racks/hr • ENERGY STAR®Built to tackle anything from delicate stemware to greasy sheet pans, the Jackson TempStar® delivers sparkling, NSF-approved results while using just 0.89 gallons per rack. A built-in booster and exclusive Sani-Sure™ final-rinse system ensure every load reaches the required 180 °F sanitizing temperature—no separate heater needed.
Key Features

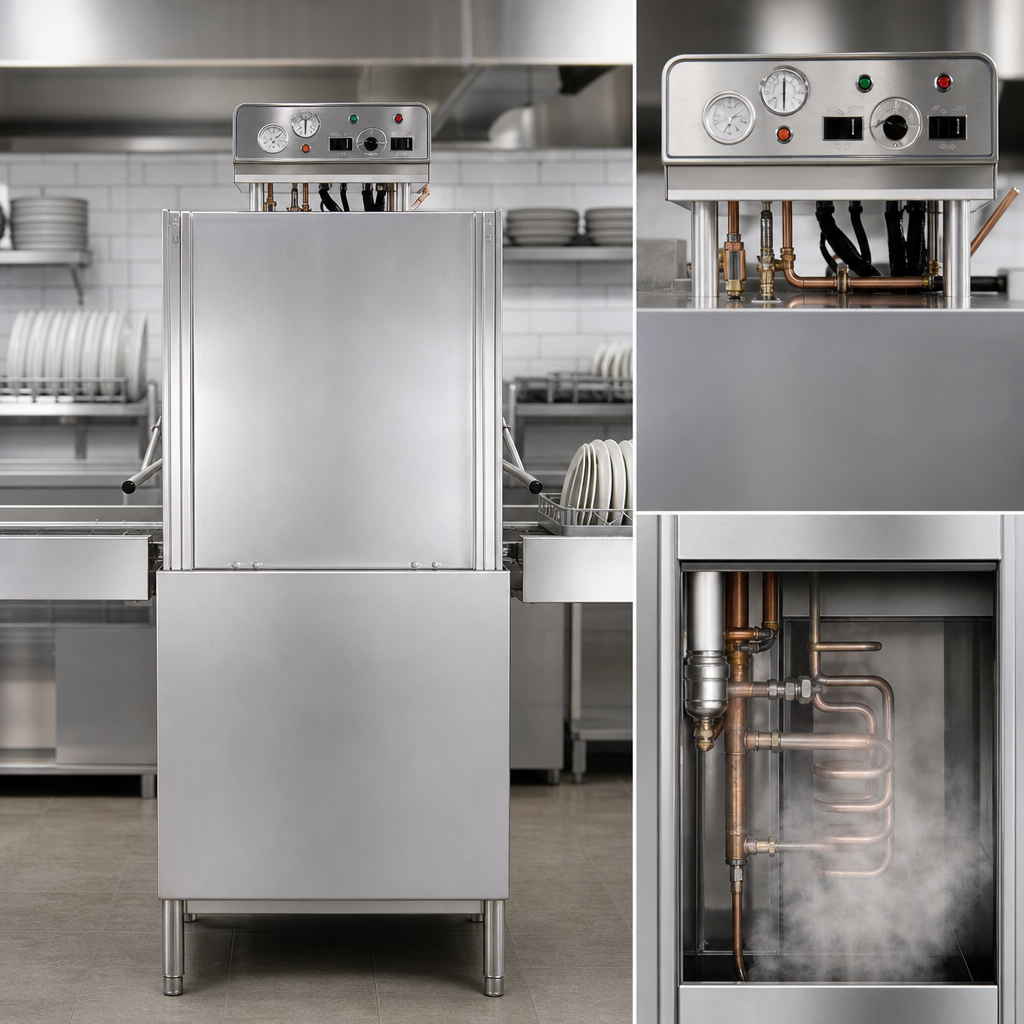

- Integrated booster heater – 70 °F rise standard (40 °F rise option at no extra cost)

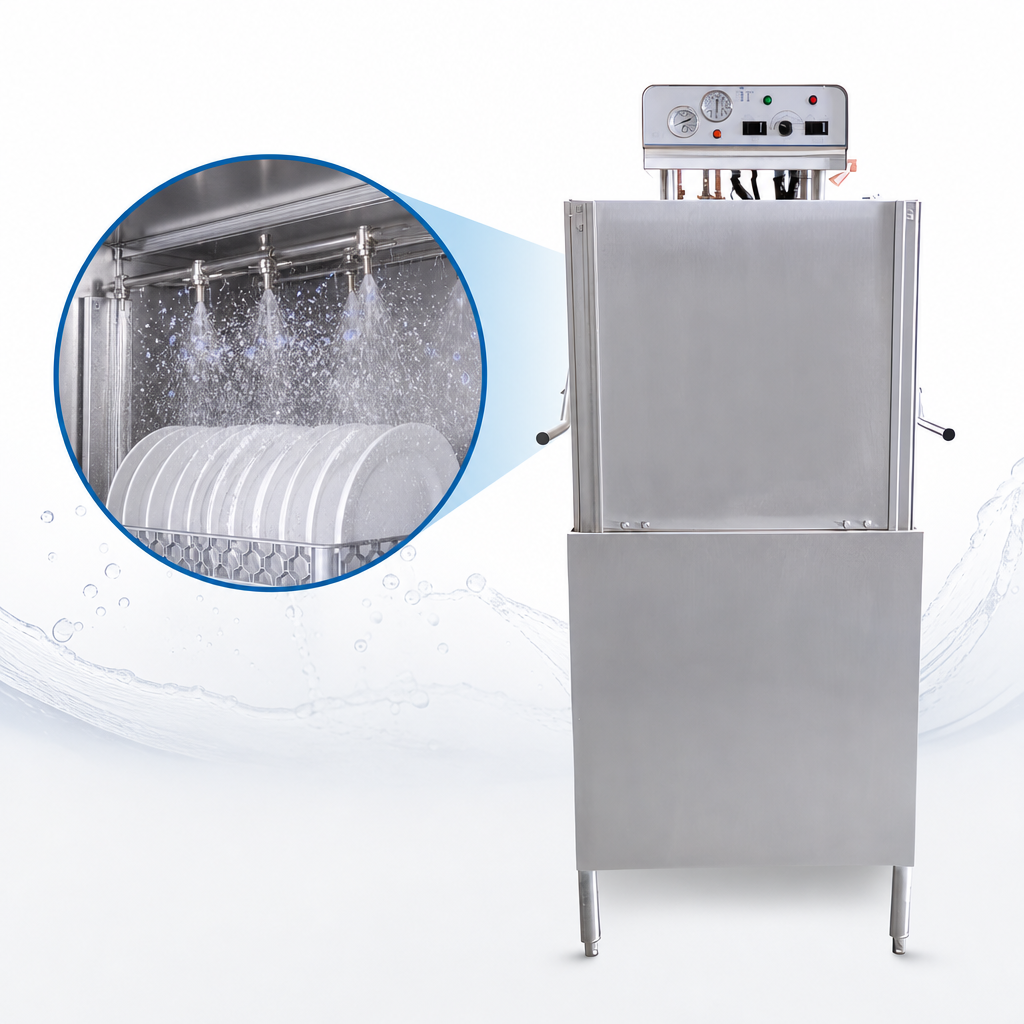

- Sani-Sure™ final-rinse assurance for consistent 180 °F sanitization
- Four selectable cycles: Normal, Medium, Heavy & Extra Heavy
- Door-actuated start and automatic tank fill for hands-free operation
- Top-mounted electro-mechanical controls with universal timer & delime mode
- 1 HP self-draining stainless-steel wash pump with precision spray nozzles
- Field-convertible: straight-thru or corner layout (kit required)
- Field-convertible: 3-phase ↔︎ single-phase electrical (kit required)
- Vent-fan interlock shuts fan when machine is idle to save energy
- 17-1/4 in door opening fits 18 × 26 in sheet pans
- Single-point utility connections & adjustable bullet feet
- All-stainless-steel construction with 1-year parts & labor warranty
Performance by Cycle
| Cycle | Time (sec) | Racks / hr | Water / hr |
|---|---|---|---|
| Normal | 57 | 63 | 56.07 gal |
| Medium | 117 | 29 | 25.81 gal |
| Heavy | 177 | 20 | 17.80 gal |
| Extra Heavy | 297 | 12 | 10.68 gal |
Specifications
| Configuration | Universal – straight-thru or corner |
|---|---|
| NSF Racks per Hour | 63 * |
| Water Use | 0.89 gal per rack |
| Interior Clearance | 17-1/4 in (438 mm) |
| Overall Size (W × D × H) | 32 × 29 × 64-3/8 in |
| Electrical | 208–230/460 V, 3 ph standard; field-convertible to 1 ph |
| Wash Pump Motor | 1 HP, stainless steel, self-draining |
| Tank Capacities | Wash 8 gal • Booster 2 gal |
| Shipping Weight | 263 lb (120 kg) |
| Certifications | cETLus • ETL-Sanitation • NSF/ANSI 3 • ENERGY STAR® |
*NSF rack rate based on 5-second load/unload time.
Perfect For
- High-volume restaurants & bistros
- Catering kitchens washing full-size sheet pans
- Schools, healthcare & institutional foodservice
What’s Included
- Jackson TempStar® dishmachine
- Combination rack & peg rack
- Operator’s manual
Dishtable, chemical dispensers, and installation kits are sold separately.
Warranty
Covered by Jackson’s 1-year parts & labor warranty, supported by a nationwide network of authorized service agents.
