Jackson WWS TEMPSTAR HH-E TempStar® Dishwashers
Description

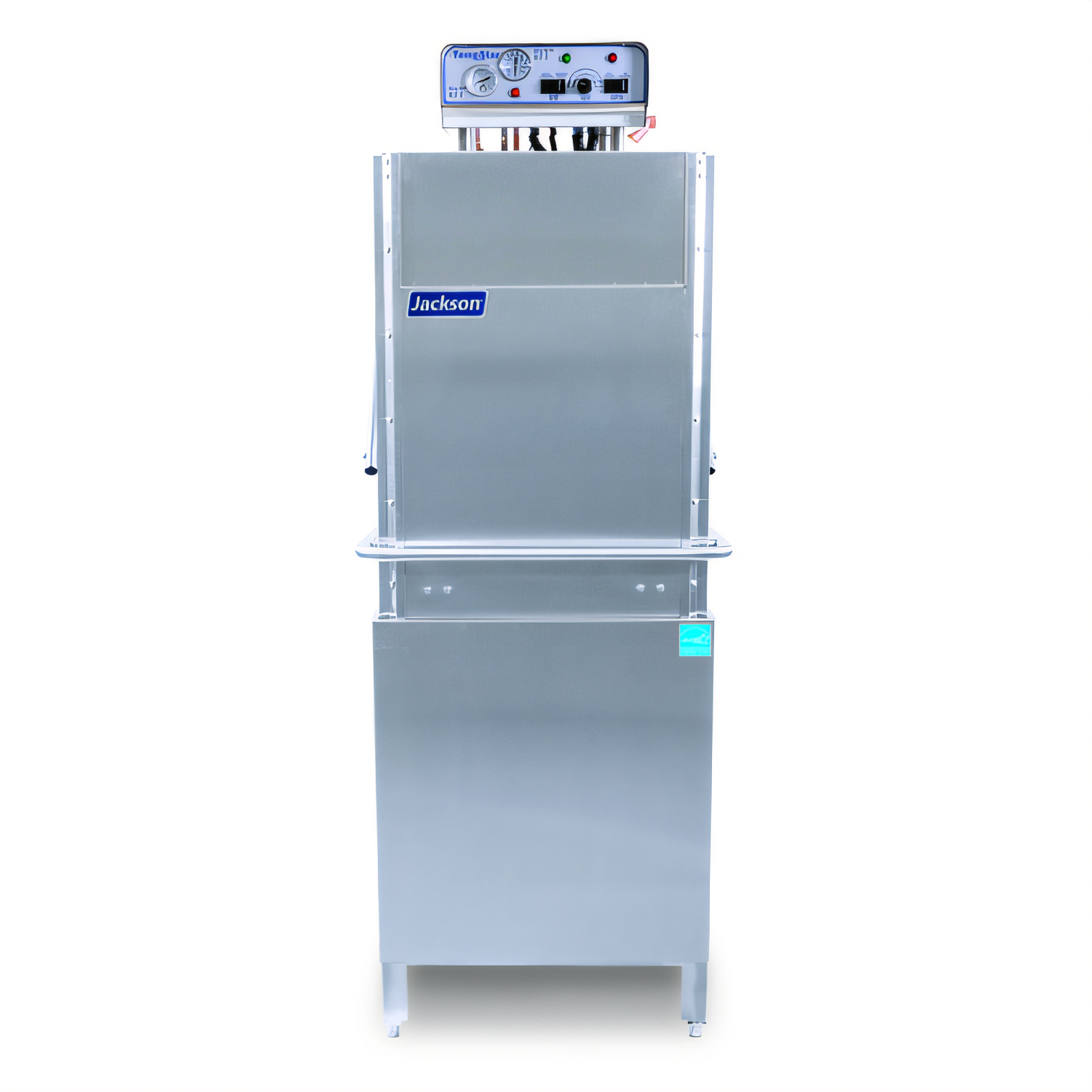

Jackson TempStar® HH-E Tall-Chamber Dishmachine
High-temperature door-type dishwasher & potwasher with built-in 70 °F rise boosterSlash utility costs while powering through the toughest ware loads. The ENERGY STAR® qualified TempStar® HH-E handles up to 60 racks per hour yet uses just 0.78 gallons of water per rack, all while providing the 180 °F final-rinse temperatures you need for food-safe sanitization.
Key Features
- Dual-rated as a dishwasher and potwasher (NSF/ANSI 3)

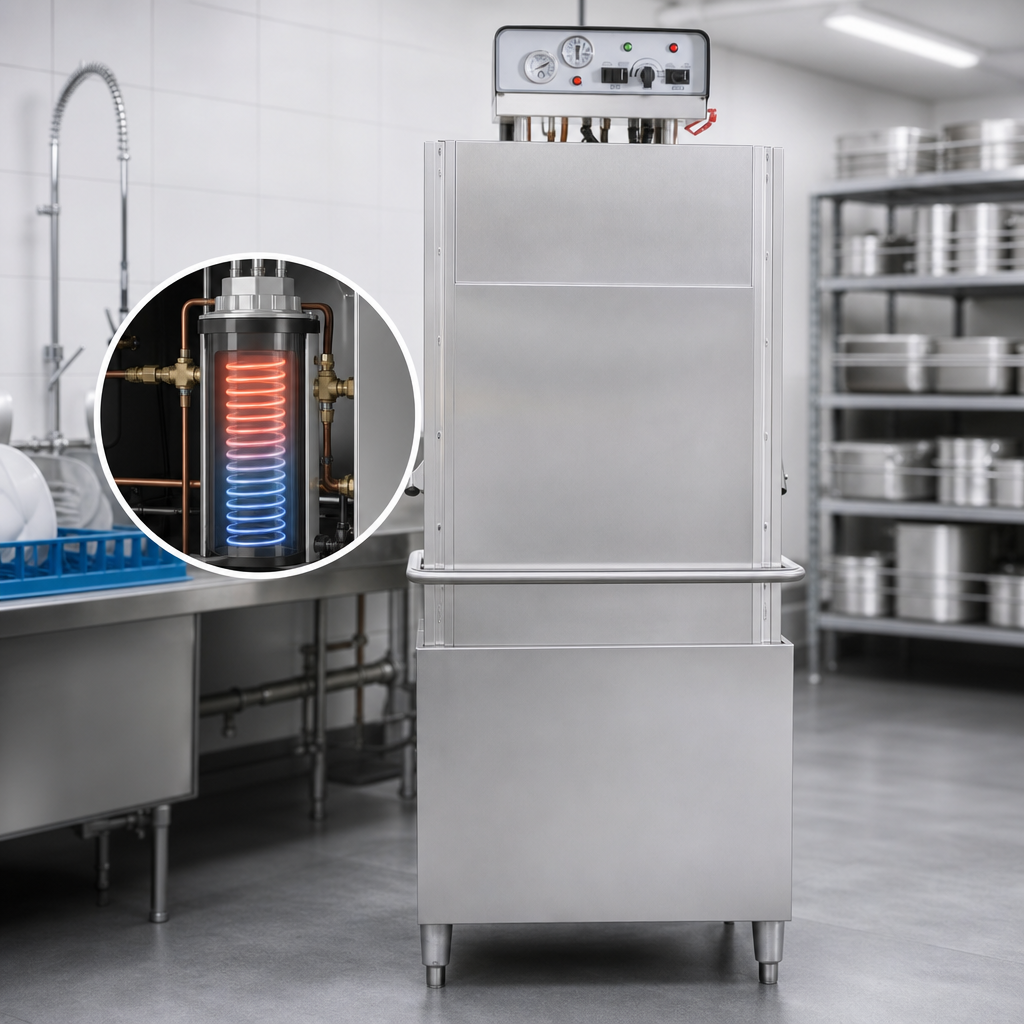

- Built-in 70 °F (38.9 °C) rise booster with Sani-Sure™ final-rinse system
- Four programmable cycles – Normal, Medium, Heavy & Extra Heavy – plus delime/manual wash mode

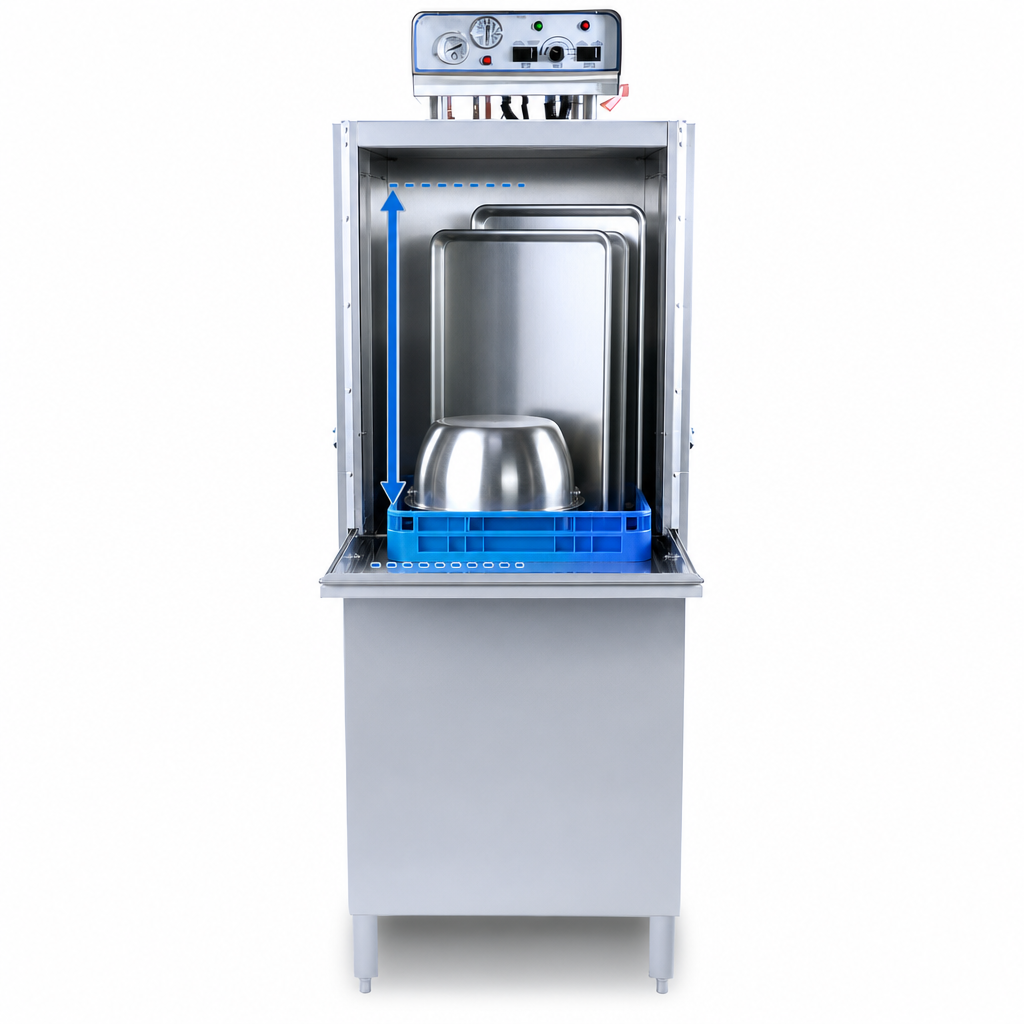

- 27" (686 mm) interior clearance fits full sheet pans & 60-qt mixer bowls
- 2 HP self-draining stainless-steel wash pump with counter-rotating lower arms for total spray coverage
- Split-door high-hood design for low-ceiling installs; door-actuated start
- Automatic tank fill & vent-fan shut-off when idle
- Single-point utility connections; field-convertible straight-through or corner layout (kit required)
- Large scrap basket, low-watt density tank heater & hi-limit/low-water protection
- Rugged all-stainless-steel construction with adjustable bullet feet
Performance at a Glance
| Capacity – Normal cycle | Up to 60 racks/hr (55 racks/hr per NSF) ≈ 1,500 dishes • 2,160 glasses |
|---|---|
| Water usage | 0.78 gal per rack | 46.8 gal per hr |
| Cycle times | Normal 60 s • Medium 123 s • Heavy 183 s • Extra Heavy 303 s |
| Wash temp (min.) | 155 °F (68 °C) |
| Final-rinse temp (min.) | 180 °F (82 °C) |
| Interior clearance | 27" (686 mm) |
| Dimensions (W × D × H) | 28 5/8" × 34 3/8" × 76 3/8" Door open: 86 3/4" H |
| Electrical (70 °F rise) |
208 V/60/3-ph 51.8 A 230 V/60/3-ph 56.0 A 460 V/60/3-ph 25.7 A |
| Certifications | cETLus • ETL-Sanitation • ENERGY STAR® |
| Warranty | 1-year parts & labor (U.S./Canada) |
Popular Options & Accessories
- 40 °F rise booster (no-charge substitution at time of order)
- Flanged or adjustable feet
- Pressure regulator & water-hammer arrestor
- Drain-water tempering kit
- Sheet-pan, peg, combination & 36-compartment glass racks
- False front panel for corner installs, door interlock & security package
Jackson WWS does not recommend tankless/on-demand water heaters for this machine. Use a properly sized tank-type heater to maintain required temperatures.
Need assistance with sizing, accessories or installation? Our warewashing experts are ready to help.
