Jackson WWS TEMPSTAR FL-VER TempStar® Undercounter Dishwashers
Description

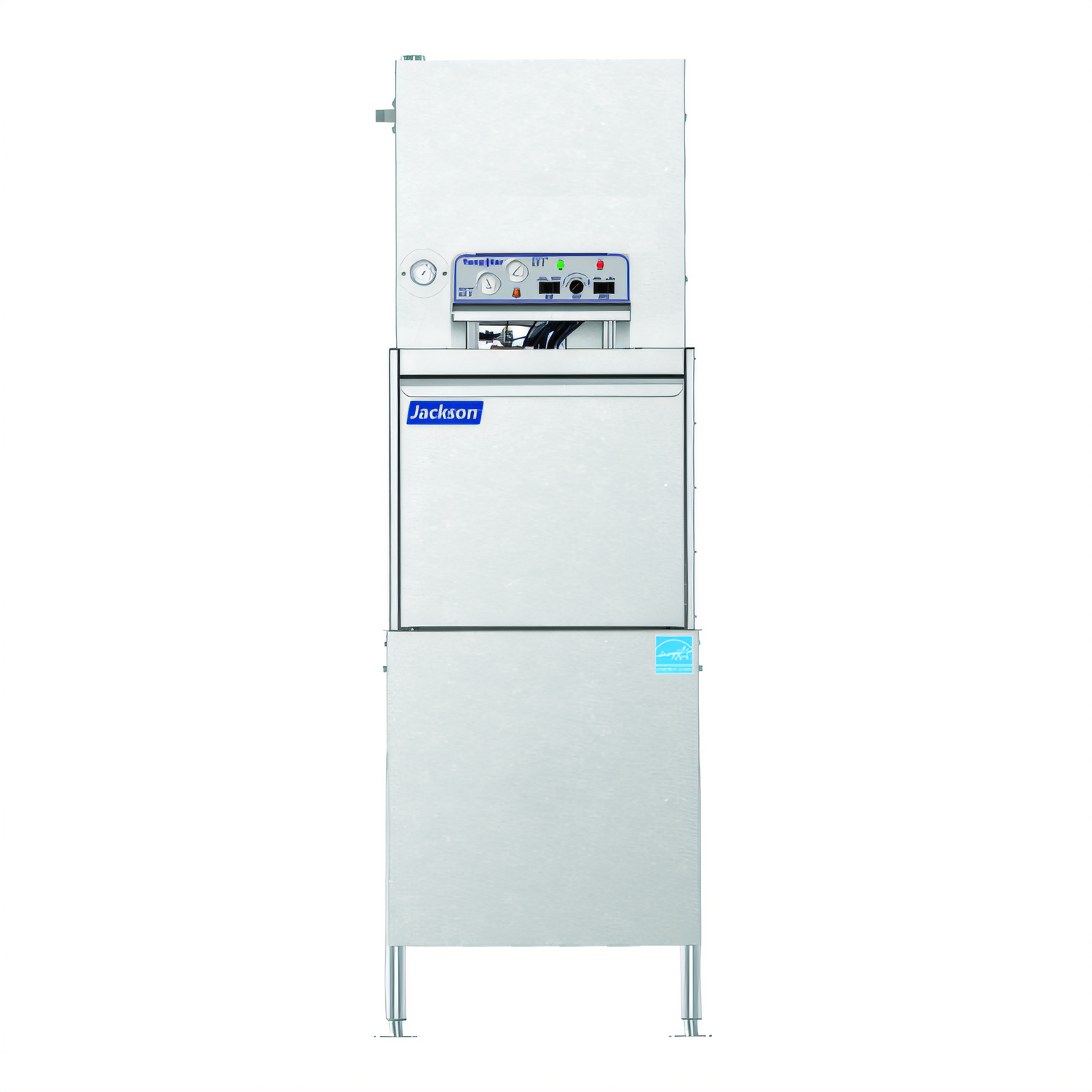

Jackson TempStar® FL-VER Ventless High-Temp Dishwasher
Front-loading • Energy Recovery • 41 racks/hour • 0.89 gal/rackThe TempStar® FL-VER packs high-temperature sanitizing power into a compact, hood-free footprint—perfect for kitchens where every inch (and every dollar) counts. Its integrated Energy Recovery System captures steam to pre-heat rinse water, slashing utility costs while keeping the dishroom cool and clear of visible vapor. Add a built-in 70 °F booster with Sani-Sure™ final-rinse assurance and you get spotless, NSF-approved results—Clean the First Time®— from a single cold-water connection.
Key Benefits
- Ventless design eliminates the need for an exhaust hood or dedicated dishtables.
- Energy Recovery System reclaims heat from expelled air to cut operating costs and moisture.

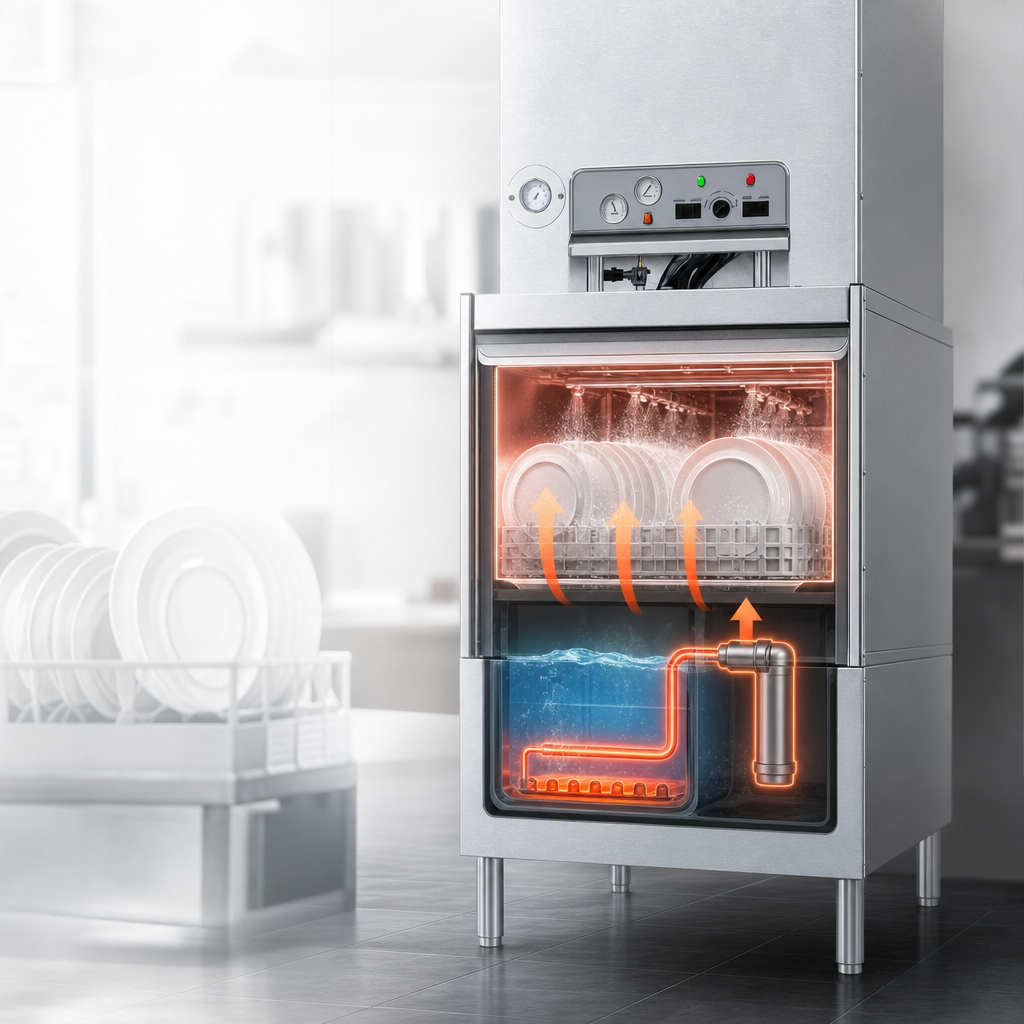

- Built-in 70 °F rise booster heater with Sani-Sure™ guarantees a 180 °F sanitizing rinse.
- Processes up to 41 racks per hour using just 0.89 gal of water per rack.
- Four selectable cycles (Normal, Medium, Heavy, Extra Heavy) handle any soil level.
- Door-actuated start and positive-lock door interlock enhance workflow safety.
- 1 HP self-draining stainless wash pump and precision stainless nozzles deliver superior cleaning action.
- Large, removable scrap basket simplifies end-of-shift maintenance.
- Top-mounted electronic controls stay dry, visible, and corner-friendly.
- Field-convertible between 3-phase and single-phase (conversion kit required).
- ENERGY STAR®, cETLus, and ETL-Sanitation certified for efficiency and compliance.
Performance at a Glance
| Cycle | Time (sec) | Racks/hr | Water Use (gal/hr) |
|---|---|---|---|
| Normal | 87 | 41 | 36.49 |
| Medium | 147 | 24 | 21.36 |
| Heavy | 207 | 17 | 15.13 |
| Extra Heavy | 327 | 11 | 9.79 |
Technical Specifications
| Footprint (W × D × H) | 26 ⅜″ × 32 ¼″ × 82″ (668 × 819 × 2083 mm) |
|---|---|
| Depth – Door Open | 50 ¾″ (1289 mm) |
| Interior Clearance | 15 ⅝″ (397 mm) |
| Wash Pump Motor | 1 HP stainless steel (¾ HP on 460 V) |
| Wash Tank Capacity | 8 gal (30.3 L) |
| Booster Tank Capacity | 3 gal (11.4 L) |
| Water Connection | ¾″ NPT cold water, 40 PSI, 40–90 °F (5–33 °C) |
| Drain Connection / Height | 1 ½″ ID, 14″ (356 mm) above floor |
| Electrical | 208/230/460 V, 60 Hz; field-convertible 1-/3-phase (see manual) |
| Energy Consumption | Latent 2100 BTU/h • Sensible 4685 BTU/h |
| Weight (net / ship) | 327 lb / 385 lb (148 kg / 175 kg) |
What’s in the Box
- TempStar® FL-VER dishwasher with integrated booster & energy recovery module
- Removable stainless scrap basket
- Pressure regulator (to be installed by others)
- Adjustable bullet feet with rear flanged feet
- Standard open 20″ × 20″ rack
- 1-year limited parts & labor warranty
Some assembly required. Professional installation and a dedicated electrical circuit are mandatory for safe, code-compliant operation.
