Jackson WWS TEMPSTAR FL TempStar® Dishwashers
Description

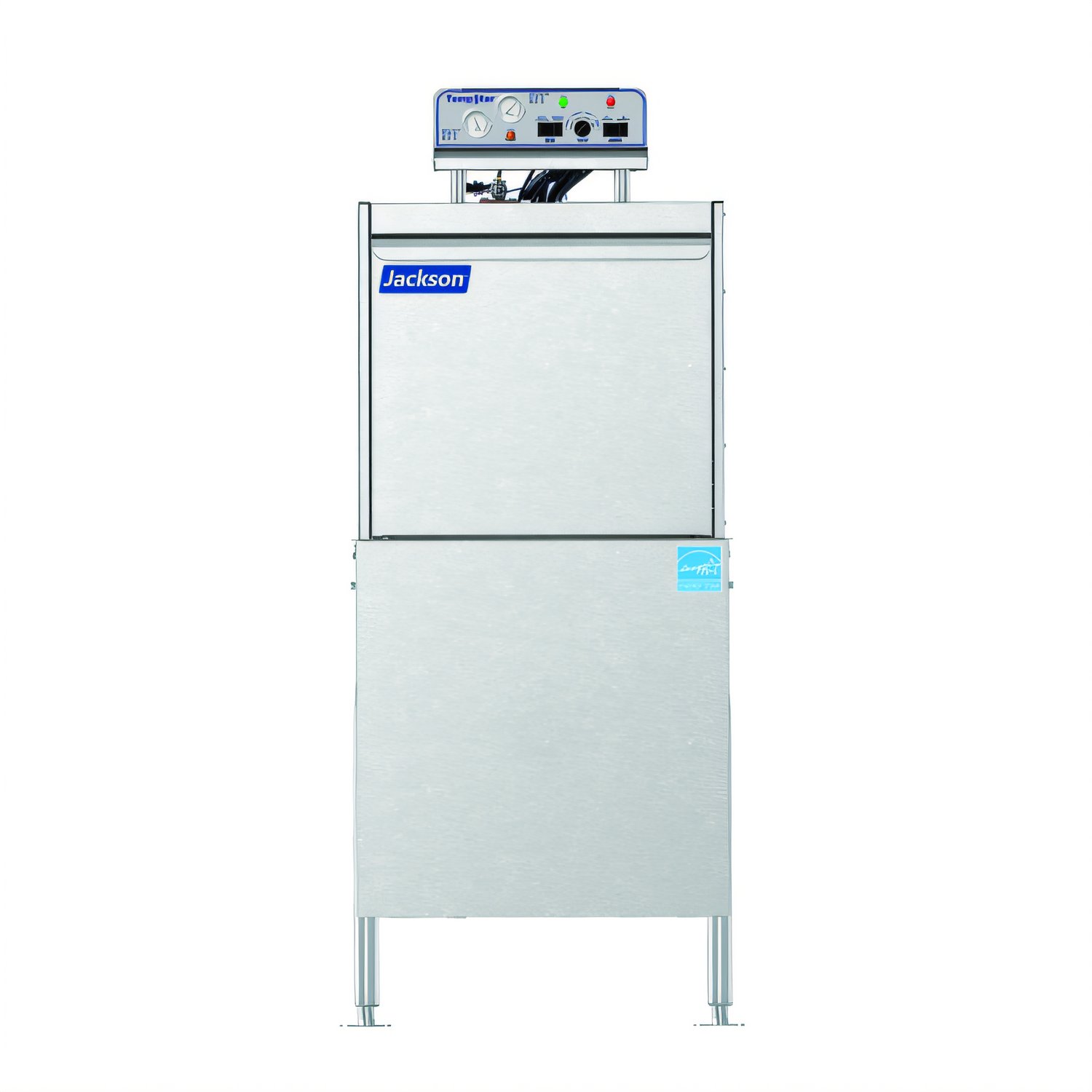

Jackson TempStar® FL High-Temp Door-Type Dishwasher
Front-loading • Built-in 70 °F booster • ENERGY STAR®Designed for busy kitchens that are tight on space but big on demand, the TempStar® FL delivers NSF-approved sanitizing results in under a minute per rack while sipping just 0.89 gal of water. With four programmable cycles, a rugged stainless-steel build and single-point utility connections, it installs fast, runs efficiently, and cleans the first time—every time.
Key Features
- Integral 70 °F rise booster heater with Sani-Sure™ final-rinse system
- High-temperature sanitizing—no chemical sanitizer required
- Up to 63 racks per hour (Normal cycle, NSF rated)
- Ultra-low 0.89 gal water use per rack
- Four selectable cycles: Normal, Medium, Heavy, Extra Heavy
- Door-actuated start & automatic tank fill for hands-free operation
- Top-mounted, splash-protected controls with delime/manual wash mode
- Stainless-steel wash pump (1 HP) & interchangeable wash/rinse arms
- Vent-fan interlock saves energy when the machine is idle
- Large, removable scrap basket simplifies cleaning
- Adjustable bullet feet with rear flanged feet for secure, level installation
- Field-convertible 3-phase ↔ single-phase (kit required)
- cETLus, ETL-Sanitation & ENERGY STAR® qualified
Performance & Capacity
| Cycle | Time (sec) | Racks/hr | Gallons/hr* |
|---|---|---|---|
| Normal | 57 | 63 | 56.07 |
| Medium | 117 | 29 | 25.81 |
| Heavy | 177 | 20 | 17.80 |
| Extra Heavy | 297 | 12 | 10.68 |
*Gallons per hour calculated using NSF load time of 30 s for front-loading machines.
Specifications
| Chamber clearance | 15 5/8" (397 mm) |
|---|---|
| Rack size | Standard 20" × 20" |
| Overall dimensions (W × D × H) | 26 3/8" × 28" × 64 3/8" (668 × 711 × 1635 mm) |
| Depth with door open | 47 5/8" (1210 mm) |
| Water use | 0.89 gal/rack (3.4 L) |
| Incoming water | 110 °F (43 °C), 10 ± 2 PSI, ½" NPT |
| Drain connection | 1½" ID, 14" (356 mm) above floor |
| Wash temperature (min.) | 150 °F (66 °C) |
| Rinse temperature (min.) | 180 °F (82 °C) |
| Electrical options | 208/60/3, 230/60/3, 460/60/3, 208/60/1, 230/60/1 |
| Shipping weight | 274 lb (124 kg) |
Popular Factory Options
- 460 V electrical configuration
- Single-phase conversion kit
- Scaltrol® scale-control system & replacement cartridge
- Drain water tempering kit
- Water hammer arrestor
- Alternate height flanged feet (4-1/8", 5-5/8", 7")
- Dish racks: 36-compartment, combination, or peg
- Door interlock & security package
Warranty
Backed by Jackson’s 1-year parts & labor warranty (United States & Canada). Warranty registration required—visit jacksonwws-warranty.com.
