Jackson WWS RACKSTAR 66CEL RackStar® Conveyor Dishwashers
Description

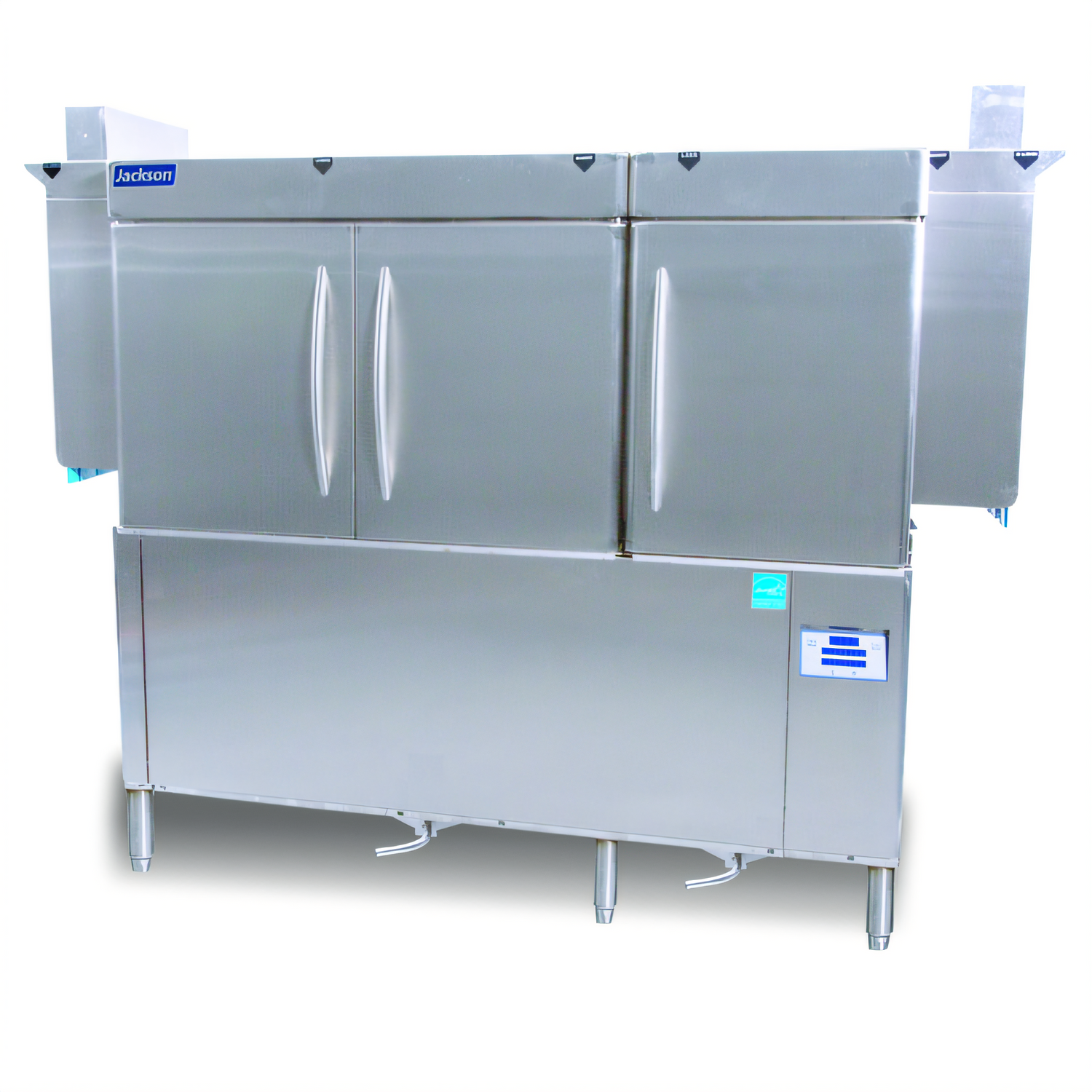

Jackson RackStar® 66 Low-Temp Conveyor Dishwasher
223 racks / hour • 0.35 gal per rack • 66-inch single-tank designThe Jackson RackStar® 66 is built for high-volume kitchens that refuse to choose between performance and savings. Using as little as 0.35 gallons of water per rack in Econo mode, this low-temperature, chemical-sanitizing conveyor delivers spotless ware while driving down operating costs.
Why You’ll Love It
- Dual Rainbow Rinse™ system with selectable Econo (0.35 gpr) or Turbo (0.52 gpr) settings.
- 22" dedicated pre-wash section removes heavy soil before the main wash.
- WISR® Cleaning System & self-cleaning wash arms for consistent “Clean the First Time®” results.
- EnergyGuard™ controls start the pumps only when racks are present—no wasted utilities.
- Fully automatic operation with auto-fill, digital temperature read-out, and delime mode.
- Double-wall, 180° hinged doors are insulated to hold heat and reduce noise in the dishroom.
- Rugged stainless-steel frame, legs, and strainer pans; adjustable bullet feet for quick leveling.
- Vent cowl collars with adjustable dampers plus automatic exhaust fan control.
- cETLus & ETL-Sanitation listed for peace of mind and code compliance.
Built for Maximum Throughput
- Throughput: Up to 223 racks per hour (5,575 dishes / 8,028 glasses).
- 3 HP wash pump & 2 HP pre-wash pump move 490 GPM combined.
- 1/4 HP conveyor motor advances racks at 6.07 FPM.
- 25-gallon wash tank with powerful 15 kW electric tank heater.
- Self-draining pump and automatic tank flush help speed end-of-shift clean-up.
Key Specifications
| Model | RackStar® 66 – Low-Temp Chemical, Electric Tank Heat |
|---|---|
| Overall Length | 68 ½" (1740 mm) |
| Length Between Dishtables | 66" (1676 mm) |
| Depth × Height | 30" × 73 ½–76" (762 mm × 1867–1930 mm) |
| Inside Clearance | 19 ¾" (502 mm) |
| Racks / Hour | 223 |
| Water Consumption | 0.35 gal / rack (Econo) | 0.52 gal / rack (Turbo) |
| Wash Tank Capacity | 25 gal (95 L) |
| Pump Motors | Pre-wash 2 HP | Wash 3 HP |
| Conveyor Motor | ¼ HP |
| Electrical | 208 / 230 / 460 V, 60 Hz, 3-phase (consult spec sheet for amp draw) |
| Water Connections | ½" IPS (110 °F minimum inlet) |
| Drain Connection | 1 ½" IPS |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 1-year parts & labor (US & Canada, registration required) |
Detailed electrical, plumbing, and venting information is available in the RackStar 66 specification sheet. Always verify utility requirements prior to installation.
