Jackson WWS RACKSTAR 66CE RackStar® Conveyor Dishwashers
Description

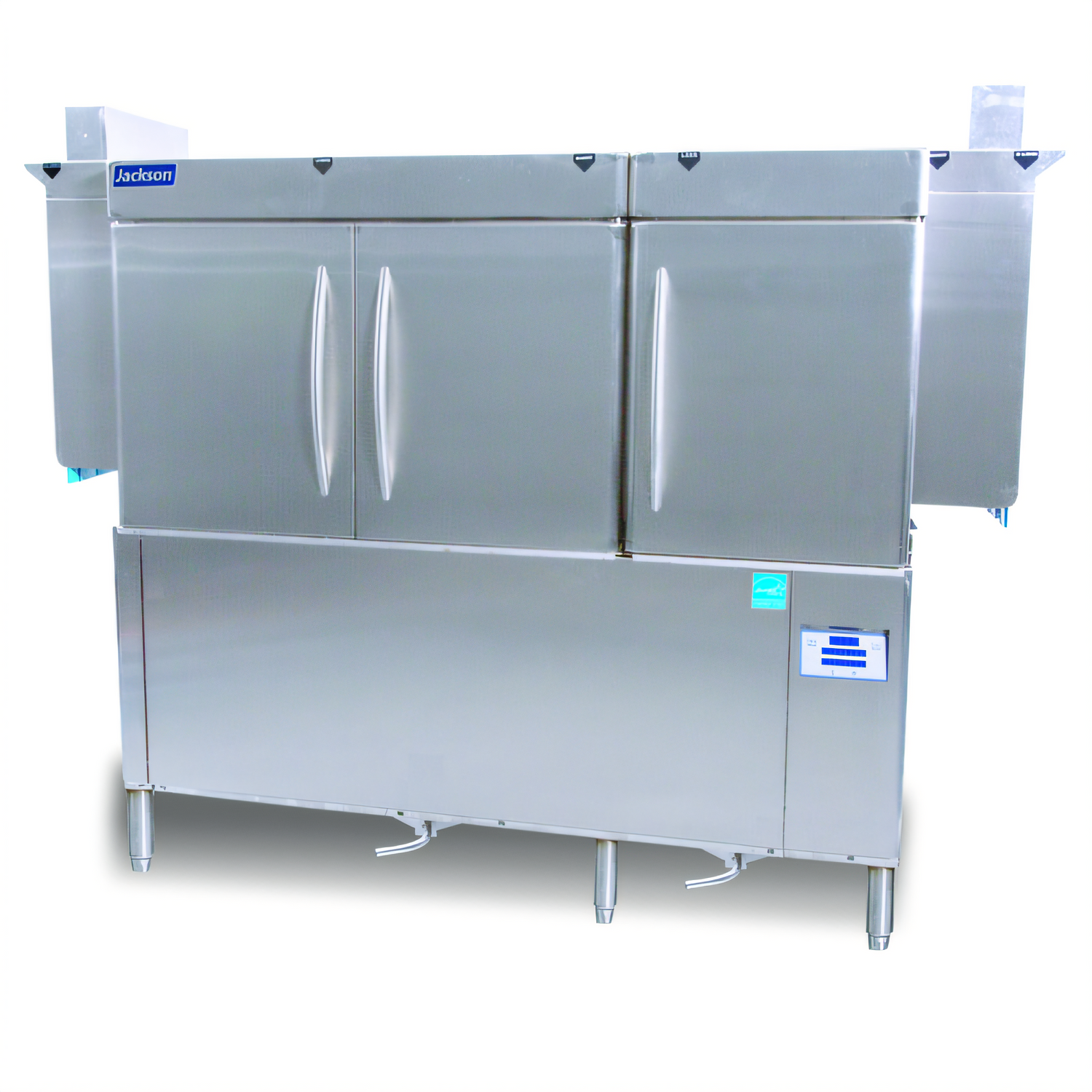

Jackson RackStar® 66 High-Temperature Conveyor Dishwasher
Electric tank heat • 66 in. conveyor • 223 racks/hrEngineered for volume-driven kitchens, the RackStar® 66 washes up to 5,575 dishes per hour while using as little as 0.35 gallons of water per rack—one of the lowest in its class. With Jackson’s signature Rainbow Rinse™, EnergyGuard™ controls and rugged stainless-steel design, it delivers Clean the First Time® results and long-term utility savings you can bank on.
Key advantages
- Dual Rainbow Rinse™ – choose Econo (0.35 gpr) or Turbo (0.52 gpr) at the touch of a button.
- WISR® Cleaning System with self-cleaning, non-clogging wash arms for consistent, spot-free ware.
- EnergyGuard™ turns pumps and rinse on only when a rack is present, cutting water, chemical and power costs.
- Double-wall, 180° hinged doors retain heat, lower noise and swing wide for effortless chamber access.
- Digital LED control panel provides temperature readouts, delime mode and onboard service diagnostics.
- All-stainless construction, splash shields and adjustable bullet feet stand up to the toughest shifts.
Performance snapshot
| Racks per hour | Approx. 223 |
|---|---|
| Water per rack | 0.35 gal (Econo) / 0.52 gal (Turbo) |

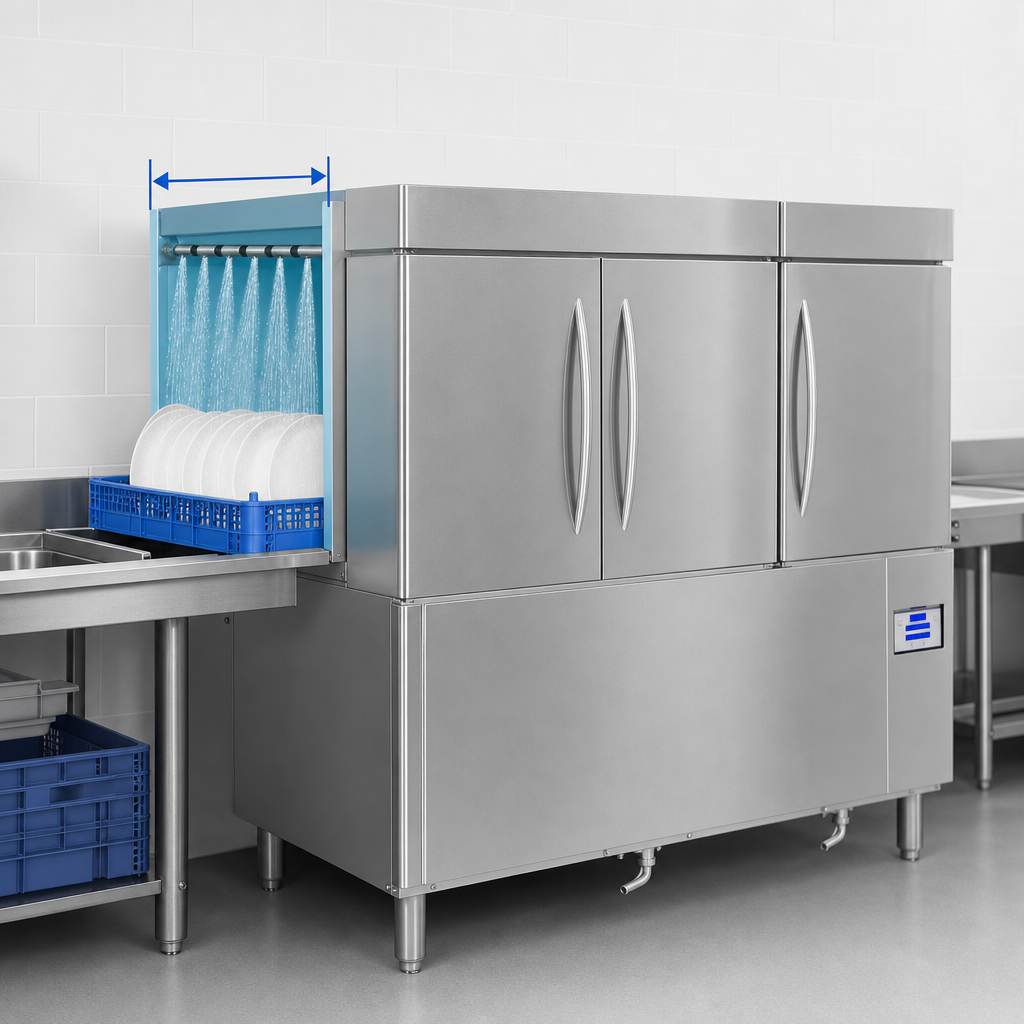

| Pre-wash section | 22 in. with 3 upper & 1 lower arms |

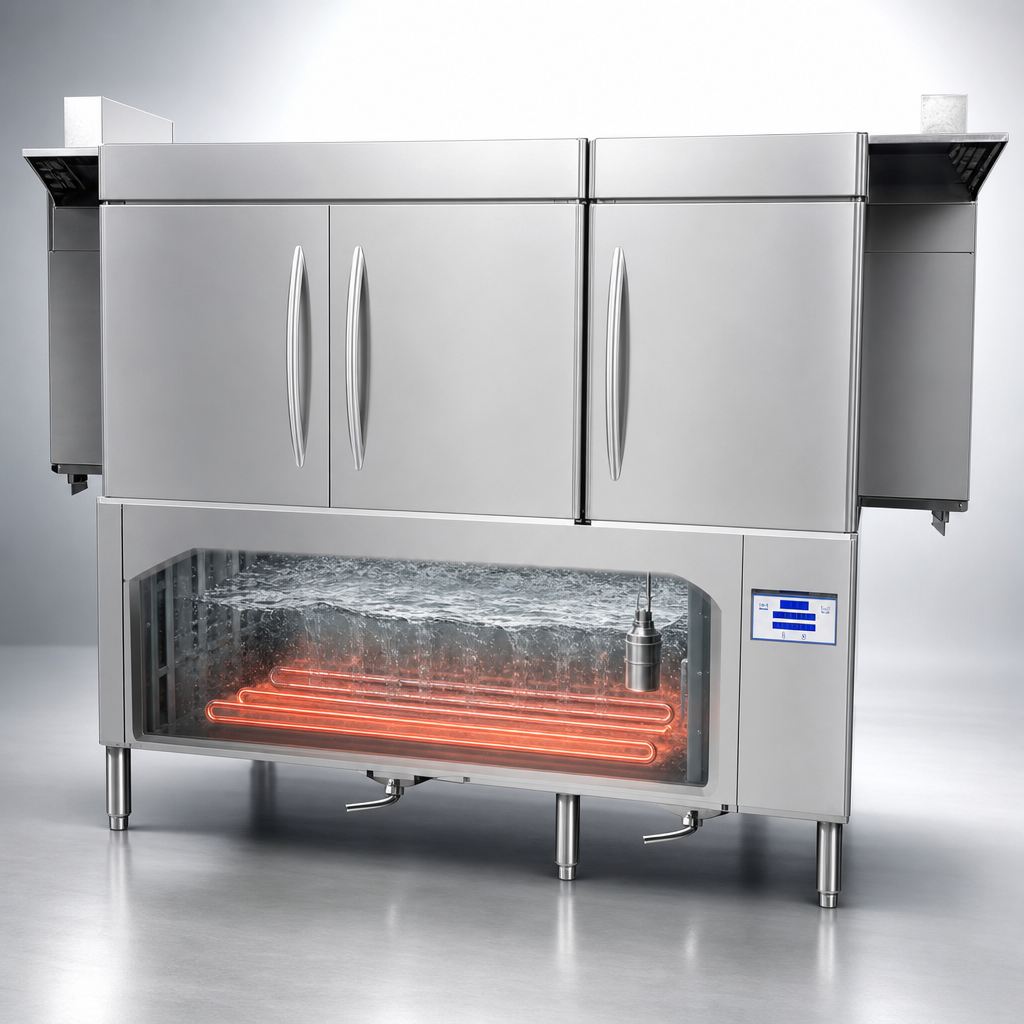

| Wash tank heat | 15 kW electric |
| Wash pump | 3 HP, 270 GPM |
| Pre-wash pump | 2 HP, 220 GPM |
| Conveyor motor | ¼ HP, 6.07 FPM |
| Chamber clearance | 19-3/4 in. (standard) |
| Overall dimensions | 68-1/2 L × 30 W × 73-1/2–76 H in. |
| Certifications | cETLus • ETL-Sanitation |
Standard features
- Single-tank wash with automatic fill and strike-plate table limit switch
- Self-draining stainless steel wash pump & strainer pans
- Adjustable vent cowl collars with built-in exhaust fan control
- Splash shields and front dress panel for a cleaner dishroom
- Large front service access and insulated doors for heat retention
- Delime mode for simplified preventive maintenance
Utility requirements
| Water inlet | ½ in. NPT • 110–140 °F (15 PSI, 1.3 GPM minimum) |
|---|---|
| Drain | 1½ in. NPT gravity drain • 25 gal tank |
| Vent collars | 6-7/8 in. Ø (input 200 CFM / output 200 CFM) |
| Electrical (3-ph, single-point) | 208 V 106 A • 230 V 94 A • 460 V 47 A (with 18 kW booster option) |
Warranty
One-year parts & labor warranty (U.S./Canada). Registration required within 30 days of installation.
