Description

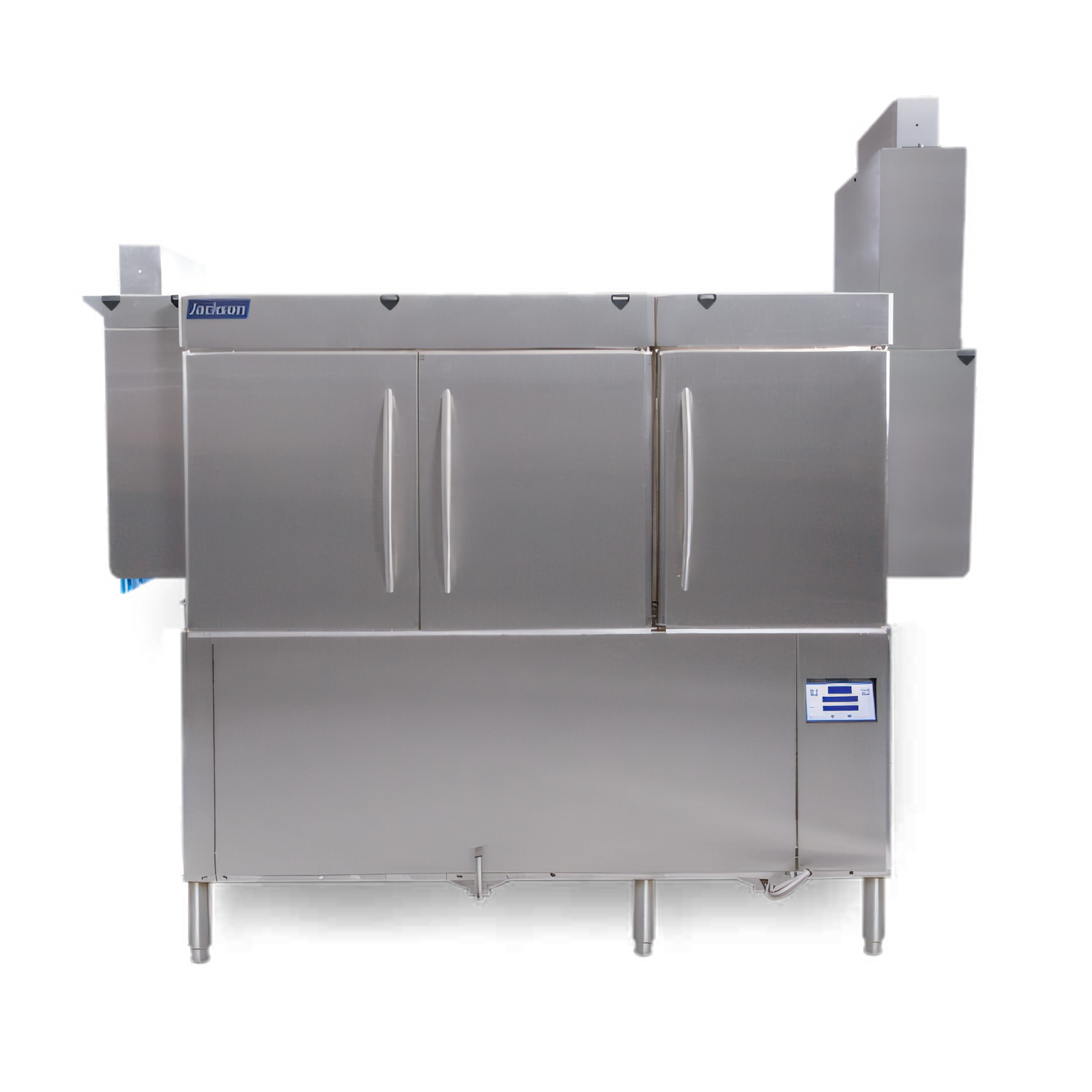

Jackson RackStar® 66 High-Temp Conveyor Dishwasher with Energy Recovery
223 racks/hr • 0.35 gal per rack • 70 °F rise boosterBuilt for demanding food-service operations, the RackStar® 66 combines industry-leading water efficiency with a powerful heat-reclaim system—delivering spotless ware, lower utility bills and a cooler, quieter dish room.
Top reasons operators love the RackStar® 66
- Clean the First Time® results from the WISR® Cleaning System and exclusive Rainbow Rinse™ arms.

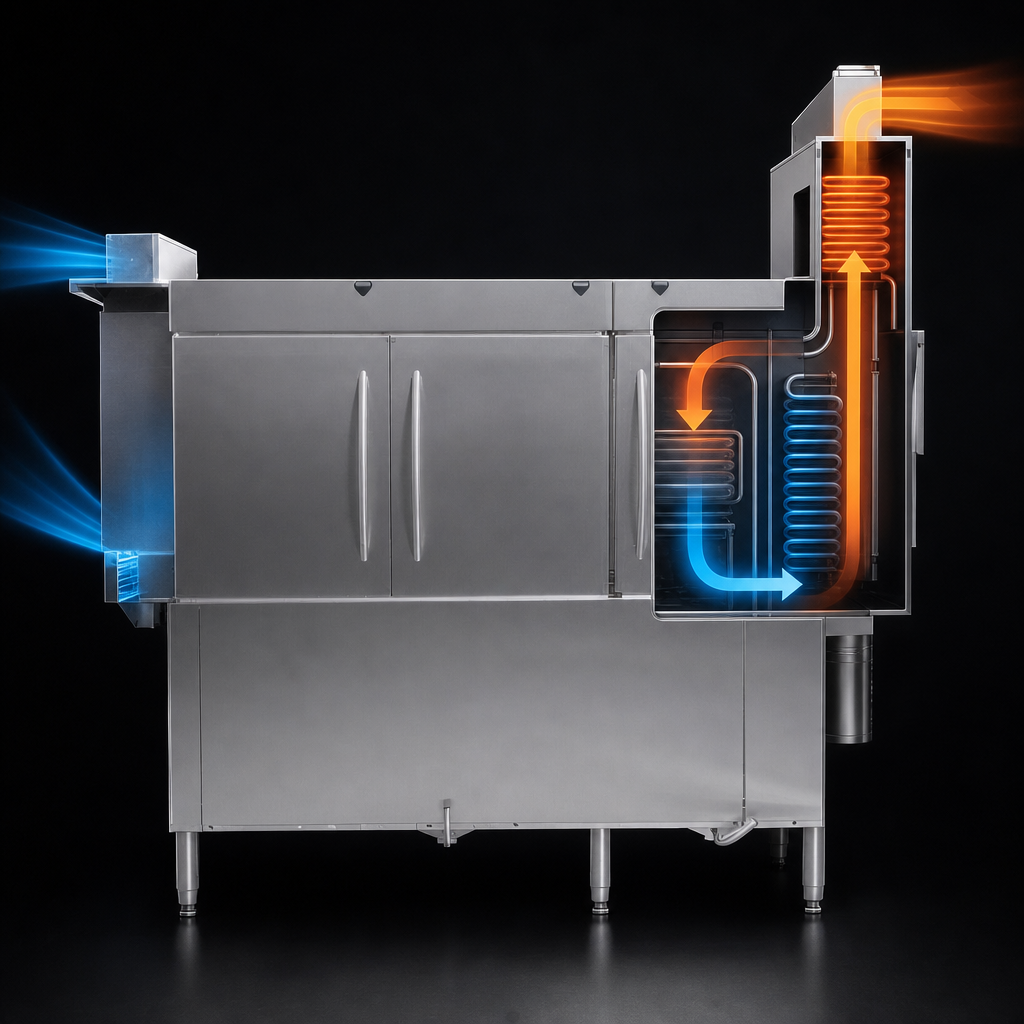

- Energy Recovery captures exhaust heat to pre-heat incoming water, cutting energy costs.
- Uses just 0.35 gal per rack in Econo Rinse (0.52 gal in Turbo for heavy soil).
- High throughput—223 racks per hour with 19-3/4" vertical clearance for sheet pans & stock pots.
- 27 kW electric booster heater (70 °F rise) guarantees a 180 °F sanitizing rinse.
- Fully automatic operation with auto-fill, EnergyGuard™ controls & digital temperature readout.
- Double-wall, 180° hinged doors retain heat and reduce dish-room noise.
- Self-draining 3 HP wash pump and 2 HP pre-wash pump keep water cleaner, longer.
- Adjustable vent cowl collars with built-in fan control simplify hood integration.
- Field-reversible conveyor (Left-to-Right or Right-to-Left) adapts to any dish-table layout.
Performance & utility savings
| Racks per hour | 223 |
|---|---|
| Water use (Econo / Turbo) | 0.35 gal / 0.52 gal per rack |
| Total water (Econo / Turbo) | 78 gal / 116 gal per hour |
| Energy Recovery | Raises 55 °F supply water to 110 °F using waste heat |
| Booster heater | 27 kW electric, 70 °F rise |
| Wash tank heater | 15 kW electric |
Dimensions & connections
| Overall length | 82" (2084 mm) |
|---|---|
| Depth | 30" (762 mm) • 50" (1270 mm) with doors open |
| Adjustable height | 73 ½"–76" (1867–1930 mm) |

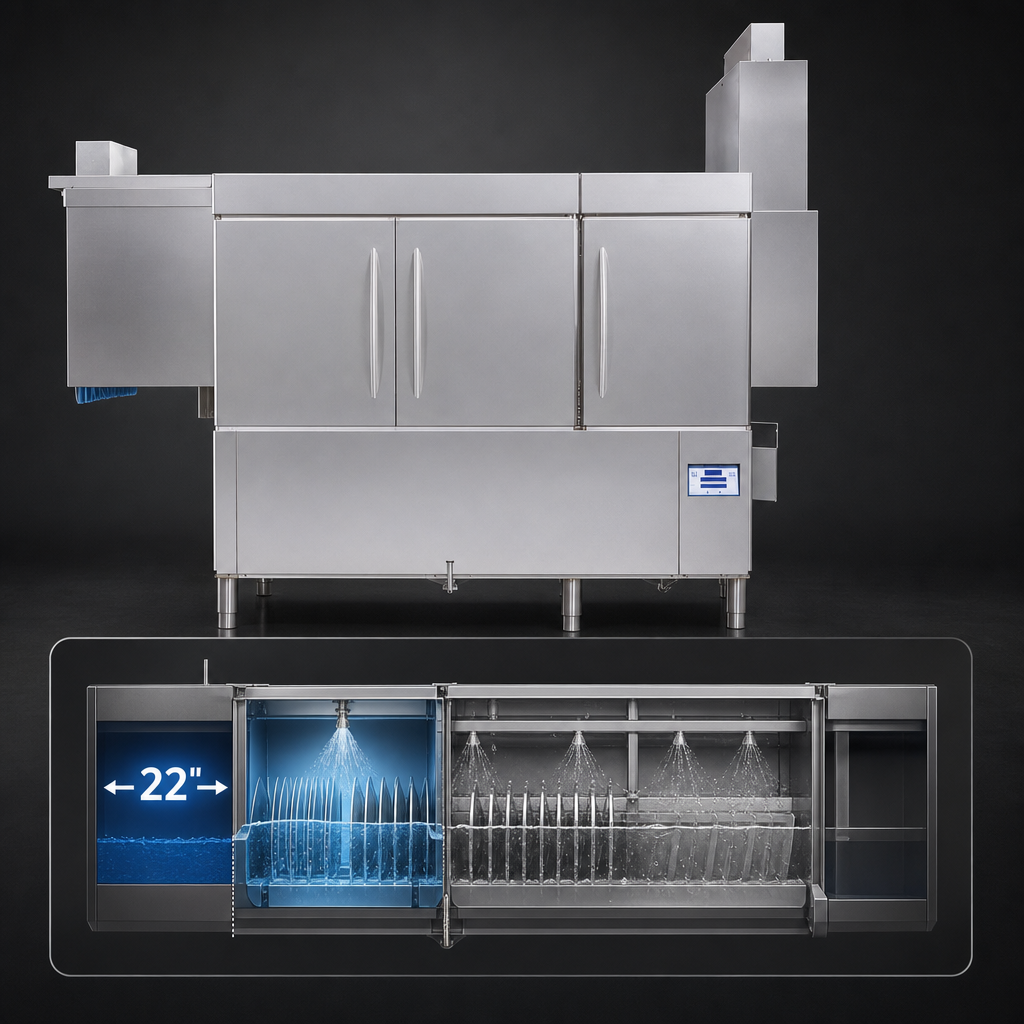

| Pre-wash section | 22" (559 mm) with 3 upper & 1 lower arms |
| Interior clearance | 19 ¾" (502 mm) |
| Water inlet | ½" NPT, 110 °F hot & 55 °F cold (Energy Recovery) |
| Drain connection | 1 ½" NPT |
| Vent requirements | 175 CFM inlet / 175 CFM outlet (350 CFM total) |
| Electrical (single-point, 3-phase) | 208 V 133 A • 230 V 115 A • 460 V 58 A |
| Motors | 3 HP wash • 2 HP pre-wash • ¼ HP conveyor |
| Shipping weight | 1,193 lb (542 kg) |
Built-in safety & hygiene features
- Strike-plate table limit switch prevents rack jams.
- Self-cleaning wash arms & stainless-steel strainers reduce daily maintenance.
- Automatic delime mode for easy scale removal.
- Splash shields keep surrounding work areas dry.
- cETLus listed for electrical safety; ETL-Sanitation compliant.
Important: Professional installation in accordance with local codes is required for
full warranty coverage.
Covered by Jackson’s 1-year parts & labor warranty. Register your machine at jacksonwws-warranty.com.
Features & Specs
Features & Specs
Manufacturer
Jackson WWS
Brand_name
RackStar®
Certifications
cETLus, ETL-Sanitation
Height
82.0in
Width
86.0in
Depth
30.0in
Shipping Weight
1193.0lbs
Tank Heat
electric
Temperature
high temp with booster
Construction
stainless steel
Tank design
(1) tank with pre-wash
Rack Capacity
approximately (220) racks/hour
Specifications
RackStar® 66 Dishwasher, conveyor type, high temperature sanitizing, with Energy Recovery, electric tank heat, 27.0 kW 70° booster heater, single tank design, 22" pre-wash, approximately (223) racks/hour capacity (0.35 gallons per rack), fully automatic including auto-fill, 19-3/4" clearance, digital temperature readout, double-wall insulated doors on front, EnergyGuard™ controls, Dual Rainbow Rinse™ - Econo (0.35 gpr) or Turbo (0.51 gpr), vent cowl collar with adjustable damper, vent fan control, strike plate table limit switch, splash shields, stainless steel construction, adjustable bullet feet, 3 HP pump, 1/4 HP conveyor, cETLus, ETL-Sanitation
