Jackson WWS RACKSTAR 44CS RackStar® Conveyor Dishwashers
Description

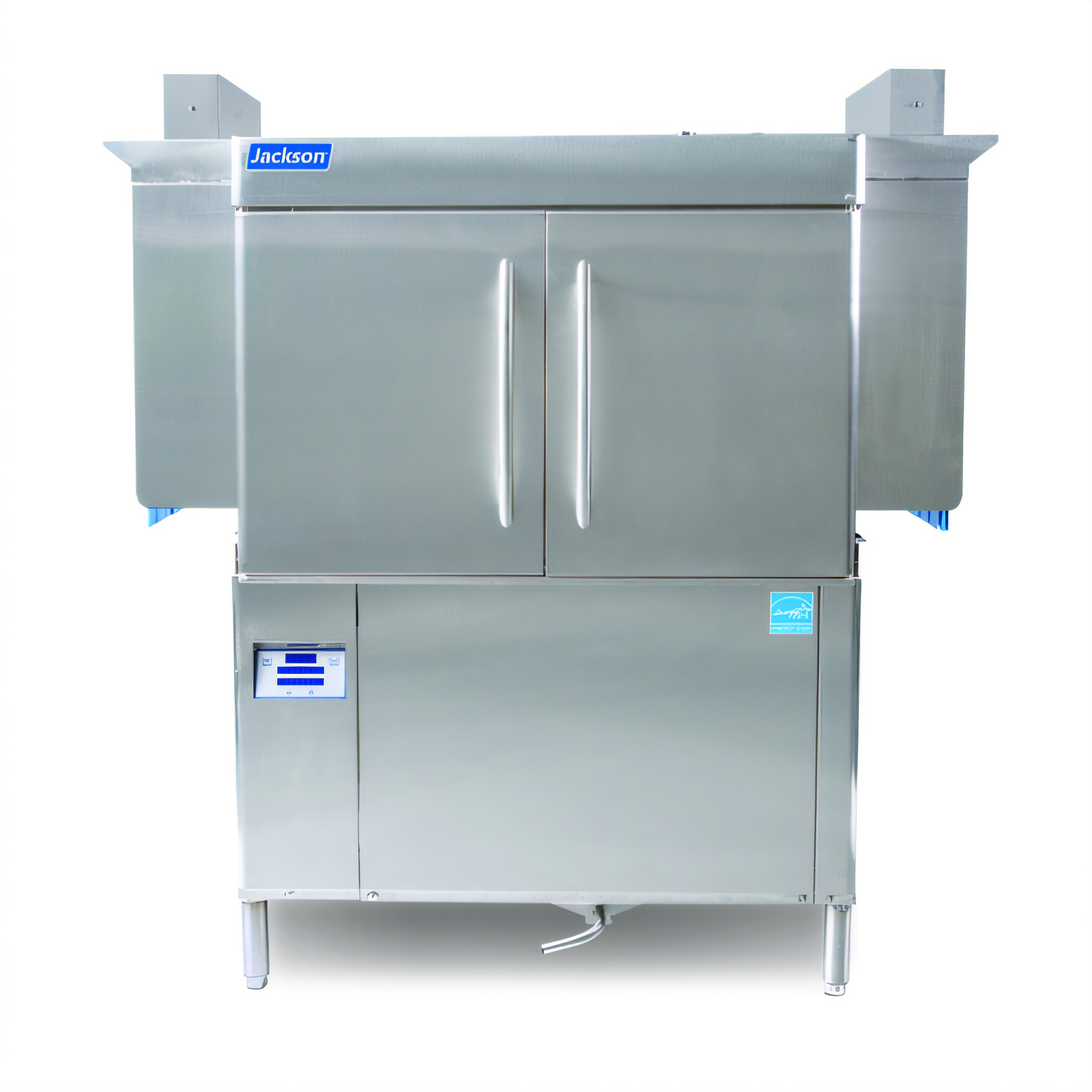

Jackson RackStar® 44 Conveyor Dishwasher
High-temperature • Steam-heated wash tank • 223 racks / hourThe RackStar® 44 from Jackson Warewashing Systems is purpose-built for high-volume operations that refuse to compromise on cleanliness, efficiency, or operating costs. Its single-tank, steam-heated design pairs a powerful 3 HP wash pump with Jackson’s exclusive EnergyGuard™ and Dual Rainbow Rinse™ technologies—so you’ll wash more, waste less, and keep utility bills in check.
Why the RackStar® 44?
- Clean the First Time® – twelve self-cleaning wash arms and WISR® Cleaning System blast away food soil.
- Lowest-in-class water use – just 0.35 gal / rack in Econo mode; 0.52 gal / rack in Turbo mode for heavy loads.
- High-temp sanitizing – built-in steam coil heater and 180 °F final rinse meet NSF sanitization standards.
- Energy & labor saving – double-wall insulated doors lock in heat, reduce noise, and keep the dish room cooler.
- Fully automatic – auto-fill, digital temperature readout, vent fan control, and strike-plate table limit switch simplify operation.
- Durable, service-friendly – all-stainless construction, large front access panel, and adjustable bullet feet.
- Certified & compliant – cETLus and ETL-Sanitation listed; one-year parts & labor warranty included.
Performance at a Glance
| Rack capacity | 223 racks / hour (5,575 dishes or 8,028 glasses) |
|---|---|
| Water consumption | 0.35 gal / rack (Econo) | 0.52 gal / rack (Turbo) |

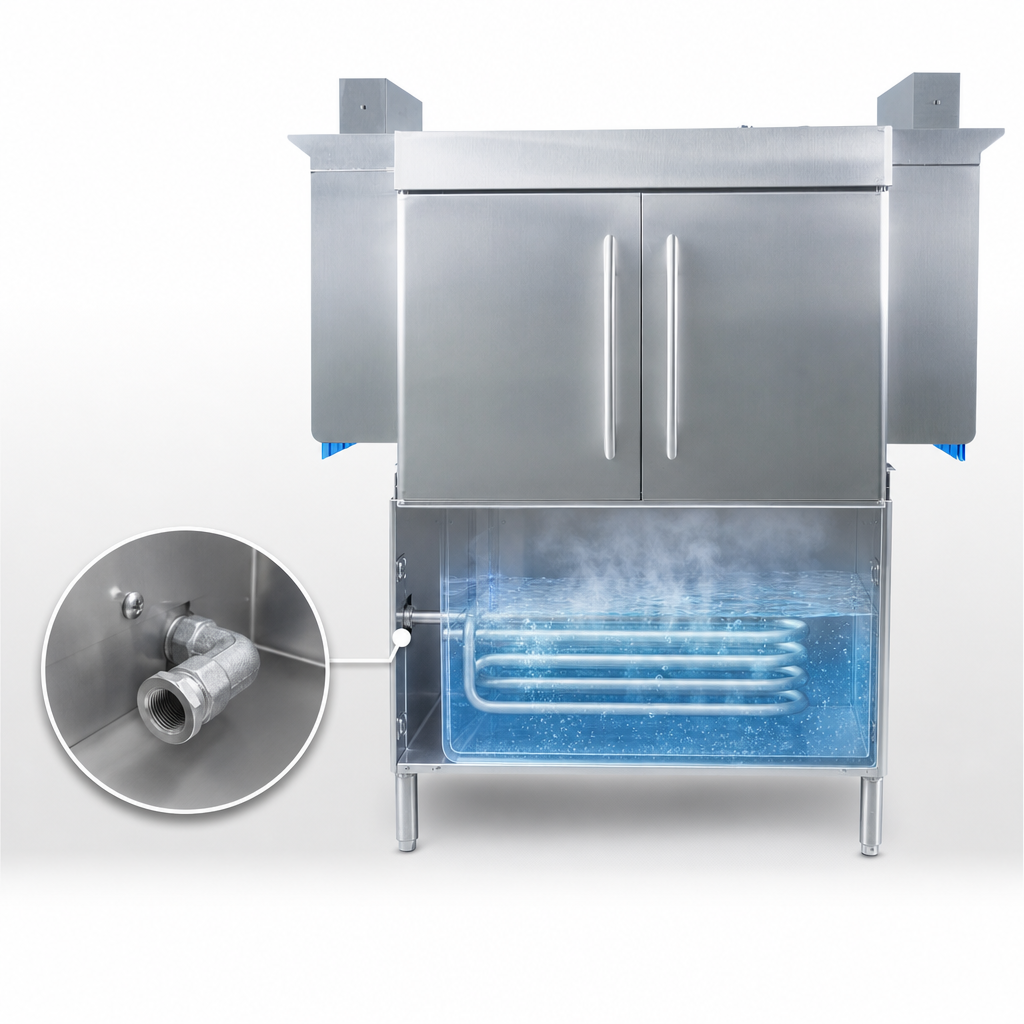

| Wash tank capacity | 25 gal – steam-heated coil, 15 kW equivalent |
| Wash / final-rinse temps † | 160 °F wash | 180 °F final rinse |
| Wash pump / conveyor | 3 HP self-draining pump (270 GPM) | ¼ HP conveyor @ 6.07 FPM |
| Chamber clearance | 19 ¾ in. (standard) |
| Dimensions (L × D × H) | 68 ½ in. × 30 in. × 64 in. (between dishtables) |
| Steam connection | ¾ in. NPT, 60 lbs / hr @ 15 PSIG (10–30 PSIG range) |
| Water / drain connections | ½ in. NPT (110–180 °F supply) | 1½ in. NPT drain |
| Vent requirements | 400 CFM total (200 CFM input / 200 CFM output) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 1-year parts & labor (USA & Canada) |
† Minimum incoming water temperature depends on booster option selected. Refer to the installation manual for detailed electrical, steam, and plumbing requirements.
