Jackson WWS RACKSTAR 44CEL RackStar® Conveyor Dishwashers
Description

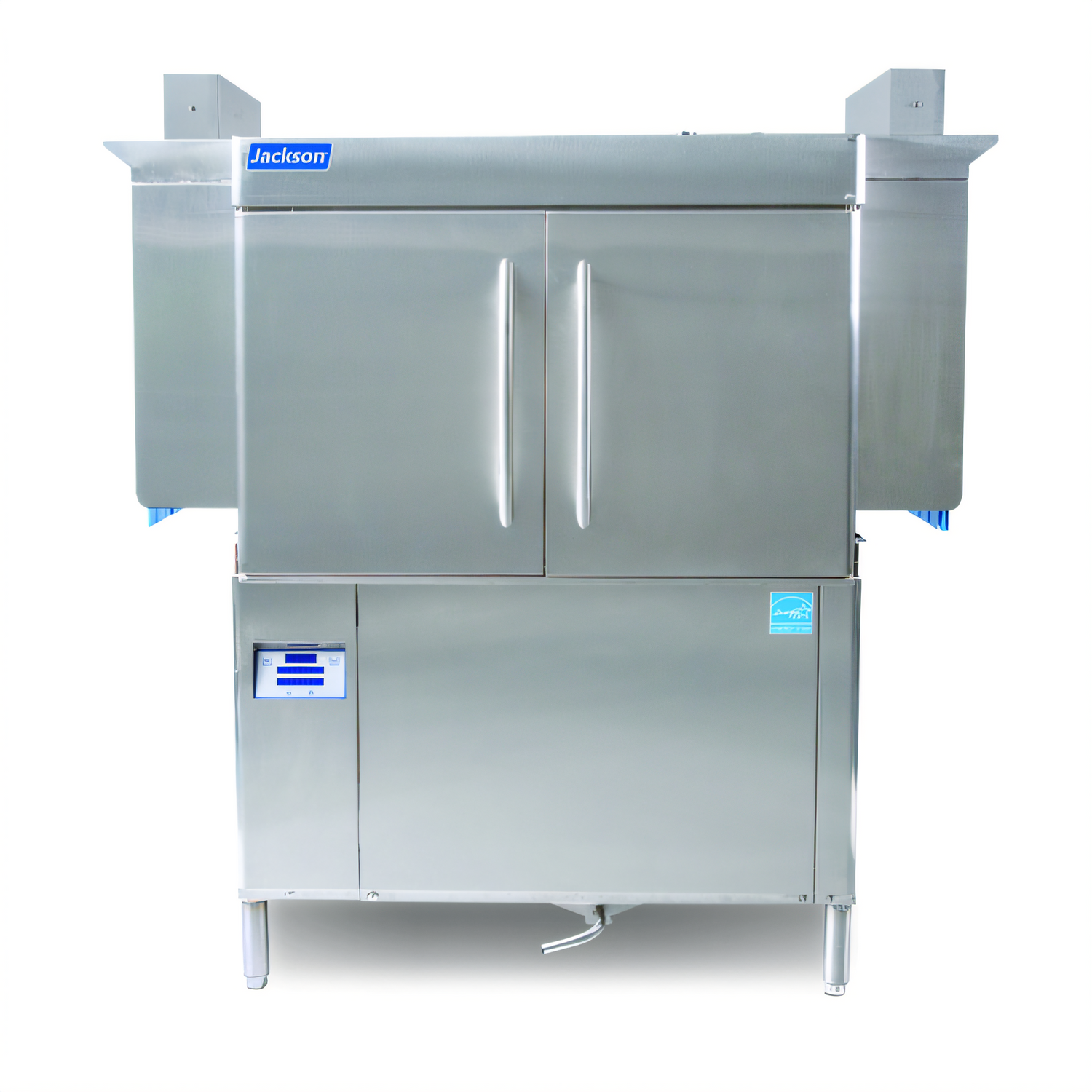

Jackson RackStar® 44 Low-Temp Conveyor Dishwasher
Single-tank • Chemical sanitizing • Electric tank heatEngineered for high-volume food-service operations, the RackStar® 44 powers through up to 223 racks every hour while using as little as 0.35 gallons of water per rack. Its EnergyGuard™ controls, adjustable Dual Rainbow Rinse™ system and rugged stainless-steel construction deliver dependable “clean-the-first-time” results—without draining your utility budget.
Why You’ll Love It
- Dual Rainbow Rinse™ with selectable Econo (0.35 gpr) or Turbo (0.51 gpr) modes.
- EnergyGuard™ system runs wash & rinse only when racks are present—no wasted utilities.
- WISR® Cleaning System and 12 self-cleaning wash arms with non-clogging nozzles.
- 15 kW electric tank heat keeps the 25-gal wash tank at temp—no external boiler needed.
- 3 HP self-draining wash pump & ¼ HP dual-pawl conveyor drive handle heavy loads with ease.
- Double-wall, 180° hinged doors are insulated to retain heat and reduce dishroom noise.
- Intuitive digital LED panel shows temperatures, cycle status and built-in service diagnostics.
- Vent cowl collar with adjustable damper and fan control for quick hood integration.
- Splash shields, strike-plate table limit switch and stainless strainer pans included.
- All-stainless frame, tank and legs with adjustable bullet feet for long-term durability.
- Certified cETLus & ETL-Sanitation to meet NSF/ANSI 3 standards.
Lower Costs from Day One
- Uses up to 43 % less water than comparable conveyors—cut water & sewer bills.
- Lower water use = less detergent, sanitizer and rinse aid every cycle.
- Smaller heating elements and insulated doors reduce overall energy consumption.
Technical Specifications
| Configuration | 44″ single-tank, low-temperature chemical sanitizing conveyor |
|---|---|
| Rack capacity | Approx. 223 racks/hr • 6.07 FPM conveyor speed |
| Water usage | 0.35 gal/rack (Econo) or 0.51 gal/rack (Turbo) |
| Wash tank capacity | 25 gal |
| Wash pump | 3 HP (270 GPM) self-draining stainless pump |
| Conveyor motor | ¼ HP dual-pawl drive |
| Tank heat | 15 kW electric immersion heater |
| Minimum wash / rinse temp | 120 °F / 120 °F (chemical sanitizing) |
| Overall dimensions | 68.5″ L × 44″ D × 51.5–54″ H (adjustable) |
| Vertical clearance | 19.75″ product clearance (standard chamber) |
| Vent requirements | 200 CFM inlet • 200 CFM outlet (400 CFM total) |
| Water connection | ½″ IPS, 110 °F min. supply |
| Drain connection | 1½″ IPS, 1.3 GPM flow rate |
| Electrical | 208, 230 or 460 V / 60 Hz / 3 Ø (1-phase voltages available) |
Included with Your Machine
- Automatic fill & drain
- Front dress panel & stainless splash shields
- Adjustable vent cowl collars with damper
- Stainless strainer pans and scrap basket
- Operator’s manual
Every Jackson dishmachine is backed by a one-year parts & labor warranty (registration required). Extended service plans are available—ask your Jackson representative for details.
Upgrade your dishroom with the Jackson RackStar® 44 and enjoy sparkling results, lower operating costs and legendary Jackson reliability.
