Jackson WWS RACKSTAR 44CE RackStar® Conveyor Dishwashers
Description

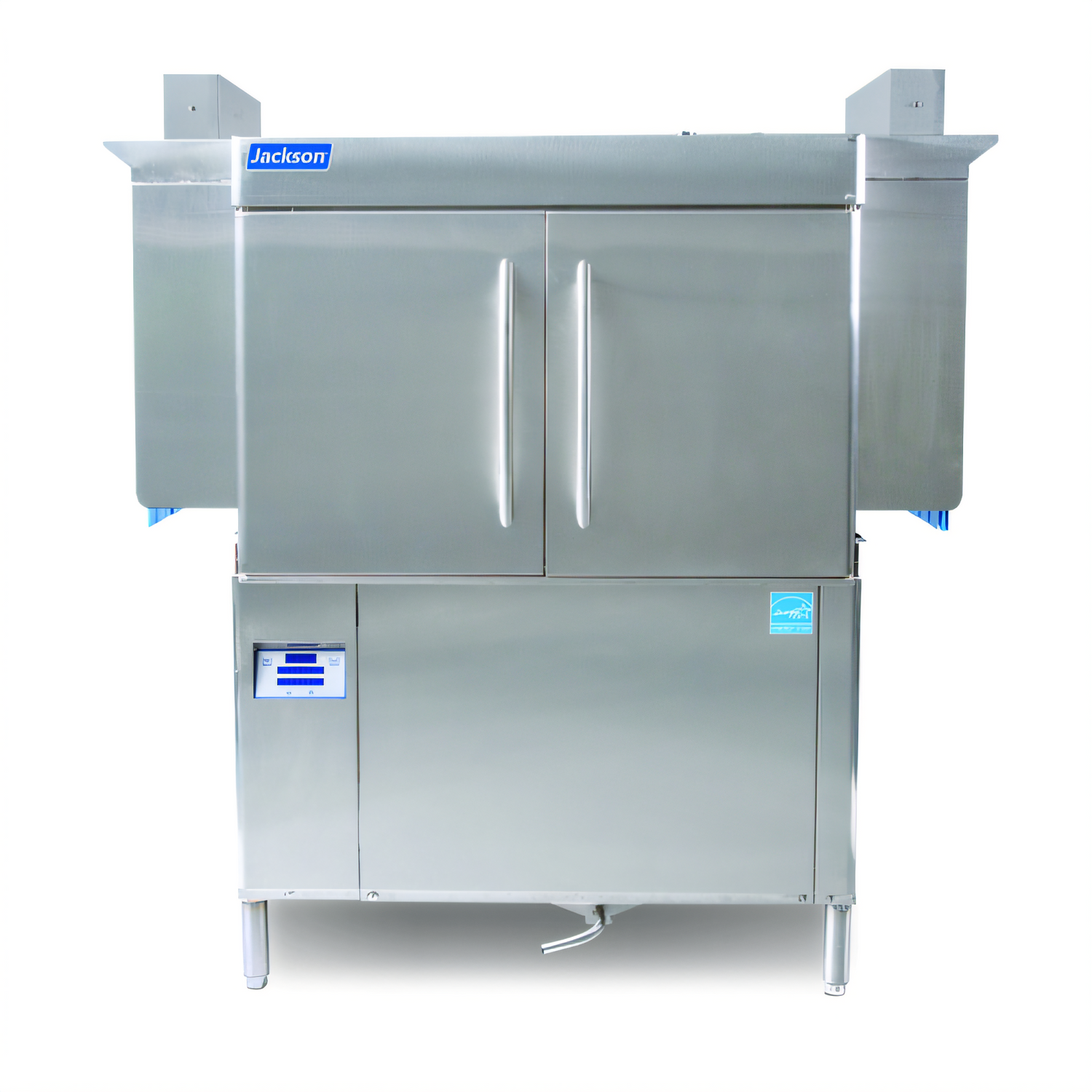

Jackson RackStar® 44 Conveyor Dishwasher
High-temperature • single-tank • electric heatProcess up to 223 racks every hour while using as little as 0.35 gallons of water per rack—the best in its class. RackStar® 44 combines an adjustable dual-mode rinse system, rugged stainless construction and smart EnergyGuard™ controls to deliver spotless ware at the lowest possible operating cost.
Key Advantages

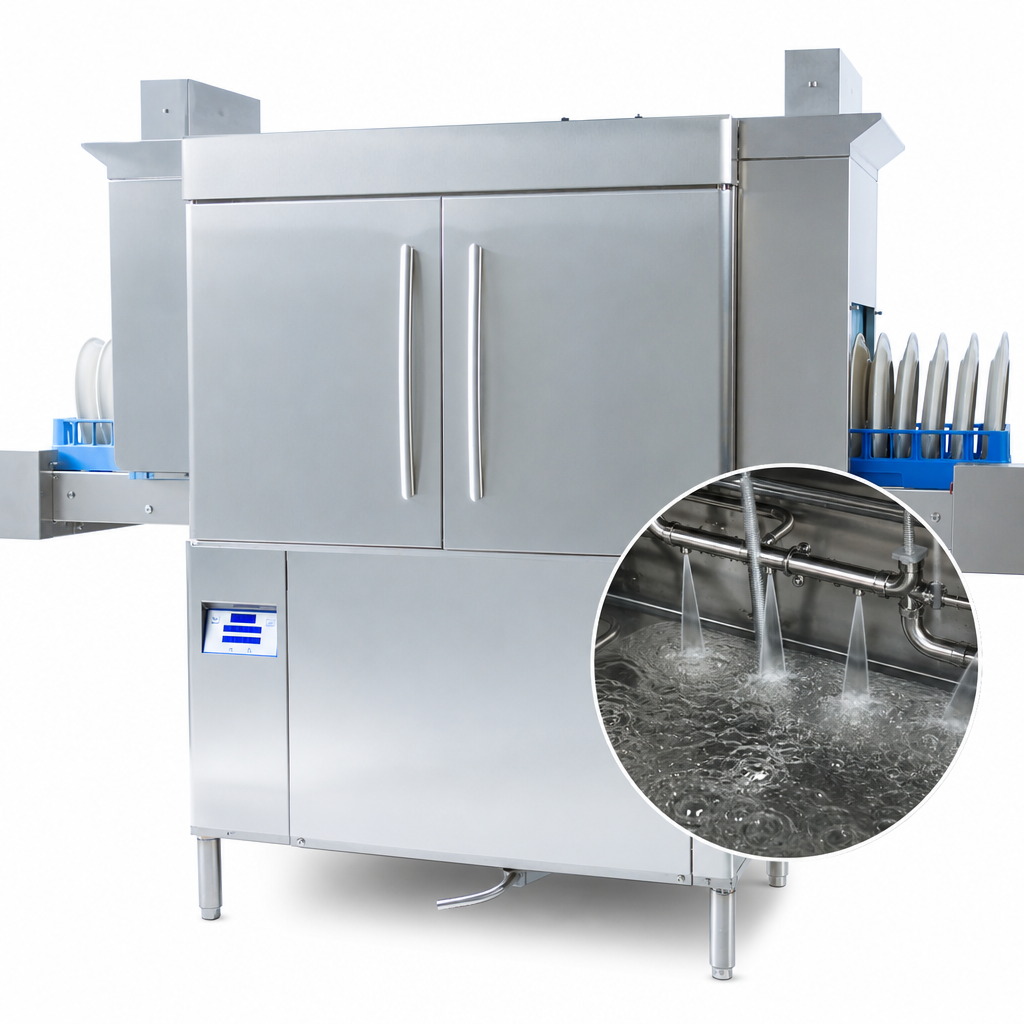

- Exclusive Dual Rainbow Rinse™ arm design for superior coverage.
- Adjustable rinse modes:
- Econo Rinse – 0.35 gal/rack for everyday loads.
- Turbo Rinse – 0.52 gal/rack for heavy soil.
- EnergyGuard™ system activates rinse and conveyor only when a rack is present.
- WISR® self-cleaning wash system with 12 clog-resistant arms powered by a 3 HP pump (270 GPM).

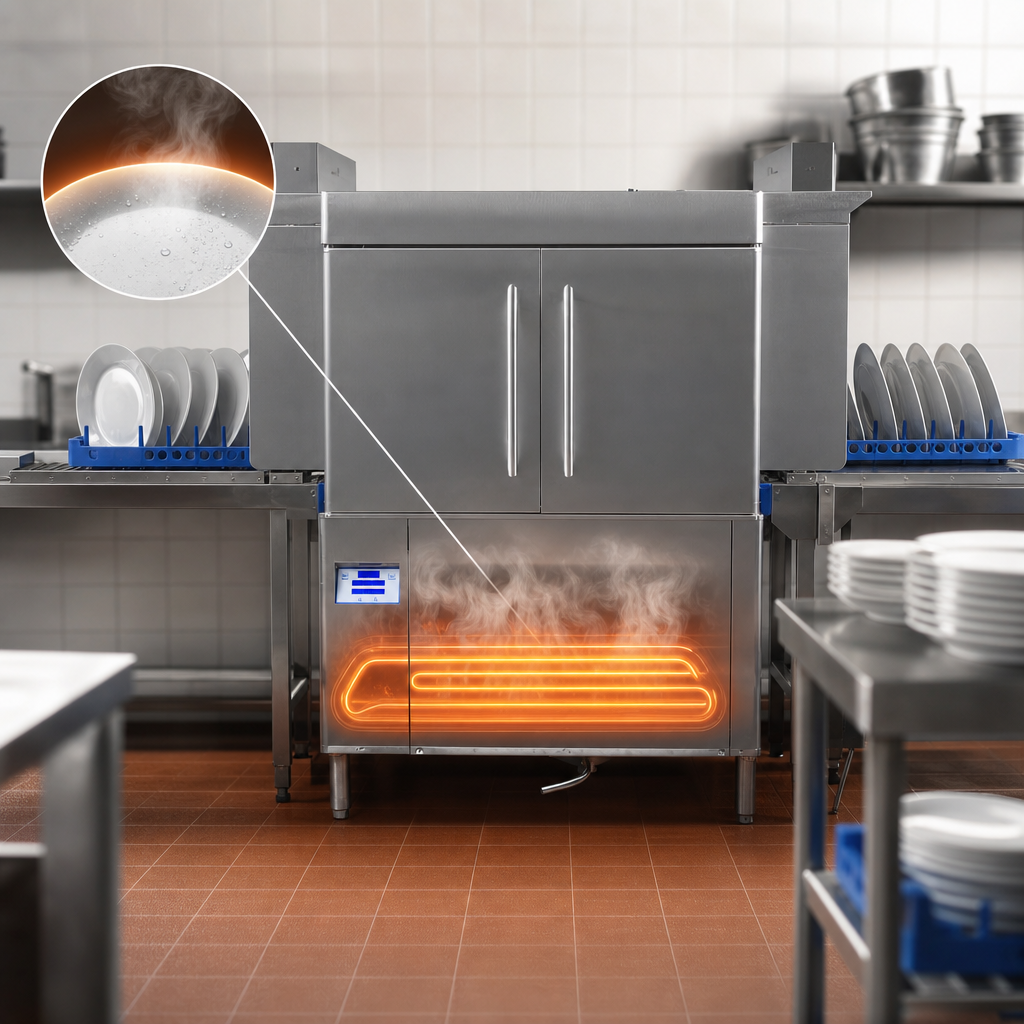

- 15 kW electric tank heat maintains a constant 160 °F (71 °C) wash temperature.
- Double-wall, 180° hinged doors retain heat and reduce noise.
- Digital LED control panel with service diagnostics and delime mode.
- Vent cowl collar with adjustable damper and automatic fan control.
- Front auto-fill, stainless steel strainer pans and integrated splash shields for a cleaner workspace.
Performance & Utility Savings
- Uses up to 44 % less water than competing 44″ conveyors, cutting water, sewer and chemical costs.
- Lower water volume lets you use smaller booster heaters, reducing energy consumption for years.
- Insulated doors keep wash water hot and the dishroom cooler for better staff comfort.
Technical Specifications
| Model | RackStar® 44 (left-to-right or right-to-left operation) |
|---|---|
| Production Rate | 223 racks/hour • 5,575 dishes/hour • 8,028 glasses/hour |
| Water Usage | 0.35 gal/rack (Econo) | 0.52 gal/rack (Turbo) |
| Wash Tank Capacity | 25 gal (95 L) – electric heat, 15 kW |
| Pumps & Motors | 3 HP wash pump • ¼ HP conveyor motor |
| Interior Clearance | 19-3/4″ (502 mm) |
| Conveyor Speed | 6.07 FPM (1.85 MPM) |
| Overall Dimensions | ≈ 68-1/2″ L × 30″ D × 64″ H (1740 × 762 × 1626 mm) |
| Water Connection | 1/2″ NPT, 110–180 °F (depending on booster selection) |
| Drain Connection | 1-1/2″ NPT |
| Vent Requirement | 200 CFM inlet • 200 CFM outlet (400 CFM total) |
| Electrical | 208, 230 or 460 V / 60 Hz / 3 ph (single- or dual-point). See spec sheet for amp draw. |
| Certifications | cETLus • ETL Sanitation |
| Warranty | 1-year parts & labor (USA / Canada with registration) |
Ideal For
- High-volume restaurants, hotels and catering operations.
- School, healthcare and correctional facilities focused on utility savings.
- Banquet halls needing one-pass cleaning for mixed wares—from plates to 18″ sheet pans.
Need a 40 °F or 70 °F rise booster, taller chamber, energy-recovery system or special accessories? Factory options are available—contact us for a tailored quote.
Specifications are subject to change without notice. Always refer to the latest Jackson WWS documentation for complete installation requirements.
