Description

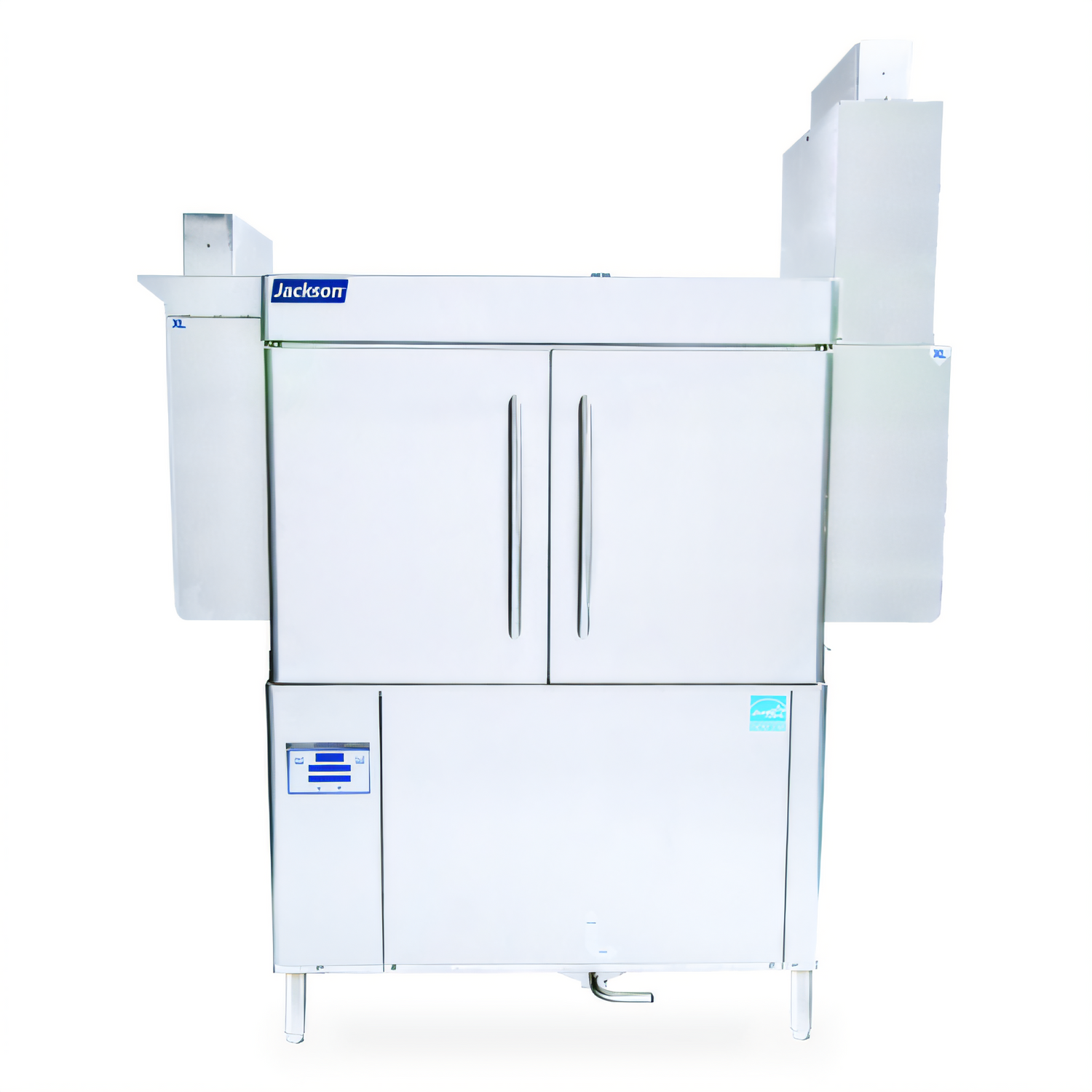

Jackson RackStar® 44 Conveyor Dishwasher – Energy Recovery Model
High-temperature, single-tank warewasher • 223 racks/hour • 0.35 gal/rackBuilt for the busiest commercial kitchens, the RackStar® 44 combines Jackson’s proven Rainbow Rinse™ technology with an Energy Recovery system that reclaims “free” exhaust heat to slash utility costs. A spacious 19-3/4" chamber, fully-automatic controls and stainless-steel durability ensure dishes, glasses and trays come out spotless the first time—shift after shift.
Stand-out Features
- Energy Recovery captures exhaust heat to pre-heat incoming water to 110 °F, reducing booster demand.
- Dual Rainbow Rinse™ system
- Econo Rinse: 0.35 gal per rack for everyday loads.
- Turbo Rinse: 0.52 gal per rack for heavily soiled ware.
- Powerful 3 HP self-draining wash pump delivers 270 GPM through twelve self-cleaning wash arms.
- 70 °F-rise, 27 kW electric booster heater for consistent 180 °F final-rinse sanitizing.
- Exclusive EnergyGuard™ controls start pumps and heaters only when a rack is present.
- Digital LED panel with real-time temperature readouts and service diagnostics.
- Double-wall, insulated, 180° hinged doors retain heat and lower dishroom noise.
- WISR® Cleaning System, stainless steel strainer pans, and front dress panel for easy maintenance.
- Vent cowl collar with adjustable damper plus automatic vent-fan control.
- Strike-plate table limit switch, splash shields and adjustable bullet feet included.
- Rugged all-stainless construction; cETLus & ETL-Sanitation listed.
Performance & Efficiency
- 223 racks (up to 5,575 dishes) per hour.
- Uses as little as 78 gal of rinse water per hour in Econo mode.
- Lower water usage means reduced chemical and energy consumption for lifetime savings.
Specifications at a Glance
| Configuration | Conveyor, single-tank, high-temp sanitizing |
|---|---|
| Capacity | 223 racks/hr • 19-3/4" item clearance |
| Water Usage | 0.35 gal/rack (Econo) • 0.52 gal/rack (Turbo) |
| Wash Tank Heater | 15 kW electric |
| Booster Heater | 27 kW electric, 70 °F rise |
| Wash Pump | 3 HP, 270 GPM (self-draining) |
| Conveyor Motor | ¼ HP, 6.07 FPM |
| Overall Dimensions | 82" L × 44" D × 68-7/8" H (adjustable) |
| Shipping Weight | ≈ 880 lb |
| Primary Electrical (single-point) | 208/60/3 – 126.8 A • 230/60/3 – 109.3 A • 460/60/3 – 54.8 A |
| Water Inlet | ½" NPT – 110 °F minimum (hot) & 55 °F minimum (Energy Recovery) |
| Drain | 1½" NPT |
| Vent Requirements | 175 CFM input • 175 CFM output |
| Certifications | cETLus • ETL-Sanitation |
Factory-configured for left-to-right or right-to-left operation with single- or dual-point electrical connections. Other voltages and accessories available on request.
Includes Jackson’s one-year parts & labor warranty. Register your machine at jacksonwws-warranty.com within 30 days of installation.
