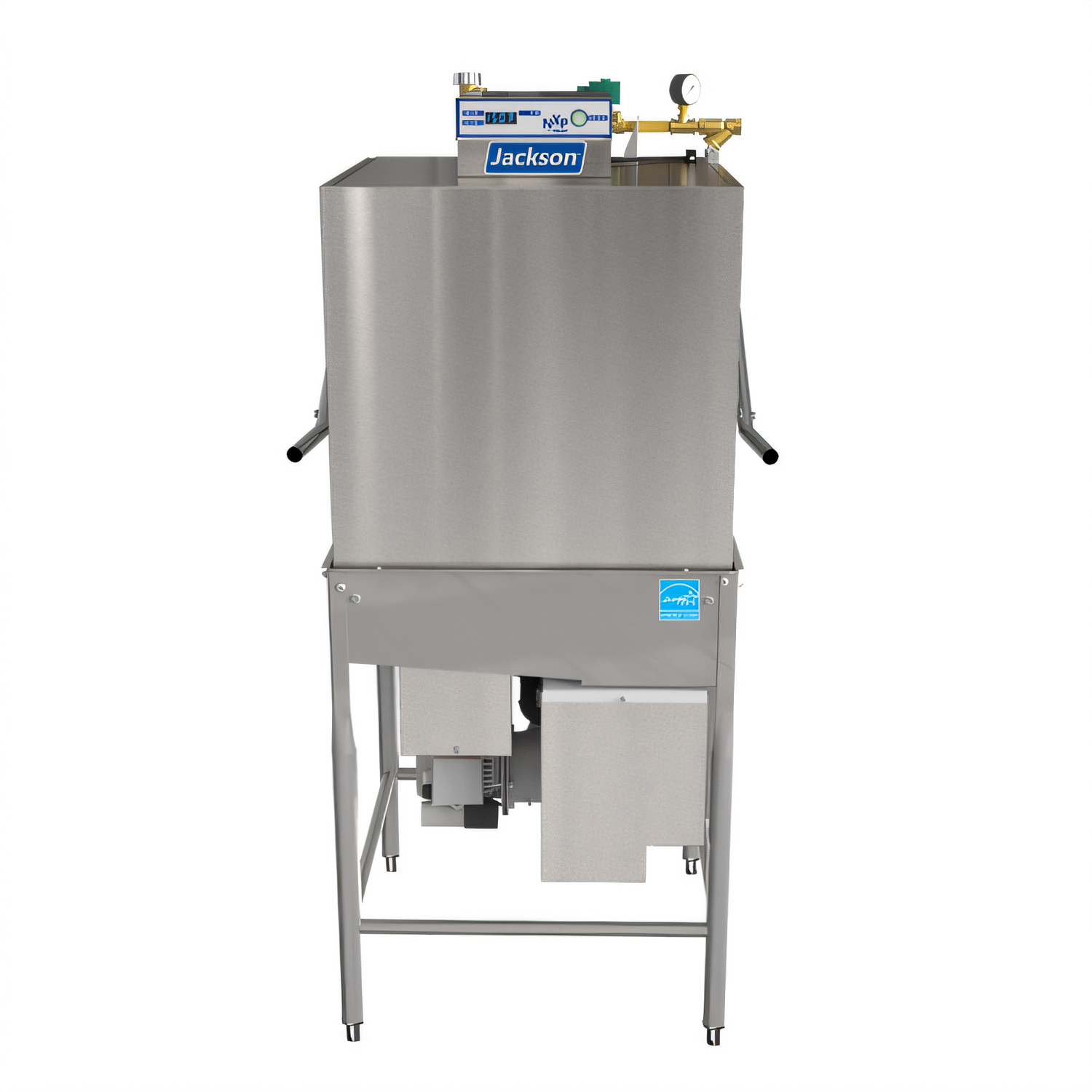

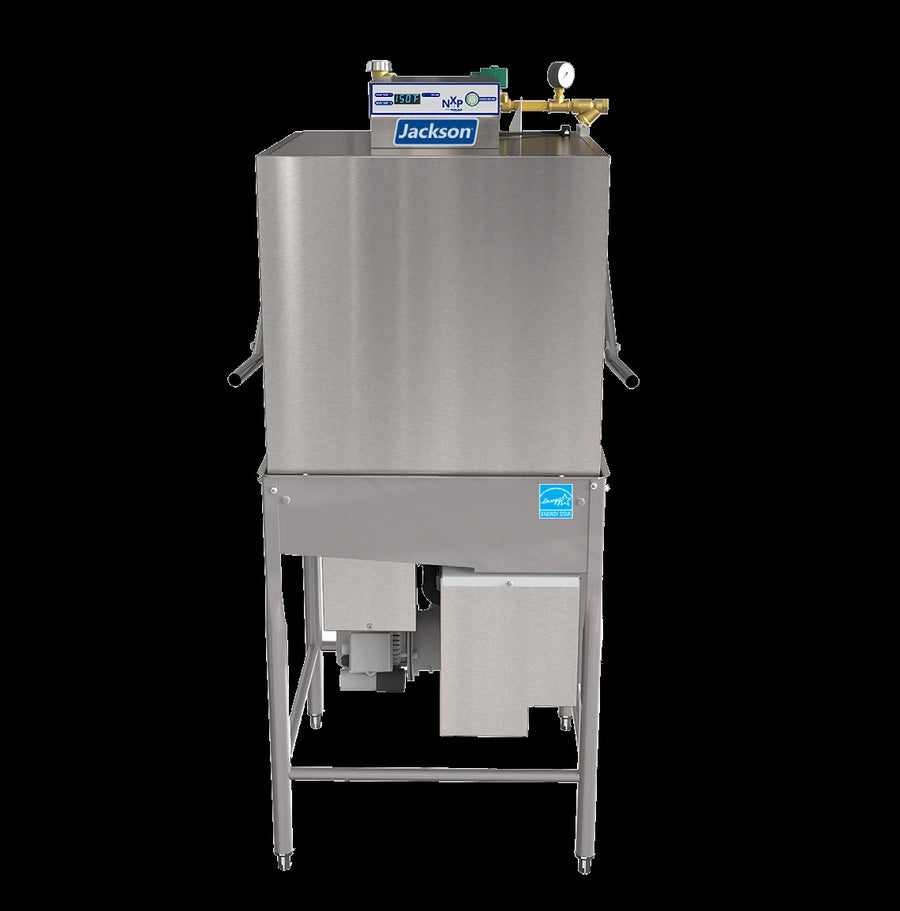

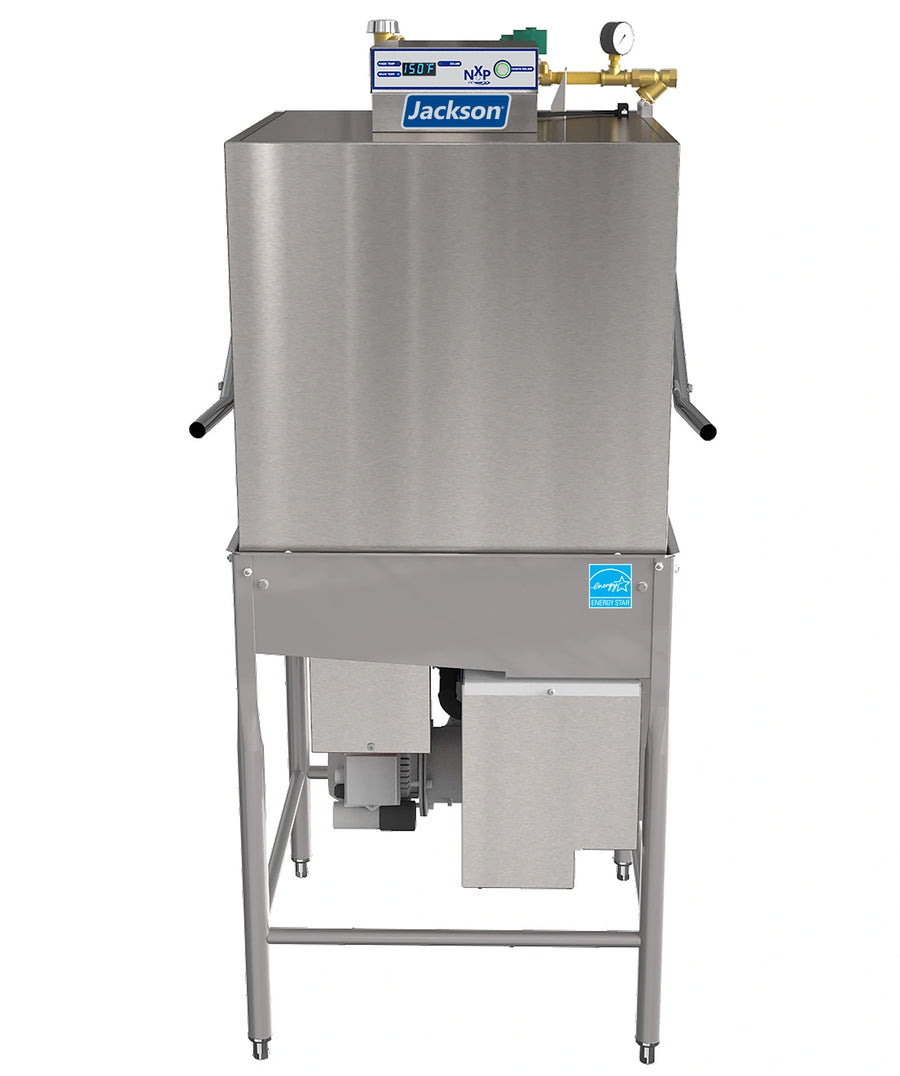

Jackson NXP High-Temperature Door-Type Dishwasher
Model NXP-HTD | ENERGY STAR® CertifiedDeliver lightning-fast, high-temp sanitizing without breaking the budget. Jackson’s NXP-HTD processes up to 58 racks per hour while using just 0.89 gallons of water per rack—cutting operating costs and keeping your dishroom moving.
Key Features & Benefits

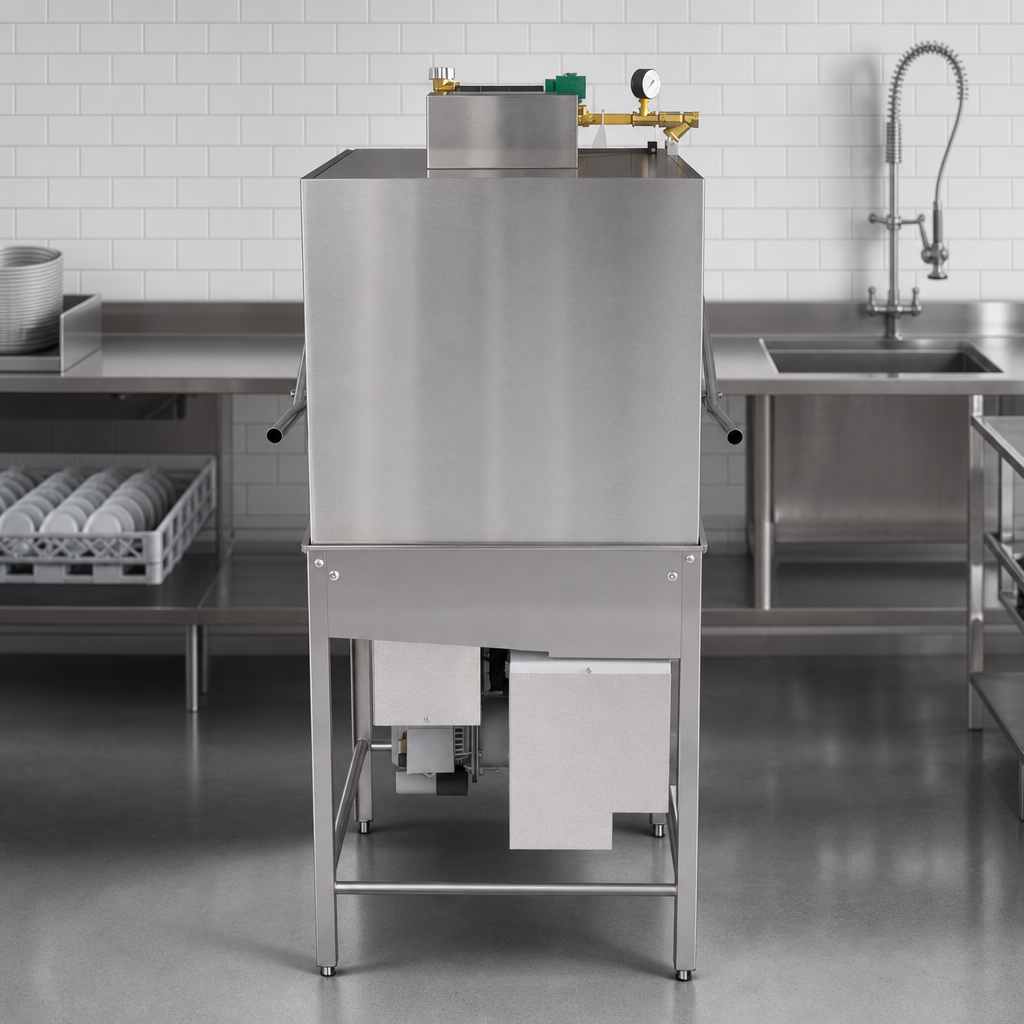

- Built-in 70 °F rise booster heater with exclusive Sani-Sure™ final-rinse system—guarantees 180 °F sanitizing rinse every cycle.
- Single 57-second cycle (40 s wash / 13 s rinse / 4 s dwell) maximizes throughput during peak hours.
- Automatic tank fill + door-actuated start for true “shut-the-door-and-go” simplicity.
- Easy-read digital LED display shows real-time wash and rinse temperatures.
- Interchangeable upper & lower stainless wash/rinse arms screw out for quick, tool-free cleaning.
- Delime cycle and hi-limit thermostat with low-water protection help prevent scale build-up and overheating.
- Vent-fan control shuts the exhaust off when the machine is idle, saving energy.

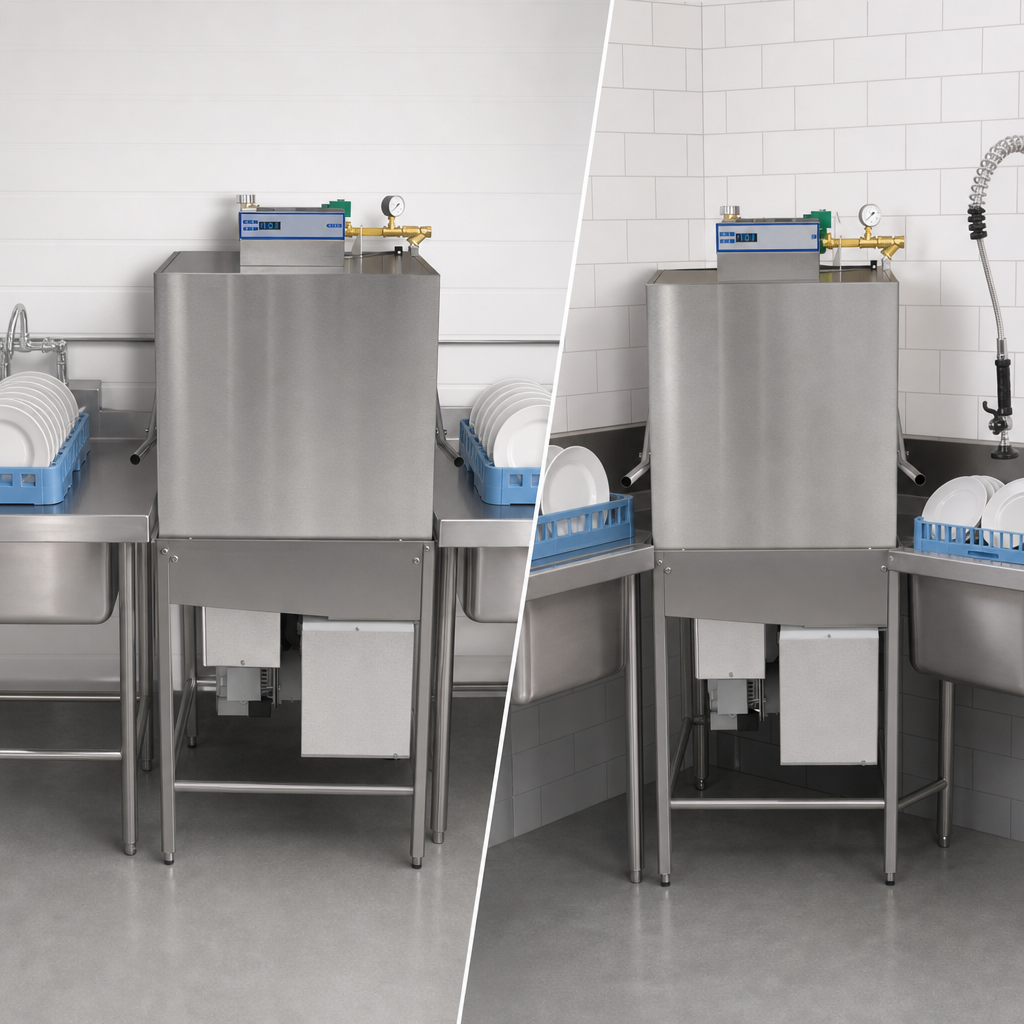

- Field convertible from straight-through to corner configuration (kit required) to fit almost any layout.
- Powerful 1 HP self-draining stainless steel wash pump motor tackles heavy food soil.
- Rugged all-stainless construction with adjustable bullet feet stands up to daily commercial use.
Performance & Utility Specs
| Rack capacity (per hr) | Approx. 58 racks |
|---|---|
| Water use | 0.89 gal per rack · 56 gal per hr |
| Cycle time | 57 seconds (single cycle) |
| Wash / Rinse temp | 150 °F / 180 °F (minimums) |
| Interior clearance | 17 1/4″ (438 mm) |
| Overall dimensions | 30 5/8″ W × 29″ D × 64″ H | 76″ H with door open |
| Electrical (select at install) |
208 V/60 Hz/3-ph 46.8 A (50 A OCP) 230 V/60 Hz/3-ph 51.1 A (55 A OCP) 208 V/60 Hz/1-ph 76.5 A (80 A OCP) 230 V/60 Hz/1-ph 83.9 A (85 A OCP) |
| Water inlet | 1/2″ NPT · 110 °F supply · 10 ± 2 psi flow |
| Drain connection / height | 1 1/2″ ID · 14″ above floor |
| Certifications | cETLus · ETL-Sanitation (NSF/ANSI 3) · ENERGY STAR® |
| Warranty | 1-year parts & labor |
Options & Accessories
- Corner / straight-through conversion kit
- 3-phase ↔ 1-phase conversion kit
- Low-watt density wash-tank heater
- Drain water tempering kit
- Pressure regulator & water hammer arrestor
- 20″ × 20″ peg, combination & 36-compartment racks
- Flanged feet, door interlock, false panel and more
