Jackson WWS DYNASTAR W/O DynaStar® Dishwashers
Description

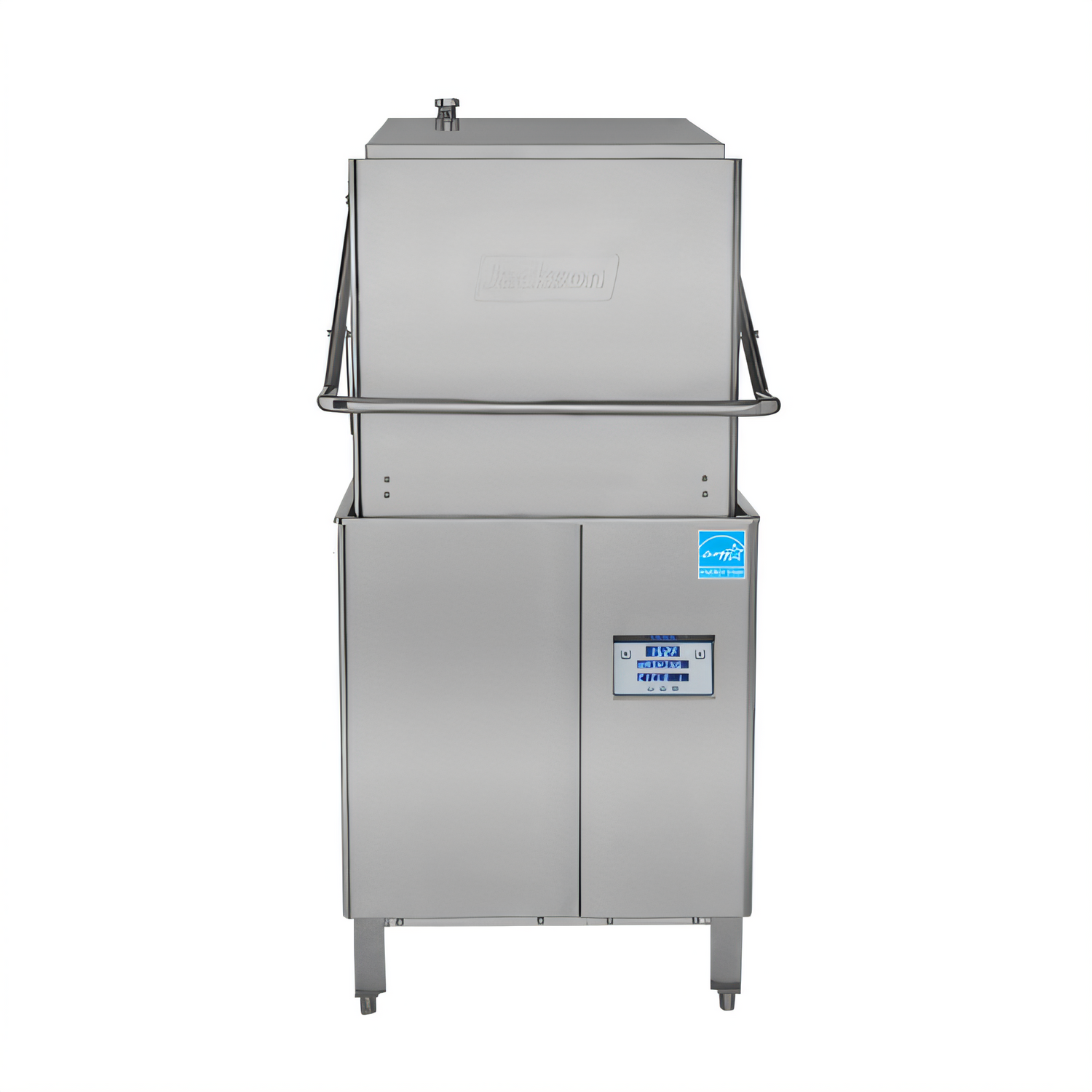

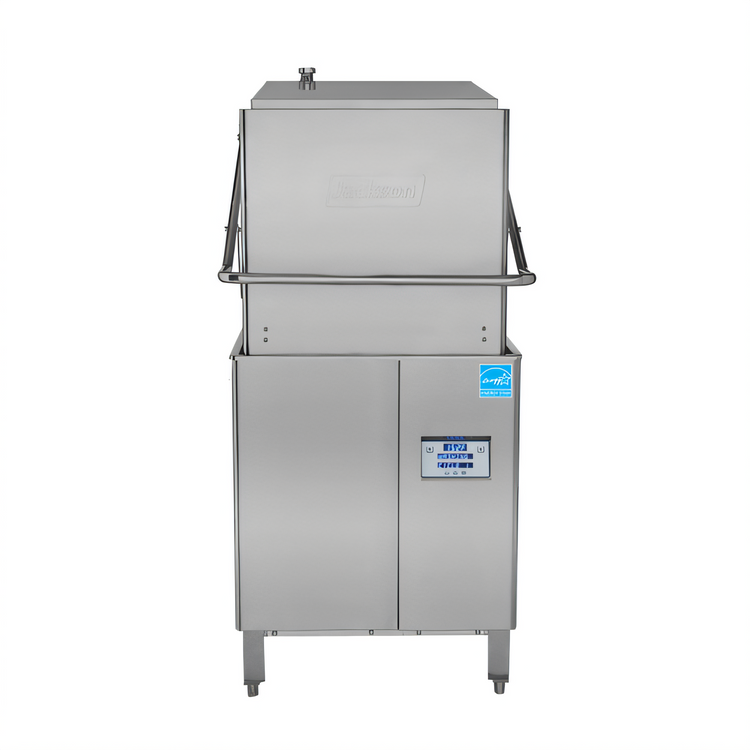

Jackson WWS DynaStar® High-Temperature Door-Type Dishwasher (No Booster)
57 racks/hr • 0.70–0.89 gal per rack • ENERGY STAR® CertifiedBuilt for busy commercial kitchens that already have a dedicated 180 °F hot-water supply, the DynaStar® delivers sparkling results, low operating costs, and rock-solid reliability in a compact 28 ¾ in. footprint. Its intelligent controls, triple wash arm and adjustable rinse system put you in full command of throughput, water and energy use.
Why you’ll love it

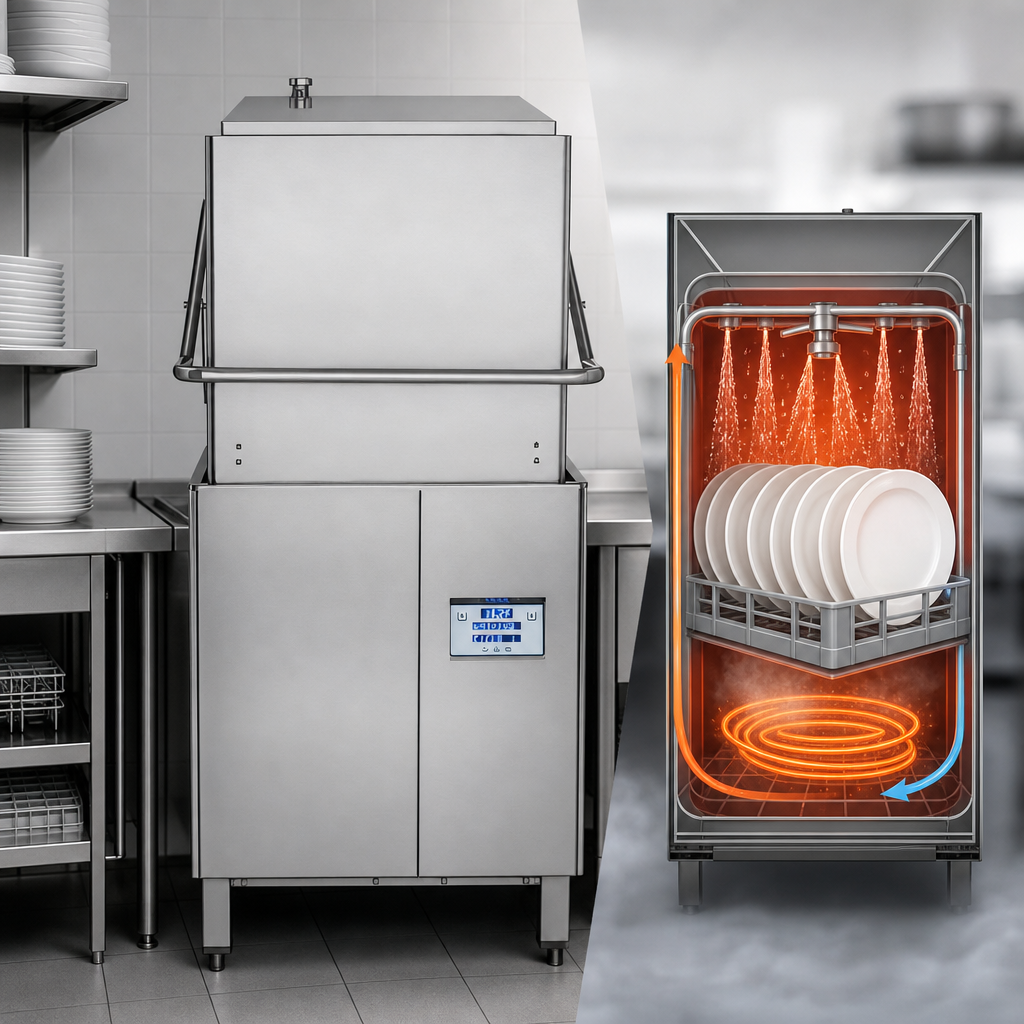

- High-temperature sanitizing without an integrated booster – perfect when an external booster or central system is already in place.
- Adjustable Econo or Turbo rinse uses just 0.70–0.89 gal per rack.
- Three programmable cycles (Normal 58 s, Heavy 108 s, Extra Heavy 238 s) tackle every soil level.

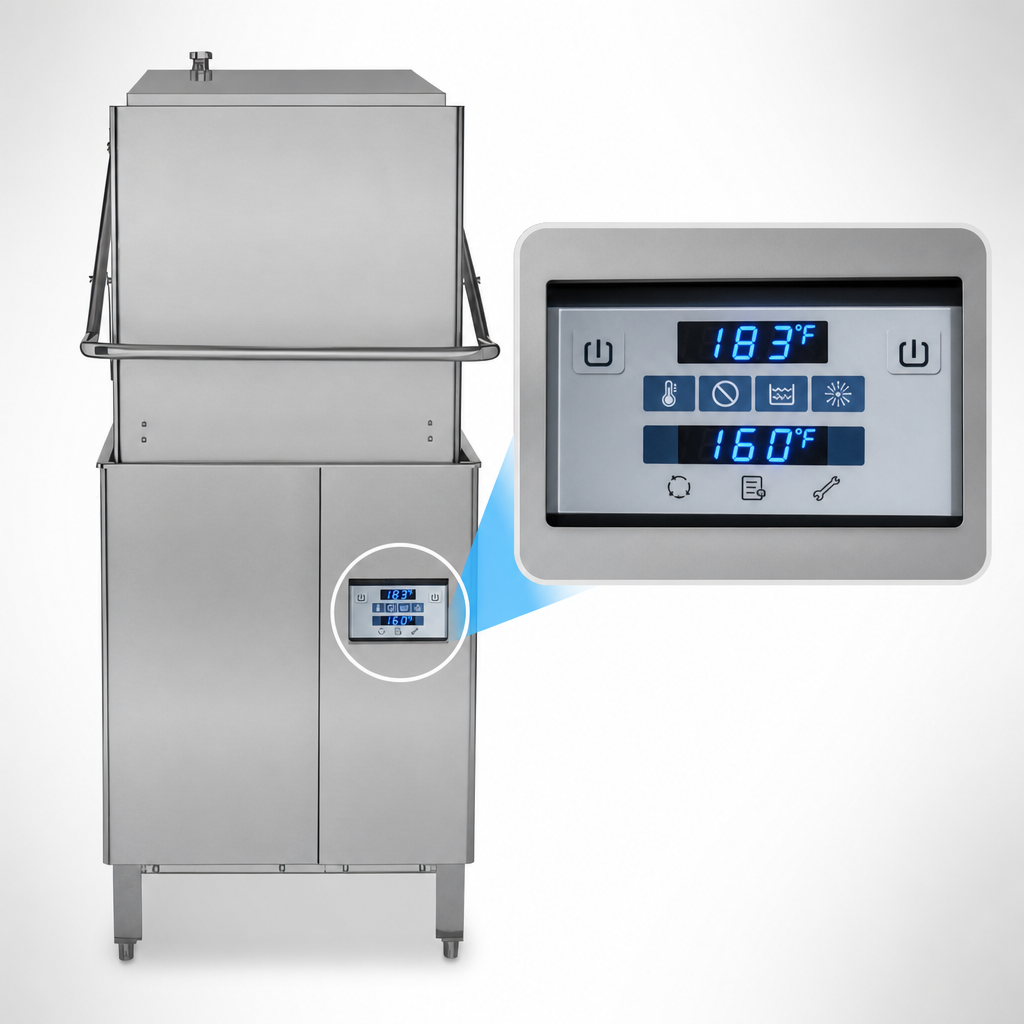

- Bright digital LED display with onboard diagnostics and live temperature read-outs.
- Auto-fill and door-actuated start streamline operation; delime/manual-wash switch simplifies maintenance.
- Triple stainless-steel wash arms and precision nozzles power through food soil for superior cleanability.
- Vent-fan interlock turns the hood fan off when the machine is idle to save HVAC energy.
- 1 HP stainless-steel wash pump and 8 gal insulated tank maintain consistent wash temperature.
- Field convertible straight-through or corner configuration (kit required) for flexible installation.
- Single-point utility connections, front & side dress panels, and adjustable bullet feet reduce install time.
- All-stainless construction, cETLus & ETL-Sanitation listed, and backed by a 1-year parts & labor warranty.
At-a-Glance Specs
| Model | DynaStar® (High Temp, No Booster) |
|---|---|
| Type | Pass-through door-type (field convertible straight / corner) |
| Capacity | Up to 57 racks / 1,550 dishes / 2,232 glasses per hour (Normal cycle) |
| Cycle Times | Normal 58 s • Heavy 108 s • Extra Heavy 238 s |
| Water Use | 0.70 gal (Econo) or 0.89 gal (Turbo) per rack |
| Inside Clearance | 17 ½ in. (445 mm) – fits large plates & sheet pans |
| Overall Size (W × D × H) | 28 ¾ × 34 × 62 ⅛ in. 75 ⅜ in. high with door open |
| Wash Tank / Heater | 8 gal • 4.1–5 kW electric tank heater |
| Pump Motor | 1 HP stainless steel |
| Electrical (No Booster) | 208/60/3 16.4 A • 230/60/3 17.6 A • 460/60/3 7.5 A Single-phase kits available |
| Water Inlet / Pressure | ½ in. NPT @ 10 ± 2 PSI, 110 °F feed to wash tank, 180 °F to final rinse |
| Drain | 1 ½ in. NPT, 14 ⅝ in. (370 mm) height |
| Certifications | ENERGY STAR®, cETLus, ETL-Sanitation |
| Warranty | 1-year parts & labor (register at jacksonwws-warranty.com) |
Need a built-in 40–70 °F rise booster? Check out the DynaStar BH models for turnkey high-temp sanitation without an external heater.
