Jackson WWS DYNASTAR VENTLESS (VER) DynaStar® Undercounter Dishwashers
Description

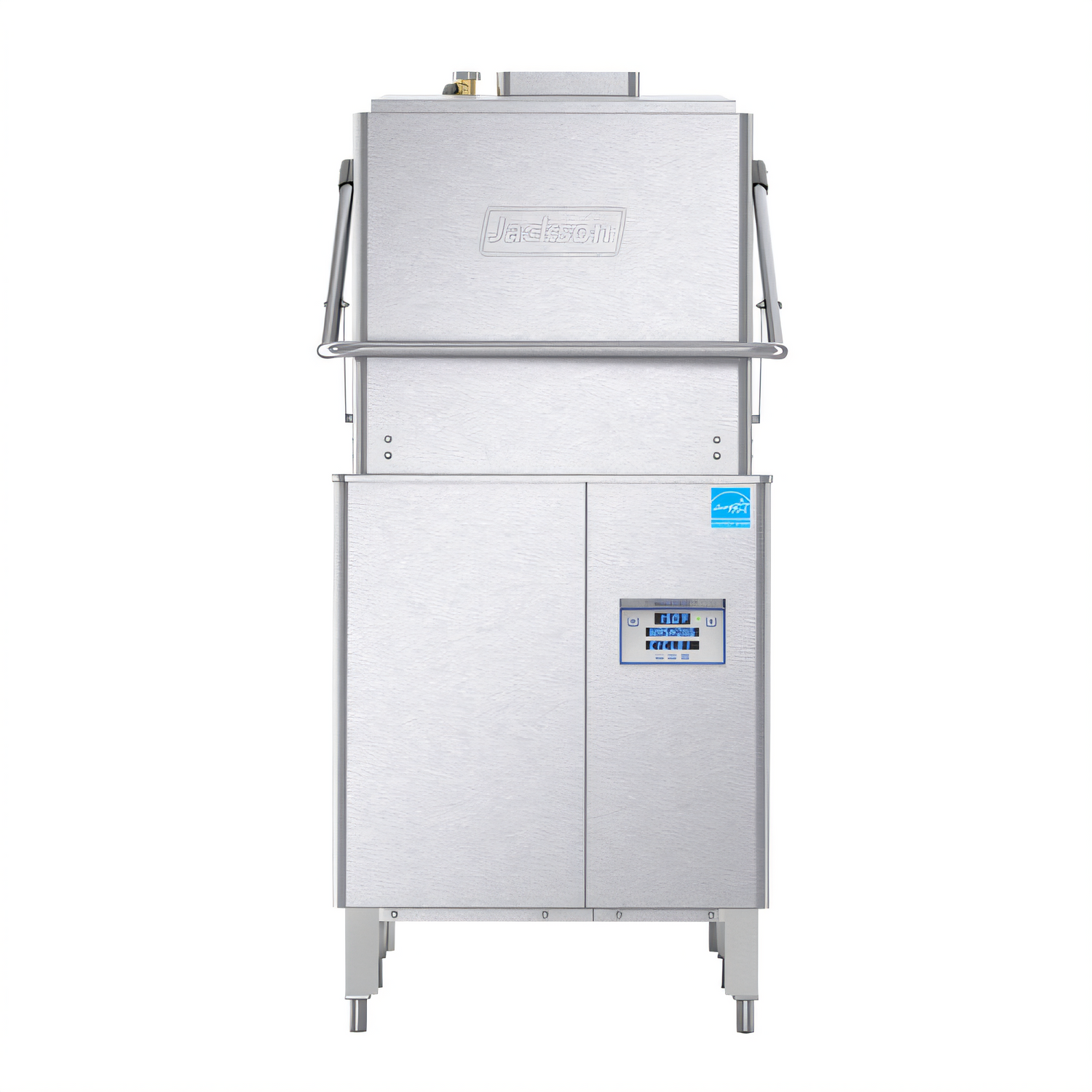

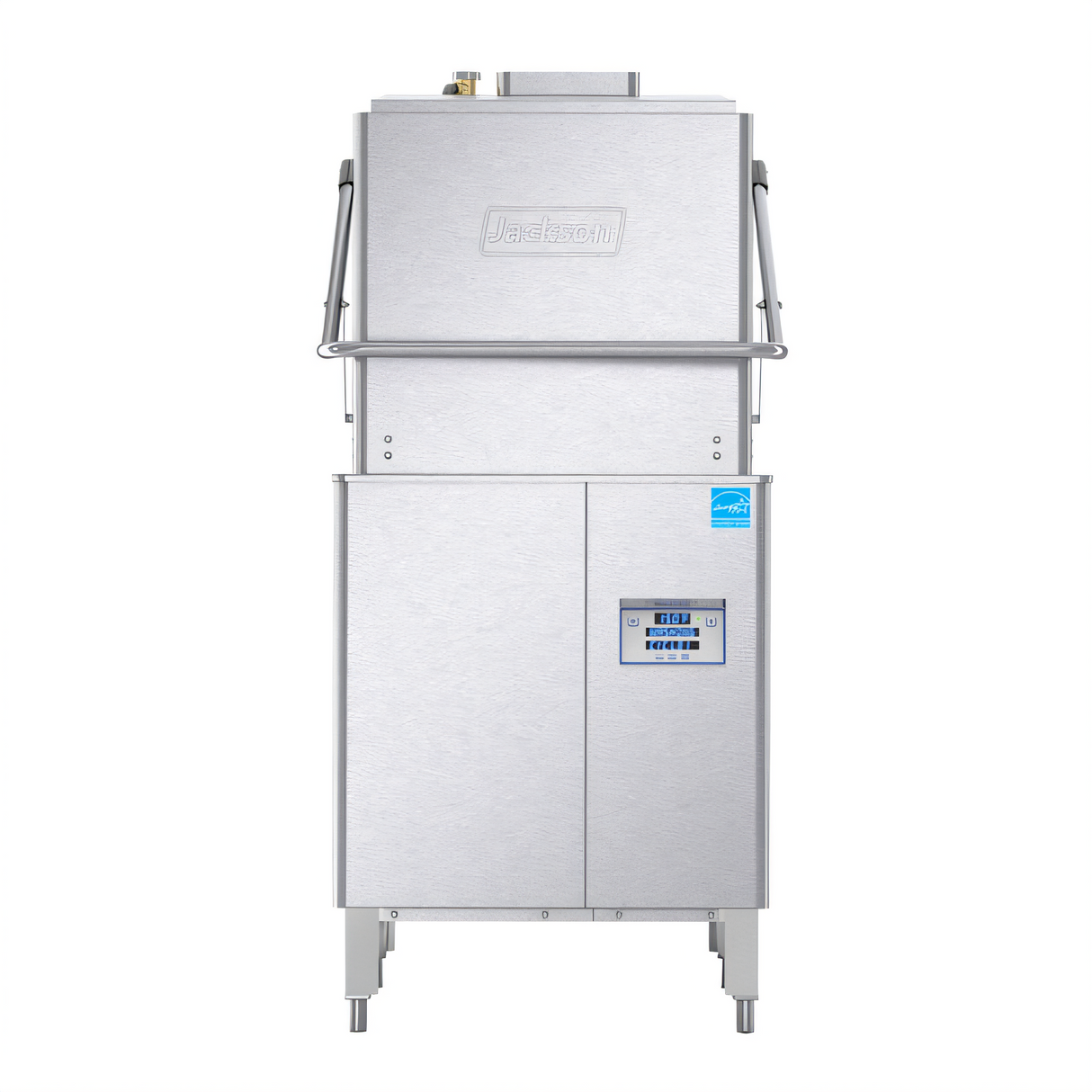

Jackson DynaStar® VER Ventless High-Temp Door-Type Dishwasher
Energy-recovery powerhouse — up to 40 racks per hour, no hood requiredSlash utility bills, free up hood space and still hit NSF-sanitation temperatures. The DynaStar® VER captures its own steam to pre-heat incoming water, delivering a 180 °F final rinse with a built-in 40-70 °F booster heater — all while using as little as 0.66 gallons per rack.
Top Reasons It Outperforms Ordinary Door Machines

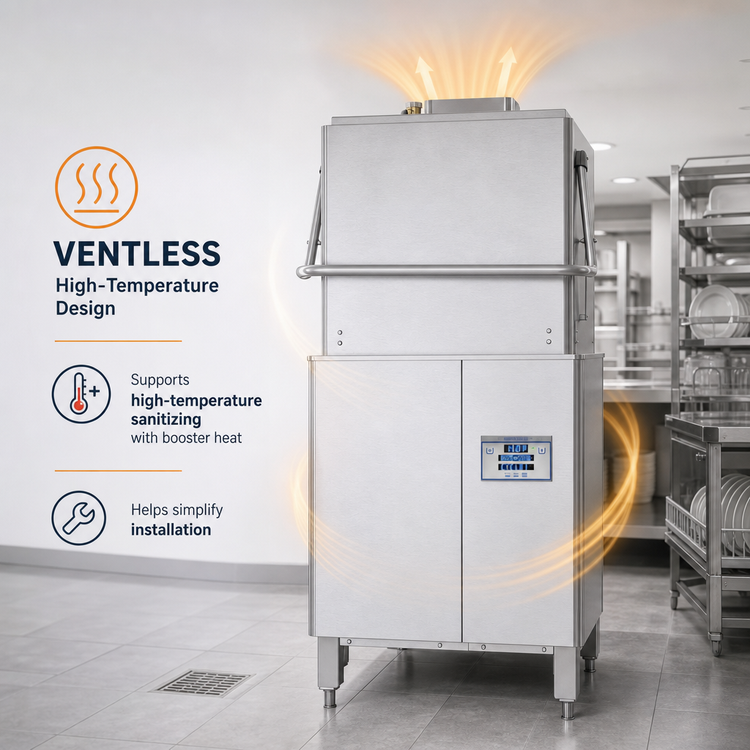

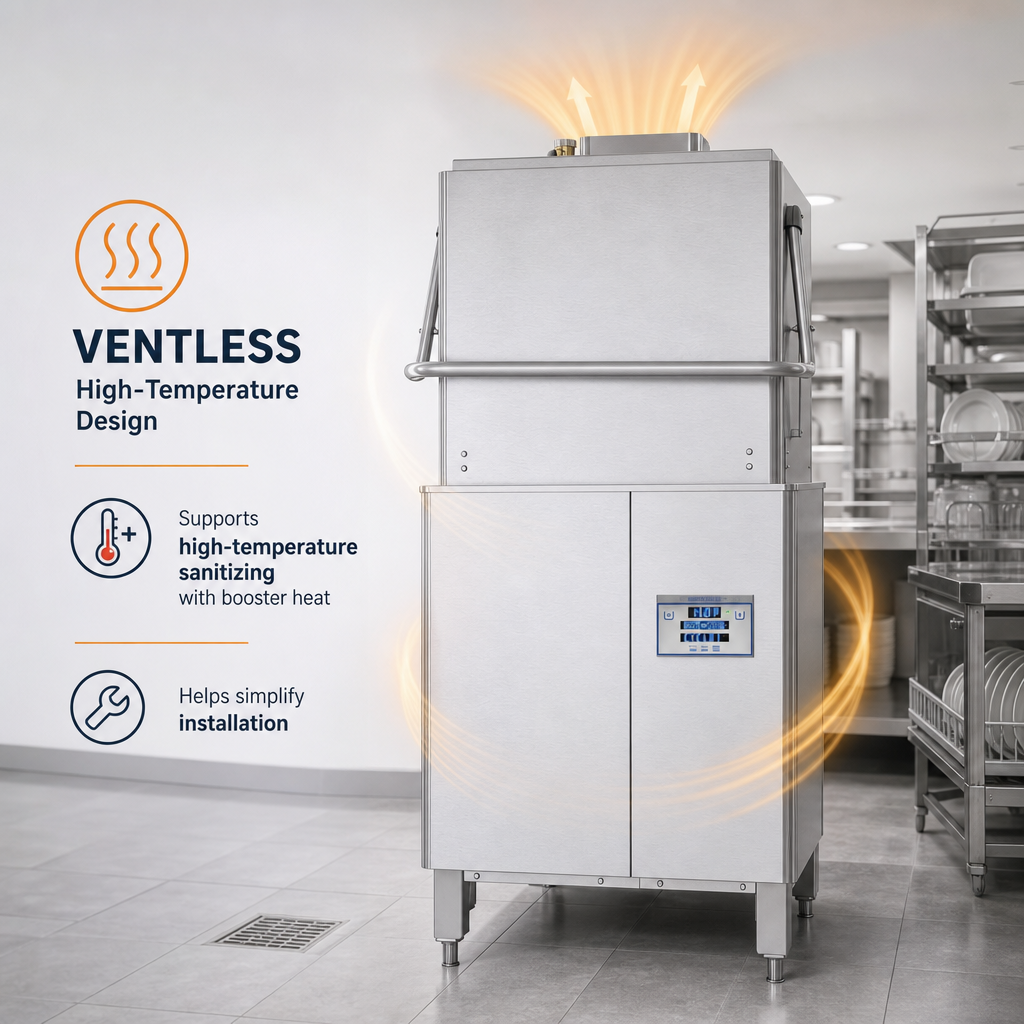

- Ventless design eliminates the need for a dedicated exhaust hood.
- Two-pass Energy Recovery System recycles heat, cutting operating costs.
- High-temp Sani-Sure™ rinse system guarantees 180 °F sanitation.
- Pumped & adjustable rinse (Econo 0.66 gal/rack or Turbo 0.89 gal/rack).
- Triple stainless-steel wash arms driven by a 1 HP pump for unbeatable cleaning.
- Three selectable cycles — 100 s, 150 s or 280 s — to match soil load.
- 17-1/2" interior clearance handles sheet pans, stock pots and mixing bowls.
- Intuitive LED controls with onboard diagnostics & built-in delime cycle.
- Universal layout: field-convertible for straight-thru or corner operation.
- All-stainless exterior, interchangeable scrap baskets and single-point utilities.
Quick-Glance Specifications

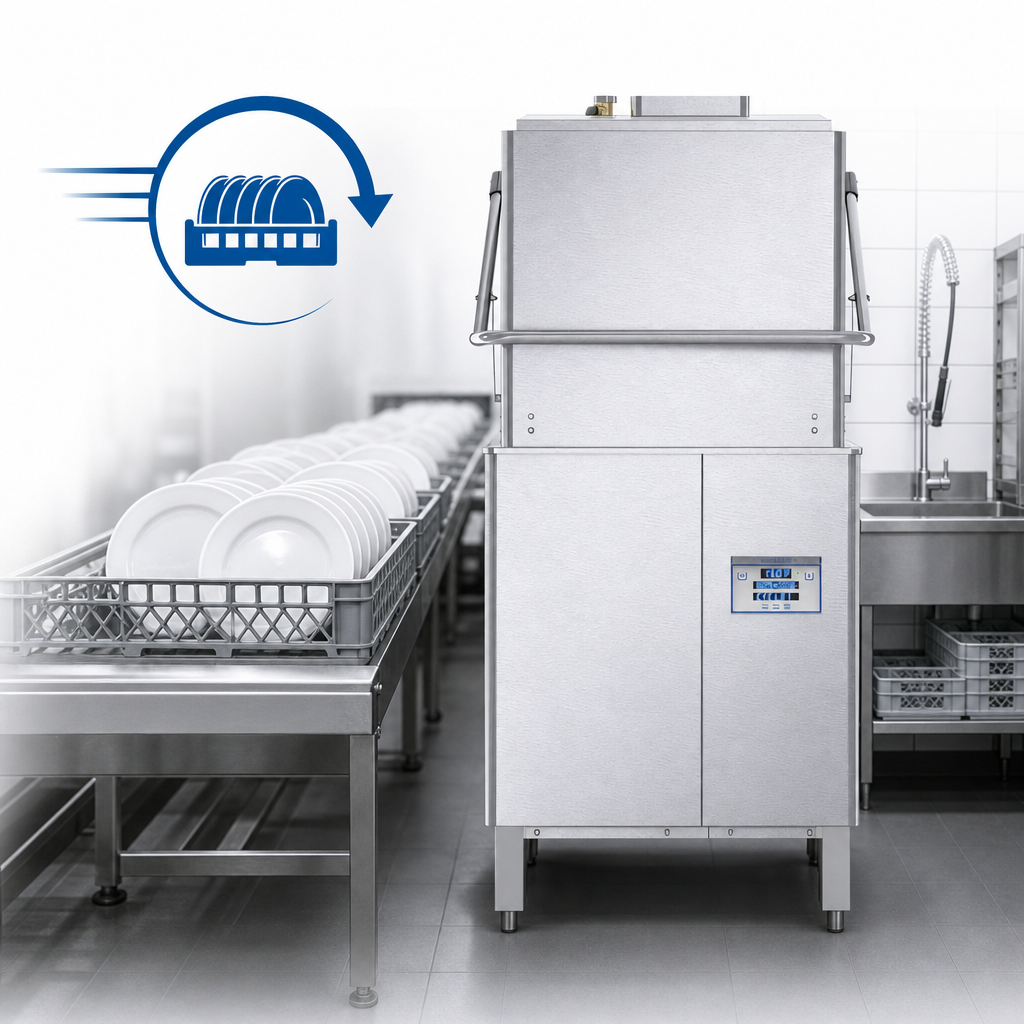

| Racks per Hour | ≈ 40 |
|---|---|
| Water per Rack | Econo 0.66 gal | Turbo 0.89 gal |
| Cycle Times | 100 s • 150 s • 280 s |
| Interior Clearance | 17-1/2" (445 mm) |
| Dimensions (W × D × H) | 29-1/4" × 34-1/2" × 62-3/8" |
| Water Inlet / Drain | 1/2" NPT @ 15-65 psi • 1-1/2" NPT drain, 14-5/8" from floor |
| Electrical (208/60/3) | 42.2 A total load • 1 HP wash motor • 4.1 kW tank, 9 kW booster |
| Construction | All-stainless exterior, wash arms & pump; adjustable bullet feet |
| Certifications | cETLus • ETL-Sanitation (NSF/ANSI 3) |
| Warranty | 1-year parts & labor |
Operator-Friendly Details
- Door-actuated start & automatic tank fill streamline loading.
- Vent fan shuts off when machine is idle to conserve energy.
- Delime reminder ensures long-term performance.
- Solid-state controls save error codes for fast troubleshooting.
What’s Included
- DynaStar® VER dishmachine (universal straight-thru/corner)
- Upper & lower interchangeable wash/rinse arms
- (2) Stainless-steel scrap baskets
- Adjustable bullet feet
- Installation & operation manual
Dish-table, chemical dispensers and water treatment accessories are sold separately.
© 2025 Jackson WWS, Inc. DynaStar® is a registered trademark of Jackson WWS. All specifications are subject to change without notice.
