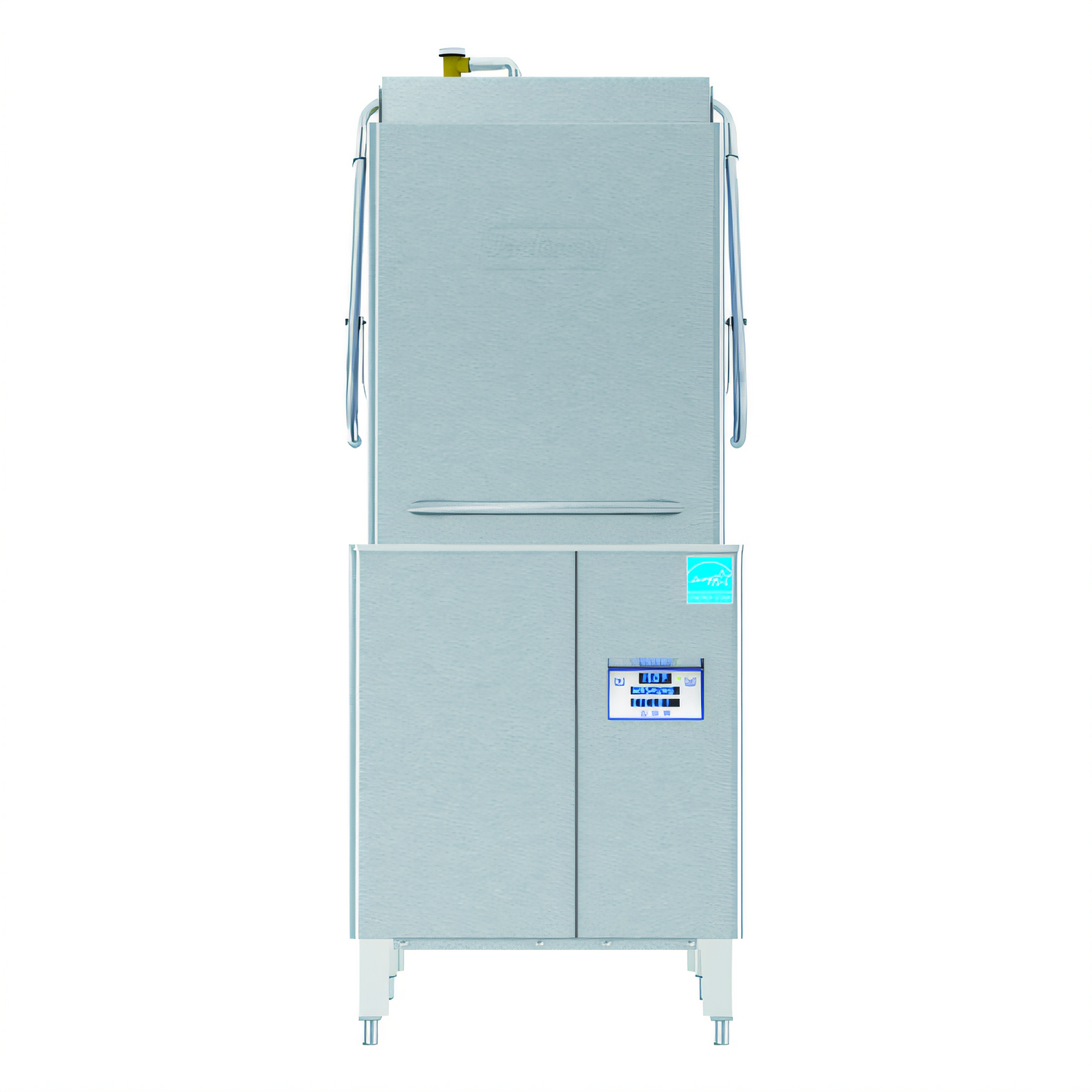

Jackson DynaStar HH-E W/O Tall Chamber High-Temperature Sanitizing Door-Type Dishwasher, No Booster
Jackson DynaStar HH-E W/O Tall Chamber High-Temperature Sanitizing Door-Type Dishwasher, No Booster
Universal Straight-Through/Corner Design, Stainless Steel
This tall-chamber, no-booster door-type dishwasher delivers high-temperature sanitizing performance with digital controls, a triple wash arm system, and flexible universal installation.
- Tall chamber, high-temperature sanitizing dishwasher rated at approximately 62 racks per hour.
- No-booster HH-E W/O configuration with Sani-Sure final rinse system and adjustable rinse control.
- Three selectable timed cycles, digital LED display, onboard diagnostics, and a delime cycle simplify operation.
- Triple wash arm system and 2 HP stainless steel wash pump motor support consistent cleaning performance.
- Universal straight-through/corner design, stainless steel construction, and adjustable feet help it fit different layouts.
- ENERGY STAR certified for efficient commercial warewashing.
Overall Dimensions:
30.5"W x 30.0"D x 71.5"HProduct Weight:

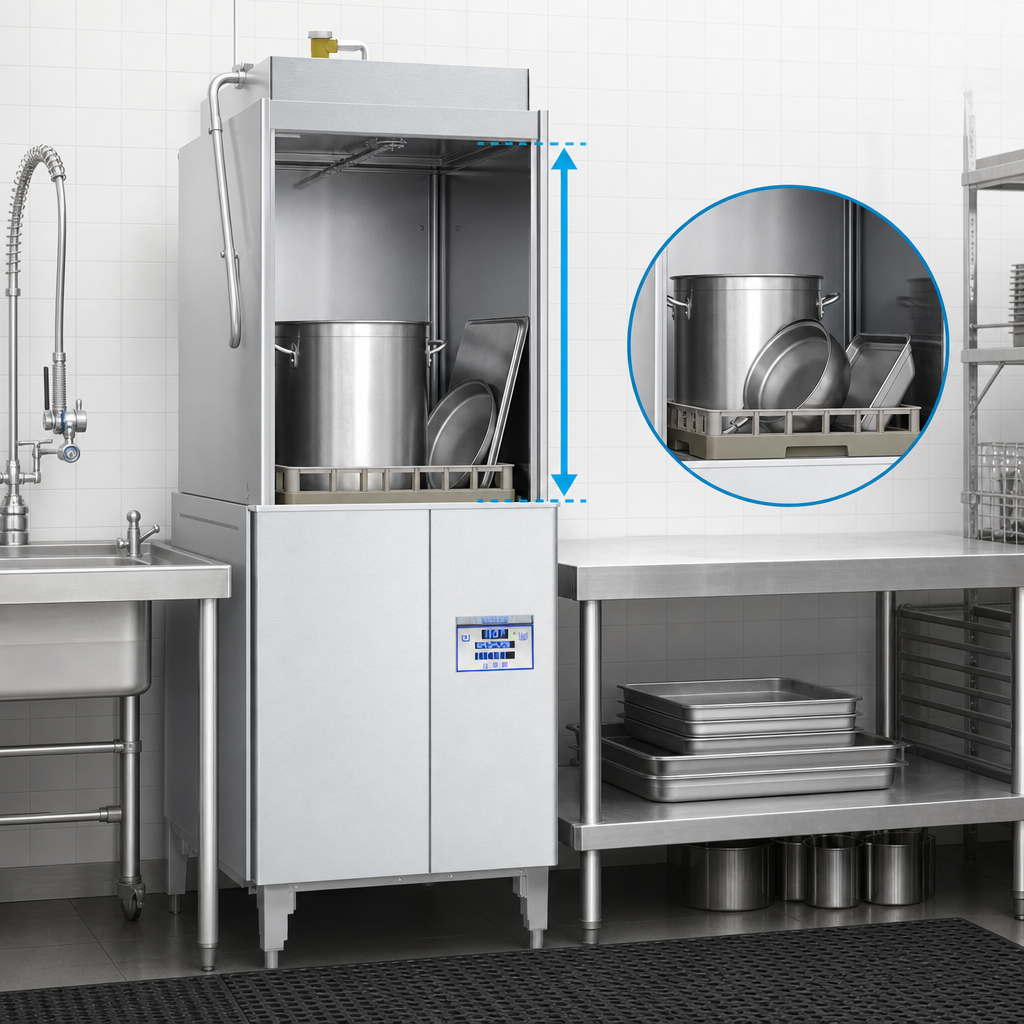

366.0 lbTall Chamber Design
27-inch chamber clearance accommodates larger ware, including pots and pans.

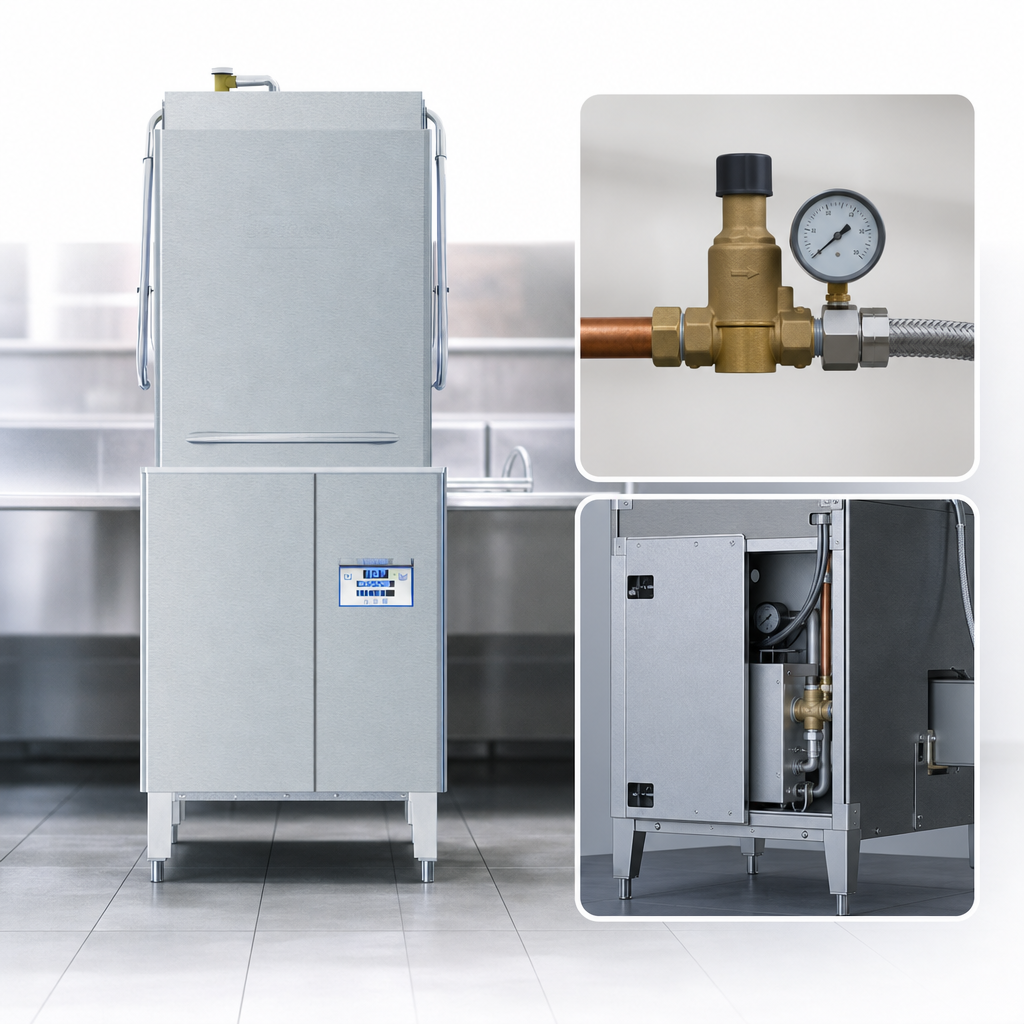

No-Booster Configuration
The HH-E W/O version is the no-booster model and is not equipped with a rinse pump; the documentation recommends 10 ± 2 PSI flow pressure and a PRV.
Sani-Sure Final Rinse System
Supports proper rinse water temperature for high-temperature sanitizing performance.
Adjustable Rinse System
Econo and Turbo rinse settings let operators balance water use with soil level.
Three Timed Cycles
Select from three timed wash cycles for different load conditions.
Digital LED Display
Provides clear operator feedback and supports easy-to-read control access.
Onboard Service Diagnostics
Built-in diagnostics help speed troubleshooting and service.
Triple Wash Arm System
Engineered to provide consistent and reliable washing performance.
2 HP Stainless Steel Wash Pump Motor
Delivers washing power in a durable stainless steel construction.
Automatic Tank Fill
Automates fill-up at startup for easier daily operation.
Delime Cycle
Helps support routine maintenance and cleaning.
Vent Fan Control
Shuts the vent fan off when the machine is idle.
Universal Installation
Field convertible from straight-through to corner installation and vice versa with kit required.
Stainless Steel Construction
Durable stainless steel exterior and dress panels support long-term commercial use.
Certifications & Compliance
Warranty & Protection
1-year limited parts and labor
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
