Description

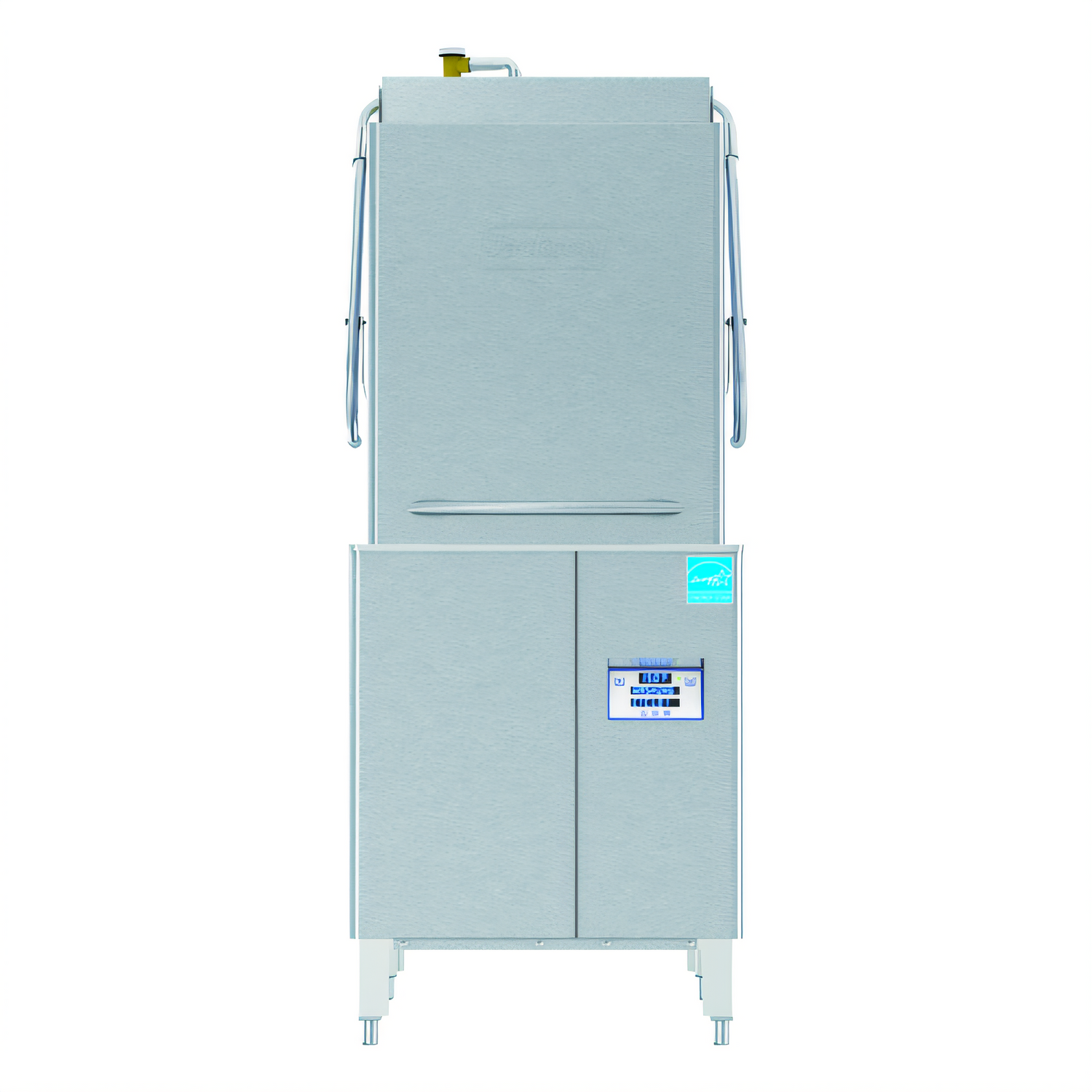

Jackson DynaStar® HH-E VER Tall-Chamber Ventless Dishwasher
High-Temperature Sanitizing Door-Type with Energy RecoveryReplace the hood and reclaim your dishroom with Jackson’s DynaStar® HH-E VER – a ventless, ENERGY STAR® certified powerhouse that handles everything from plates to stock pots while using as little as 0.72 gal of water per rack.
Key Advantages

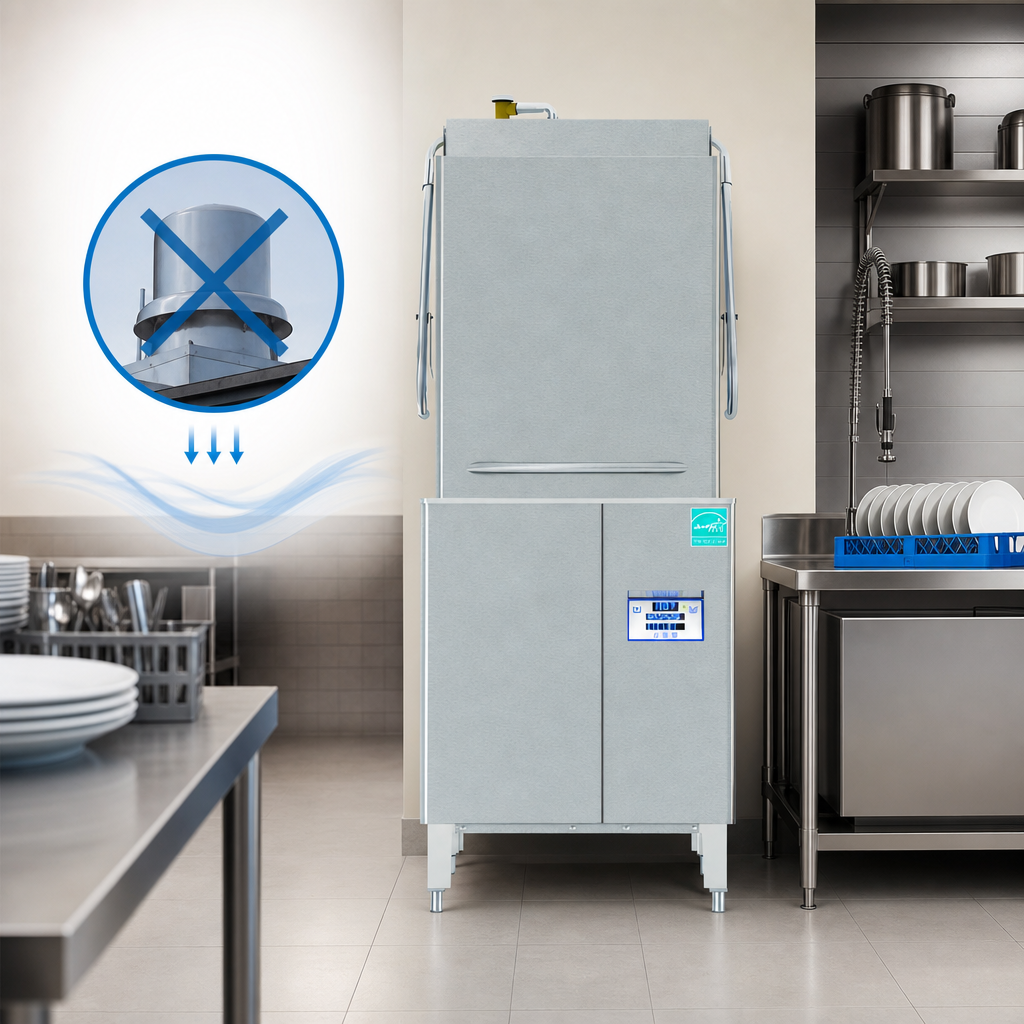

- Ventless two-pass Energy Recovery System eliminates the need for a ventilation hood.

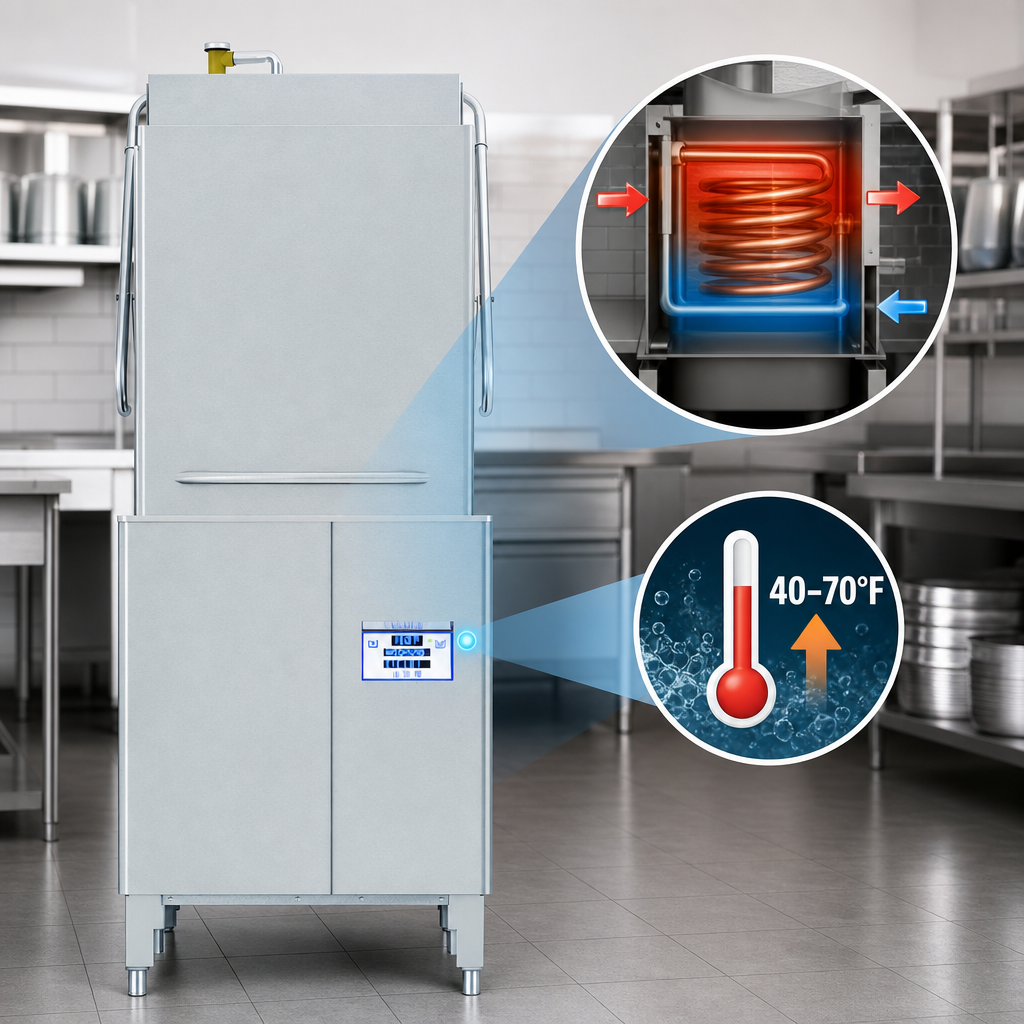

- Built-in 40-70 °F rise booster heater with exclusive Sani-Sure™ system guarantees a 180 °F final rinse.
- Dual certified as a dishwasher and a potwasher – 27 in. chamber clearance fits sheet pans & stock pots.
- Adjustable rinse: Econo (0.72 gal/rack) or Turbo (0.89 gal/rack) to match soil conditions.
- Triple wash arm system driven by a 2 HP stainless-steel pump for superior cleaning action.
- Three selectable cycles (Normal 88 s, Heavy 138 s, Extra Heavy 268 s) plus automatic delime program.
- Easy-read digital LED controls with onboard service diagnostics.
- Door interlock, door-actuated start, and vent-fan shutoff enhance safety and efficiency.
- Universal design installs straight-through or corner* and can be field-converted between 1- & 3-phase power*.
- ENERGY STAR®, cETLus & ETL-Sanitation listed.
Performance at a Glance
| Racks per hour (Normal) | 40 |
|---|---|
| Water use per rack | 0.72 gal (Econo) / 0.89 gal (Turbo) |
| Cycle times | 88 s • 138 s • 268 s |
| Wash / Rinse temps | 150 °F wash | 180 °F final rinse |
| Chamber clearance | 27 in. (686 mm) |
Specifications
| Model | DynaStar® HH-E VER |
|---|---|
| Dimensions (W × D × H) | 30 1/2″ × 32 1/8″ × 71 1/2″ (91 3/4″ H with door open) |
| Construction | All stainless steel with adjustable bullet feet |
| Wash pump motor | 2 HP |
| Tank capacities | Wash 8 gal | Booster 1.66 gal |
| Water connection | 1/2″ NPT • 15-65 psi • 40–90 °F supply |
| Drain connection | 1 1/2″ ID |
| Electrical options | 208 / 230 / 460 V, 60 Hz, 1 or 3-phase* |
| Shipping weight | 411 lb (181 kg) |
Operator-Friendly Touches
- Automatic tank fill & pumped rinse deliver consistent pressure every cycle.
- Interchangeable scrap baskets capture debris for fast clean-out.
- Single-point utility connections streamline installation.
- Vent fan shuts off when the machine is idle to save energy.
Warranty
1-year parts & labor warranty backed by Jackson Warewashing Systems for worry-free ownership.
*Corner installation, phase conversion and other accessories require optional kits. Dishtable not included.
