Description

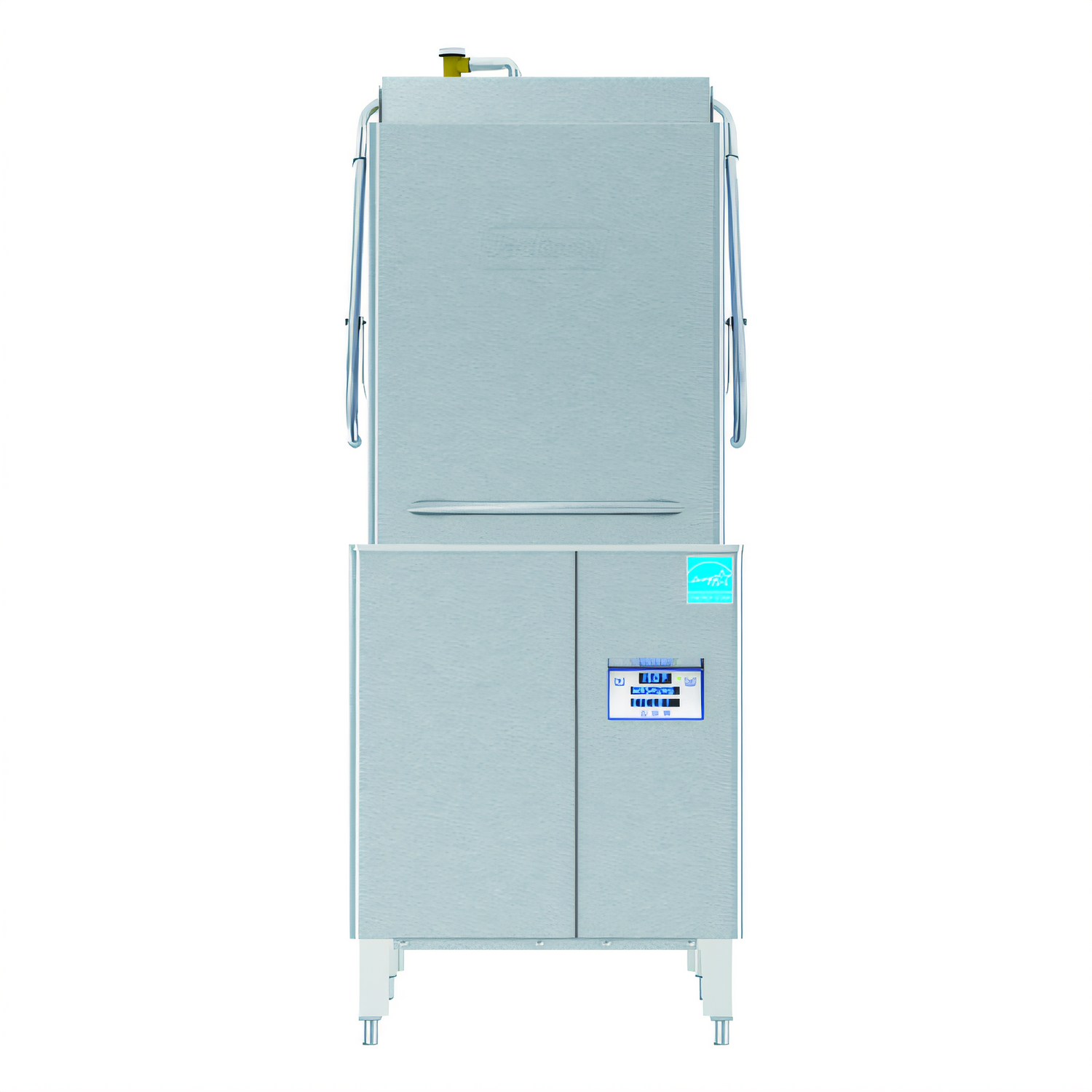

Jackson DynaStar® HH-E Tall-Chamber Dishwasher

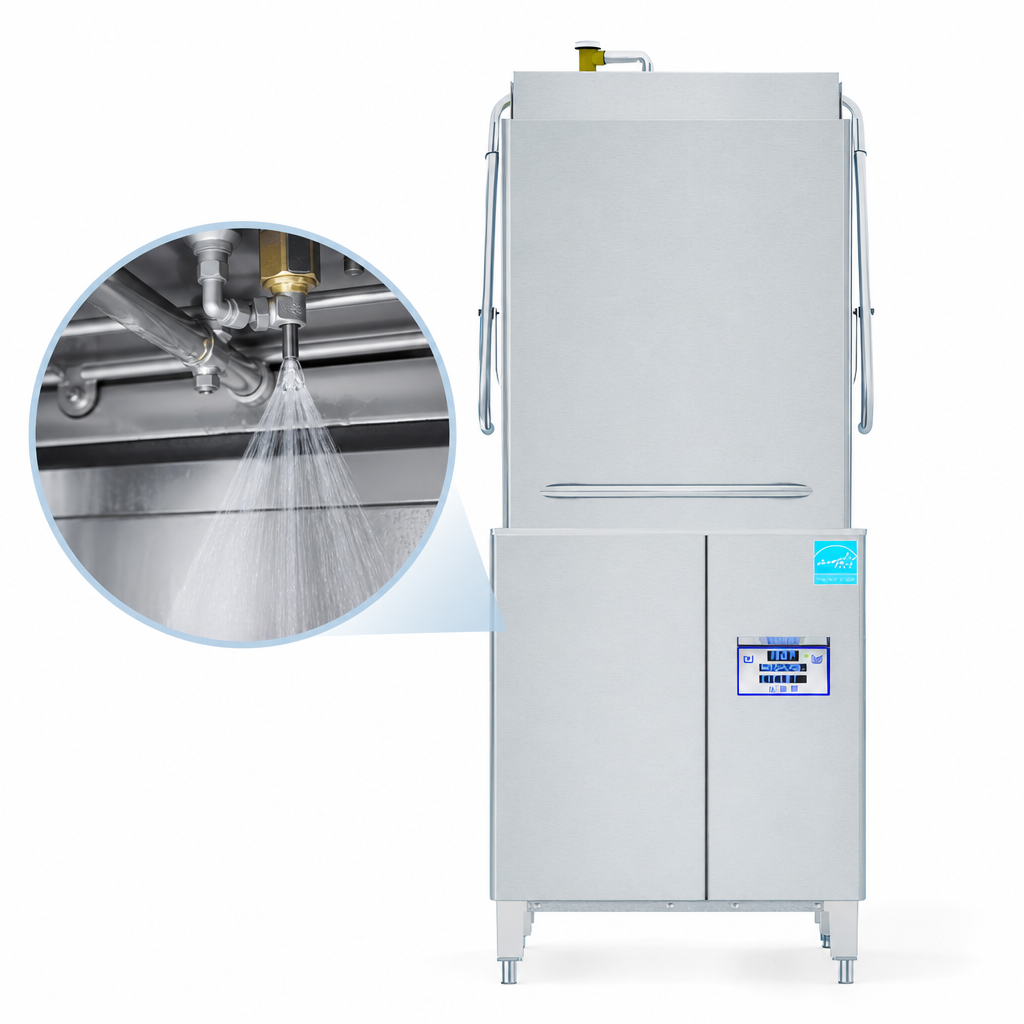

High-temperature sanitizing • Door-type • Dual certified dishwasher & potwasherEngineered for busy kitchens that refuse to compromise on clean, the ENERGY STAR® qualified DynaStar HH-E powers through up to 62 racks per hour while using as little as 0.72 gal of water per rack. A built-in 40–70 °F booster heater, exclusive Sani-Sure™ final rinse system, and 27” vertical clearance let you tackle everything from delicate glassware to stock pots with confidence.
Performance & Productivity
- Throughput: ≈62 racks/hr • 1,550 dishes/hr (Normal cycle)
- Triple stainless-steel wash arm system driven by a 2 HP pump for superior scrubbing action

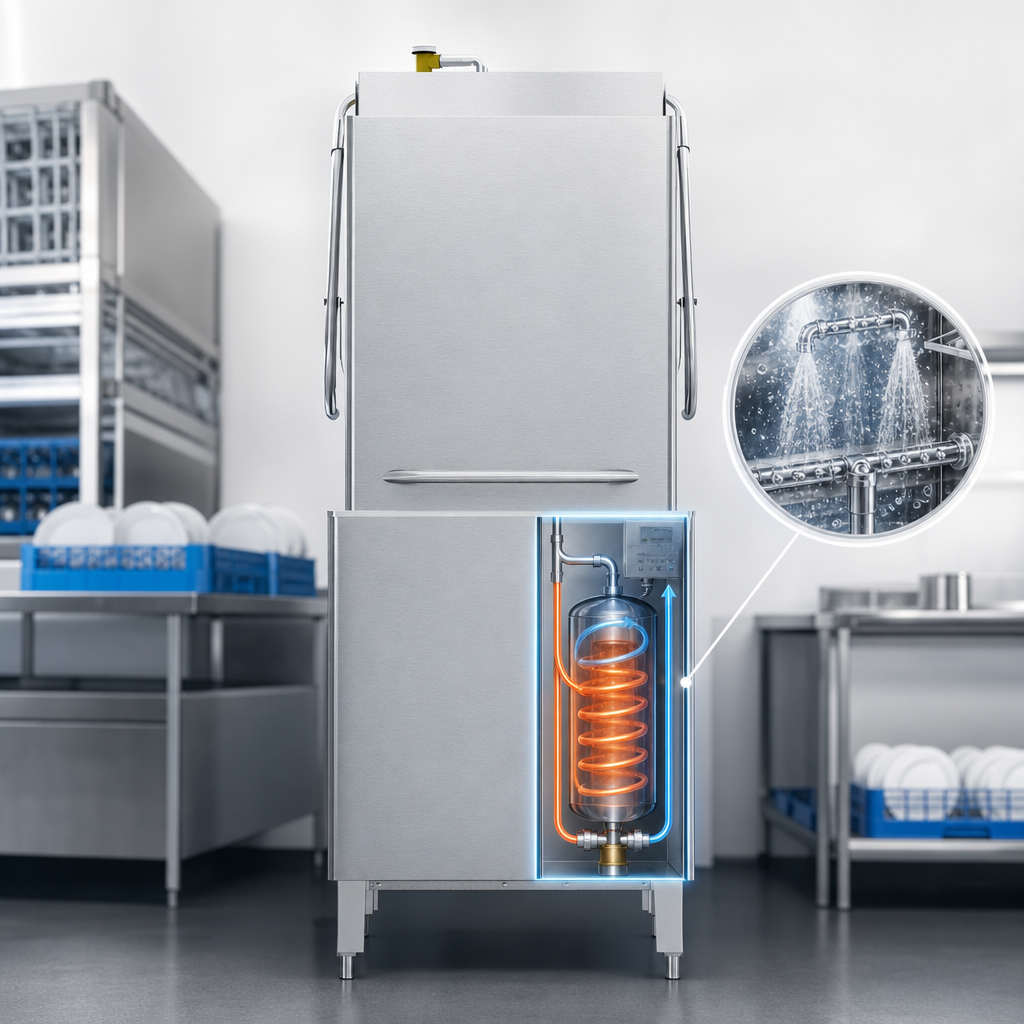

- Built-in booster heater with 40–70 °F rise meets NSF 180 °F sanitizing rinse requirements
- Adjustable rinse system:
– Econo 0.72 gal/rack
– Turbo 0.89 gal/rack - Pumped rinse maintains consistent pressure without relying on building water line PSI
Smart, Flexible Operation
- Three selectable cycles (Normal :58, Heavy 1:48, Extra-Heavy 3:58) handle any soil load
- Door-actuated start & automatic tank fill speed up turn-around at the dish table
- Digital LED control with temperature read-outs, onboard diagnostics & dedicated delime cycle
- Vent-fan interlock shuts the fan off when the machine is idle, reducing HVAC costs
- Interchangeable scrap baskets make clean-out fast and mess-free
Built for Real-World Kitchens
- 27" vertical chamber clearance accommodates sheet pans, mixing bowls & stock pots
- All-stainless construction with low-watt density tank heater and hi-limit/low-water protection
- Universal design ships as straight-thru and field converts to corner (kit required)
- Convertible from 3-phase to single-phase power (kit required)
- Single-point utility connections simplify installation
- cETLus, ETL-Sanitation & ENERGY STAR® listed
At-a-Glance Specifications
| Machine type | Tall-chamber, high-temp, door-type |
|---|---|
| Racks per hour | 62 (Normal) | 33 (Heavy) | 15 (Extra Heavy) |
| Water per rack | 0.72 gal (Econo) | 0.89 gal (Turbo) |
| Cycle times | Normal :58 sec • Heavy 1:48 • Extra Heavy 3:58 |
| Chamber clearance | 27" (686 mm) |
| Wash pump motor | 2 HP stainless-steel |
| Dimensions (W × D × H) | 30.5" × 30" × 71.5" (775 × 762 × 1,816 mm) |
| Height with door open | 91.25" (2,318 mm) |
| Wash tank capacity | 8 gal (30.3 L) |
| Booster tank capacity | 1.66 gal (6.3 L) |
| Shipping weight | 366 lb (166 kg) |
| Electrical options | 208/60/3, 230/60/3, 460/60/3 – convertible to 1-phase (kit) |
| Water inlet / pressure | 110 °F incoming • 1/2" NPT • 15–65 psi |
| Drain connection | 1 1/2" NPT, 12.25" floor height |
Certifications & Warranty
- ENERGY STAR®, cETLus & ETL-Sanitation listed
- 1-year parts & labor warranty (U.S. & Canada, factory authorized service required)
Important: Jackson WWS does not recommend tankless “on-demand” water heaters for this unit. Use a properly sized storage-type water heater to maintain the required 110 °F incoming water temperature.
Dishtable sold separately. Field-conversion and single-phase kits are optional accessories.
Features & Specs
Features & Specs
Manufacturer
Jackson WWS
Brand_name
DynaStar®
Certifications
cETLus, ETL-Sanitation, ENERGY STAR
Height
71.5in
Width
30.5in
Depth
30.0in
Shipping Weight
366.0lbs
Energy Efficiency
ENERGY STAR®
Design
universal (straight-thru/corner)
Temperature
high temp with booster
Construction
stainless steel
Tank Heat
electric
Specifications
DynaStar® Dishwasher, door type, tall chamber, high temperature sanitizing with built-in booster heater (40-70°F rise), 30-1/2"W x 30"D x 71-1/2"H, approximately (62) racks/hour, Sani-Sure™ final rinse system, 27" chamber clearance, automatic tank fill, pumped rinse, adjustable rinse system – Econo and Turbo, (3) timed cycles, digital LED display, delime cycle, vent fan control, onboard service diagnostics, triple wash arm system, 2 hp stainless steel wash pump motor, interchangeable scrap baskets, electric tank heater, universal (straight-thru/corner) type, stainless steel exterior, (dishtable not included), cETLus, ETL-Sanitation, ENERGY STAR®
