Jackson WWS DISHSTAR LTH DishStar® Undercounter Dishwashers
Description

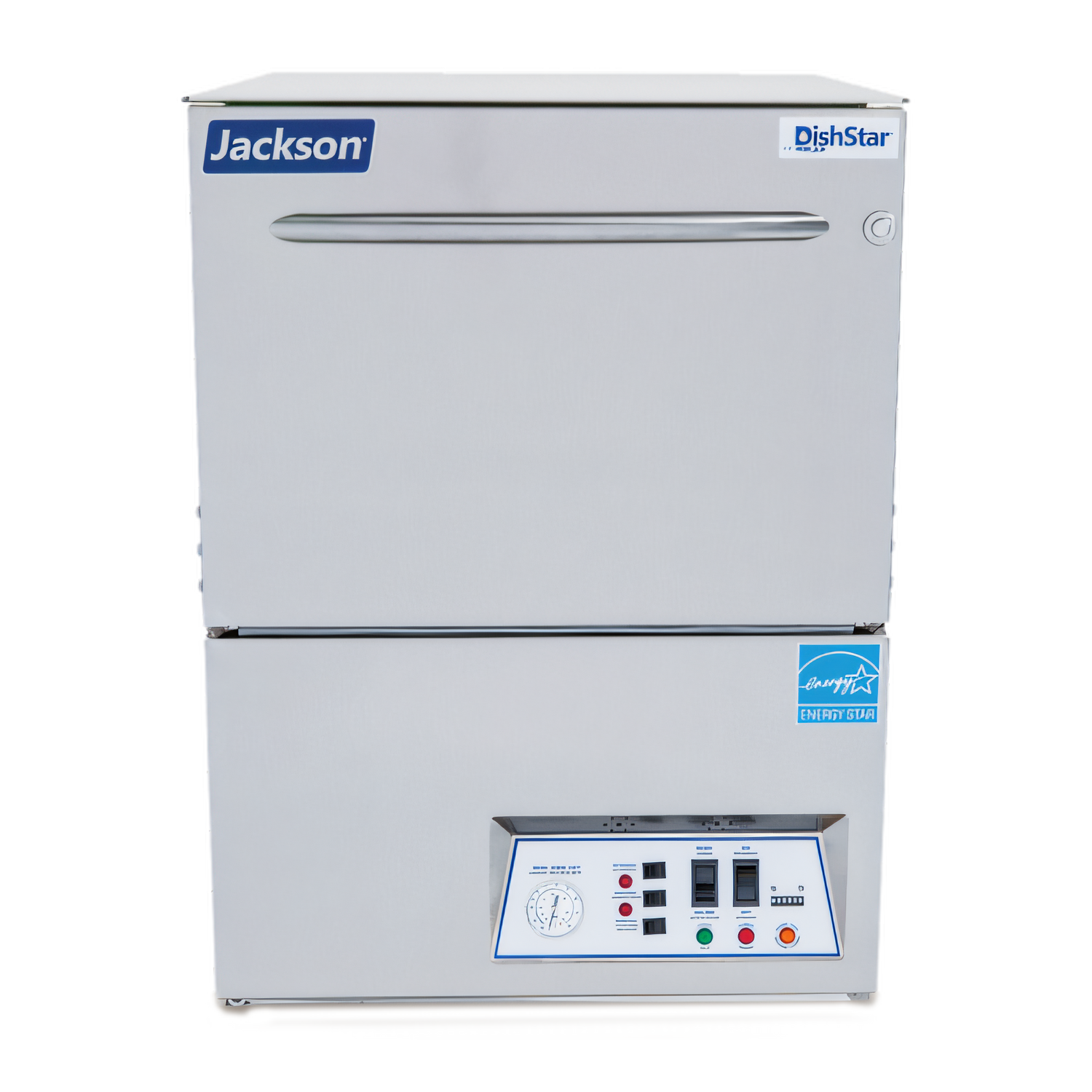

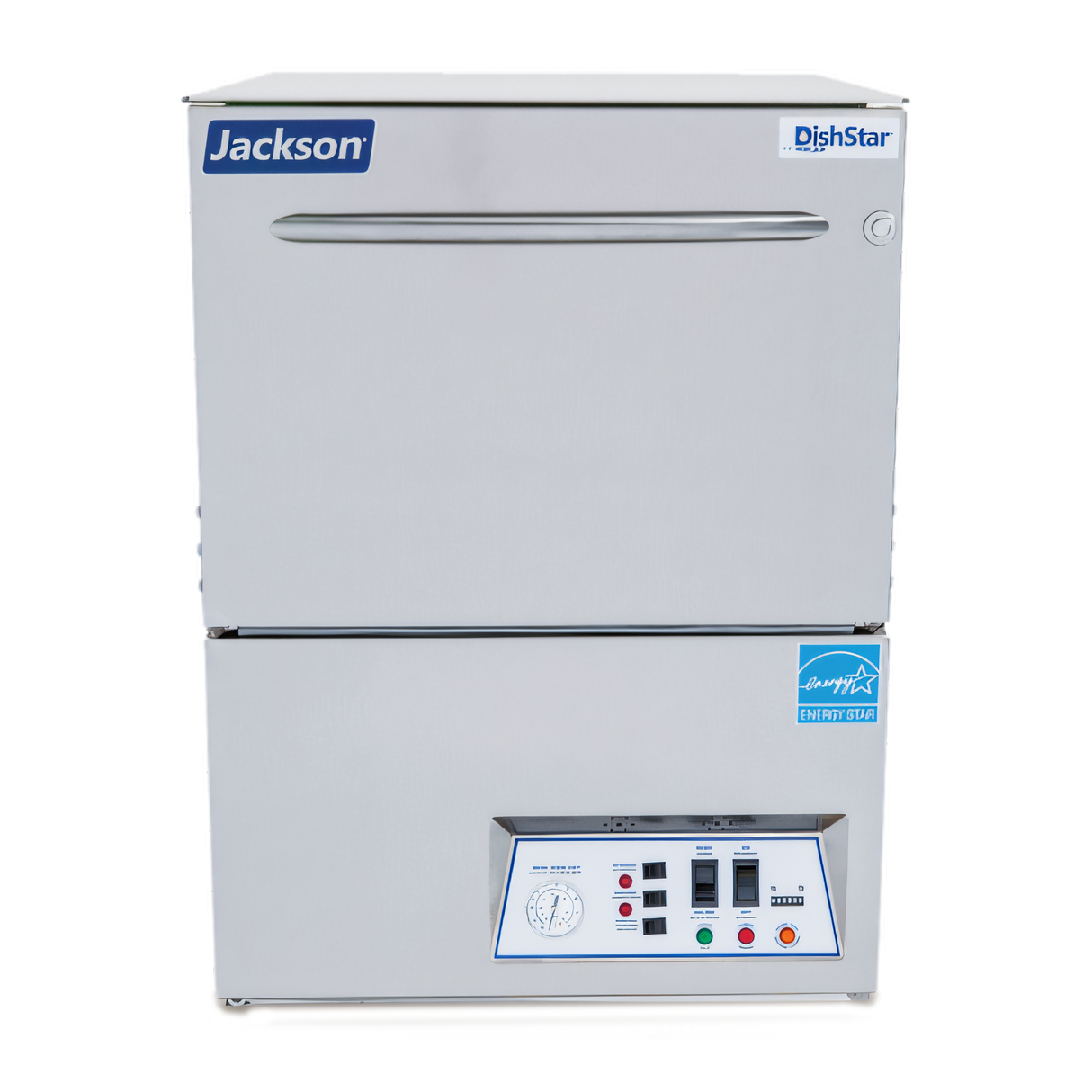

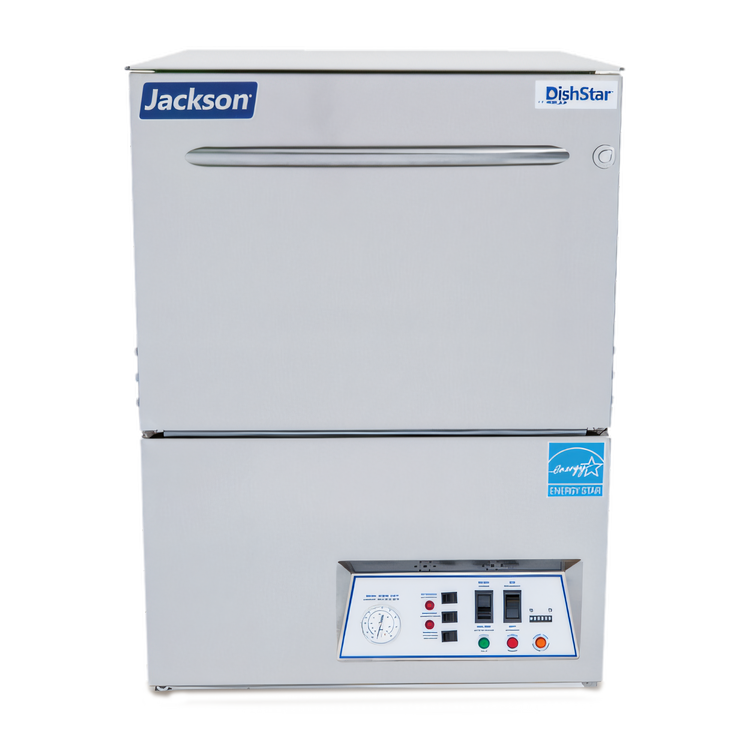

Jackson DishStar® LT-H Undercounter Dishwasher
Low-temperature chemical sanitizing • Built-in sustaining heater • ENERGY STAR®Purpose-built for cafés, bars, quick-service restaurants, and satellite kitchens that need high performance in a small footprint, the DishStar LT-H delivers sparkling clean ware while using only about 1.2 gallons of water per rack. A powerful 1 HP stainless-steel wash pump, integrated chemical dispensing, and a two-minute automatic cycle keep your operation moving—no hand-polishing or long wait times required.
Top Features
- Processes up to 24 racks per hour with a quick 120-second cycle.

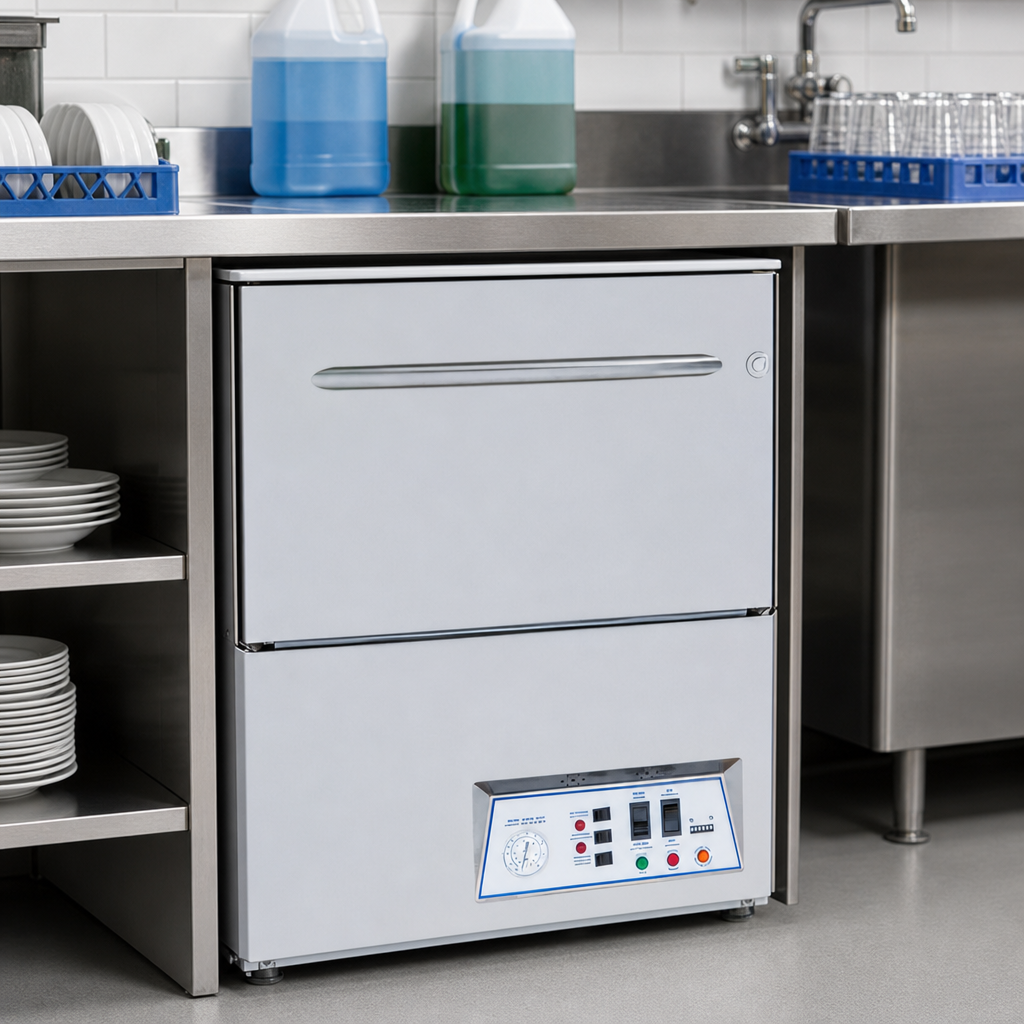

- Low-temperature chemical sanitizing minimizes energy use and eliminates the need for a vent hood in most installations.

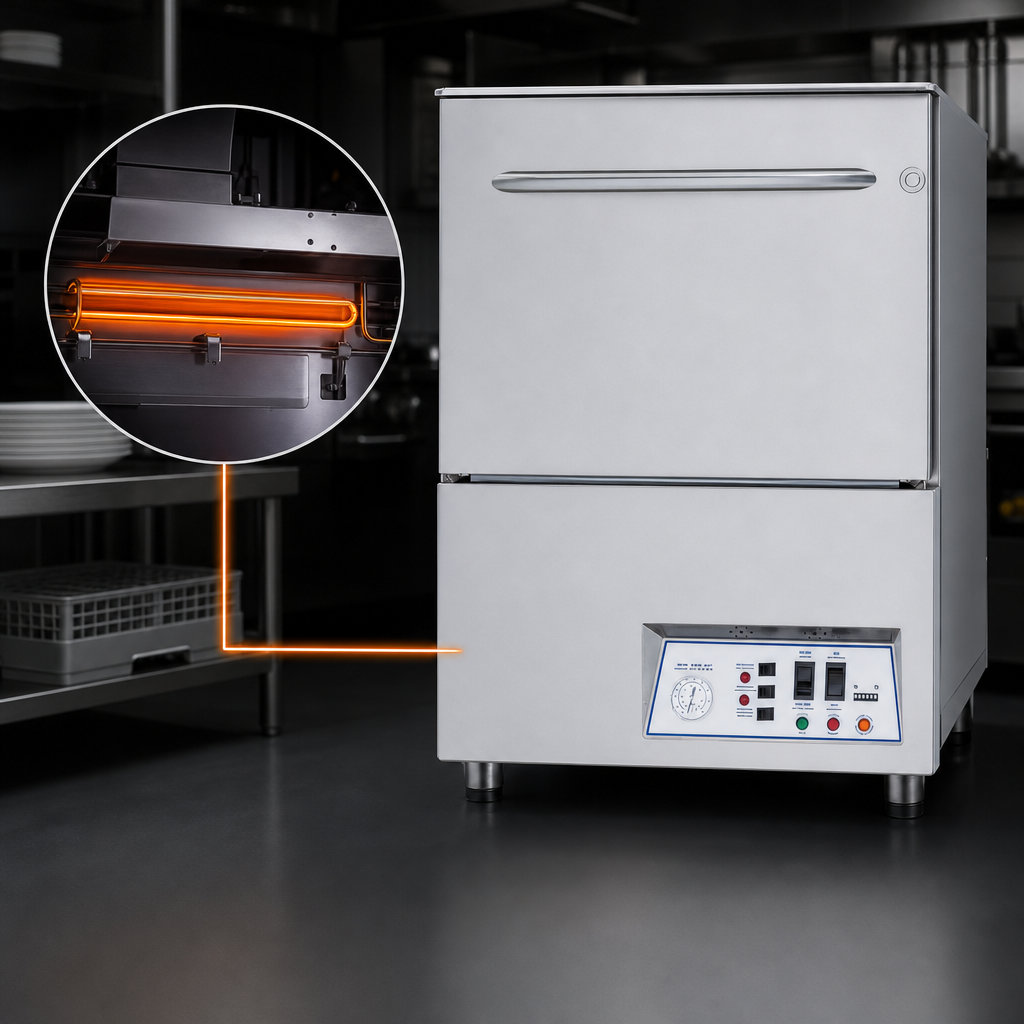

- Built-in 1,500 W sustaining heater maintains ideal wash temperature for consistent results.
- Uses just ≈1.2 gal of fresh water per rack thanks to Jackson’s Fill-&-Dump design.
- Automatic tank fill and push-button start for effortless operation.
- Integrated detergent, sanitizer & rinse-aid pumps with low product indicator light.
- Pumped drain accommodates both floor and wall drains—no gravity drain required.
- Durable, double-wall all-stainless-steel cabinet for quiet operation and reduced heat loss.
- Universal timer & dedicated delime cycle simplify maintenance and prolong machine life.
- cETLus, ETL-Sanitation & ENERGY STAR® certified for performance and efficiency.
Technical Specifications
| Sanitizing Method | Low-temperature, chemical |
|---|---|
| Racks per Hour | Approx. 24 (2-minute cycle) |
| Water Use | ≈1.2 gal (4.5 L) per rack ≈28 gal (106 L) per hour |
| Wash Pump | 1 HP stainless-steel pump |
| Built-in Heater | 1,500 W sustaining heater (maintains wash temperature) |
| Water Inlet | 3/4" male GHT (connect to true 1/2" ID line), 120 °F minimum, 20 ± 5 psi |
| Drain Connection | 1" ID pumped drain hose |
| Electrical | 115 V / 60 Hz / 1-ph, 10 A, NEMA 5-15P |
| Overall Dimensions | 24 1/4"W × 25 3/4"D × 33 3/4"H (615 × 654 × 857 mm) Adjustable feet; casters add 3/4" |
| Ship Weight | ≈242 lb (110 kg) |
| Certifications | ENERGY STAR®, cETLus, ETL-Sanitation |
| Warranty | 1-year parts & labor (register at jacksonwws-warranty.com) |
What’s Included
- 1 peg rack (plates, bowls, trays)
- 1 combination rack (glasses & dishes)
- Above-water scrap basket
- Factory-installed detergent, sanitizer & rinse-aid pumps
Popular Accessories (sold separately)
- 6" or 18" stainless-steel machine stands
- Additional 36-compartment glass racks
- Scale Prevention System (SPS) & replacement cartridges
- Water hammer arrestor
- Back panel or tie-down kit for mobile installations
Performance data based on NSF standard loading procedures. Specifications subject to change without notice. Jackson recommends incoming water hardness below 3.0 grains and a pH of 7.0–8.5 for optimal results.
