Jackson WWS DISHSTAR HT-E DishStar® Undercounter Dishwashers
Description

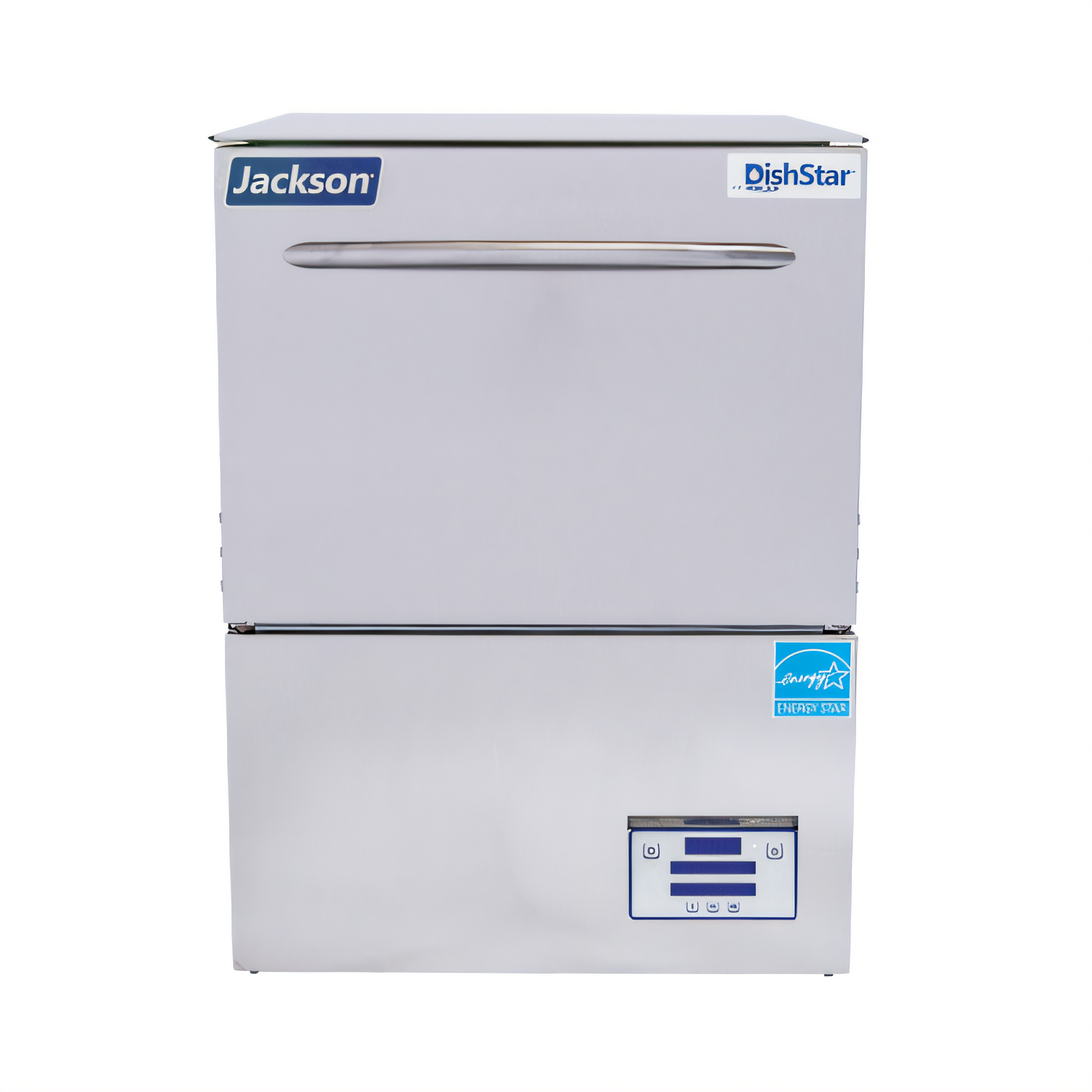

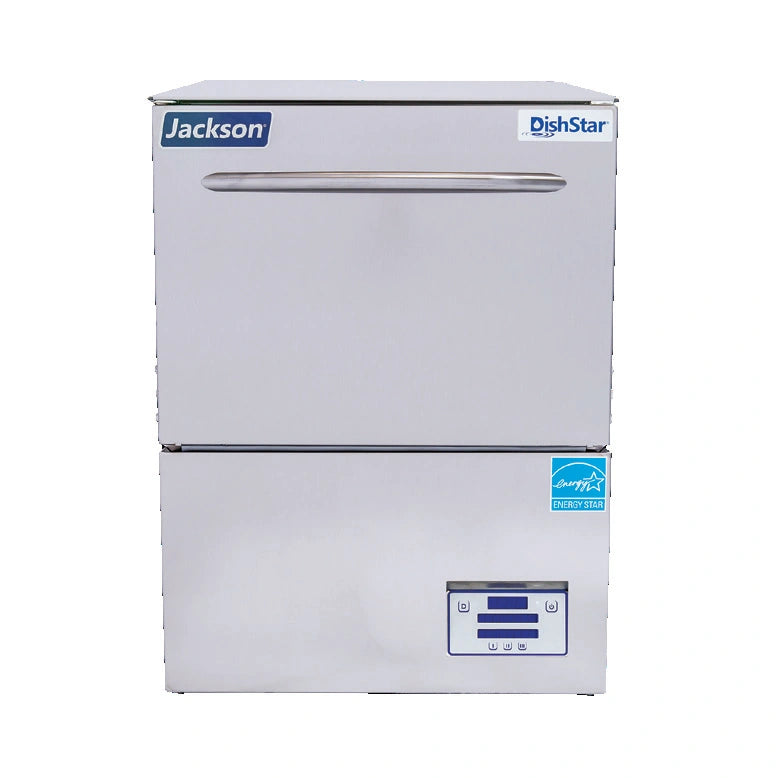

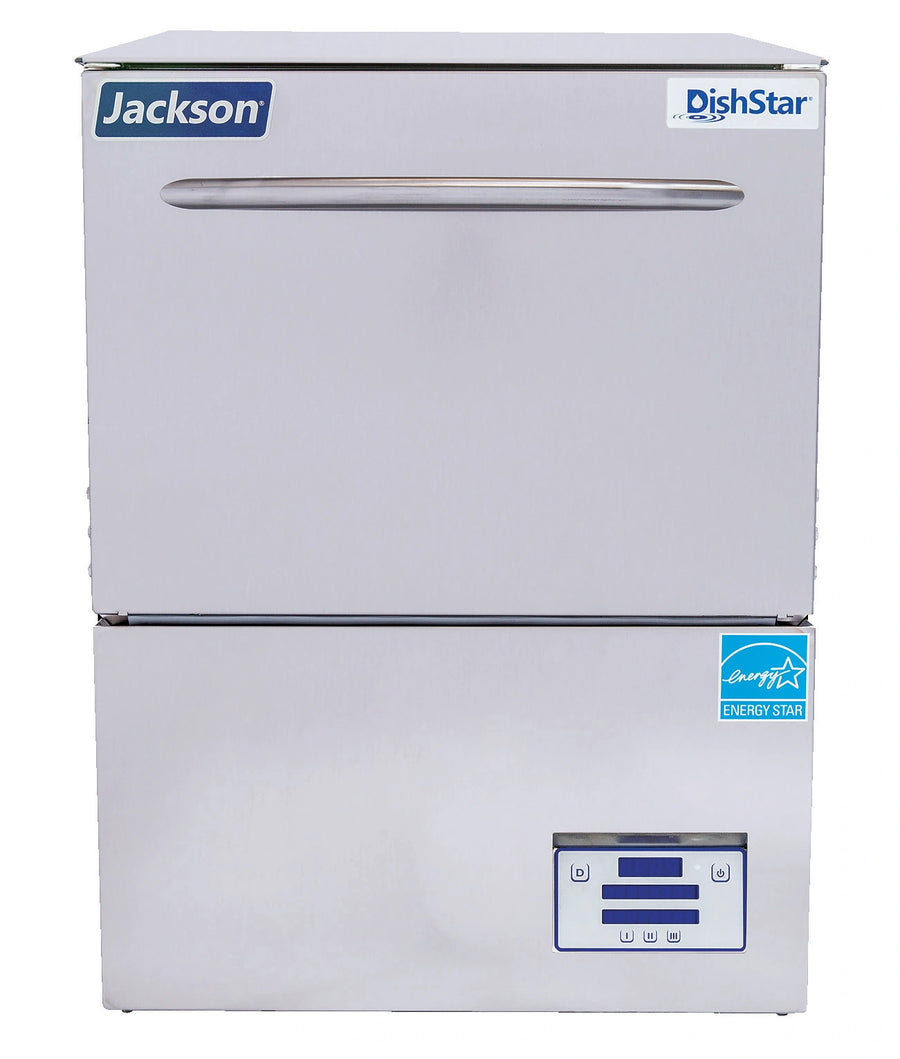

Jackson DishStar® HT-E Undercounter Dishwasher
ENERGY STAR® certified high-temperature sanitizing dishmachineThe Jackson DishStar® HT-E delivers powerful, NSF-compliant sanitation in a compact 24-1/4" footprint. A built-in 70 °F rise booster heater with Sani-Sure™ technology guarantees a 180 °F final rinse, while an efficient recirculating wash system uses just 0.60 gal of water per rack. Quiet, easy to operate and packed with smart features, it’s the perfect warewashing solution for coffee shops, bars, quick-service restaurants, small healthcare facilities and more.
Key features
- High-temperature sanitizing with integrated 70 °F rise booster heater
- Recirculating wash / fresh-water rinse – only 0.60 gal per rack (21.6 gal hr)
- Three selectable cycles (Normal 1:40, Heavy 2:48, Extra-Heavy 4:28)
- Solid-state controls with digital LED temperature display & service diagnostics
- Energy Saver Mode plus automatic tank fill & push-button start
- Pumped drain for either floor or wall connections
- Built-in detergent & rinse-aid pumps with priming switches
- 1 HP stainless-steel wash pump and halo-style wash arm for outstanding results
- Double-wall stainless cabinet and labyrinth door seal for quiet, cool-to-touch operation
- cETLus, ETL Sanitation to NSF/ANSI 3, and ENERGY STAR® listed
Performance at a glance
| Selectable cycles | Normal 100 s • Heavy 168 s • Extra-Heavy 268 s |
|---|---|
| Racks per hour | Up to 36 (NSF rated 27) |
| Dishes per hour | ≈ 900 |
| Glasses per hour | ≈ 1,296 |
| Water usage | 0.60 gal / rack • 21.6 gal / hr |
| Wash temperature | 155 °F min. |
| Final rinse temperature | 180 °F min. (Sani-Sure™) |
Specifications
| Width | 24 1/4" (615 mm) |
|---|---|
| Depth | 26" (660 mm) • 42 3/4" (1087 mm) door open |
| Height | 33 5/16" (846 mm) – adjustable feet +1" |
| Inside clearance | 14 1/4" (362 mm) |
| Water inlet | 3/4" male GHT • min. 110 °F • 10 psi flow |
| Drain connection | 5/8" ID pumped |
| Electrical | 208 V/60/1 24.7 A • 230 V/60/1 27.6 A • 460 V/60/3 8.3 A |
| Total load | Up to 5.2 kW (rinse heater @ 230 V) |
| Wash pump motor | 1 HP stainless steel |
| Shipping weight | 255 lb (116 kg) |
| Warranty | 1-year parts & labor |
Ideal applications
- Coffee shops & cafés
- Bars, pubs & tasting rooms
- Quick-service & ghost kitchens
- Small healthcare or daycare facilities
- Convenience stores & micro-markets
Stands, water-hammer arrestors, extra racks, scale-prevention systems and other Jackson accessories are available—ask us for details.
