Jackson WWS  |  DishStar®  |  SKU: DISHSTAR HT

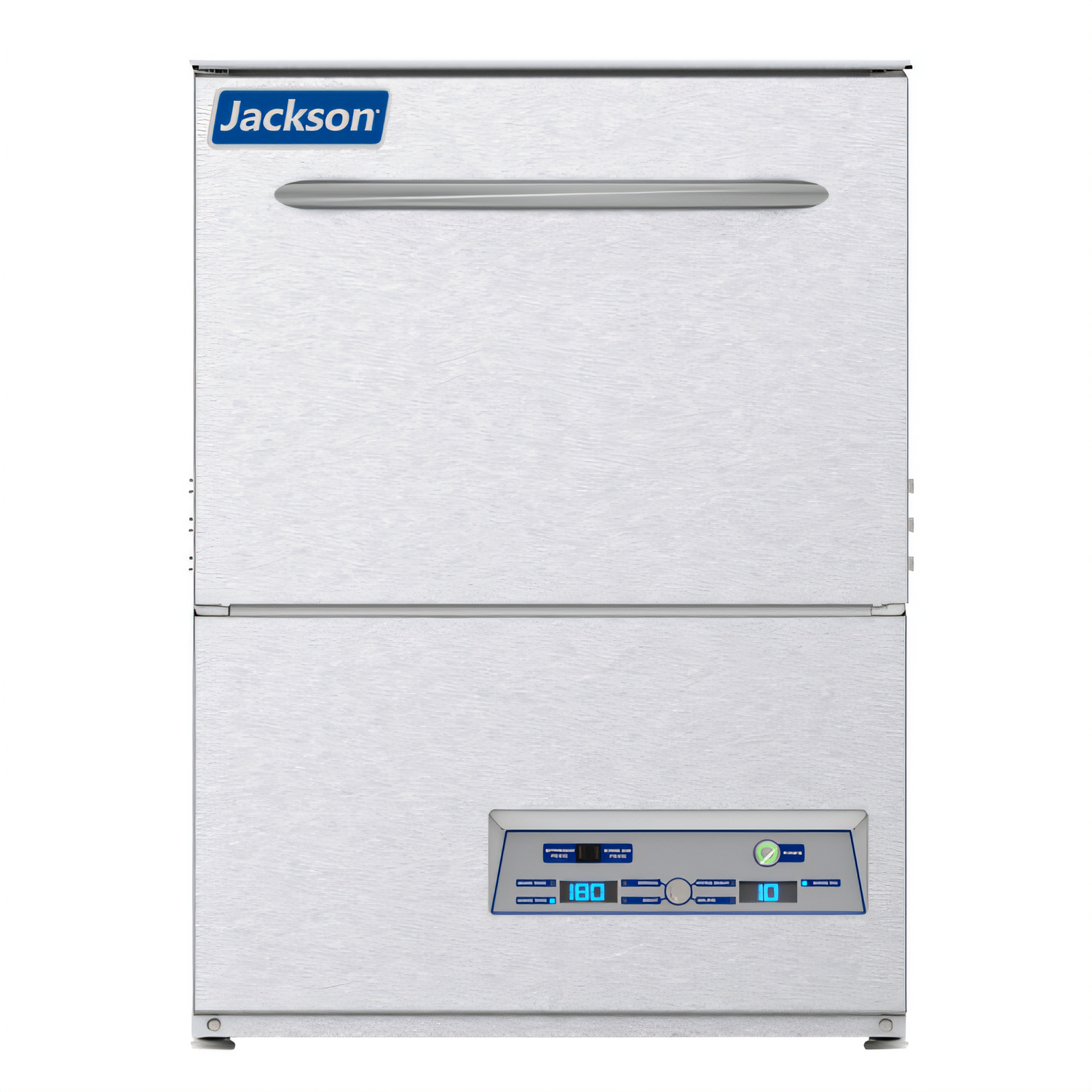

Jackson WWS DISHSTAR HT DishStar® Undercounter Dishwashers

$6,848.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Product page Owner's manual Catalog Warranty sheet
Related Searches
Bar Equipment Dishwashers Undercounter Dishwashers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Jackson DishStar® HT Undercounter Dishwasher

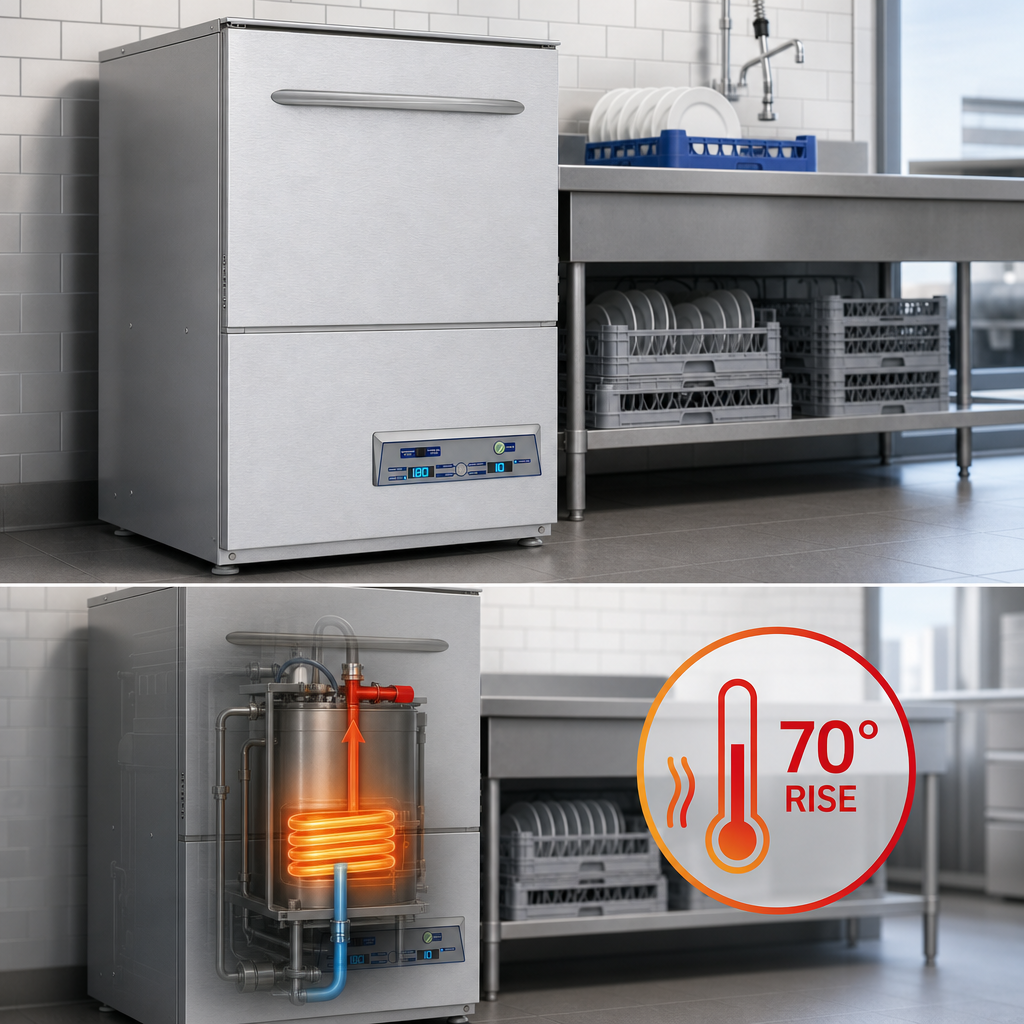

High-temperature sanitizing • Built-in 70 °F rise booster heater

Get high-volume results from a compact 24-¼" footprint. The Jackson DishStar HT combines a resource-saving 1.1 gal/rack fill-and-dump design with a powerful 1 HP stainless wash pump and integrated booster heater, delivering 180 °F sanitizing rinse temperatures without an external booster.

Key advantages

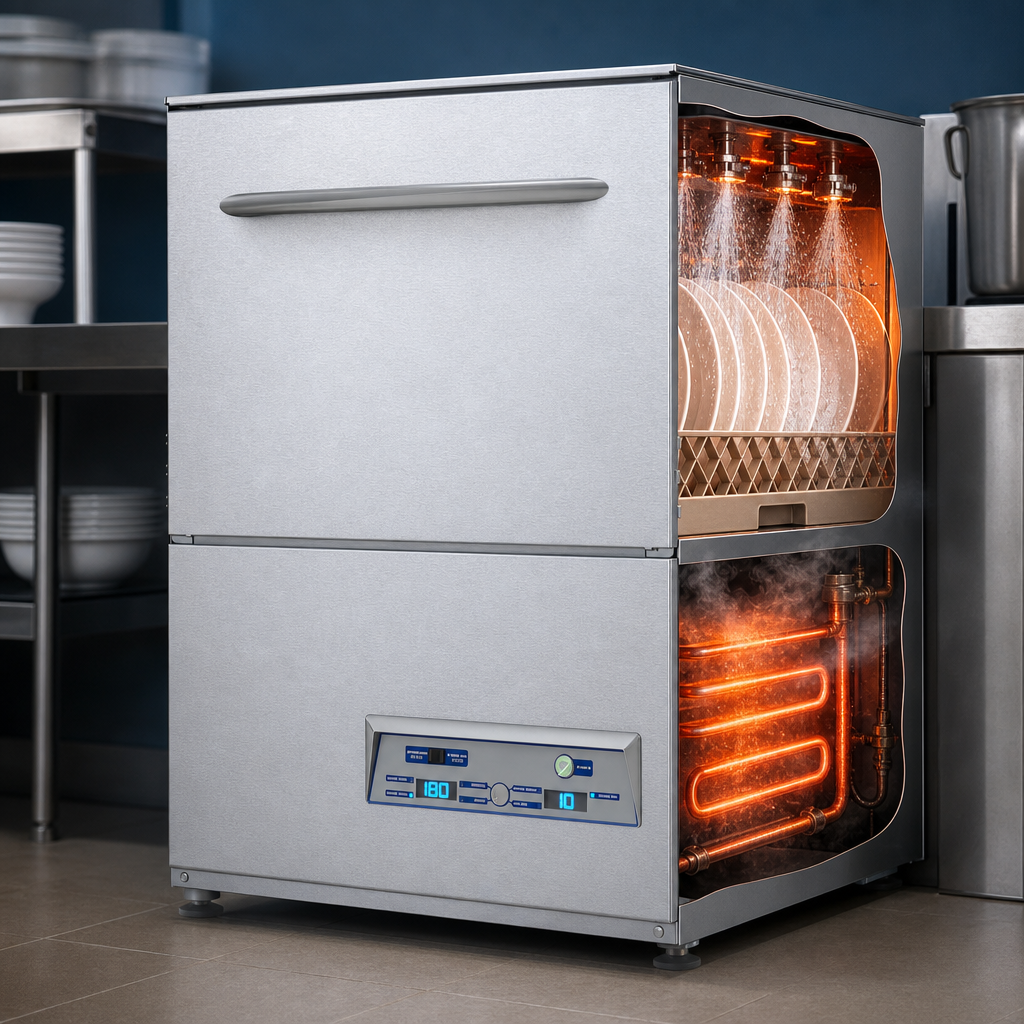

  • NSF/ANSI 3 certified high-temperature sanitizing (≥ 180 °F final rinse)
  • Built-in 70 °F rise booster heater with Sani-Sure™ final-rinse system
  • Uses only 1.10 gal of fresh water per rack—cuts utility costs
  • Up to 30 racks/hour (≈ 750 dishes / 1,080 glasses)
    NSF rated at 24 racks/h with 30 s load/unload*
  • Three selectable cycles (Normal 120 s, Heavy 180 s, Extra-Heavy 300 s)
  • Solid-state controls with digital LED wash & rinse temperature displays
  • Automatic tank fill, pumped drain, & delime cycle simplify operation
  • Built-in detergent & rinse-aid pumps with priming switches
  • Double-wall stainless cabinet + labyrinth door seal for quiet, cool operation
  • Includes 1 peg rack & 1 combination rack—ready to run out of the box
Performance at a glance
Racks per hour 30 (Normal) | 24 NSF*
Water use 1.10 gal/rack | 33 gal / h (Normal)
Wash temperature 150 °F minimum
Final-rinse temperature 180 °F minimum
Select-a-cycle time 120 s • 180 s • 300 s
Dimensions & utility requirements
Overall (W × D × H) 24 ¼" × 25" × 33 5⁄16" (615 × 635 × 846 mm)
Door open depth 41 ¾" (1,061 mm)
Inside clearance 14 ¼" (362 mm)
Drain height (pumped) 1 ⅝" (41 mm)
Electrical 208 V / 60 Hz / 1ɸ – 37.2 A
230 V / 60 Hz / 1ɸ – 40.7 A
Booster heater 6.7 kW @ 208 V  |  8.2 kW @ 230 V
Incoming water 110 °F, 20 ± 5 psi, ¾" male GHT (½" ID line)
Net / shipping weight 206 lb / 221 lb (93 kg / 100 kg)
What’s included
  • DishStar HT dishwasher with integrated booster
  • (1) peg rack & (1) combination rack
  • Detergent & rinse-aid pumps (factory-installed)
  • User/installation manual & quick-start guide
  • 1-year parts & labor warranty (USA & Canada)
Installation note: A dedicated 208/230 V single-phase circuit and 110 °F incoming water supply are required. Vent hood generally not necessary, but always verify local code requirements.

Features & Specs

Manufacturer

Jackson WWS

Brand_name

DishStar®

Certifications

cETLus, ETL-Sanitation

Height

33.31in

Width

24.25in

Depth

25.0in

Shipping Weight

242.0lbs

Cabinet base

fully enclosed

Temperature

high temp with booster

Rack Size

20" x 20"

Tank Heat

electric

Construction

stainless steel

Rack Capacity

approximately (24) racks/hour

Specifications

DishStar® Dishwasher, undercounter, 24-1/4"W, high temperature sanitizing with built-in 70°rise booster heater, approximately (24) racks/hour, (1.1) gallons of water per rack, solid-state timer with (3) selectable cycles, digital LED temperature displays, delime cycle, built-in chemical pumps, auto-fill, stainless steel wash pump, cabinet finished in stainless steel, 1 HP, ETL-Sanitation, cETLus
