Jackson WWS | DishStar® | SKU: DISHSTAR ADA-SEER

Jackson WWS DISHSTAR ADA-SEER DishStar® Undercounter Dishwashers

Name: Jackson WWS DISHSTAR ADA-SEER DishStar® Undercounter Dishwashers
Brand: Jackson WWS
SKU: DISHSTAR ADA-SEER
Price: 8596.00 USD
Availability: InStock

$8,596.00

FREE SHIPPING AVAILABLE!

Expected delivery date of , to your door

if ordered within hours and minutes

Not Shipping to ?

More Delivery Options

Documents

Cutsheet Compact catalog Sales sheet Product page Warranty sheet

Description

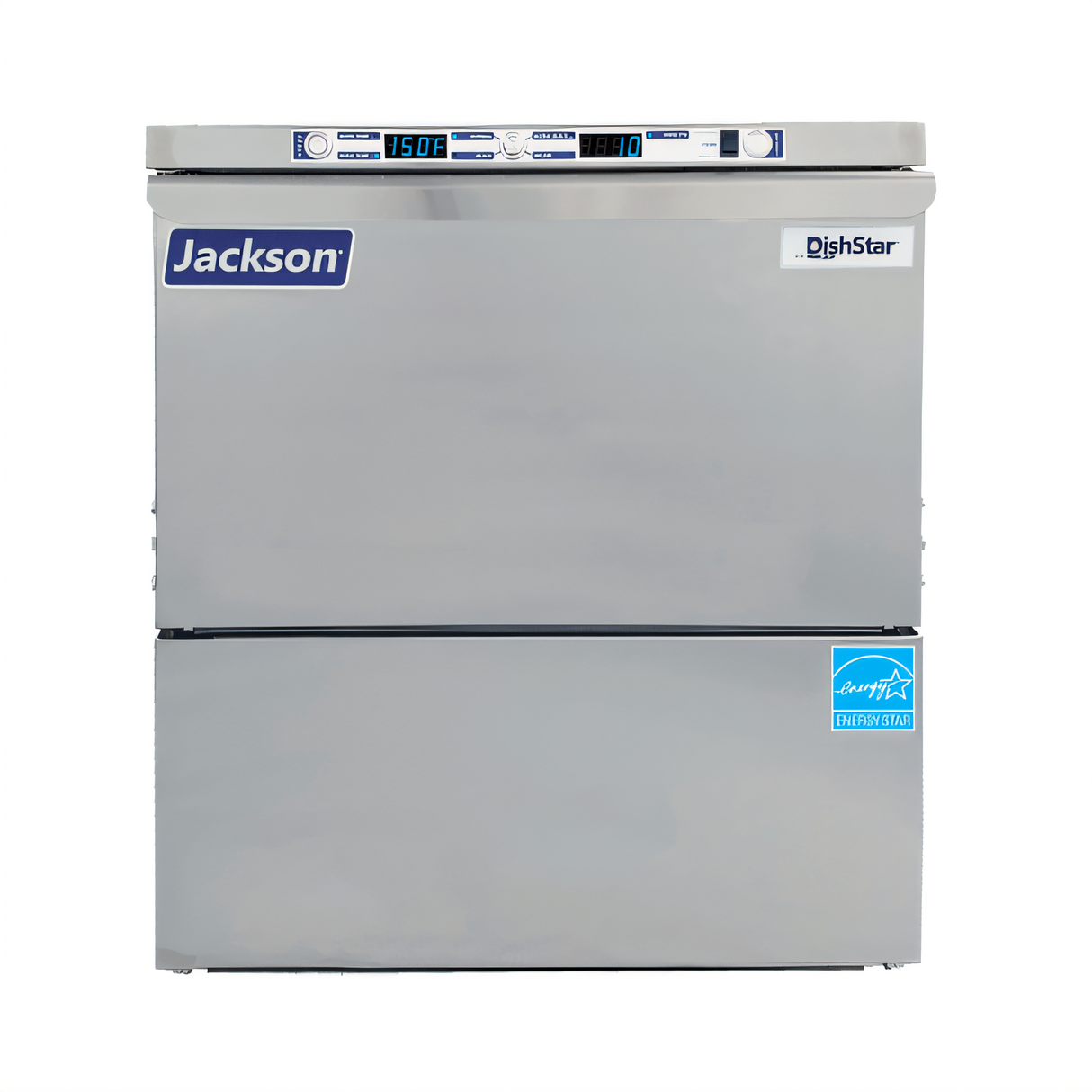

Jackson DishStar® ADA-SEER Undercounter Dishwasher

High-temperature sanitizing with Steam Elimination & Energy Recovery

Give your small commercial kitchen the power of a full-size warewasher in a compact, ADA-compliant footprint. The ENERGY STAR® qualified DishStar® ADA-SEER cleans up to 24 racks (600 dishes) per hour while using just 0.60 gallons of water per rack—all on a single cold-water connection.

Why you’ll love it

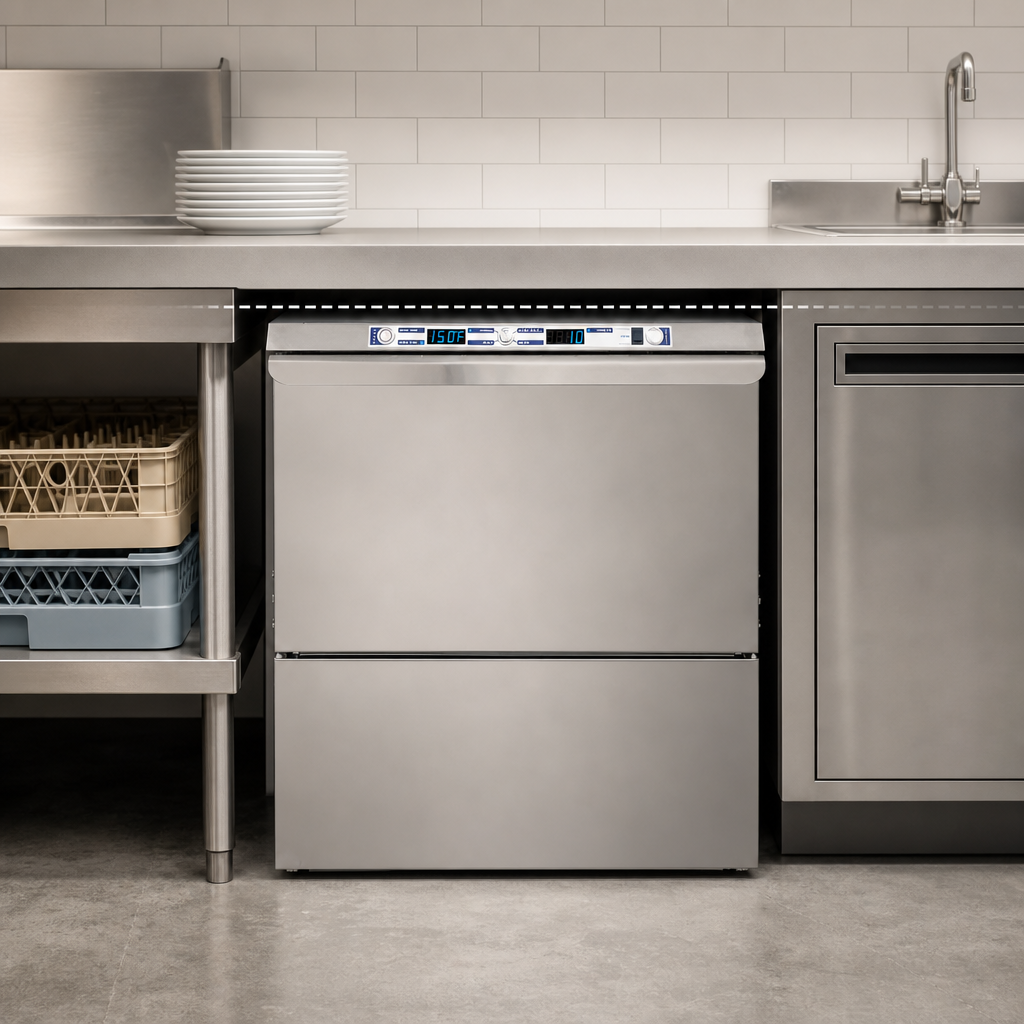

ADA-compliant 29 ¾" height fits effortlessly under 34" counters.
Built-in 70 °F-rise booster with Sani-Sure™ final-rinse system hits 180 °F for NSF-approved sanitation.

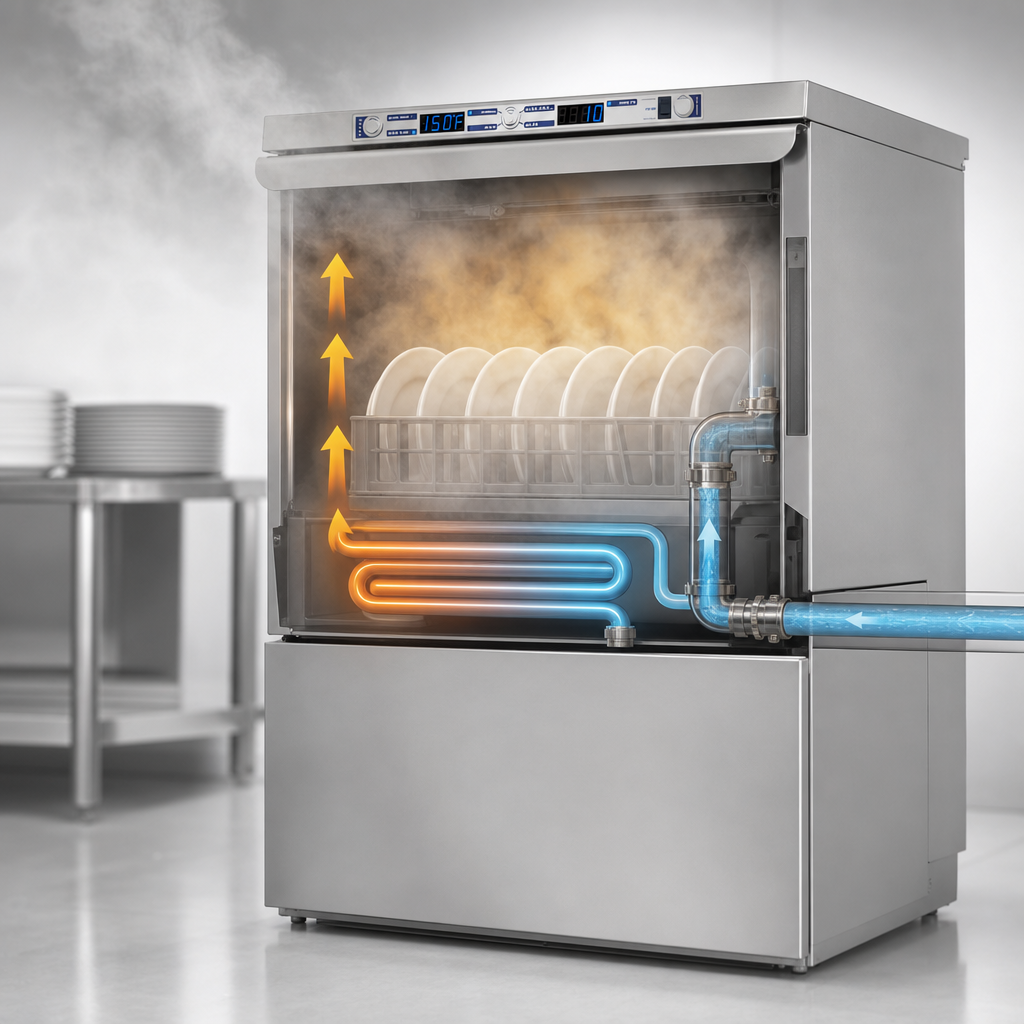

SEER (Steam Elimination & Energy Recovery) captures heat from exhaust vapor to pre-heat incoming rinse water—no dedicated hot-water line or vent hood typically required.*
Three selectable cycles (Normal, Heavy, Extra-Heavy) with Soft Start to protect delicate glassware.
Recirculating ¾ HP stainless-steel wash pump delivers powerful cleaning with a fresh-water final rinse.
Automatic fill, pumped drain, built-in chemical dispensing with auto-prime & delime cycle simplify operation.
Solid-state controls with digital LED temperature display plus Energy Saver mode.
Double-wall 304 stainless-steel cabinet & labyrinth door seal keep noise and heat where they belong.
Includes one peg rack and one combination rack—ready to work right out of the box.

Performance at a glance

Racks / Hour (Normal)	24
Water Use / Rack	0.60 gal (2.3 L)
Dishes / Hour	600
Cycle Times	Normal 145 s \| Heavy 213 s \| Extra Heavy 313 s
Wash / Rinse Temp (min)	155 °F / 180 °F (68 °C / 82 °C)

Dimensions & utilities

Footprint (W × D × H)	24 ¼" × 26 ⅞" × 29 ¾" (615 × 692 × 756 mm)
Depth w/ Door Open	40 ⅞" (1037 mm)
Water Connection	¾" male GHT, 40–90 °F (5–33 °C) cold water, 10 PSI flow
Drain Connection / Height	⅝" ID pumped drain, 2 ⅞" (73 mm) above floor
Electrical (208 V 1ɸ)	26.3 A load \| 30 A circuit
Electrical (230 V 1ɸ)	29.2 A load \| 35 A circuit
Wash Pump Motor	¾ HP stainless steel
Construction	Double-wall 304 stainless steel
Certifications	cETLus, ETL-Sanitation (NSF/ANSI 3), ENERGY STAR®

What’s in the box

(1) Peg rack
(1) Combination rack
User manual & quick-start guide

Warranty

1-year parts & labor coverage when installed and registered in the U.S. or Canada.

Installation note: The ADA-SEER is designed for a cold-water hookup only and typically does not require a vent hood. Always verify local code requirements before installation.

Features & Specs

Manufacturer

Jackson WWS

Brand_name

DishStar®

Certifications

cETLus, ETL-Sanitation, ENERGY STAR

Height

29.75in

Width

24.25in

Depth

26.88in

Shipping Weight

270.0lbs

Rack Size

20" x 20"

Energy Efficiency

ENERGY STAR®

Cabinet base

fully enclosed

Temperature

high temp with booster

Tank Heat

electric

Construction

stainless steel

Rack Capacity

approximately (20) racks/hour

Specifications

DishStar® ADA-SEER Dishwasher, undercounter, 24-1/4"W x 26-7/8"D x 29-3/4"H, high temperature sanitizing, ADA-compliant, built-in booster with Sani-Sure™ final rise system, steam elimination & energy recovery system, soft start, approximately (24) racks or (600) dishes/hour, built-in dispensing pumps with automatic prime, delime cycle, digital LED temperature display, solid state controls, auto-fill, push-button start, pressure regulator, automatic pumped drain, water hammer arrestor, includes (1) peg rack & (1) combination rack, stainless steel construction, cETLus, ETL-Sanitation, ENERGY STAR®
