Jackson WWS DELTA HT-E-SEER-T Delta® Undercounter Dishwashers
Description

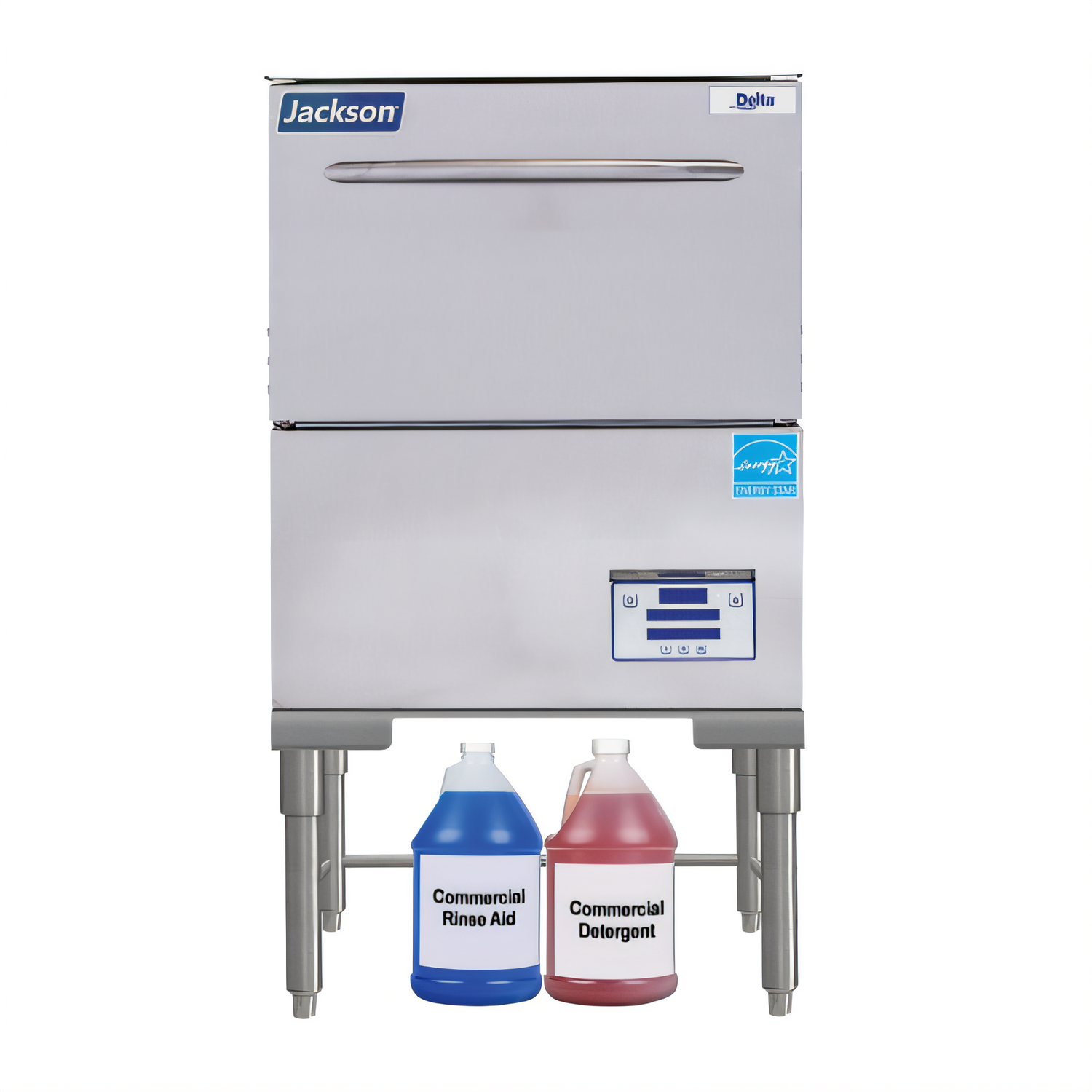

Jackson Delta® HT-E-SEER-T Tall High-Temperature Glasswasher
Steam Elimination • Energy Recovery • 24 racks / 864 glasses per hourDesigned for busy bars, tasting rooms and glass-intensive kitchens, the Delta HT-E-SEER-T delivers crystal-clear, spot-free results while keeping your work area virtually steam-free. Its patented SEER system harvests heat from wash vapors to pre-warm the rinse water, allowing the machine to run on a single cold-water connection and earn coveted ENERGY STAR® certification.
Key performance & operator benefits

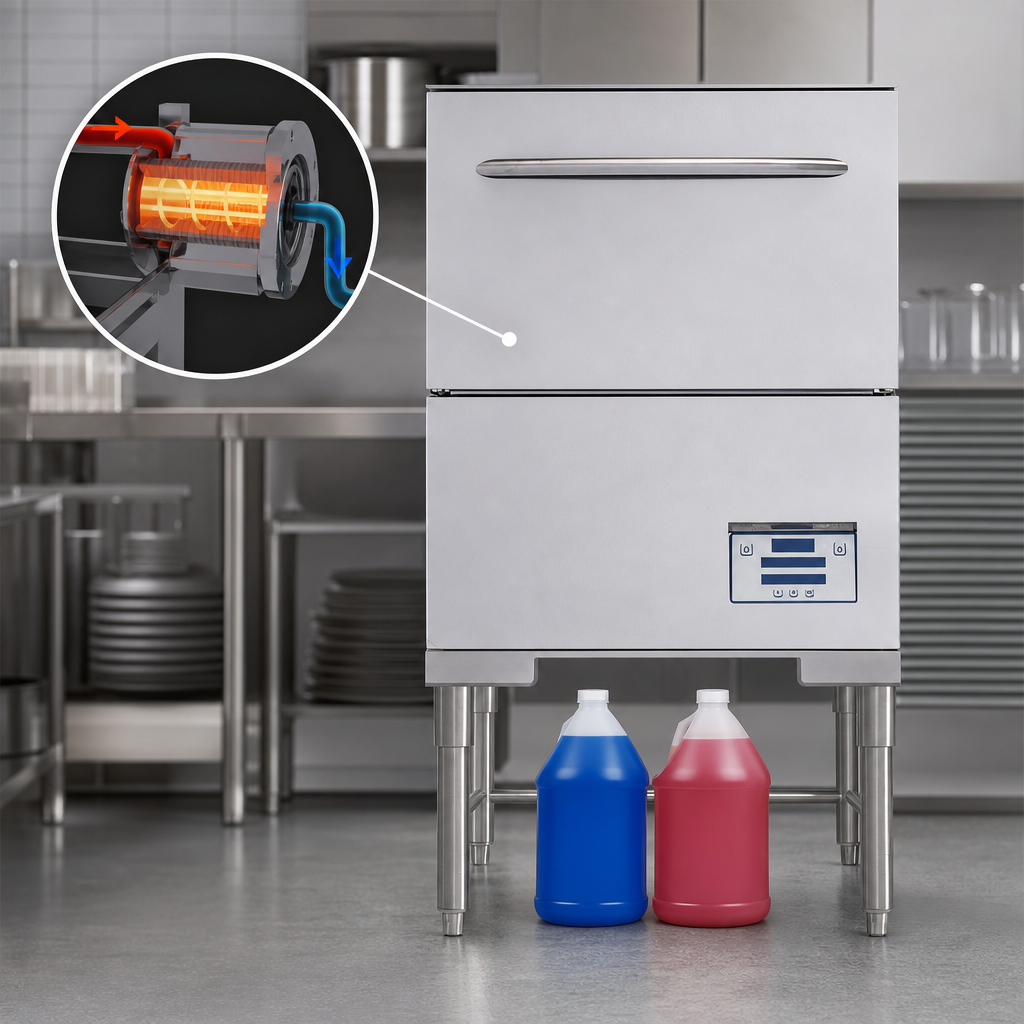

- High-temp sanitization with 70 °F built-in booster & Sani-Sure™ final rinse – no chemical residue.

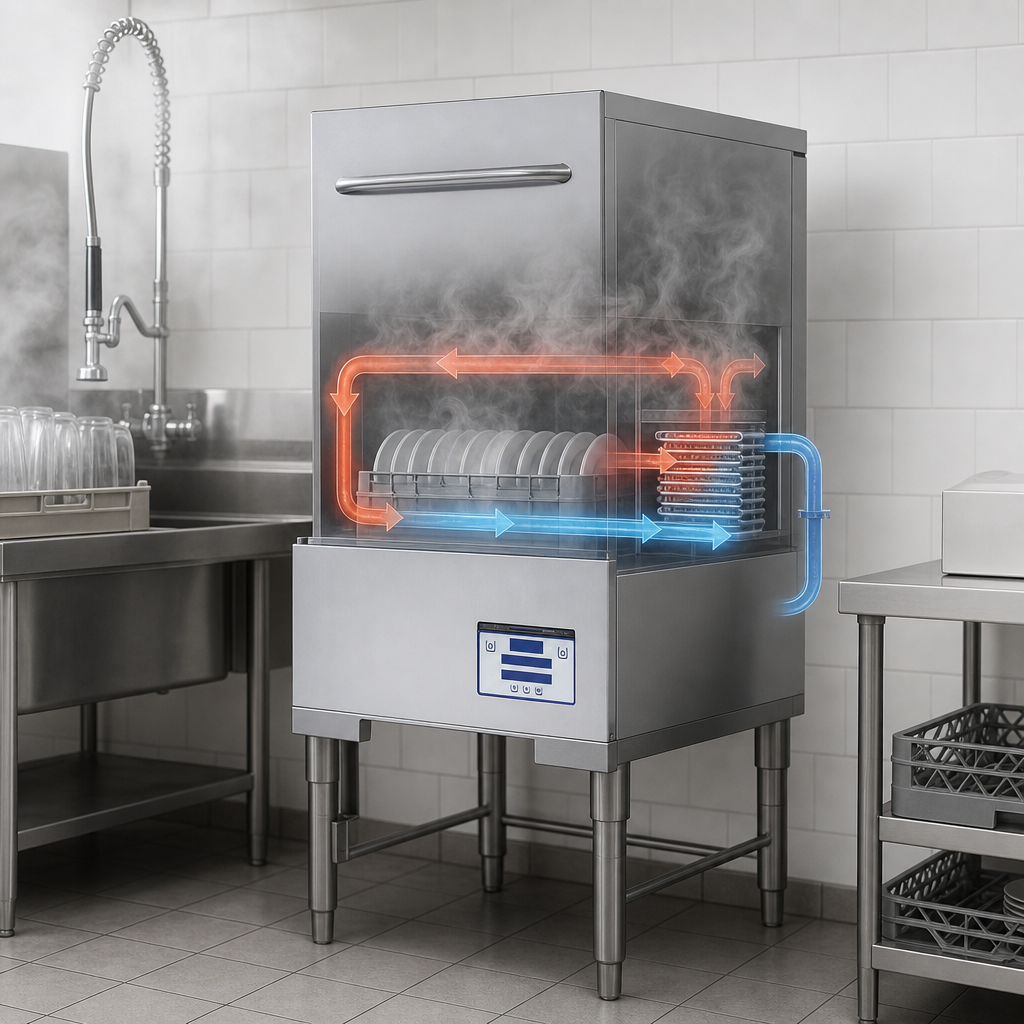

- SEER Steam Elimination & Energy Recovery virtually eliminate bar-top vapor and cut utility costs.
- Soft Start wash pump gently ramps up pressure to prevent chipping delicate glassware.
- Recirculating wash / fresh-water rinse uses only 0.60 gal per rack.
- Three selectable cycles + Energy Saver mode for true service-time flexibility.
- Intuitive solid-state controls with digital LED temperature read-out & onboard diagnostics.
- Automatic features: cold-water auto-fill, pumped drain, delime cycle, chemical pumps & priming switches.
- 14" stainless stand provides ergonomic loading height & storage for 1-gal detergent jugs.
- Double-wall stainless cabinet for quiet operation and superior heat retention.
- Includes (1) peg rack & (1) combination rack; cETLus & ETL-Sanitation listed.
Technical specifications
| Capacity | 24 racks / 864 glasses / 600 dishes per hour |
|---|---|
| Water use | 0.60 gal per rack | 14.4 gal per hour |
| Cycle times | 145 s, 213 s or 313 s (selectable) |
| Wash / Rinse temps | 155 °F / 180 °F minimum |
| Water connection | 3/4" GHT cold water (40-90 °F, 10 psi) |
| Drain connection | 5/8" ID pumped drain – floor or wall |
| Electrical | 208 V / 60 Hz / 1-ph - 26.3 A | 230 V / 60 Hz / 1-ph - 29.2 A |
| Dimensions (W × D × H) | 24 ¼" × 26 ⅞" × 41 ¾" (Depth w/ door open : 40 ⅞") |
| Inside clearance | 12" glass height |
| Construction | Double-wall 304 stainless steel cabinet & ¾ HP stainless wash pump |
| Stand | 14" stainless legs with adjustable bullet feet |
| Warranty | 1-year parts & labor |
A vent hood is generally not required thanks to the SEER steam-elimination design. Always confirm final requirements with local plumbing, electrical & ventilation codes.
