Jackson WWS

Delta HT-E-SEER High Temperature Sanitizing Door-Type Undercounter Glasswasher with Steam Elimination & Energy Recovery

SKU: DELTA HT-E-SEER
$9,142.05
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Delta HT-E-SEER High Temperature Sanitizing Door-Type Undercounter Glasswasher with Steam Elimination & Energy Recovery

Single Cold Water Connection, Built-In Booster, 24 Racks/Hour

This compact undercounter glasswasher combines high-temperature sanitizing, steam elimination, and energy recovery to deliver fast, efficient results on a single cold water connection.

  • High-temperature sanitizing door-type undercounter glasswasher designed for busy bar and restaurant service.
  • Steam elimination and energy recovery help reduce vapor while preheating incoming rinse water.
  • Built-in booster heater with Sani-Sure™ final rinse supports proper sanitizing performance from a cold water supply.
  • Approximate production rate of 24 racks per hour or 864 glasses per hour in Cycle I.
  • Solid-state controls, digital LED display, automatic tank fill, and push-button start simplify operation.
  • Built-in detergent and rinse-aid pumps, delime cycle, and pumped drain support easy maintenance.
  • Durable stainless steel construction includes one peg rack and one combination rack.

Overall Dimensions:

24.25"W x 26.88"D x 28.75"H

Product Weight:

275.0 lb

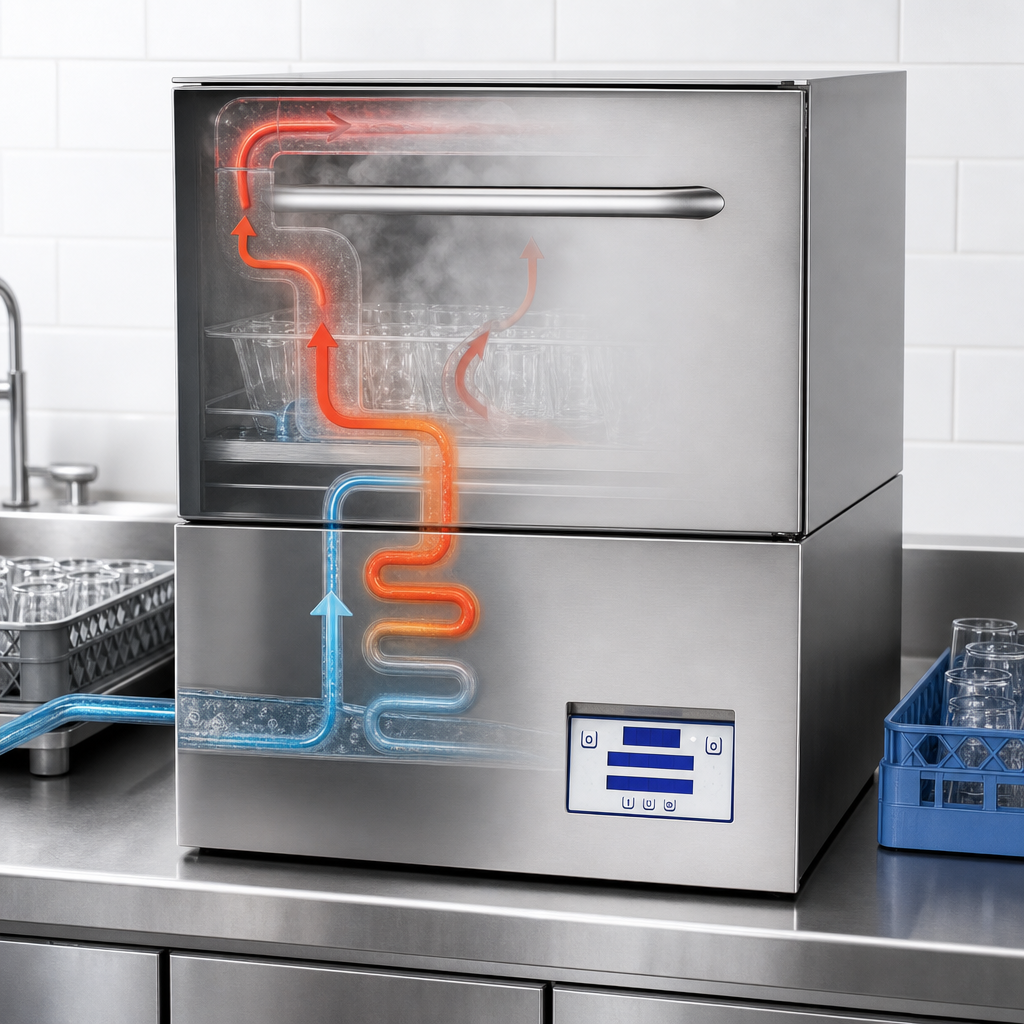

Steam Elimination & Energy Recovery

Captures hot vapor inside the machine and uses it to help preheat incoming rinse water, reducing steam in the wash area.

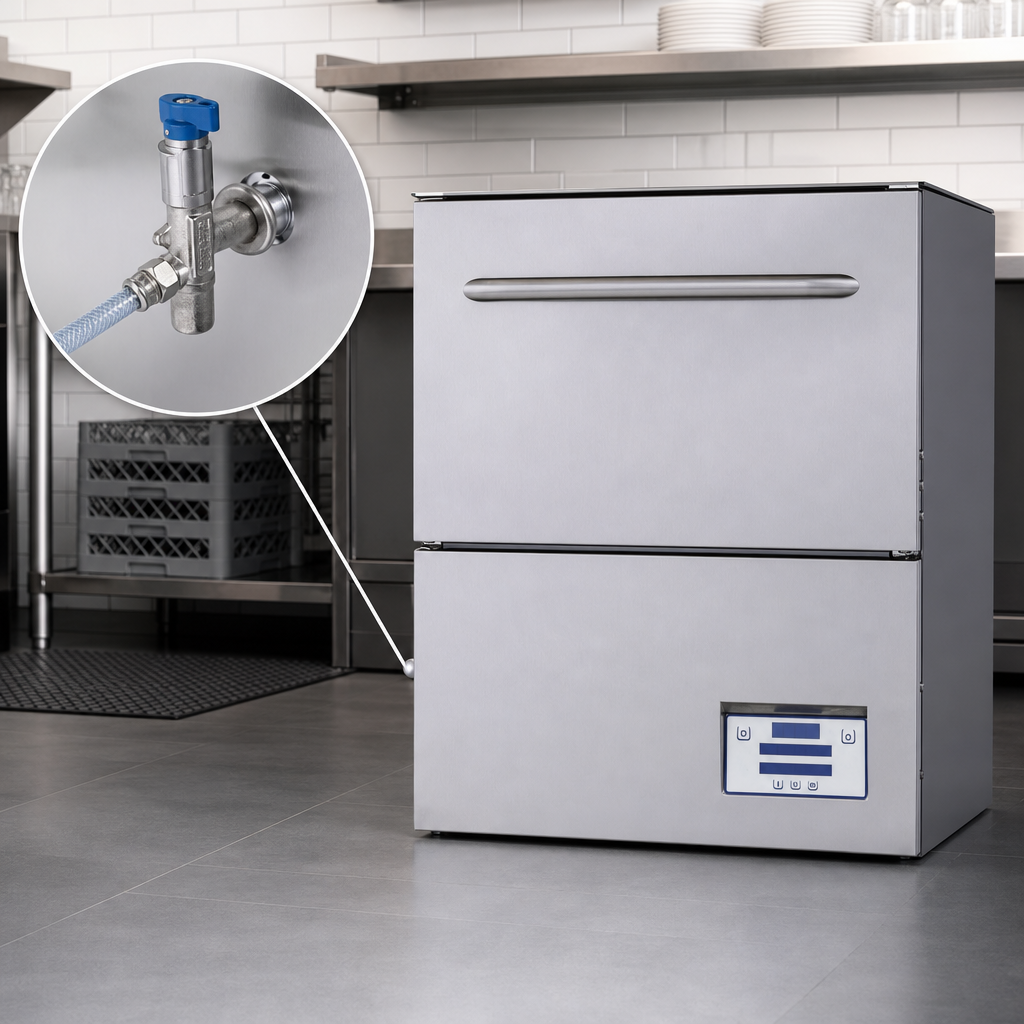

Single Cold Water Connection

Operates on a single cold water supply, simplifying installation and utility requirements.

Built-In Booster Heater With Sani-Sure™ Final Rinse

Helps ensure proper final rinse temperature for high-temperature sanitizing performance.

Solid-State Controls With Digital LED Display

Offers three selectable timed cycles plus easy temperature/operator monitoring and onboard service diagnostics.

Automatic Tank Fill And Push-Button Start

Simplifies startup and everyday operation.

Built-In Chemical Pumps

Detergent and rinse-aid pumps with priming switches are built in for convenience.

Maintenance And Protection Features

Includes a delime cycle, pressure regulator, water hammer arrestor, automatic pumped drain, and door interlock.

Double-Wall Stainless Steel Cabinet

Helps provide quiet operation and better heat retention while supporting durability.

Included Racks

Ships with one peg rack and one combination rack.

Type Glasswasher
Style Door Type
Installation Type Undercounter
Capacity 24 Racks Per Hour / 864 Glasses Per Hour
Controls Solid State
Temperature Range 155 °F Wash / 180 °F Rinse
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 208/230 Volts
Amps 26.3 Amps at 208 Volts / 29.2 Amps at 230 Volts
Hertz 60 Hz
Phase 1-Phase
Breaker Size 30.0 Amps at 208 Volts / 35.0 Amps at 230 Volts
Water Inlet Size 3/4 Inch Male GHT
Drain Connection Size 5/8 Inch ID
Water Connection Required
Drain Connection Required
Shipping Width 28 Inches
Shipping Depth 28 1/2 Inches
Shipping Height 43 1/2 Inches
Shipping Weight 275 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

In Cycle I, it is rated at approximately 24 racks per hour or 864 glasses per hour.
No. It operates on a single cold water connection and uses a built-in booster heater with Sani-Sure™ final rinse.
The unit is available in 208/60/1 and 230/60/1 electrical configurations.
One peg rack and one combination rack are included.
No. The documentation says a vent hood is not recommended above this model, but local building codes should always be checked.
