Jackson WWS DELTA 1200 Delta® Undercounter Dishwashers
Jackson WWS DELTA 1200 Delta® Undercounter Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

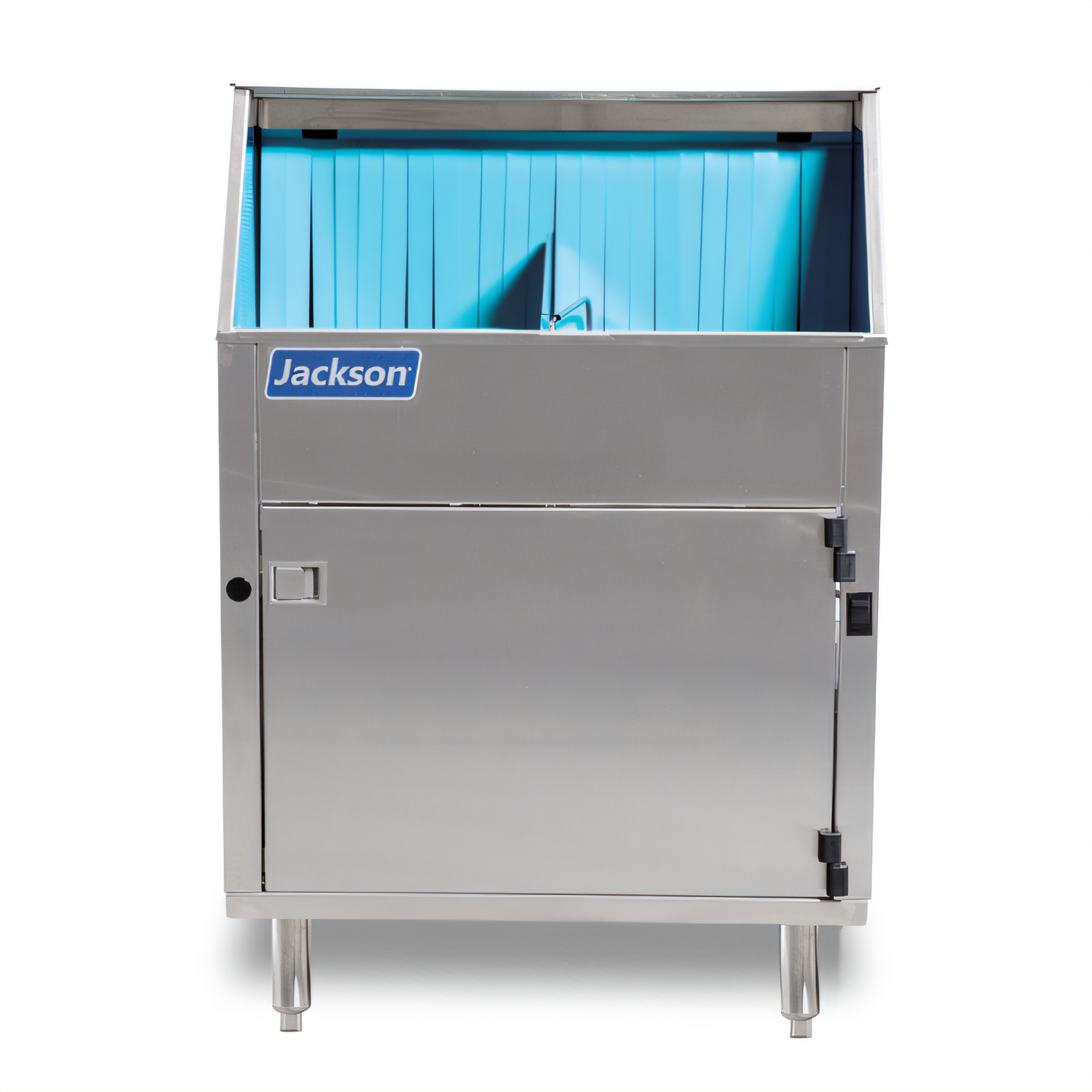

Jackson Delta® 1200 Rotary Glasswasher
Low-temperature, chemical sanitizing glasswasher – 1,200 glasses per hourDesigned for busy bars, tasting rooms, and glass-heavy venues, the Jackson Delta® 1200 delivers crystal-clear results fast while fitting neatly under the bar. Its high-speed rotary carousel handles up to 1,200 glasses every hour and protects even delicate stemware from chips and breakage. With built-in chemical pumps, automatic start/stop, and quiet double-wall construction, the Delta® 1200 keeps your staff moving and your customers sipping from spotless glassware all night long.
Key features & benefits

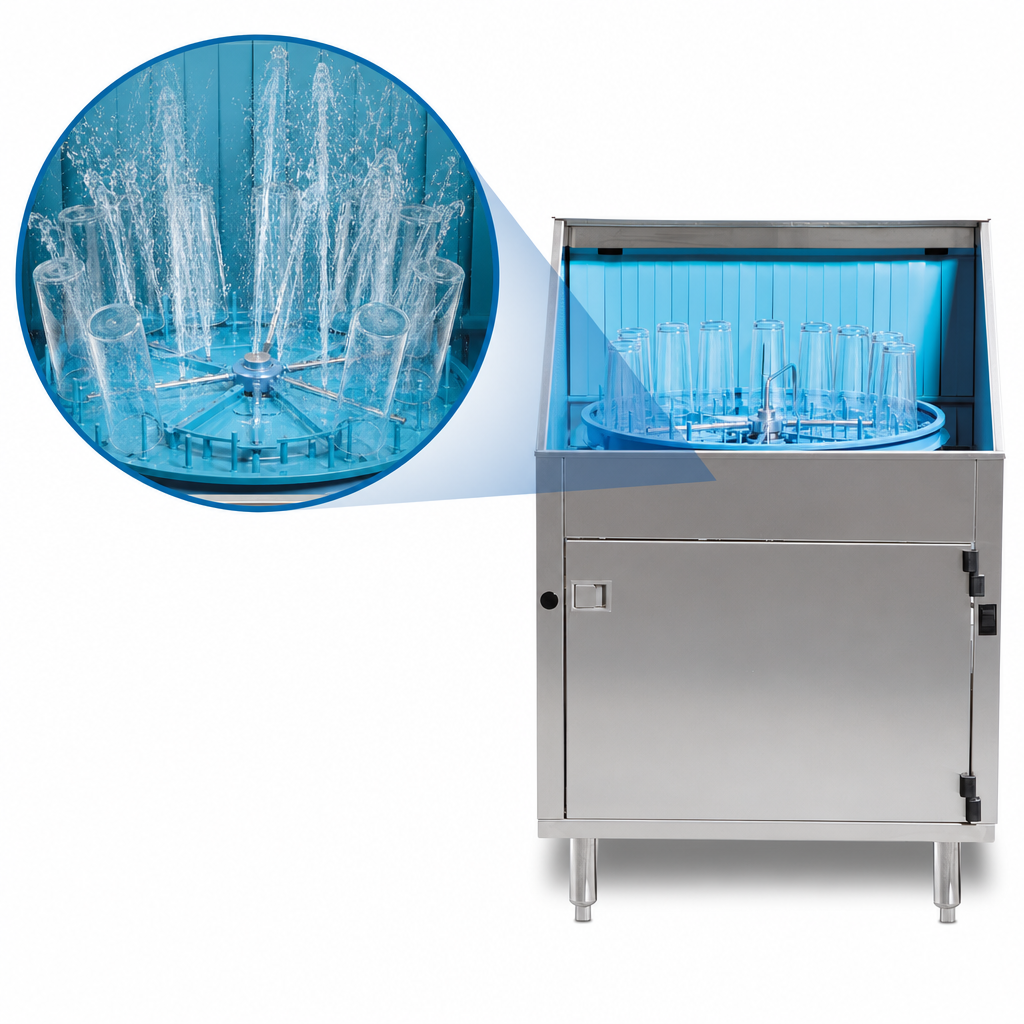

- Composite rotary carousel prevents chipping and scratching of glasses, mugs & stemware.
- 12 in. interior clearance easily accommodates tall pilsners, wine stems and coffee mugs.

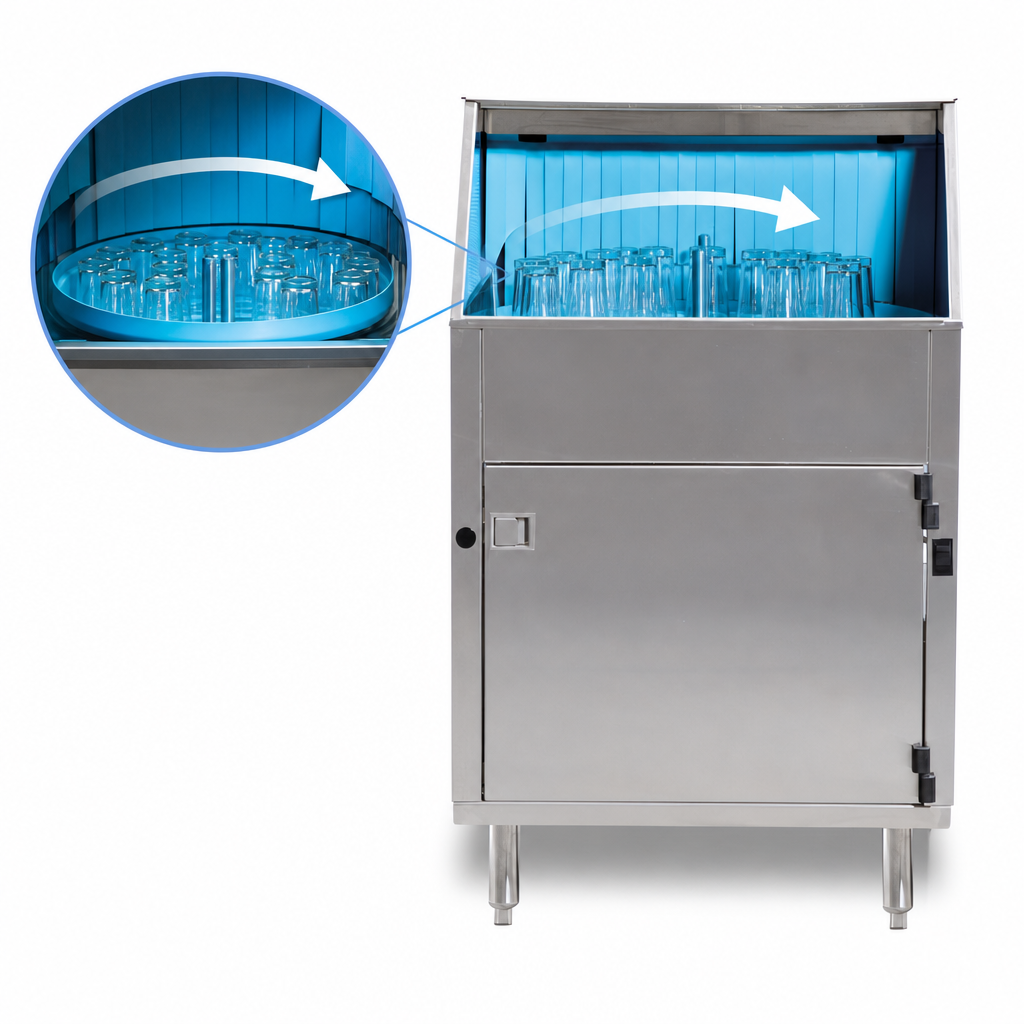

- Clockwise rotation with glass-activated auto-start for true hands-free operation.
- Low-temperature chemical sanitizing system – no booster heater required.
- Three onboard pumps (detergent, rinse aid & sanitizer) with priming switches for hassle-free chemical dosing.
- Adjustable rinse control gives you the choice of hot or cold final rinse.
- Easy-clean upper & lower wash/rinse arms with removable end caps.
- Low-water protection safeguards the wash pump and tank element.
- Quiet, energy-saving double-wall stainless steel cabinet with integrated chemical storage for three 1-gal. containers.
- Space-saving under-bar footprint with adjustable bullet feet and gravity drain.
- 1-year parts & labor warranty backed by Jackson’s nationwide service network.
Performance & utility specifications
Glass capacity | Approx. 1,200 glasses per hour |
---|---|
Total cycle time | Continuous rotary – 120 sec rotation |
Dimensions (W × D × H) | 25 1/4" × 25" × 39" (641 × 635 × 991 mm) |
Inside clearance height | 12" (305 mm) |
Electrical |
208 V / 60 Hz / 1-ph – 13.4 A 230 V / 60 Hz / 1-ph – 14.7 A |
Wash pump motor | 1/10 HP |
Wash tank heater | 2.7 kW (208 V) | 3.3 kW (230 V) |
Water consumption |
0.39 gpm hot (1.5 L) | 1.93 gpm cold (7.3 L) 2.32 gpm combined (8.8 L) |
Required water temperature & pressure |
130 °F (55 °C) inlet | 20 ± 5 psi |
Connections | 1/2" NPT water (hot & cold) | 2" NPT gravity drain (6" height) |
Shipping weight | 210 lb (95 kg) |
Factory options & accessories
- Scrap tray
- Water hammer arrestor
- Scale Prevention System (SPS)
- Replacement cartridge for SPS
One-year limited parts & labor warranty. Registration required; see operator’s guide for complete terms.
