Jackson WWS DELTA 115 Delta® Undercounter Dishwashers
Description

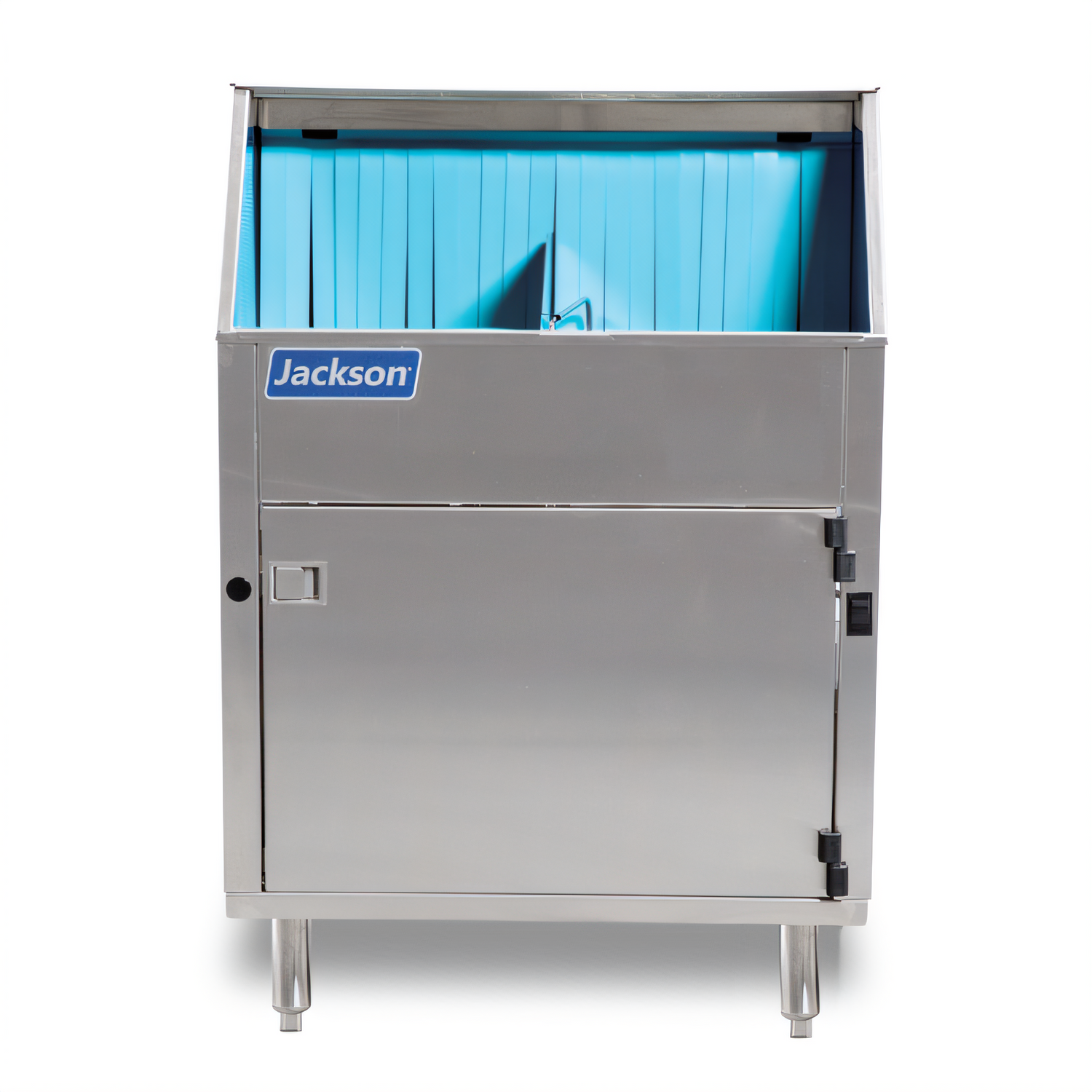

Jackson Delta® 115 Low-Temp Rotary Glasswasher
1,200 glasses/hr • 25-1/4" W x 25-1/4" D footprint • 115 V/60/1-phPurpose-built for busy bars, tasting rooms and banquet venues, the Jackson Delta 115 tucks neatly underbar yet powers through up to 1,200 sparkling glasses every hour. Its quiet double-wall stainless-steel cabinet houses a clockwise composite carousel that shields delicate stemware, while a low-temperature chemical sanitizing system keeps energy costs low and compliance easy.
Why the Delta 115 outperforms other underbar washers
- Composite carousel rack prevents chipping and breakage.
- 12" interior clearance handles tall stemware, beer mugs & cocktail shakers.
- Glass-activated auto-start/stop for true hands-free operation.
- Built-in detergent, rinse-aid & sanitizer pumps with priming switches.
- Adjustable final rinse—choose hot or cold water to match chlorine or iodine chemicals.
- Removable upper & lower wash/rinse arms with end caps for fast daily cleaning.
- Low-water protection safeguards the 1/10 HP wash pump and 1.3 kW tank heater.
- On-board storage holds three 1-gal chemical jugs—no extra floor clutter.
- Gravity drain eliminates the need for costly pump-out kits.
- Double-wall cabinet reduces noise and heat loss for a cooler, quieter bar.
Technical Specifications
| Hourly Production | Approx. 1,200 glasses |
|---|---|

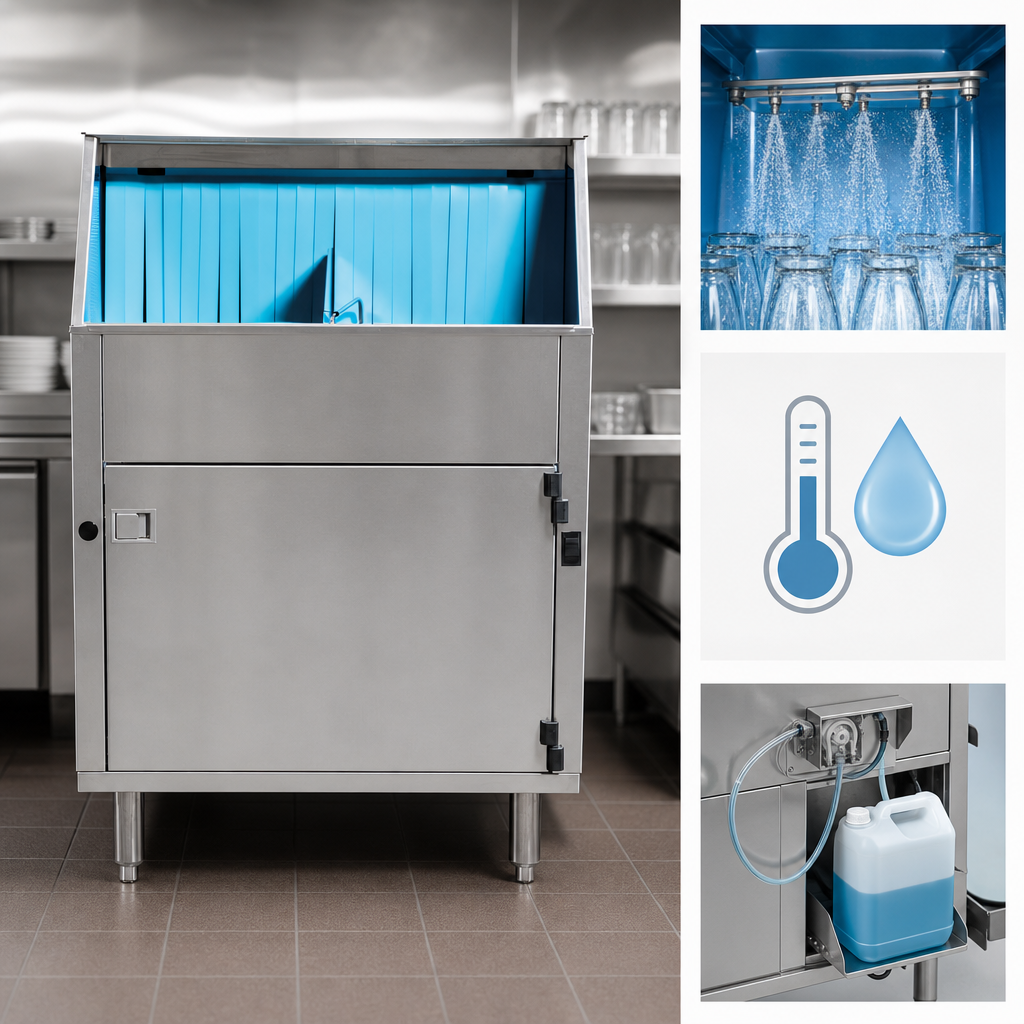

| Sanitizing Method | Low-temp chemical (50 ppm chlorine / 12.5 ppm iodine) |
| Cabinet & Construction | Double-wall 304 stainless steel, adjustable bullet feet |

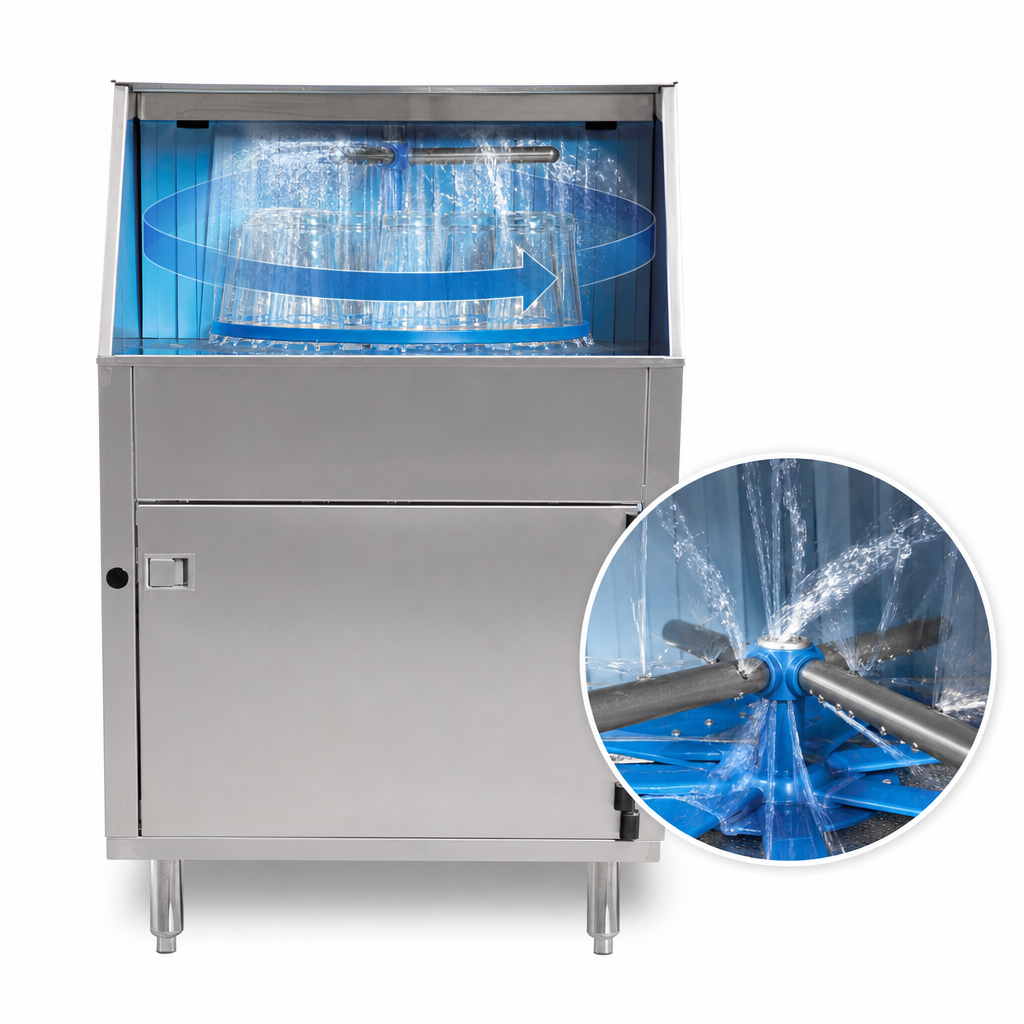

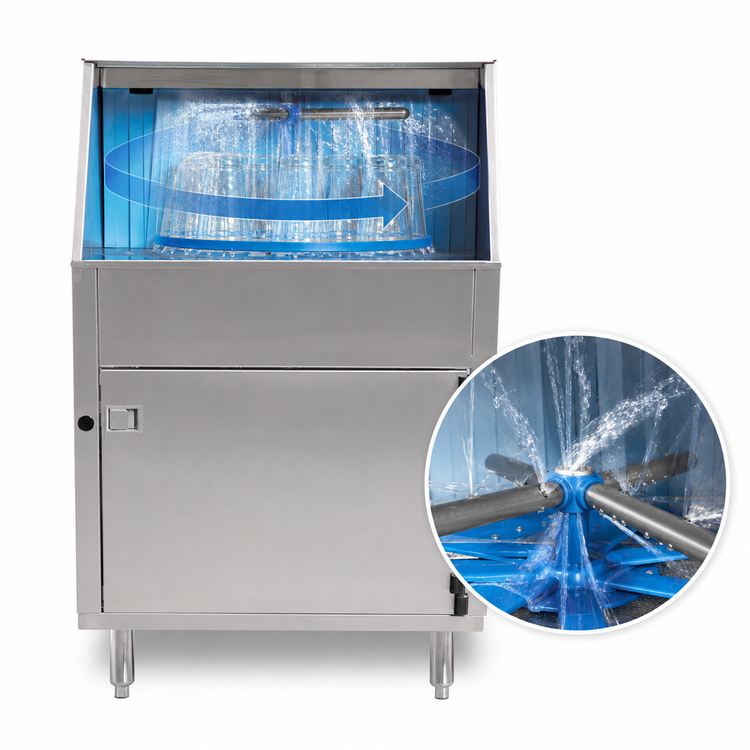

| Carousel Direction | Clockwise rotation, composite rack |
| Internal Clearance | 12" H (305 mm) |
| Overall Dimensions | 25-1/4" W x 25-1/4" D x 39" H (641 x 641 x 991 mm) |
| Electrical | 115 V / 60 Hz / 1-phase, 12.9 A, 15 A circuit |
| Wash Pump Motor | 1/10 HP |
| Wash Tank Heater | 1.3 kW (maintains 120 °F wash temperature) |
| Water Consumption | 2.32 gpm combined (0.39 gpm hot, 1.93 gpm cold) |
| Water Connections | ½" NPT hot & cold, 20 ± 5 psi |
| Drain Connection | 2" NPT gravity, 6" from floor |
| Shipping Weight | 210 lb (95 kg) |
| Certifications | cETLus, NSF |
| Warranty | 1-year parts & labor (U.S./Canada) |
Popular Accessories (sold separately)
- Scrap Tray for capturing pulp & garnishes
- Water Hammer Arrestor
- Scale Prevention System (SPS) with replacement cartridges
Allow a 2" rear clearance for plumbing and service access. Adjustable feet provide up to 1-1/4" additional height.
