Jackson WWS CONSERVER XL2C Conserver® Dishwashers
Description

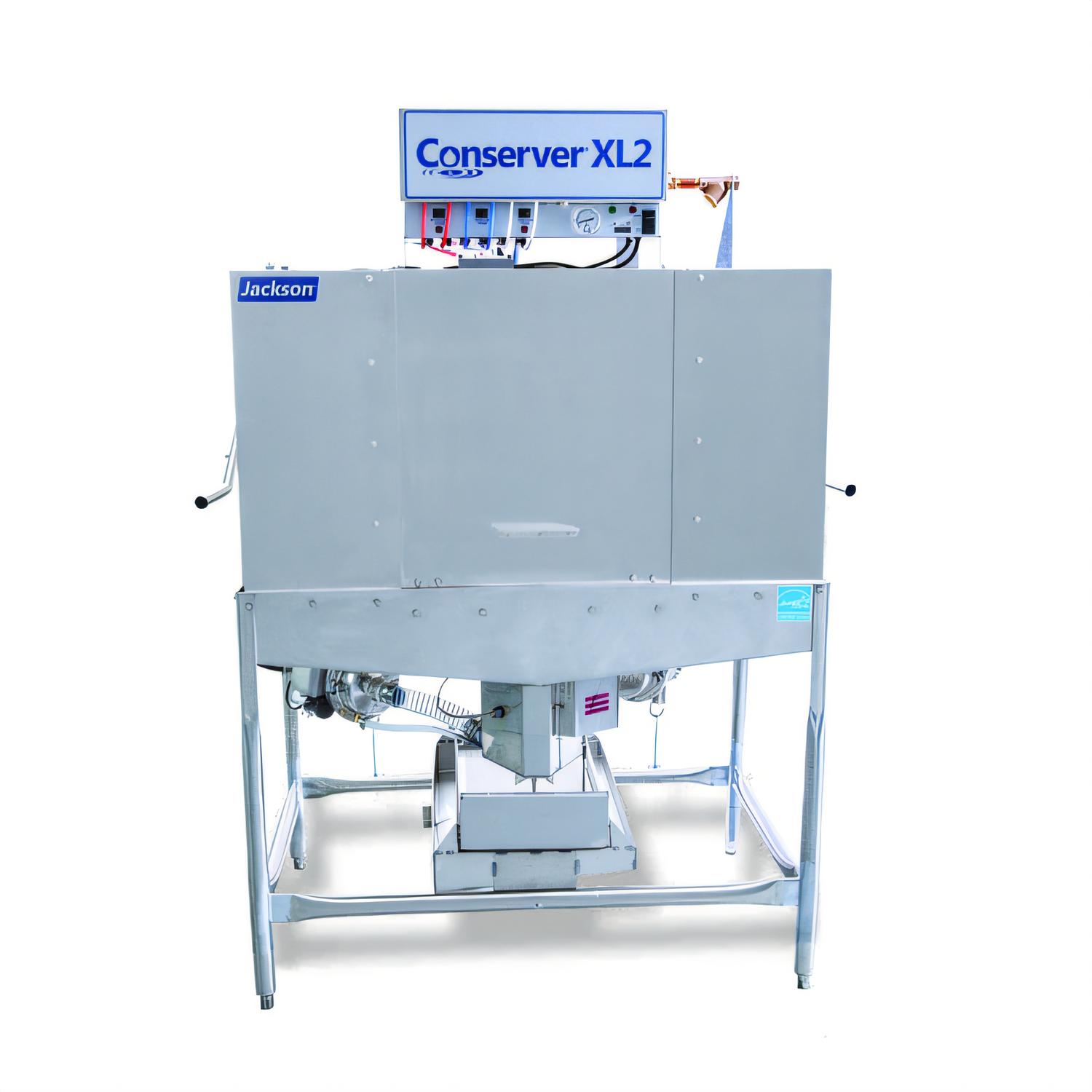

Jackson Conserver® XL2 Dual-Rack Corner Dishwasher

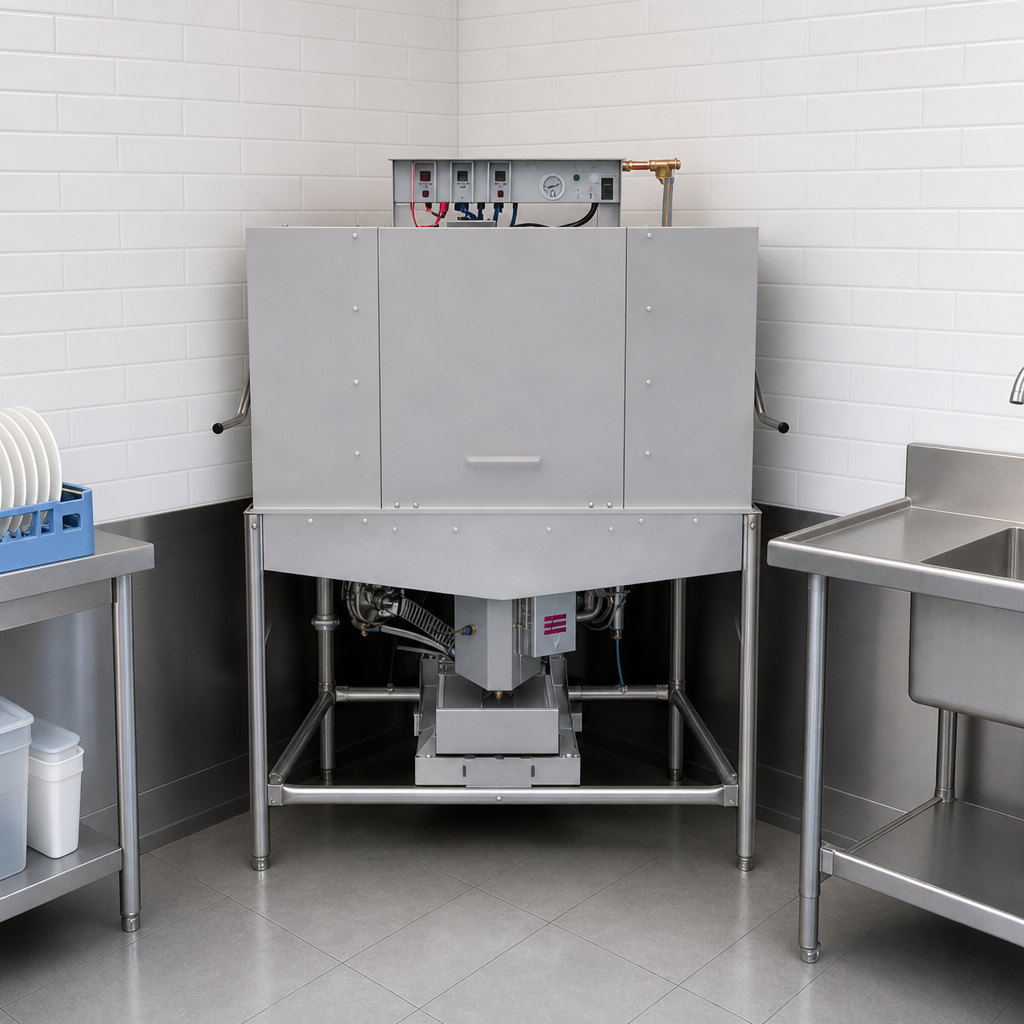

Low-Temp Chemical Sanitizing • ENERGY STAR® Qualified • Model XL2-CBoost throughput without boosting utility costs. The Conserver® XL2 handles two full racks at once, processing up to 82 racks per hour while using just 1.13 gal of water per rack. Its corner-fit footprint, built-in chemical pumps and automatic fill-and-dump cycle make it the perfect workhorse for busy kitchens that demand reliability, sanitation and energy savings.
Why You’ll Love It

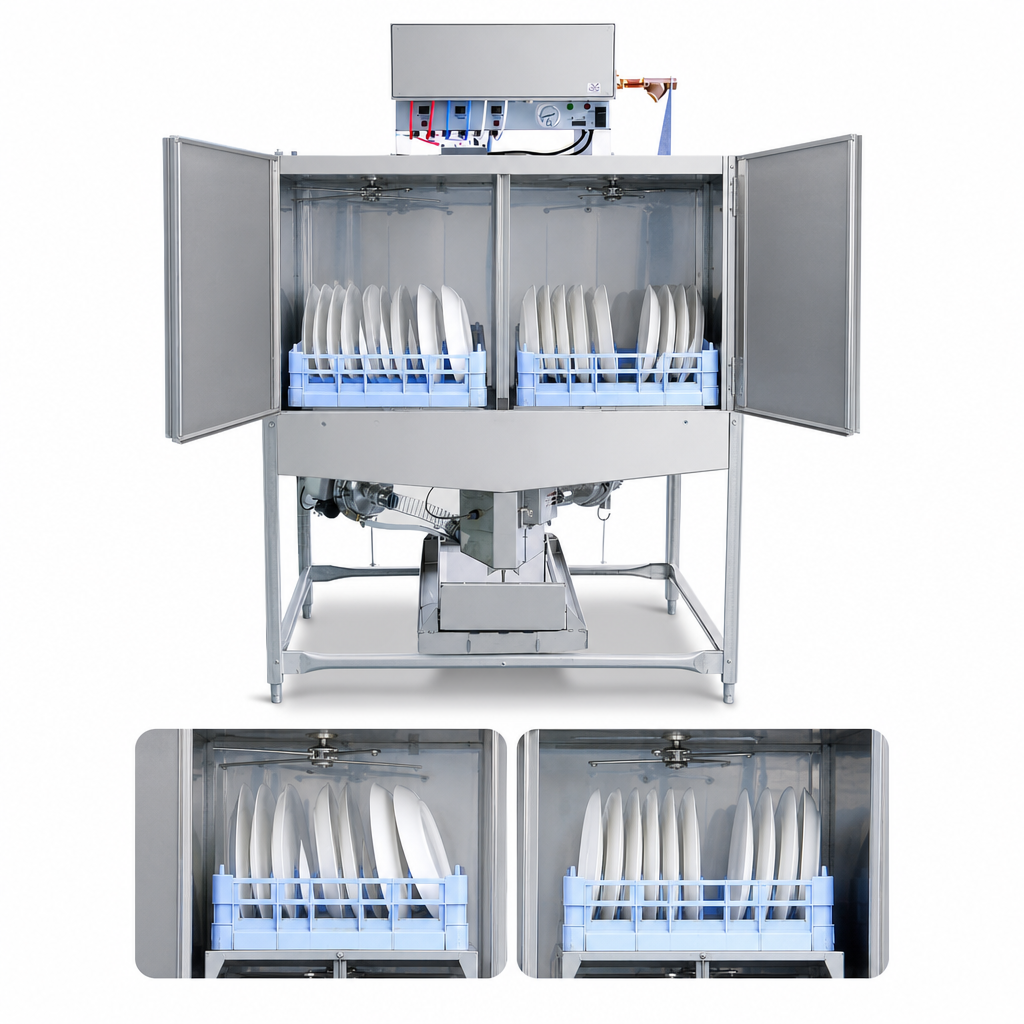

- Dual-rack design washes two racks side-by-side for maximum throughput.
- Low-temperature, chemical sanitizing—no booster heater required.
- Fill & Dump operation replaces dirty wash water with a fresh rinse every cycle.
- Electronic timer with door-actuated auto-start simplifies training and operation.
- (3) Built-in chemical pumps with priming switches and low-level indicator lights.
- Self-draining 1 HP stainless steel wash pump prevents soil carry-over.
- Built-in scrap accumulator & removable screen for quick clean-outs.
- Delime mode for fast removal of hard-water deposits.
- Top-mounted controls keep electronics safe and easy to reach.
- Rugged all-stainless construction with 3" adjustable bullet feet.
- cETLus & ETL-Sanitation listed and ENERGY STAR® certified.
- Backed by a 1-year parts & labor warranty.
Performance at a Glance
| Racks per Hour | 82 (74 NSF) |
|---|---|
| Dishes per Hour | 2,050 |
| Glasses per Hour | 2,952 |
| Cycle Time | 87 sec • 53 s Wash | 14 s Rinse | 20 s Dwell |
| Water Use | 1.13 gal/rack • ≈92.7 gal/hr |
| Inside Clearance | 17 ¼" (438 mm) |
Utility Requirements
| Electrical (single-point) | |
|---|---|
| 115 V / 60 Hz / 1 ph | 20 A load • 30 A max OCP |
| 208 V / 60 Hz / 1 ph | 10 A load • 15 A max OCP |
| 230 V / 60 Hz / 1 ph | 10 A load • 15 A max OCP |
| Water | |
| Inlet Temp | 120 °F min / 140 °F recommended |
| Flow Pressure | 20 ± 5 psi (3/4" NPT connection) |
| Drain | 2" NPT • 11 ¼" outlet height |
| Sanitizer | 50 ppm free chlorine minimum |
Dimensions & Shipping
| Overall Width | 48 ½" (1,232 mm) |
|---|---|
| Depth | 29 ¼" (743 mm) |
| Height (door closed) | 68 ½" (1,740 mm) |
| Height (door open) | 78" (1,981 mm) |
| Net Weight | 285 lb (129 kg) |
| Shipping Weight | 330 lb (150 kg) |
| Shipping Dimensions | 60" W × 38" D × 70" H • 92.4 cu ft |
Warranty
1-year limited parts & labor warranty. Register at jacksonwws-warranty.com within 30 days of installation for full coverage.
