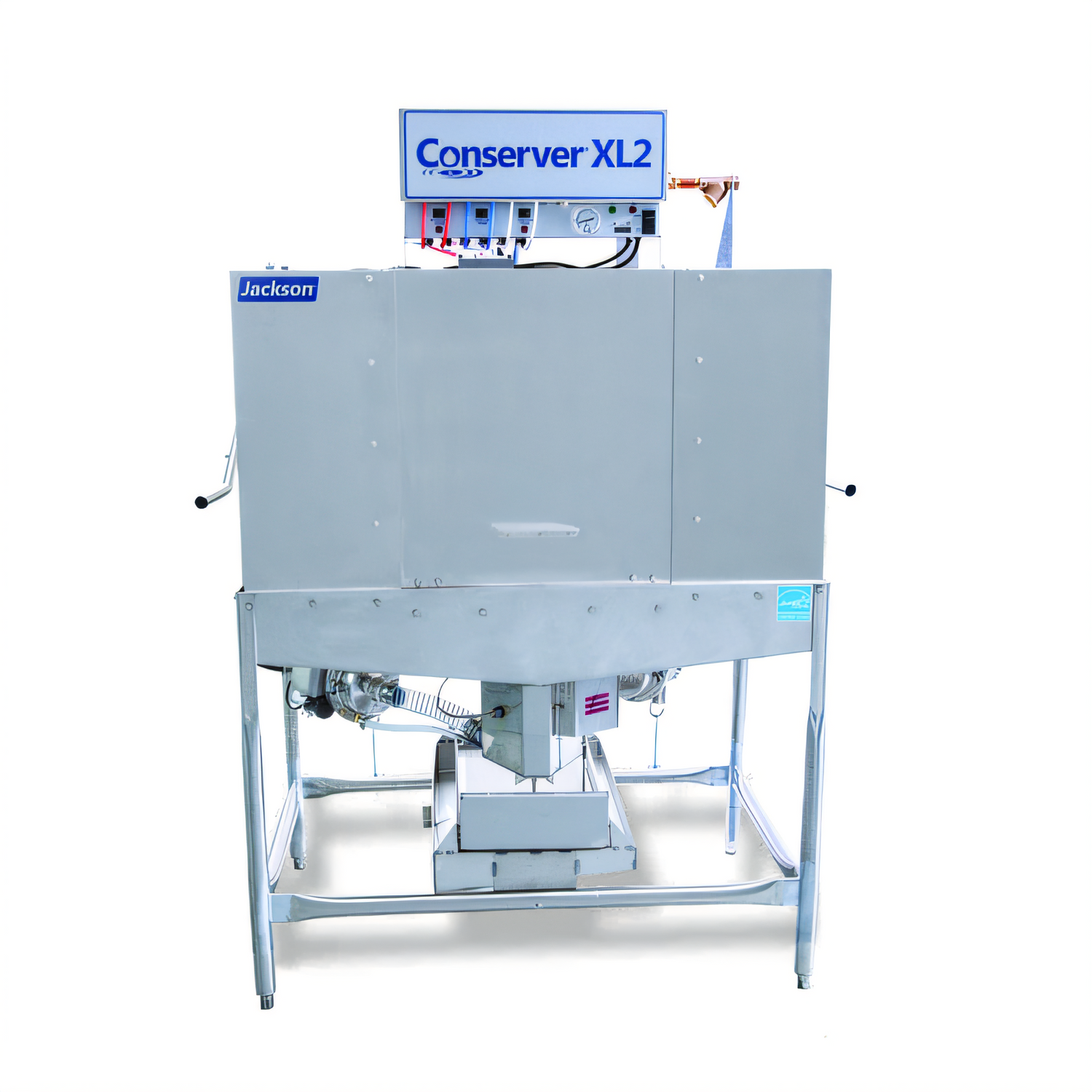

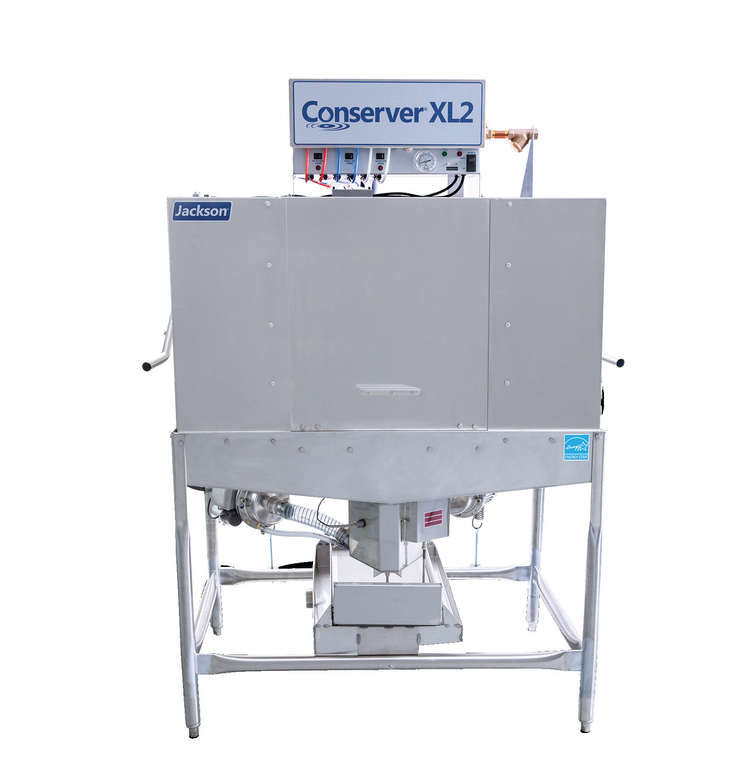

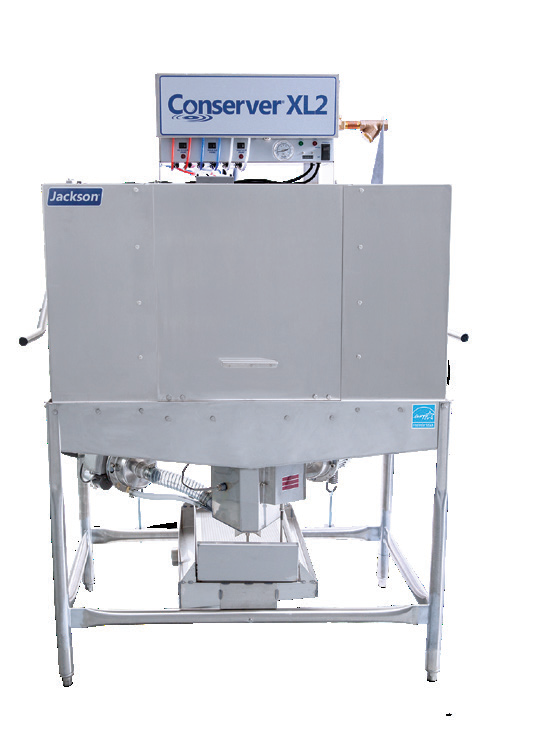

Jackson Conserver® XL2 Dual-Rack Low-Temp Door-Type Dishwasher
82 racks/hr • 1.13 gal/rack • ENERGY STAR® certifiedBuilt for the busiest kitchens that demand maximum throughput with minimal utility costs, the Jackson Conserver XL2 handles two full-size racks per cycle, sanitizes with economical chemicals, and refreshes the tank every wash for spotless results—shift after shift.
Key Advantages

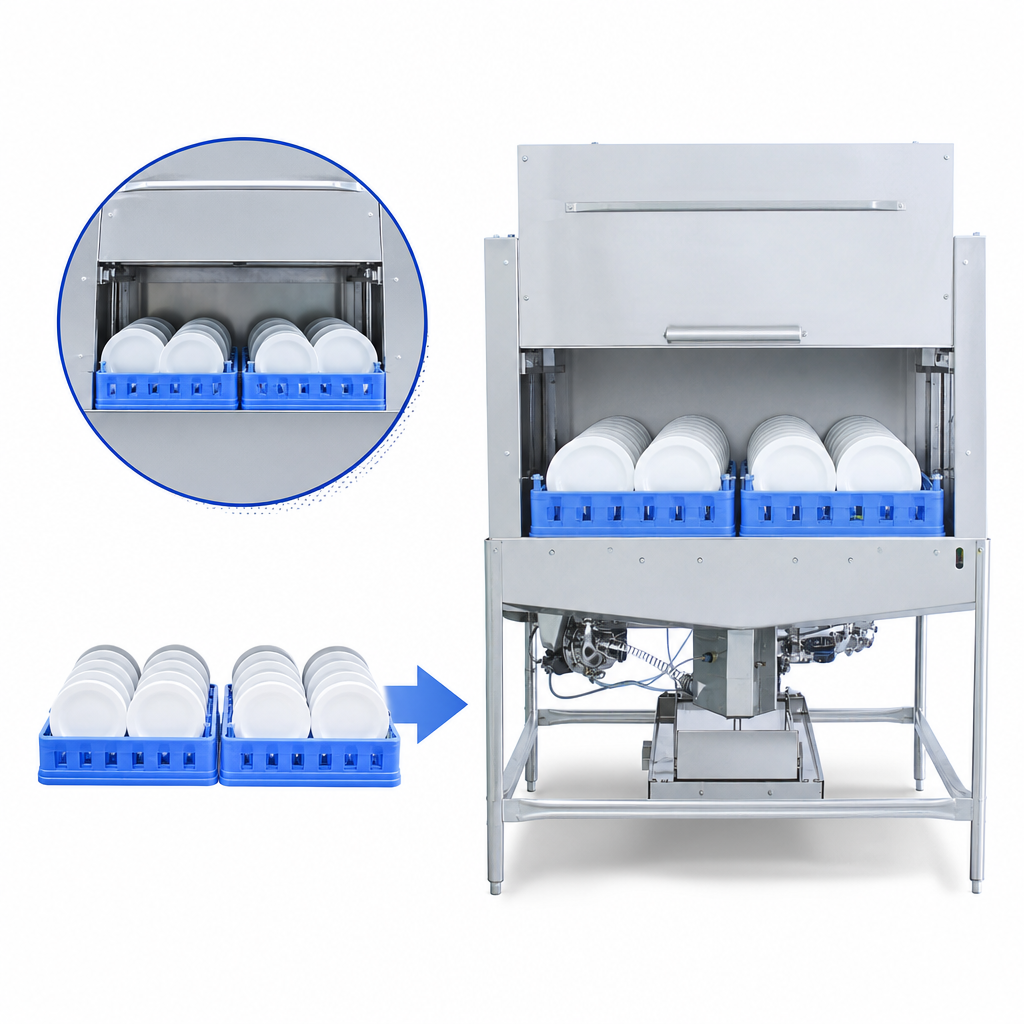

- Dual-rack design processes up to 82 racks per hour (≈2,050 dishes).
- Low-temperature chemical sanitizing eliminates the need for a booster heater.
- “Fill & Dump” cycle drains soiled water and refills with fresh rinse water every wash for superior cleanliness.
- Automated operation:
- Door-actuated auto-start
- Electronic cycle timer & delime mode
- (3) built-in chemical pumps with priming switches & low-product indicator lights
- Integrated scrap management—stainless steel waste accumulator & removable scrap screen keep solids out of the pump.
- 1 HP self-draining stainless steel wash pump prevents soil carry-over into the rinse.
- Interchangeable upper & lower stainless wash/rinse arms for quick cleaning.
- Durable all-stainless construction with 3" adjustable bullet feet.
- Top-mounted, single-point controls for easy installation & service.
Performance & Utility Savings
- Water: just 1.13 gal per rack | 92.7 gal per hour
- Electric: 20 A @ 115 V or 10 A @ 208/230 V, single-phase
- Time: complete cycle in only 87 seconds (53 s wash / 14 s rinse / 20 s dwell)
Dimensional Data
| Overall Width | 50 1/2" (1283 mm) |
|---|---|
| Footprint Width | 44" (1118 mm) |
| Depth | 29 1/4" (743 mm) |
| Height (door closed) | 68 1/2" (1740 mm) |
| Height (door open) | 78" (1981 mm) |
| Inside Clearance | 17 1/4" (438 mm) |
| Shipping Weight | 330 lb (150 kg) |
Connection Requirements
| Water Inlet | 3/4" NPT @ 20 ± 5 psi, 120 °F min / 140 °F recommended |
|---|---|
| Drain | 2" NPT (dual-point for installation flexibility) |
| Electrical | 115/60/1 – 20 A | 208/60/1 – 10 A | 230/60/1 – 10 A |
| Wash Pump | 1 HP, self-draining stainless steel |
| Minimum Free Chlorine | 50 ppm |
Certifications & Warranty
- cETLus & ETL-Sanitation listed to NSF/ANSI Standard 3
- ENERGY STAR® Qualified
- 1-year parts & labor warranty (U.S. & Canada)
Optional Accessories (sold separately)
- Water hammer arrestor
- Flanged feet (4-1/8" or 5-5/8")
- Scaltrol scale-reduction system & replacement cartridges
- Combination, peg, or 36-compartment racks
Jackson WWS recommends standard tank-style water heaters (not tankless) sized to meet your facility’s volume and temperature requirements.
