Key specifications

Dimensions
29.5"W × 30.38"D × 79.0"H
Type
Door-Type Dishwasher
Style
Tall Chamber
Installation Type
Floor Model
Material
Stainless Steel
Installation Configuration
Universal (Straight-Through/Corner)
Spec sheet
Jackson WWS SKU: CONSERVER XL-HH

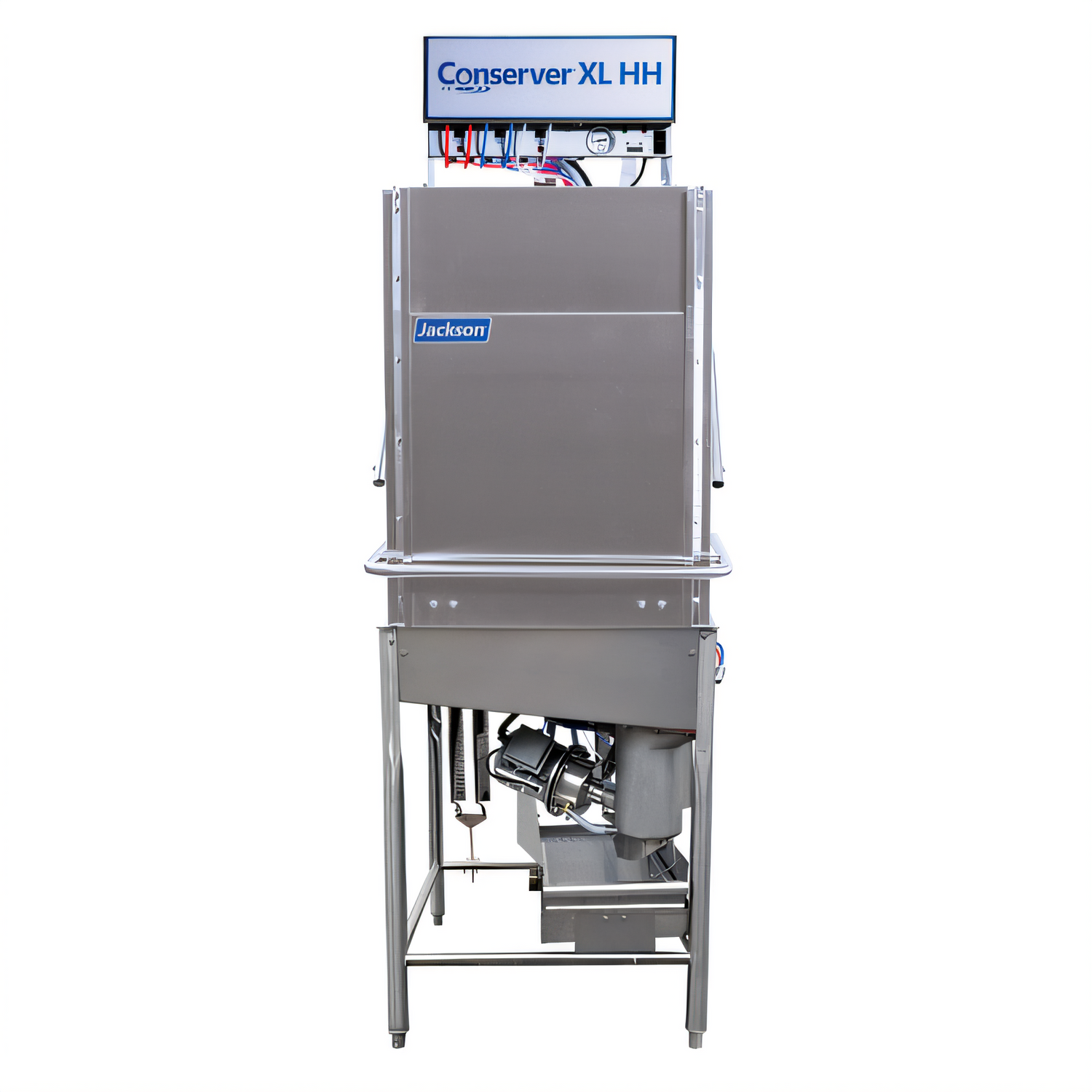

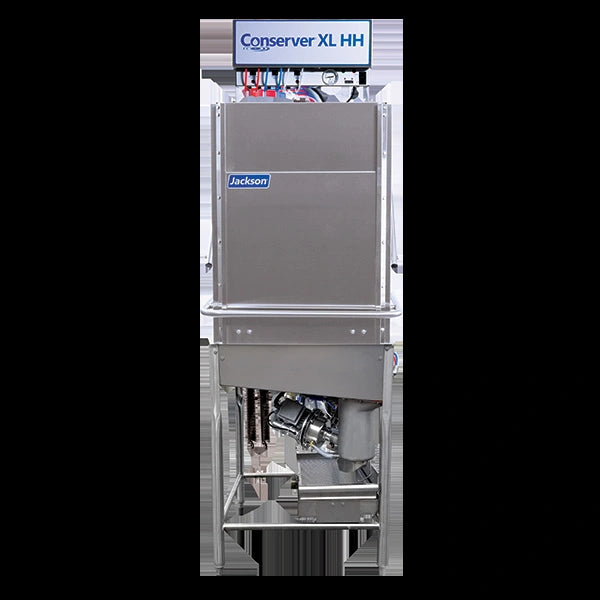

Jackson WWS Conserver® CONSERVER XL-HH Tall Door Dishwasher

$8,088.90
/each
Estimated to ship in 4–7 business days Free Shipping
Size
Electrical115 V · 1-phase
Feet
Included: Jackson WWS warranty One-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $748/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Door-Type Dishwasher
Style Tall Chamber
Installation Type Floor Model
Material Stainless Steel
Installation Configuration Universal (Straight-Through/Corner)
Sanitizing Method Low Temperature Chemical
Capacity Approximately 39 Racks/Hour
Controls Electronic Timer
Wash Pump Motor 1 HP
Interior Clearance 27 in
Water Consumption 1.53 Gallons/Rack
Wash Tank Capacity 1.61 Gallons
Cycle Time 86 Seconds
Water Inlet 1/2 in NPT
Drain Connection 2 in NPT

Description

The Jackson WWS CONSERVER XL-HH is a tall-chamber, low-temperature chemical sanitizing door-type dishwasher with a universal straight-through/corner design.

  • Rated for approximately 39 racks per hour.
  • Fill-and-dump design replaces dirty wash water with a fresh-water rinse every cycle.
  • Includes three built-in chemical pumps with priming switches.
  • Features a 1 HP self-draining stainless steel wash pump.
  • Includes an electronic timer, door-actuated start, delime mode and low-chemical indicator lights.
  • Constructed of stainless steel with adjustable stainless steel bullet feet.

Overall Dimensions:

29.5"W x 30.38"D x 79.0"H

Product Weight:

276.0 lb

Tall Chamber

Provides 27 inches of vertical inside clearance.

Low-Temperature Chemical Sanitizing

Uses chemical sanitizing for low-temperature dishwashing.

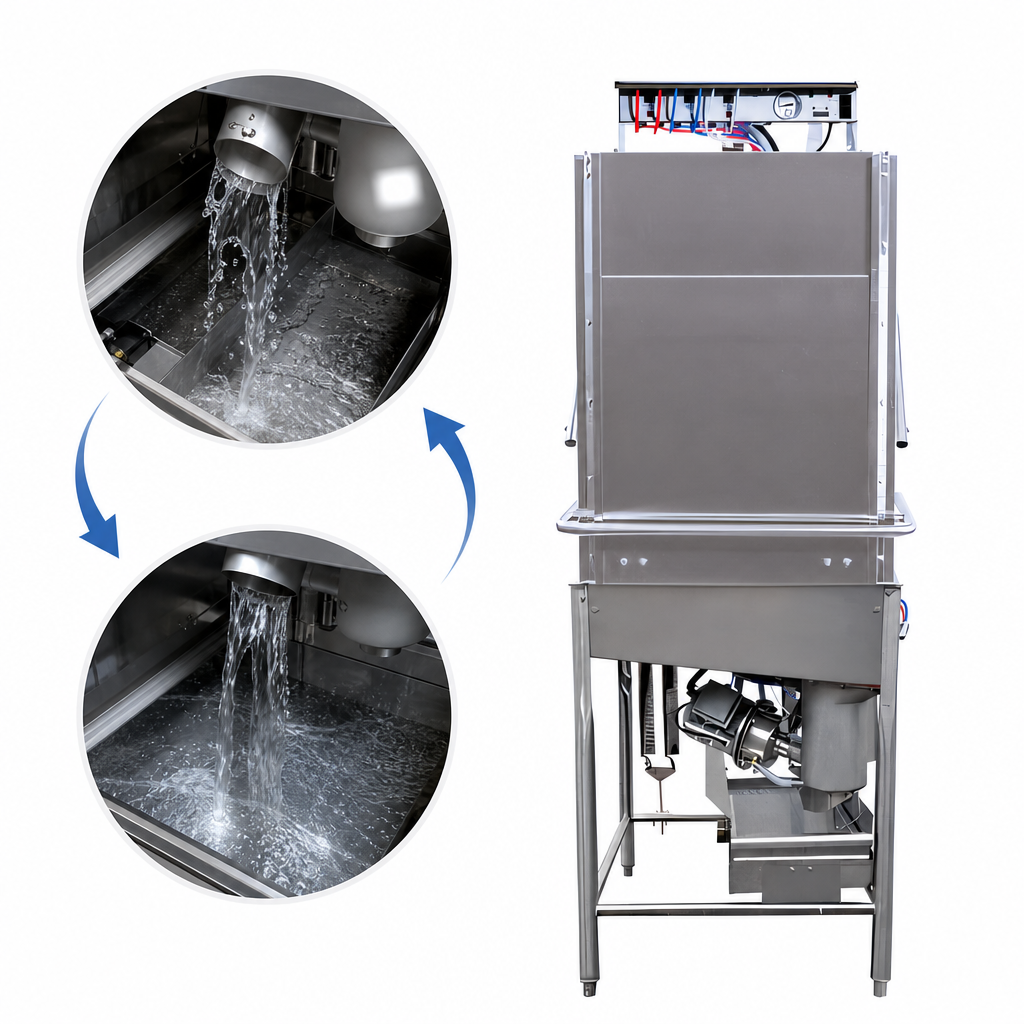

Fill-and-Dump Wash System

Disposes of dirty wash water and replaces it with a fresh-water rinse every cycle.

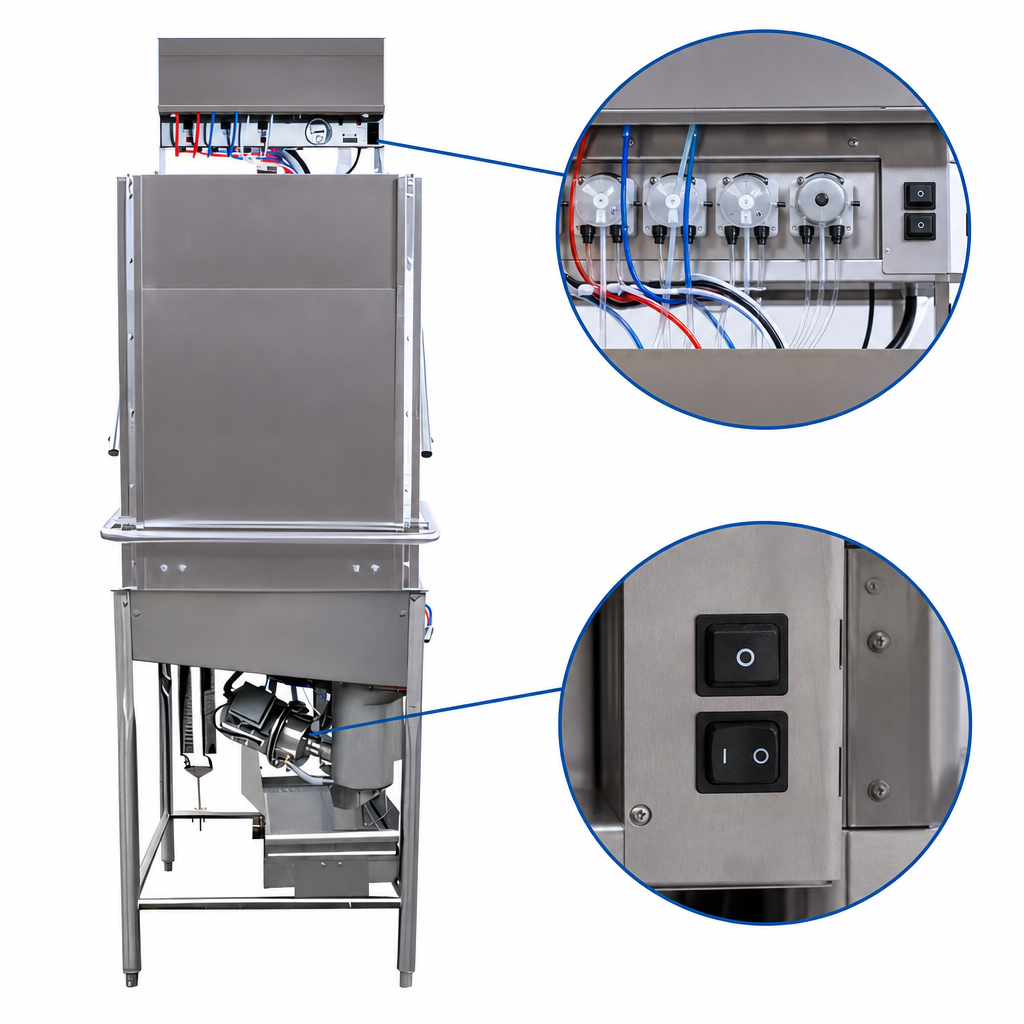

Built-In Chemical System

Includes three built-in chemical pumps and priming switches.

Self-Draining Wash Pump

Includes a 1 HP stainless steel pump that eliminates soil and detergent carryover between wash and rinse cycles.

Field-Convertible Installation

Converts from straight-through to corner installation and back; a conversion kit is required.

Wash Controls

Includes an electronic timer, door-actuated start, door switch, low-chemical indicator lights and wash thermometer.

Wash and Rinse Arms

Upper and lower stainless steel wash and rinse arms are interchangeable.

Maintenance Features

Includes delime mode, a built-in waste accumulator and a removable scrap screen.

Stainless Steel Construction

Built with stainless steel construction and adjustable stainless steel bullet feet.

Frequently Asked Questions

It uses low-temperature chemical sanitizing.
The unit is rated for approximately 39 racks per hour.
Yes. It is field convertible between straight-through and corner installations, and the conversion kit is required.
Yes. It includes three built-in chemical pumps with priming switches.
The vertical inside clearance is 27 inches.
