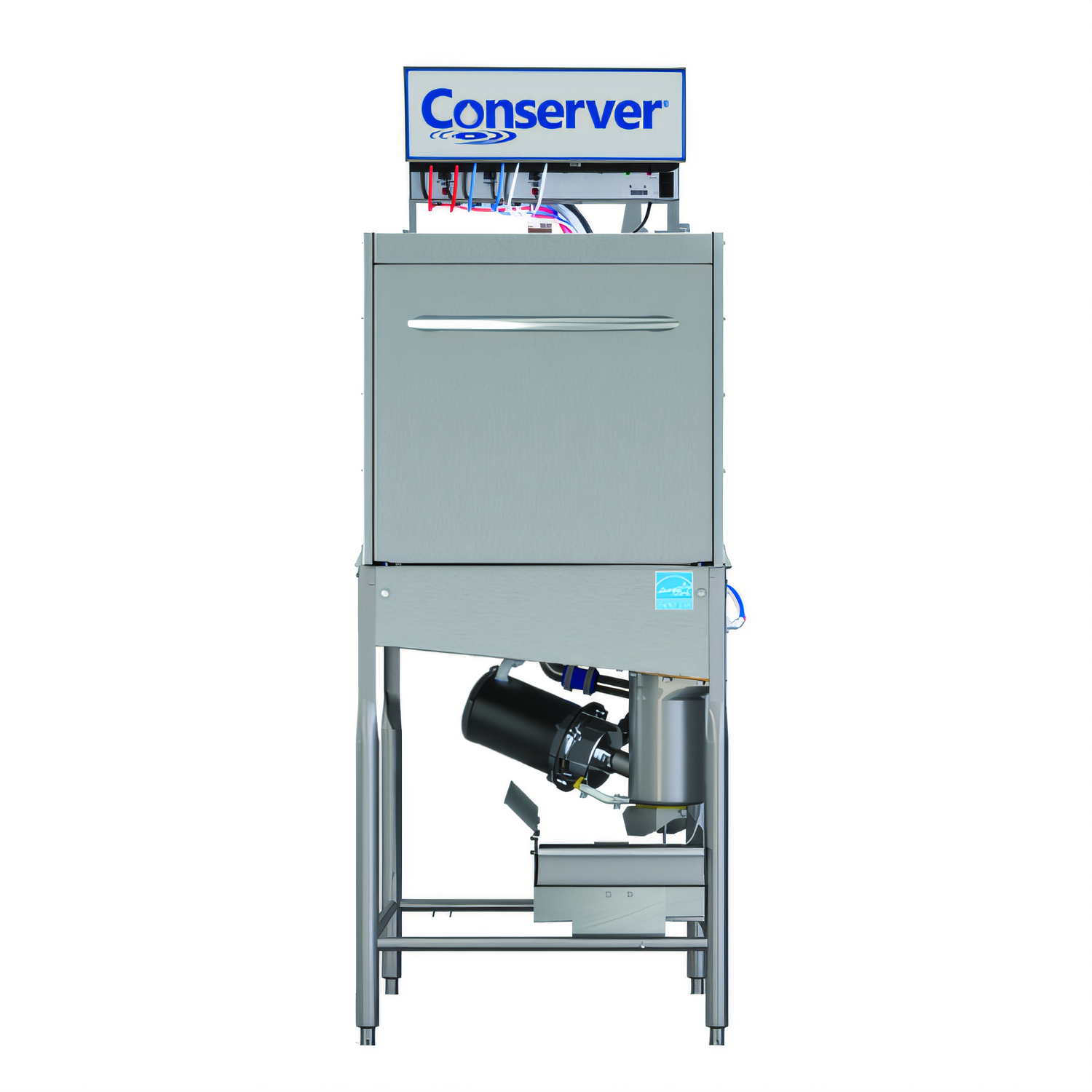

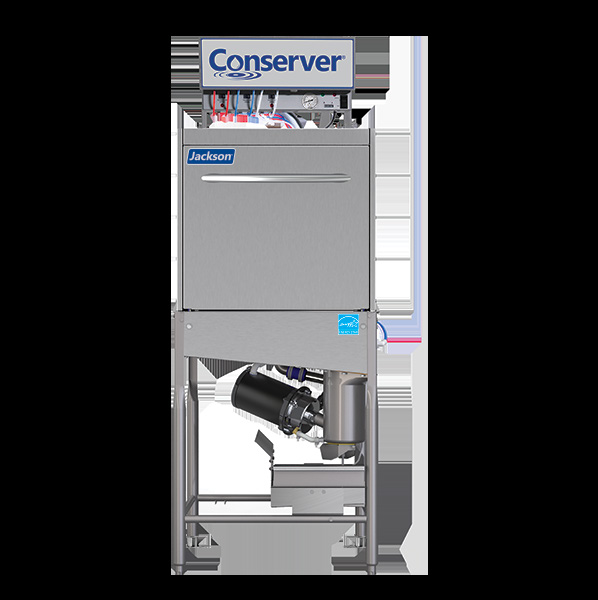

Jackson Conserver® XL-E-FL Front-Loading Dishwasher

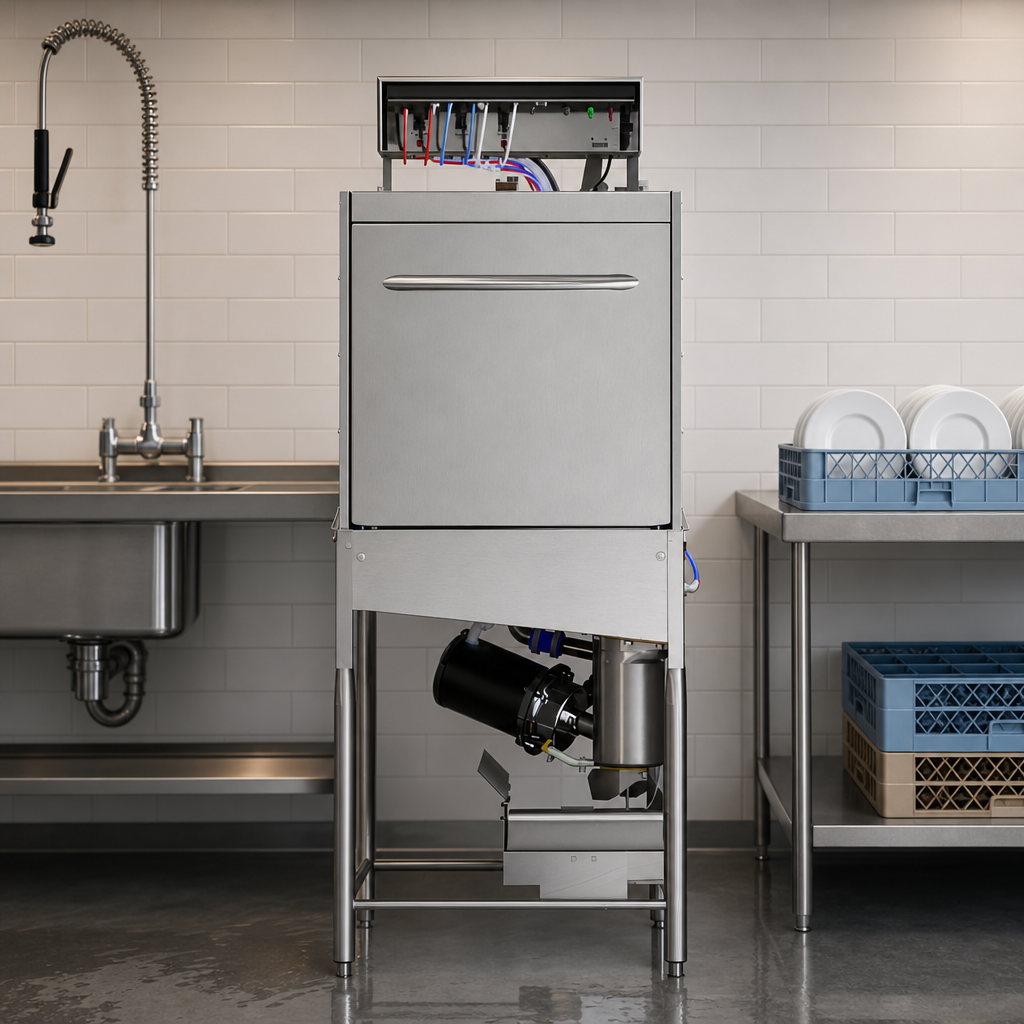

Low-Temperature Chemical Sanitizing • ENERGY STAR®Free up valuable floor space without sacrificing throughput. The Conserver® XL-E-FL by Jackson WWS is a compact, front-loading, low-temp door-type dishwasher engineered to deliver spotless results while using just 1.02 gallons of water per rack. Perfect for cafés, bars, and satellite kitchens that need big-machine performance in a small footprint.
Key Advantages

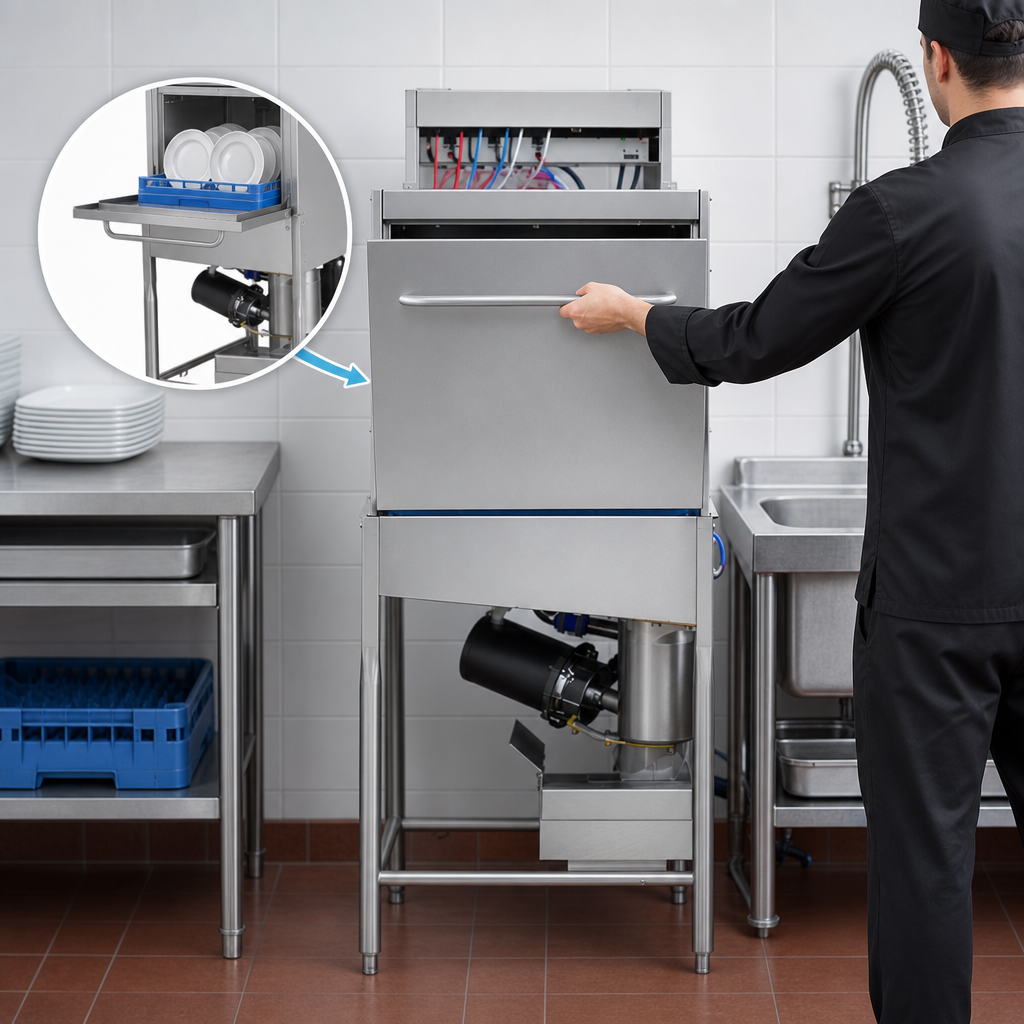

- Space-saving front-loading design—no dirty dish table required.
- Fill-and-Dump cycle replaces wash water with a fresh rinse every time.
- ENERGY STAR® certified: only 1.02 gal of water per rack.
- Up to 41 racks/hr capacity (NSF rated 30 racks/hr).
- Powerful 1 HP stainless-steel wash pump is self-draining to prevent soil carry-over.
- (3) integrated chemical pumps with priming switches & low-product indicator lights.
- Built-in waste accumulator and removable scrap screen keep debris out of the wash arms.
- Delime mode for quick removal of mineral deposits; air-gap backflow prevention.
- Electronic timer and door-actuated auto-start for “load, close, done” simplicity.
- All-stainless construction with 3" adjustable bullet feet for easy leveling.
Performance & Utilities
| Racks per hour | Up to 41 (NSF rating: 30) |
|---|---|
| Water use | 1.02 gal per rack | ≈41.8 gal per hour |
| Total cycle time | 87 sec (42 wash / 25 rinse / 20 dwell) |
| Wash pump | 1 HP stainless-steel, self-draining |
| Inside clearance | 17-15/16" (456 mm) |
| Dimensions (W × D × H) | 25-1/4" × 30-5/16" × 68-1/2" (door open) |
| Electrical | 115 V / 60 Hz / 1 ph – 10 A (12.5 A MOP) 230 V / 60 Hz / 1 ph – 5 A (6.3 A MOP) |
| Water inlet | 1/2" NPT • 120–140 °F incoming • 20 ± 5 psi |
| Drain | 2" NPT gravity drain • 8-7/8" outlet height |
| Shipping weight | 240 lb (109 kg) |
| Certifications | cETLus • ETL Sanitation (NSF/ANSI 3) • ENERGY STAR® |
What’s Included
- (3) factory-installed chemical dispensing pumps
- Built-in waste accumulator & removable scrap screen
- Adjustable stainless bullet feet (rear flanged)
- 1-year parts & labor warranty
Popular Options & Accessories
- 230 V electrical configuration
- Water hammer arrestor
- Flanged feet kit
- 36-compartment, peg, or combination warewashing racks
- Scaltrol water treatment system
Need help sizing or configuring your Conserver® XL-E-FL? Chat with our food-service experts or give us a call for fast quotes and nationwide installation support.
