Key specifications

Phase
1-Phase
Dimensions
30.38"W × 29.5"D × 68.5"H
Type
Door-Type Dishwasher
Style
Universal Straight-Thru/Corner
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Jackson WWS SKU: CONSERVER XL-E

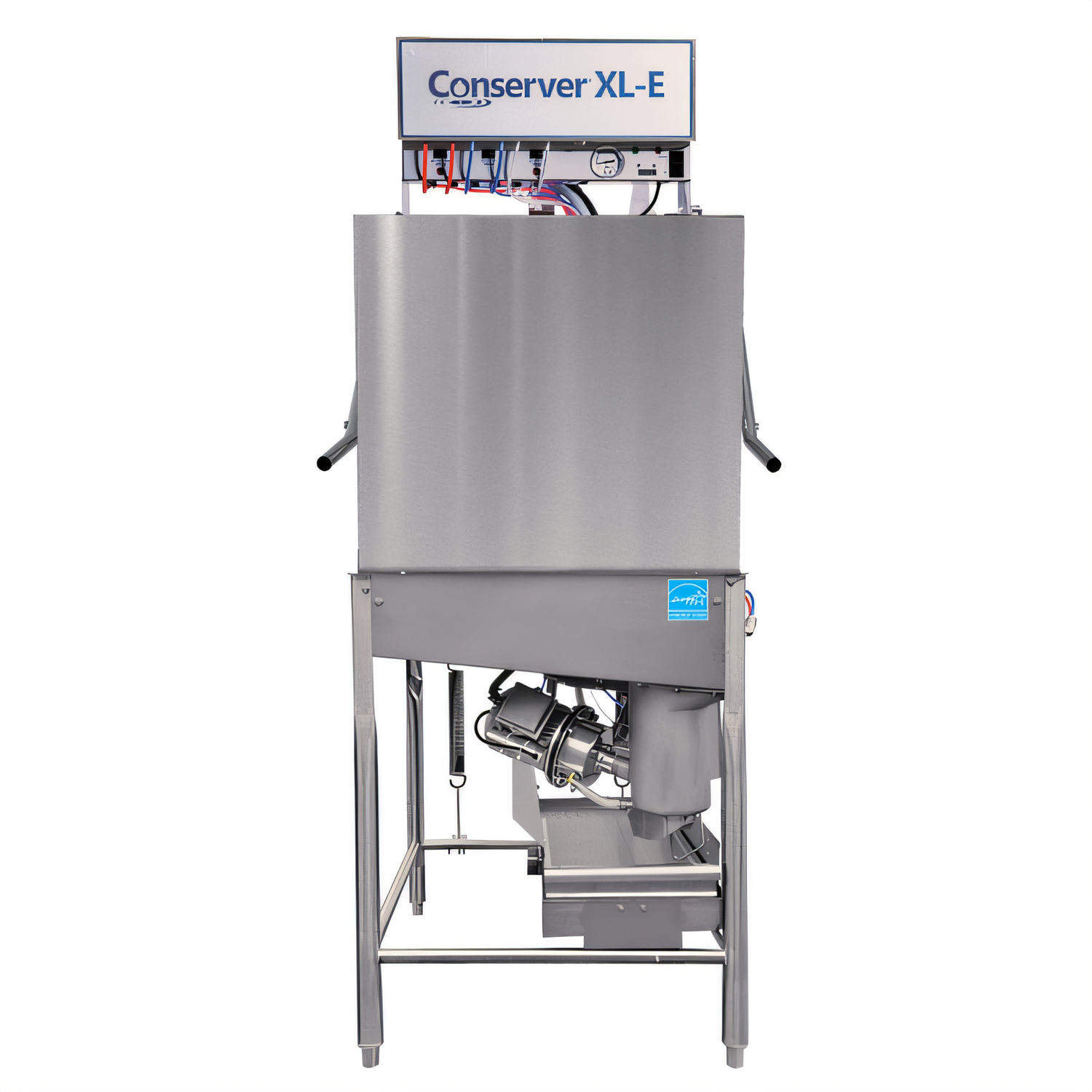

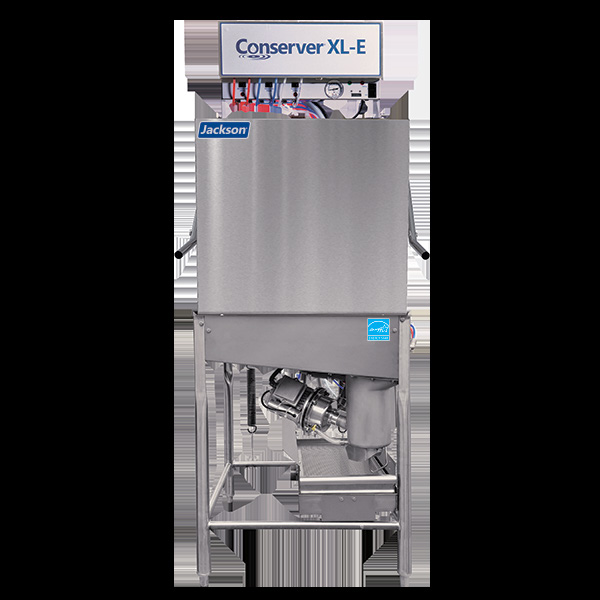

Jackson WWS Conserver® CONSERVER XL-E Low Temp Door Dishwasher

$6,228.63
/each
Estimated to ship in 4–7 business days Free Shipping
Size
Electrical115 V · 1-phase · 60 Hz
Included: Jackson WWS warranty One-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $576/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Door-Type Dishwasher
Style Universal Straight-Thru/Corner
Installation Type Floor Model
Material Stainless Steel
Sanitizing Method Low Temperature Chemical
Racks Per Hour Approximately 39 Racks/Hour
Wash Tank Capacity 1.02 Gallons
Water Consumption 1.02 Gallons/Rack
Voltage 115 Volts or 230 Volts
Hertz 60 Hz
Phase 1-Phase
Wash Pump Motor 1 HP
Cycle Time 87 Seconds
Wash Temperature 120 °F Minimum; 140 °F Recommended
Rinse Temperature 120 °F Minimum; 140 °F Recommended
Inside Clearance Height 17.25 in
Height With Door Open 78 in
Water Inlet 1/2 in NPT
Drain Connection 2 in ID
Flow Pressure 20 ± 5 PSI
Energy Efficiency ENERGY STAR

Description

The CONSERVER XL-E is a low-temperature chemical-sanitizing door-type dishwasher with universal straight-thru/corner configuration and stainless steel construction. It is rated at approximately 39 racks per hour.

  • Electronic timer, door-actuated start, top-mounted controls, and wash thermometer.
  • Three built-in chemical dispensing pumps with priming switches and low-chemical indicator lights.
  • Built-in waste accumulator and removable scrap screen.
  • 1 HP self-draining stainless steel wash pump with internal sump.
  • Interchangeable upper and lower stainless steel wash and rinse arms.
  • Field convertible from straight-through to corner installation or corner to straight-through installation; conversion kit required.
  • Adjustable stainless steel bullet feet and single-point electrical connection.

Overall Dimensions:

30.38"W x 29.5"D x 68.5"H

Product Weight:

230.0 lb

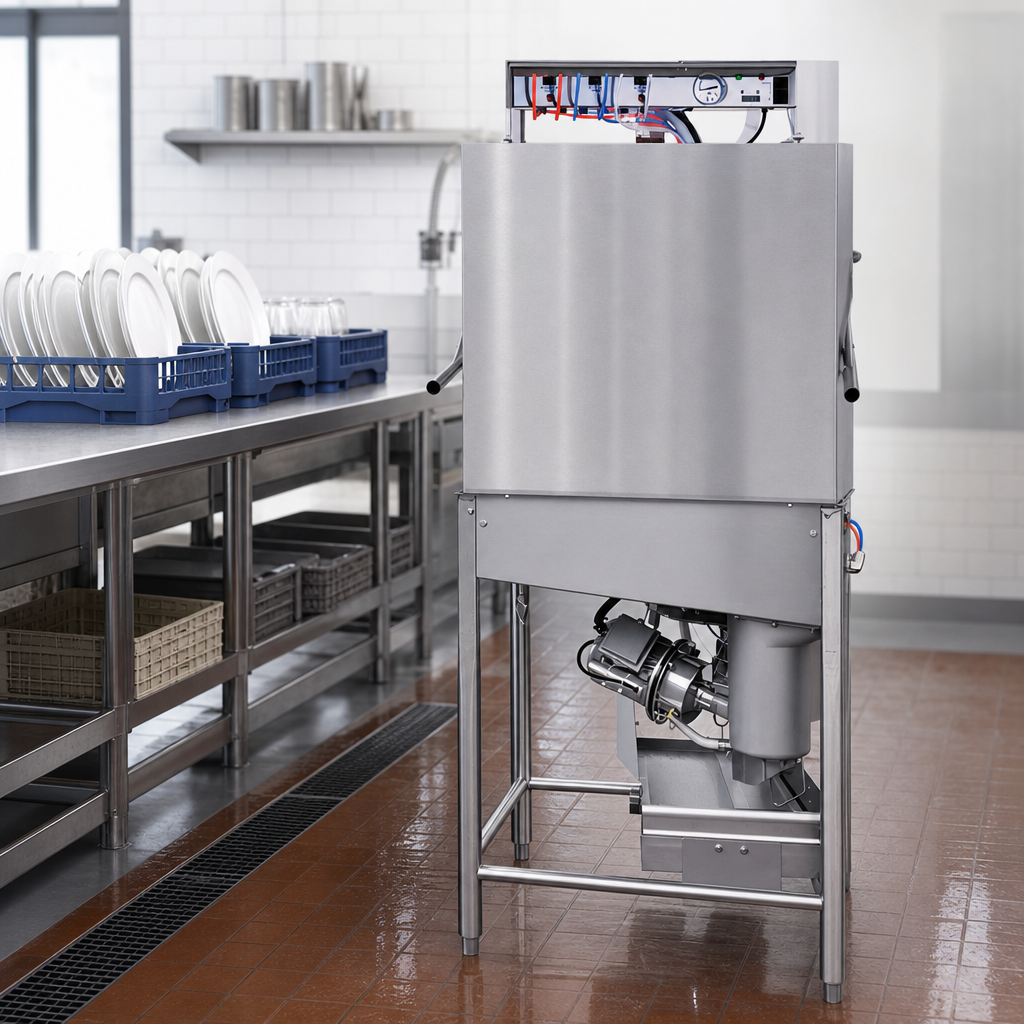

Low-Temperature Chemical Sanitizing

Uses a low-temperature chemical sanitizing configuration.

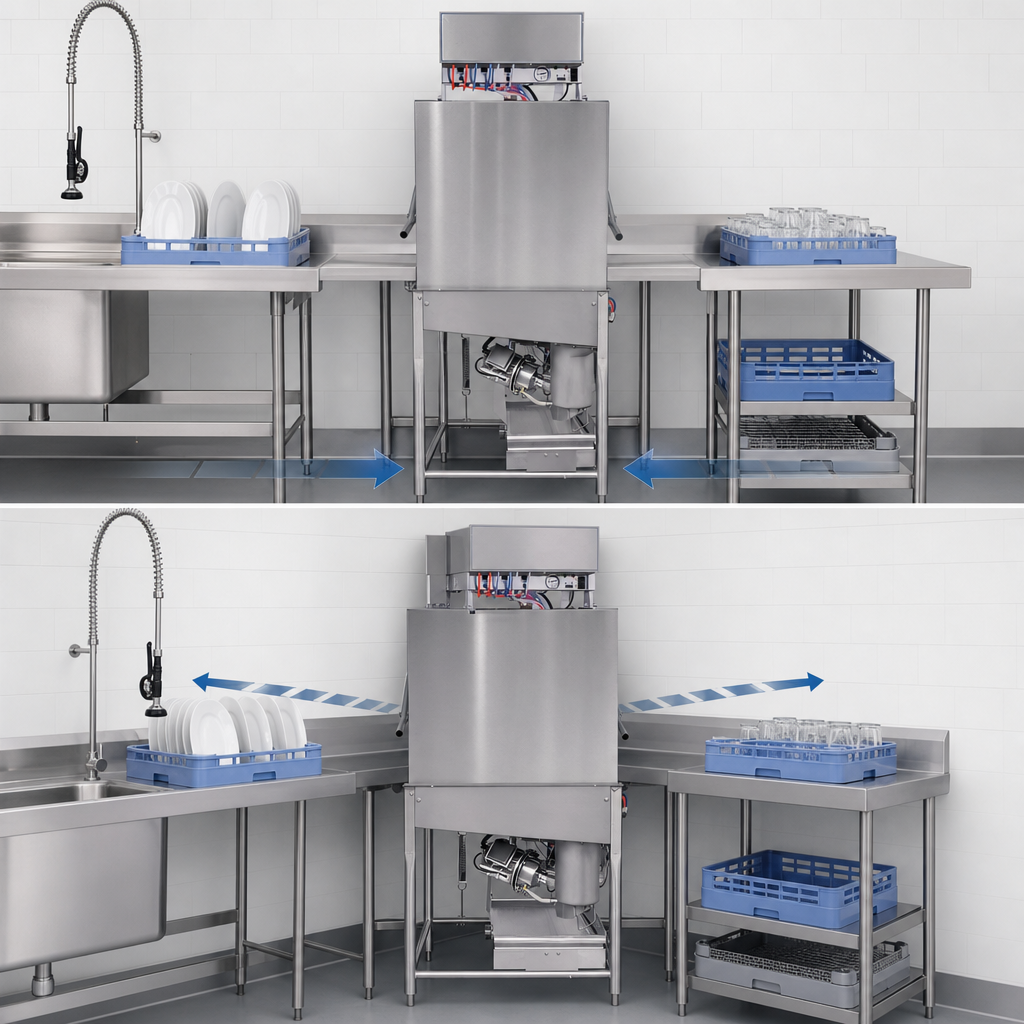

Universal Configuration

Can be field converted from straight-through to corner installation or corner to straight-through installation; conversion kit required.

Electronic Timer

Includes an electronic timer and door-actuated start.

Built-In Chemical Pumps

Includes three built-in dispensing pumps with priming switches.

Waste Handling

Includes a built-in waste accumulator and removable scrap screen.

Wash System

Includes a 1 HP self-draining stainless steel wash pump, internal sump, and interchangeable upper and lower wash and rinse arms.

Stainless Steel Construction

Constructed of stainless steel with adjustable stainless steel bullet feet.

Top-Mounted Controls

Controls are mounted on top of the dishwasher.

Frequently Asked Questions

Yes. It is a low-temperature chemical-sanitizing door-type dishwasher.
Yes. The unit can be field converted from straight-through to corner installation or corner to straight-through installation; a conversion kit is required.
The authoritative product specification rates it at approximately 39 racks per hour.
The cutsheet lists 115/60/1 and 230/60/1 power supplies.
The product cutsheet states a one-year parts and labor warranty.
