Jackson WWS AJX-66CEL Conveyor Dishwashers
Description

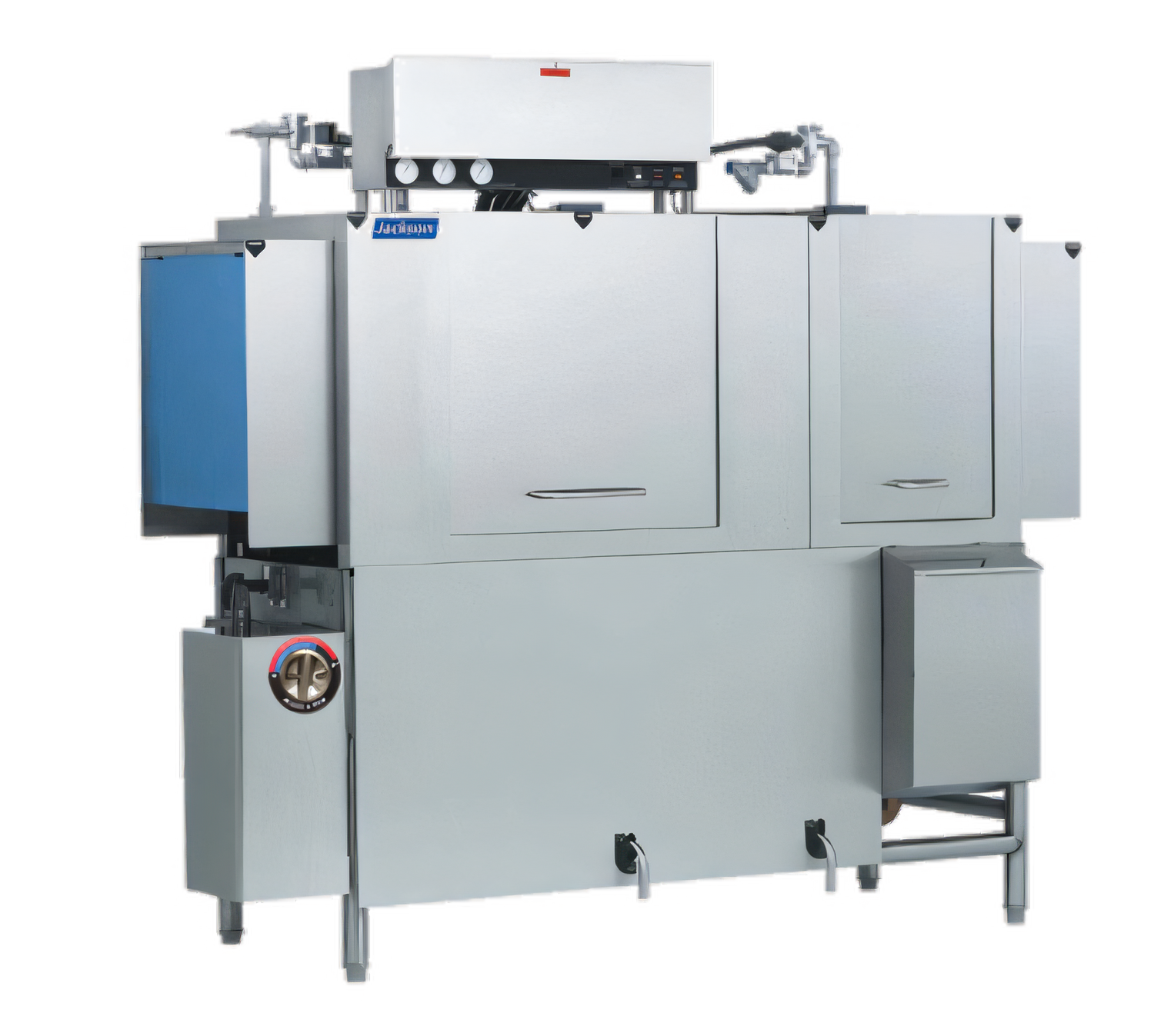

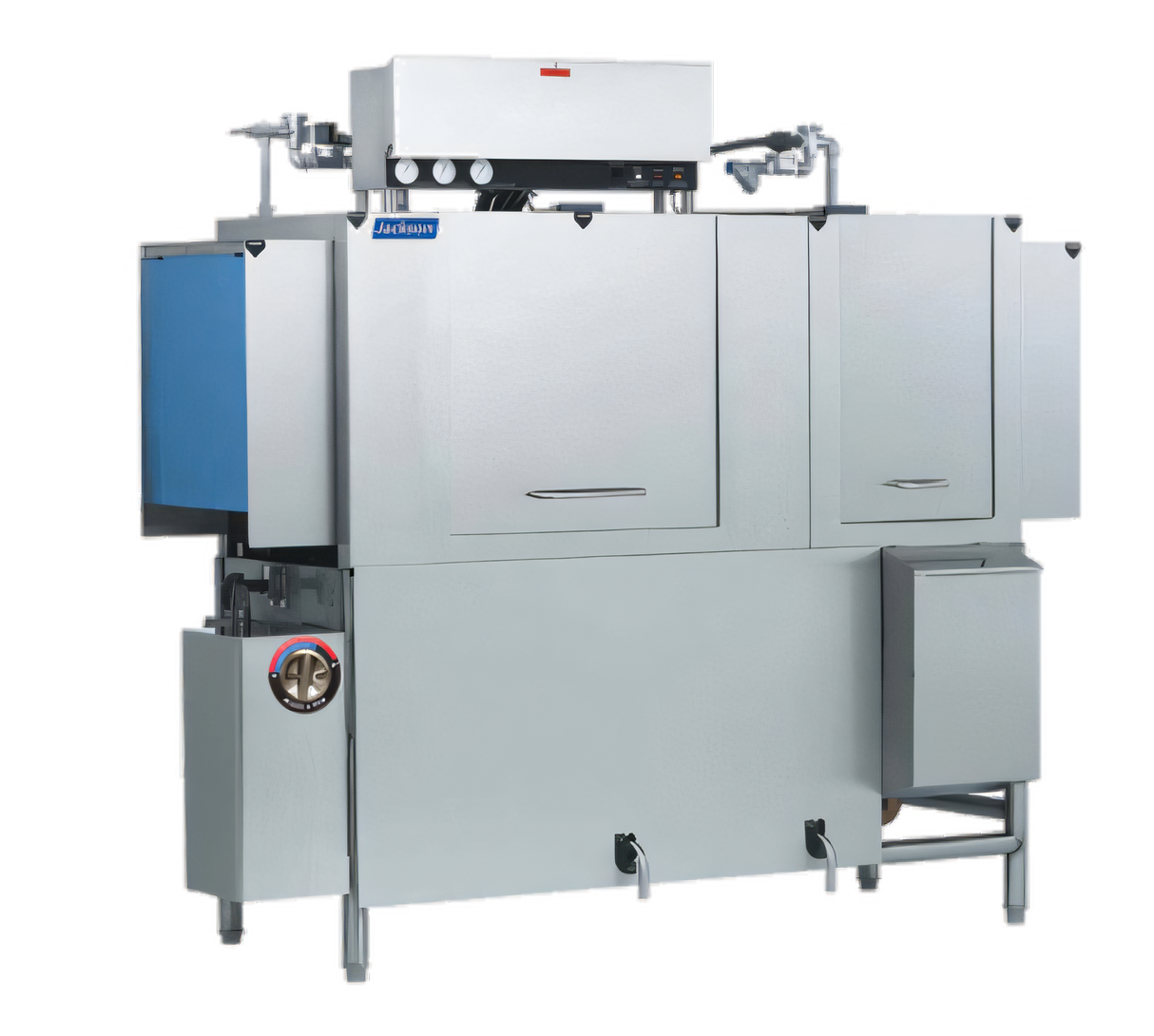

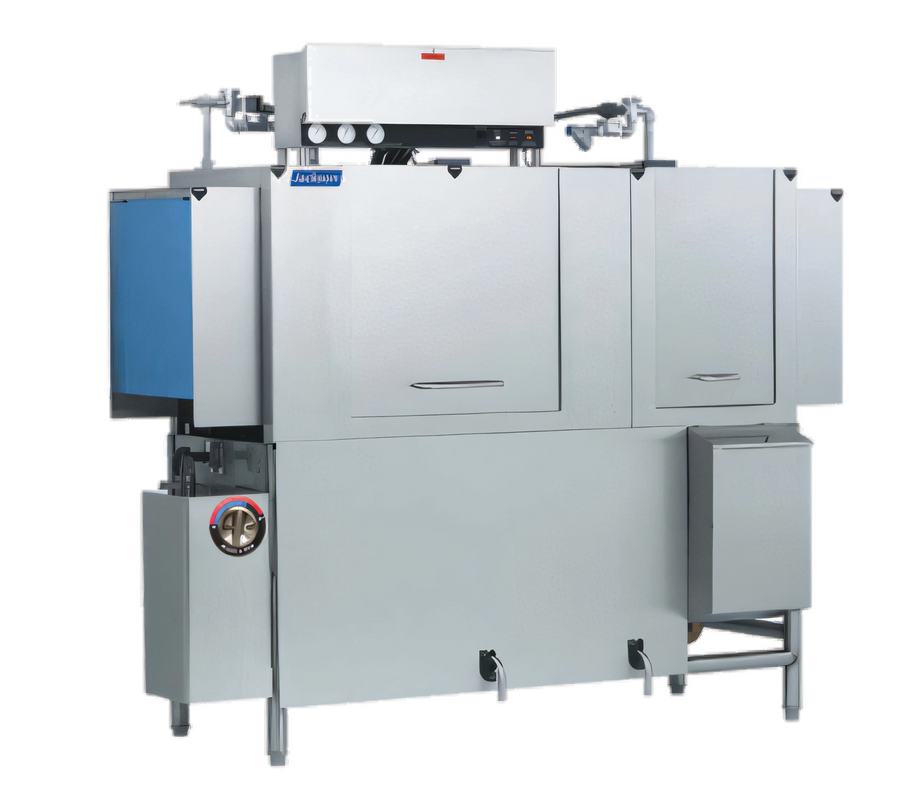

Jackson AJX-66 Conveyor Dishwasher
Low-temperature, single-tank – handles up to 209 racks per hourEngineered for high-volume food-service operations that prefer chemical sanitizing, the Jackson AJX-66 combines relentless throughput with remarkably low water and energy consumption. Its 25 inch chamber clearance swallows sheet pans, mixing bowls and other oversized wares, while the recirculating 22 inch pre-wash section blasts away heavy soil before the wash cycle even begins.
Why the AJX-66 stands out
- 209 racks per hour with only 0.78 gal of fresh water per rack (163 gal/hr total).

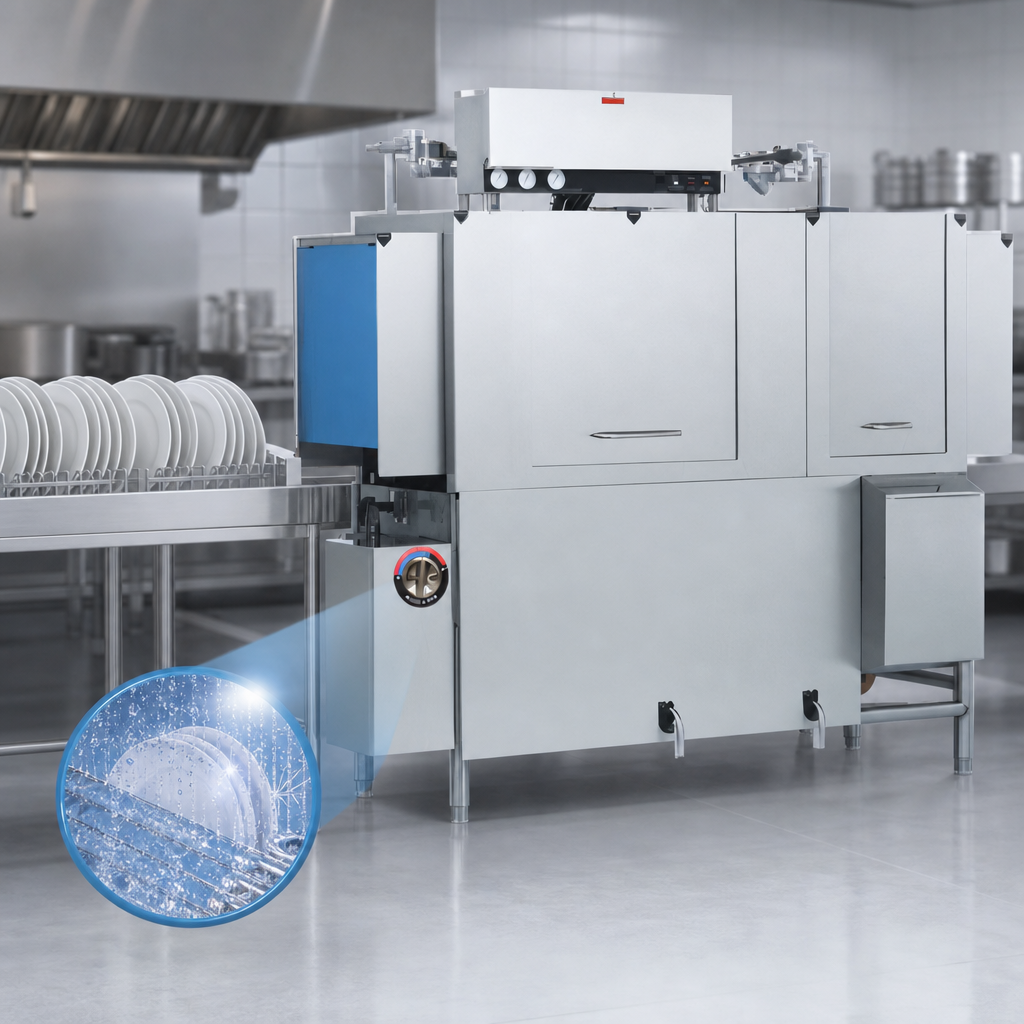

- Low-temp chemical sanitizing eliminates the need for a built-in booster heater.

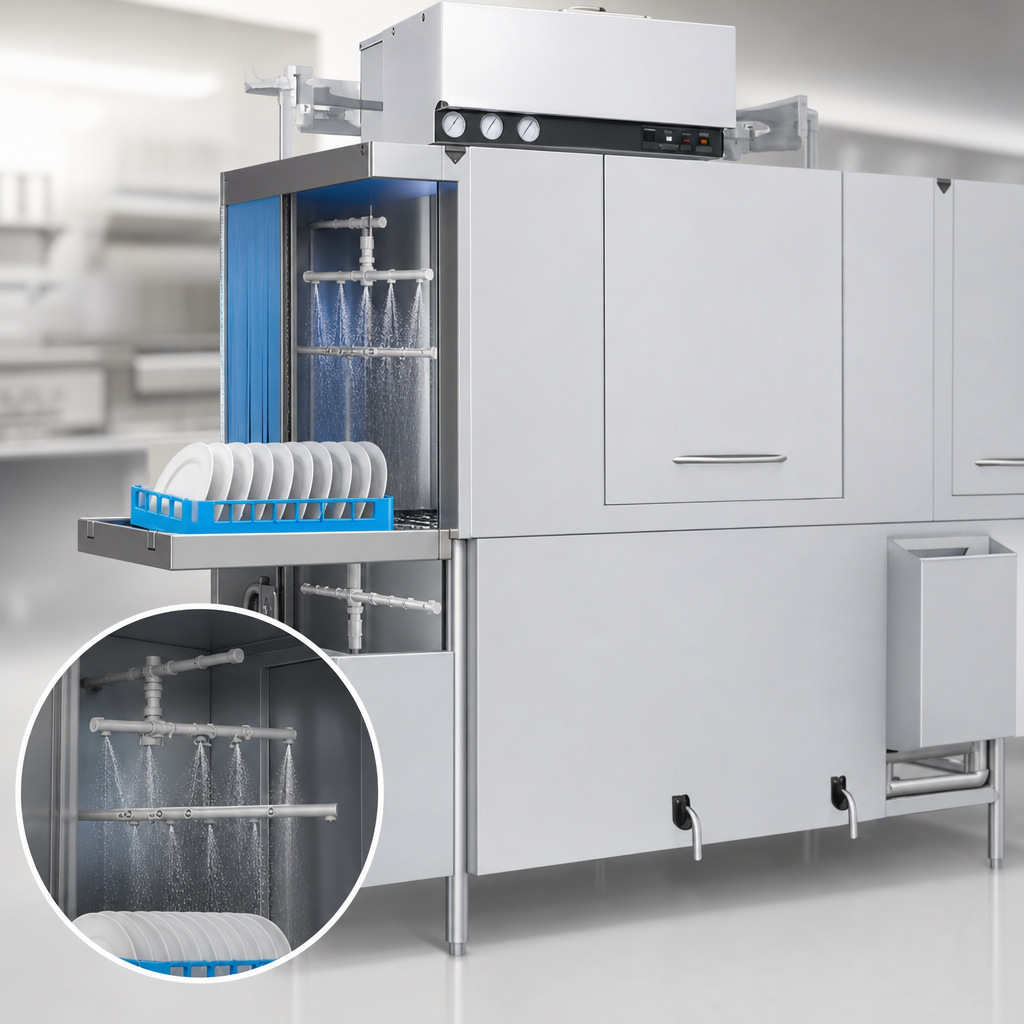

- 22 in. recirculating pre-wash uses two upper and one lower spray arms driven by a dedicated 1 hp pump (120 GPM) to remove stubborn food soil.
- Adjust-A-Peak™ variable conveyor speed increases contact time for heavily soiled loads.
- 25 in. (635 mm) chamber clearance accommodates full-size sheet pans and tall stock pots.
- Exclusive EnergyGuard™ controls start the pumps only when racks are inside the machine for maximum efficiency.
- 18 kW electric tank heat quickly brings wash water to temperature and maintains it under heavy demand.
- Self-draining stainless steel wash pump and stainless steel scrap baskets simplify clean-up.
- Fully automatic operation – auto-fill, auto-run and externally operated drain lever.
- Vent-fan control connection reduces excess humidity in the dish room.
- cETLus & NSF certified for sanitation and safety compliance.
- Backed by Jackson’s 1-year parts & labor warranty (USA & Canada).
At-a-glance specs
| Operating capacity | 209 racks/hr | 0.78 gal water/rack |
|---|---|
| Sanitizing method | Chemical (chlorine or other approved low-temp sanitizer) |
| Pre-wash section | 22 in. – (2) upper & (1) lower arms – 1 hp pump @ 120 GPM |
| Wash section | 18 in. – 2 hp pump @ 270 GPM – 18 kW tank heater |
| Chamber clearance | 25 in. (635 mm) |
| Conveyor speed | 5.75 FPM at fastest setting (Adjust-A-Peak™ adjustable) |
| Water connections | 3/4 in. NPT hot water inlet (110 – 140 °F minimum) |
| Drain connection | 1-1/2 in. NPT with built-in air-gap |
| Electrical (specify) | 208/230/460 V, 60 Hz, 3-phase (single-phase available) – 27.7-60.1 A total load |
| Dimensions (H × L × D) | 75.5 in. × 84 in. × 31 in. overall (66 in. table-to-table length) |
| Shipping weight | Approx. 1,000 lbs (454 kg) |
| Certifications | cETLus, NSF |
Common factory-installed options
- Side-loader modules (23 in. or 30 in., hooded or un-hooded)
- Drain water tempering kit
- Water hammer arrestor & 1/2 in. pressure regulator
- 36-compartment or peg racks
- Vent cowl collars & splash shields
- Blower dryer & combination racks
1-year parts & labor warranty applies to installations within the United States and Canada. Registration required – visit jacksonwws-warranty.com for details.
