Jackson WWS AJX-44CEL Conveyor Dishwashers
Description

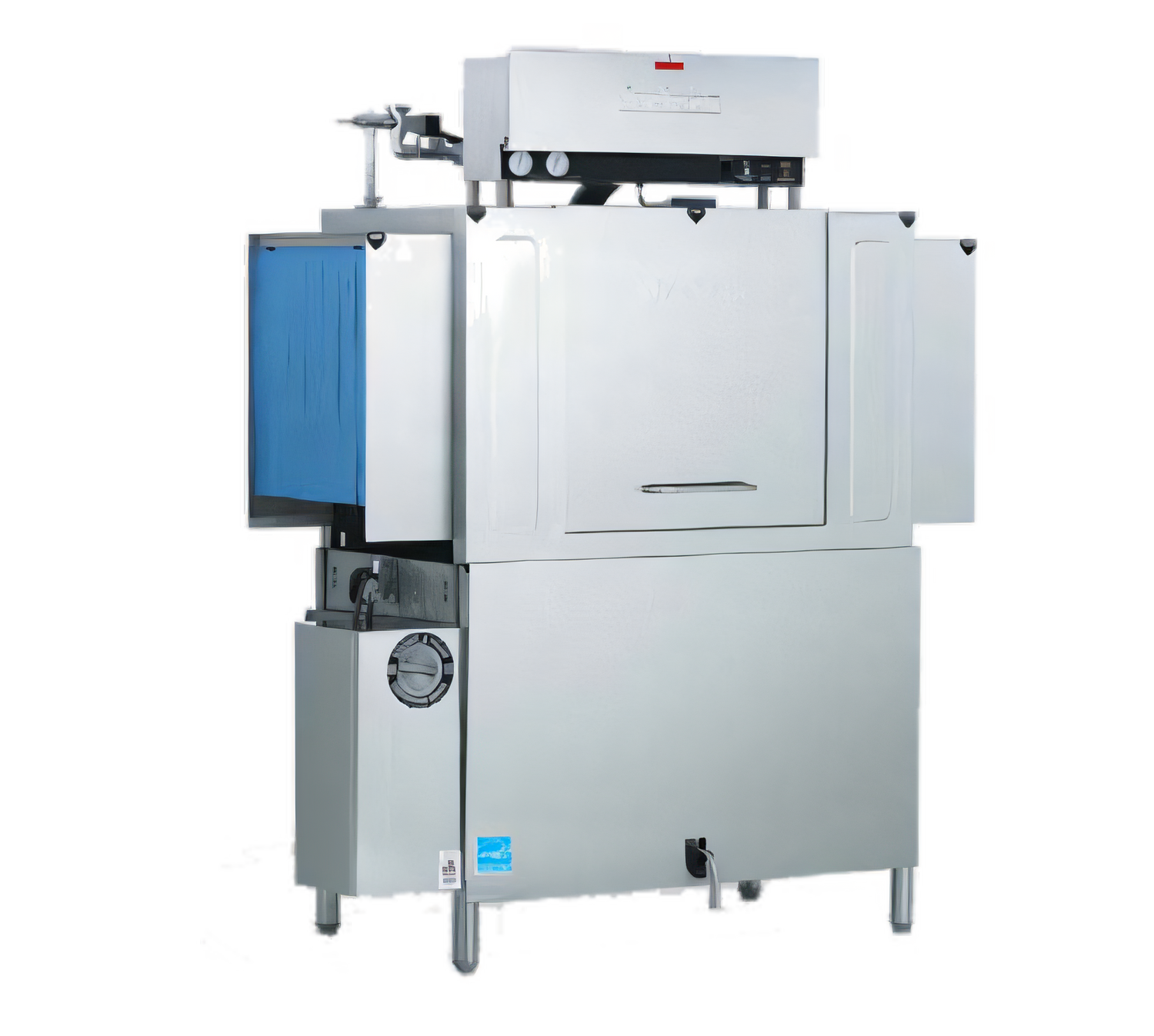

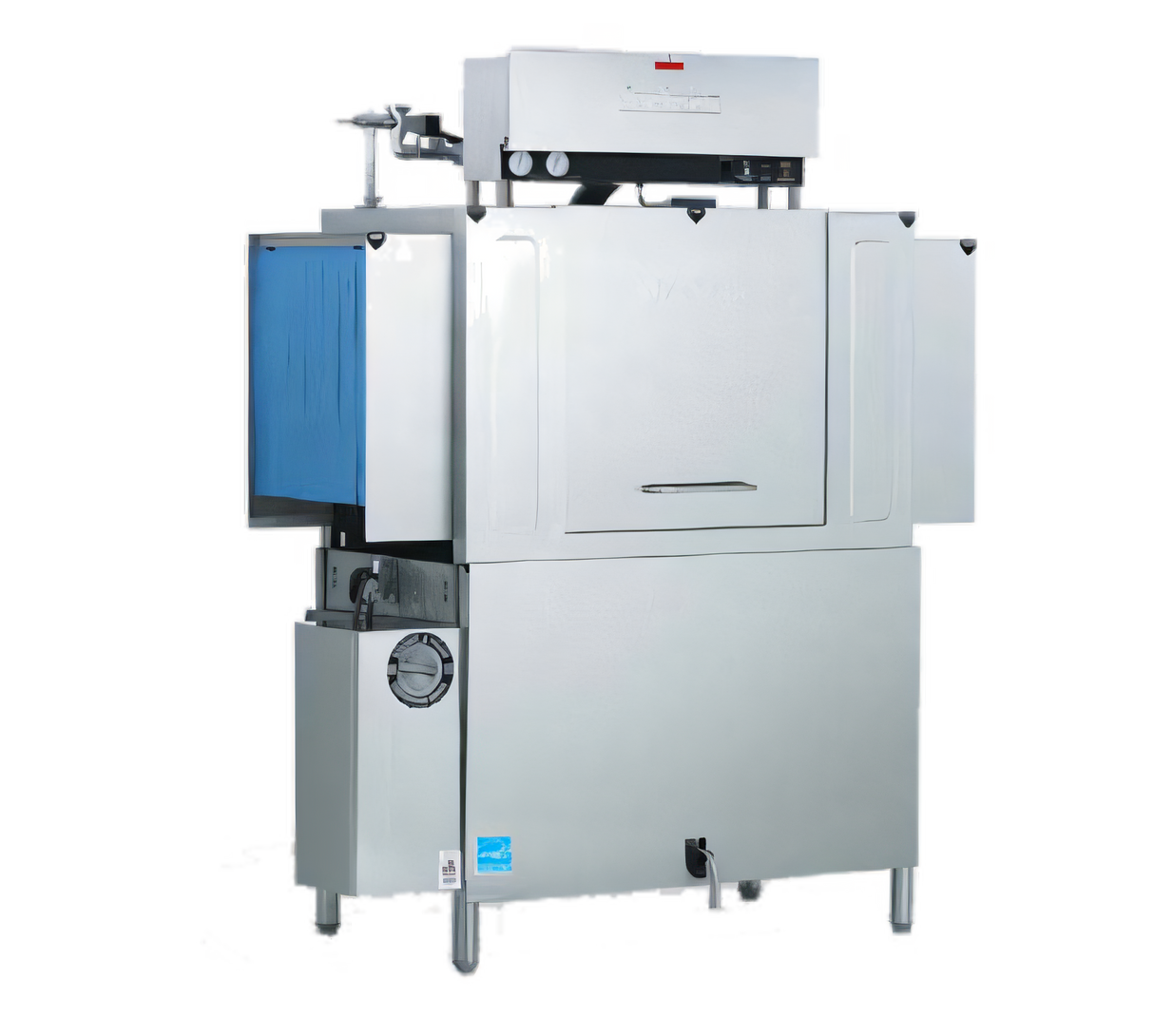

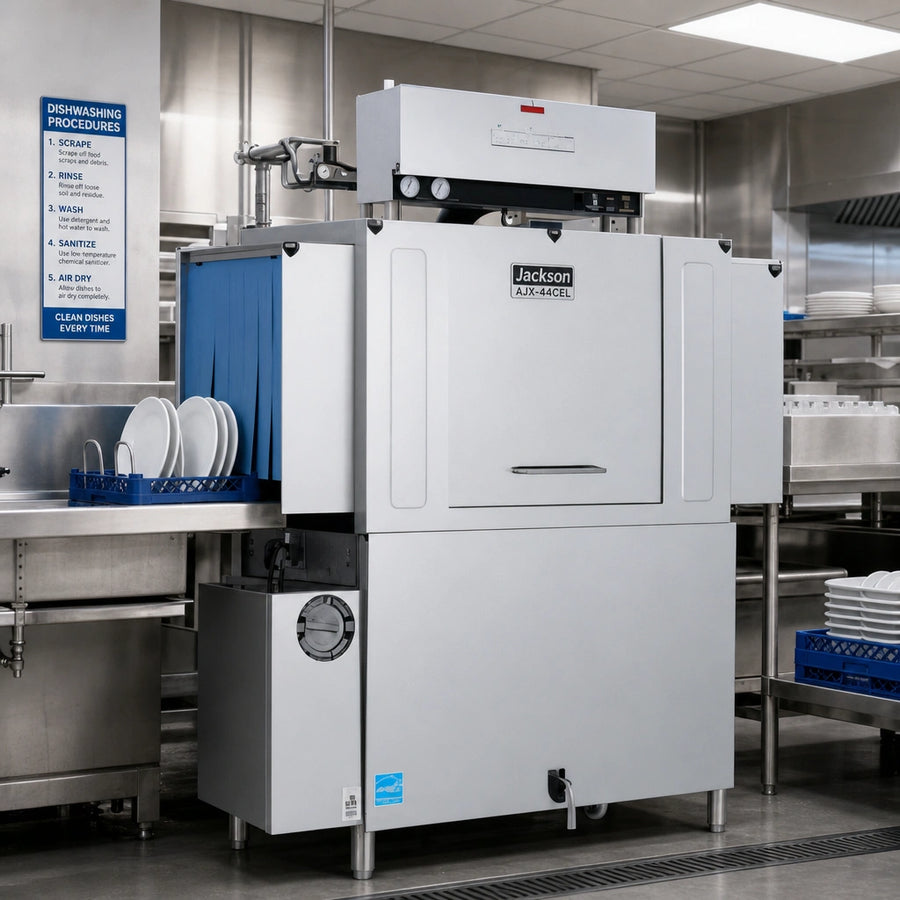

Jackson AJX-44 Low-Temperature Conveyor Dishwasher

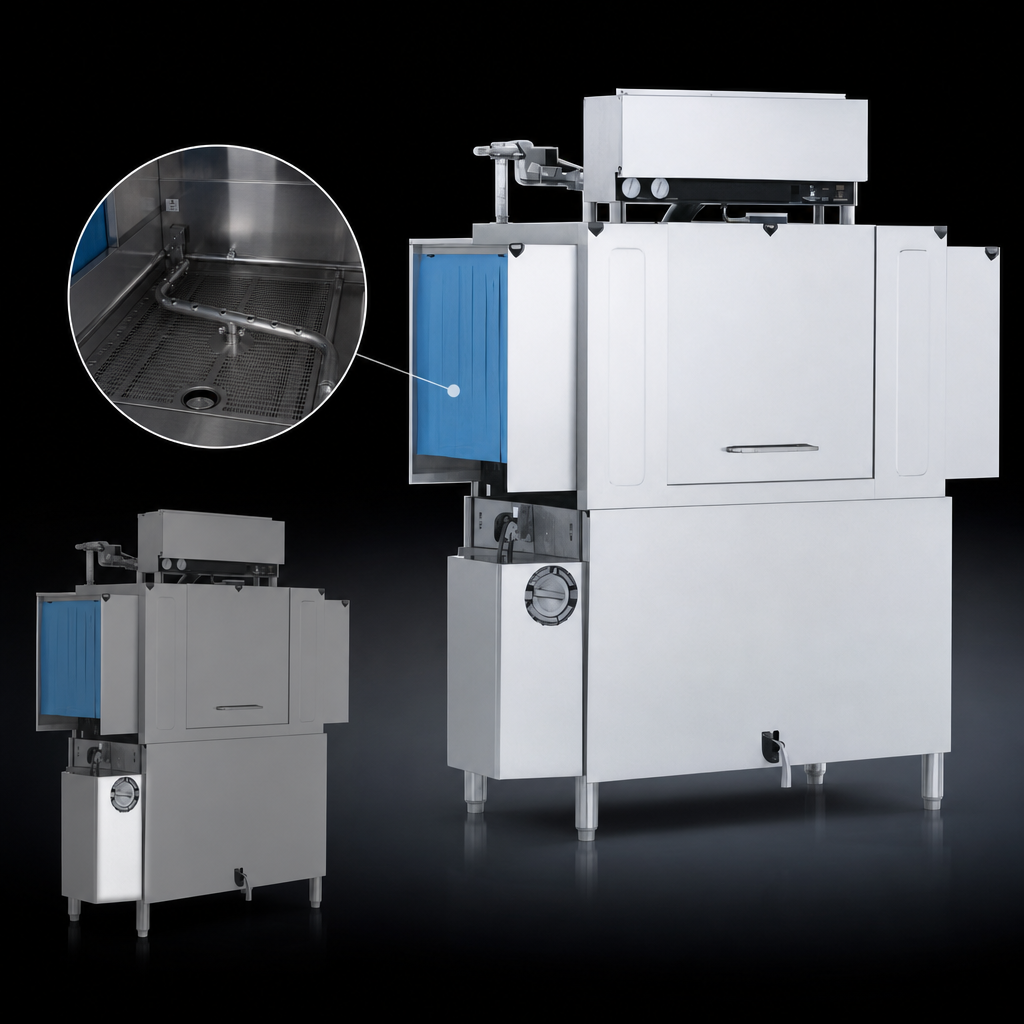

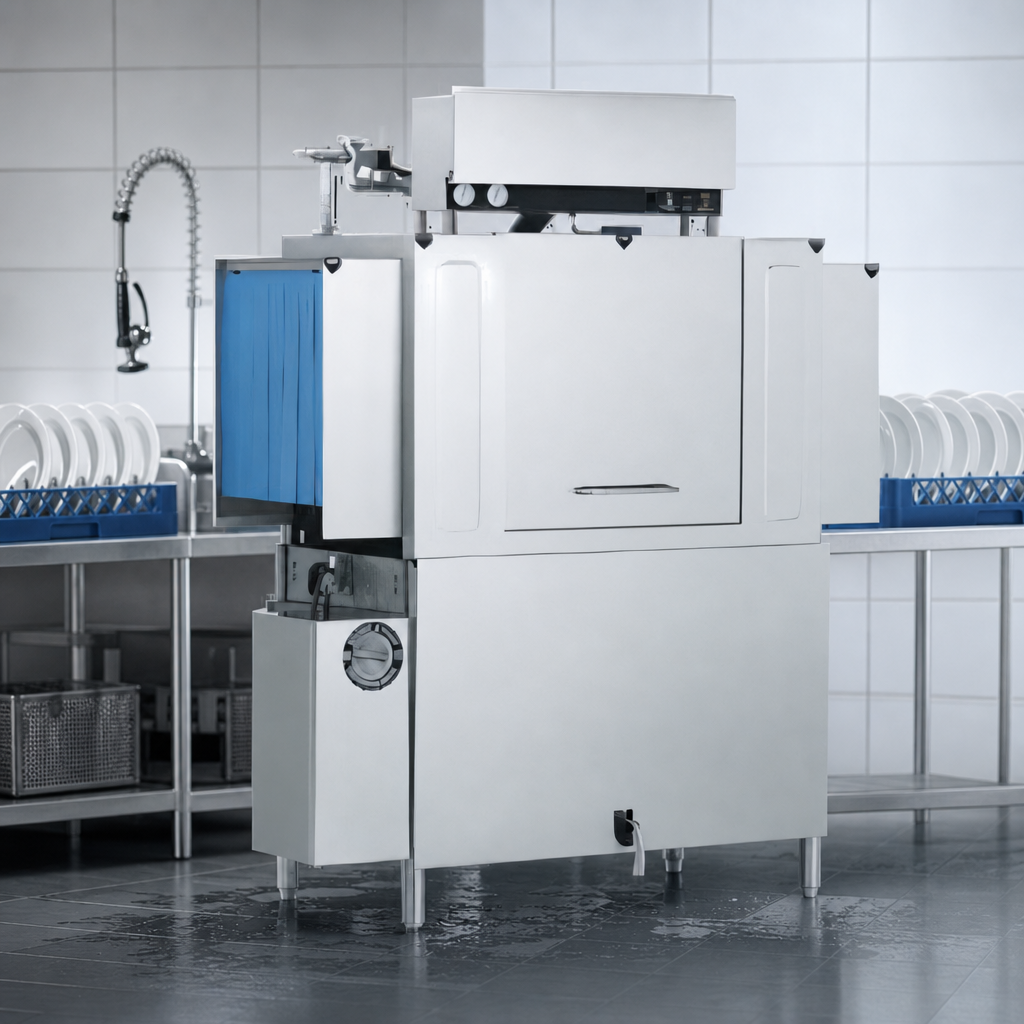

Single-tank • Chemical Sanitizing • 209 racks/hourTackle peak-hour demand without wasting water, energy, or floor space. The Jackson AJX-44 low-temperature conveyor dishmachine powers through up to 209 racks per hour while sipping only 0.78 gal of water per rack. With a full 25 inch chamber clearance, it easily handles sheet pans, stock pots, and other oversized wares that stop lesser machines in their tracks.
Performance & Efficiency Highlights
- Adjust-A-Peak™ variable conveyor speed lengthens wash & rinse contact time for heavily soiled loads.
- EnergyGuard™ controls start the wash and final rinse only when a rack is present—no wasted utilities.
- 0.78 gal per rack (163 gal/hr overall) keeps water and chemical usage to an absolute minimum.
- Self-draining, 2 HP wash pump moves 270 GPM for consistent soil removal and faster tank clean-out.
- 18 kW electric tank heat maintains proper wash temperature without an external boiler.
- Vent fan interface (output signal) allows the hood to engage automatically during operation.
Rugged, Operator-Friendly Construction
- All-stainless-steel frame, tank, legs, & panels resist corrosion in harsh chemical environments.
- 25 in (635 mm) chamber height lets you wash sheet pans, mixing bowls, & other tall items.
- Stainless scrap baskets, 8 in splash shields, and a front dress panel help keep the dishroom clean.
- Externally operated drain lever speeds end-of-shift clean-down—no reaching into hot water.
- Electro-mechanical control system is easy to service and tolerant of challenging dishroom conditions.
- Adjustable bullet feet simplify leveling on uneven floors.
Key Specifications
| Capacity | 209 racks/hour (single-tank, chemical sanitizing) |
|---|---|
| Water Consumption | 0.78 gal per rack | 163 gal per hour |
| Chamber Clearance | 25 in (635 mm) |
| Conveyor Speed | 5.75 ft/min (1.75 m/min) at highest setting |
| Wash Pump | 2 HP, 270 GPM (1 022 LPM) |
| Wash Tank Capacity | 21 gal (79.5 L) |
| Operating Temps | Wash 140 °F (60 °C) min • Rinse 140 °F (60 °C) min |
| Dimensions (H×W×D) | 75 ½ × 44 × 25 in (84 in H with doors open) |
| Electrical (machine only) |
208 V/60/3 Ø 56.7 A • 230 V/60/3 Ø 51.9 A • 460 V/60/3 Ø 26.0 A 208 V/60/1 Ø 96.8 A • 230 V/60/1 Ø 88.6 A |
| Venting | 600 CFM total (200 CFM input / 400 CFM output) |
| Listings | cETLus • NSF |
Popular Factory-Installed Options (sold separately)
- Un-hooded or hooded side loaders (23 in & 30 in)
- Drain water tempering kit
- Blower dryer
- Assorted rack styles – peg, combination, sheet-pan, 36-compartment glass rack
- Water hammer arrestor & ½ in pressure regulator
Peace-of-Mind Warranty
One-year limited parts & labor warranty when registered in the U.S. or Canada. See JacksonWWS.com for complete terms.
