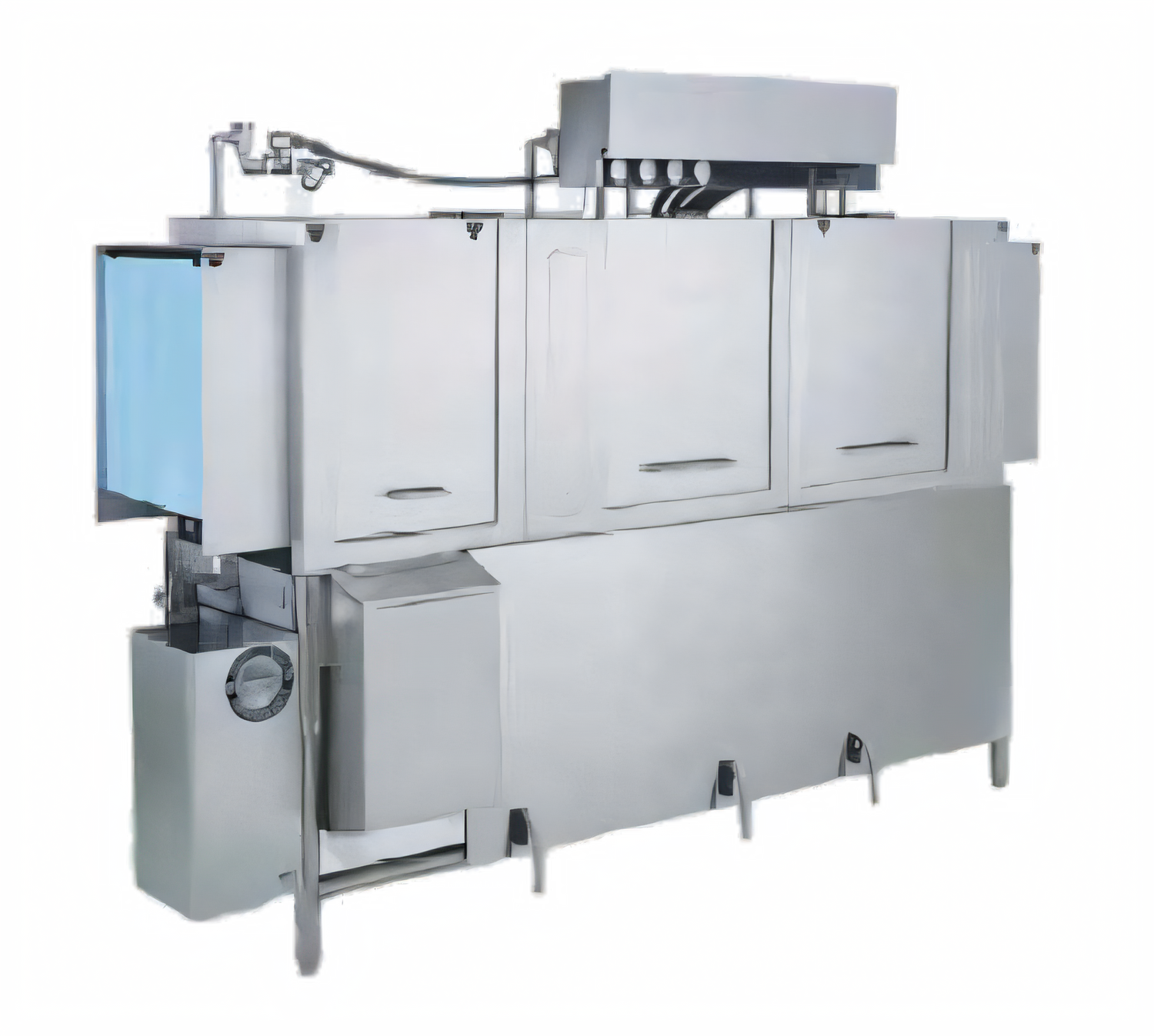

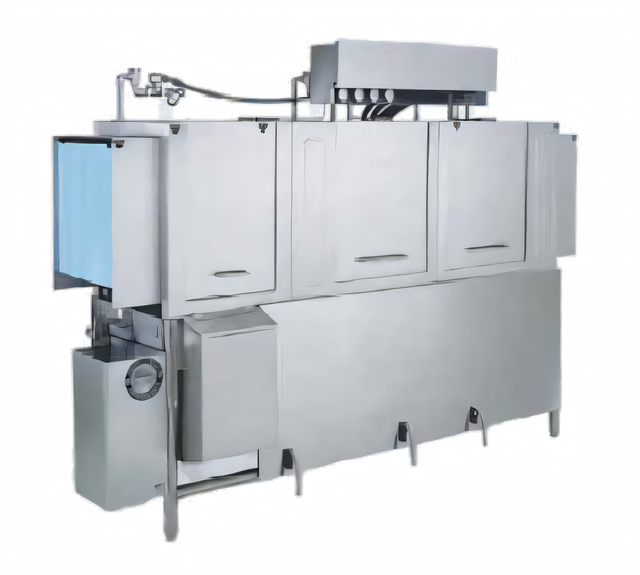

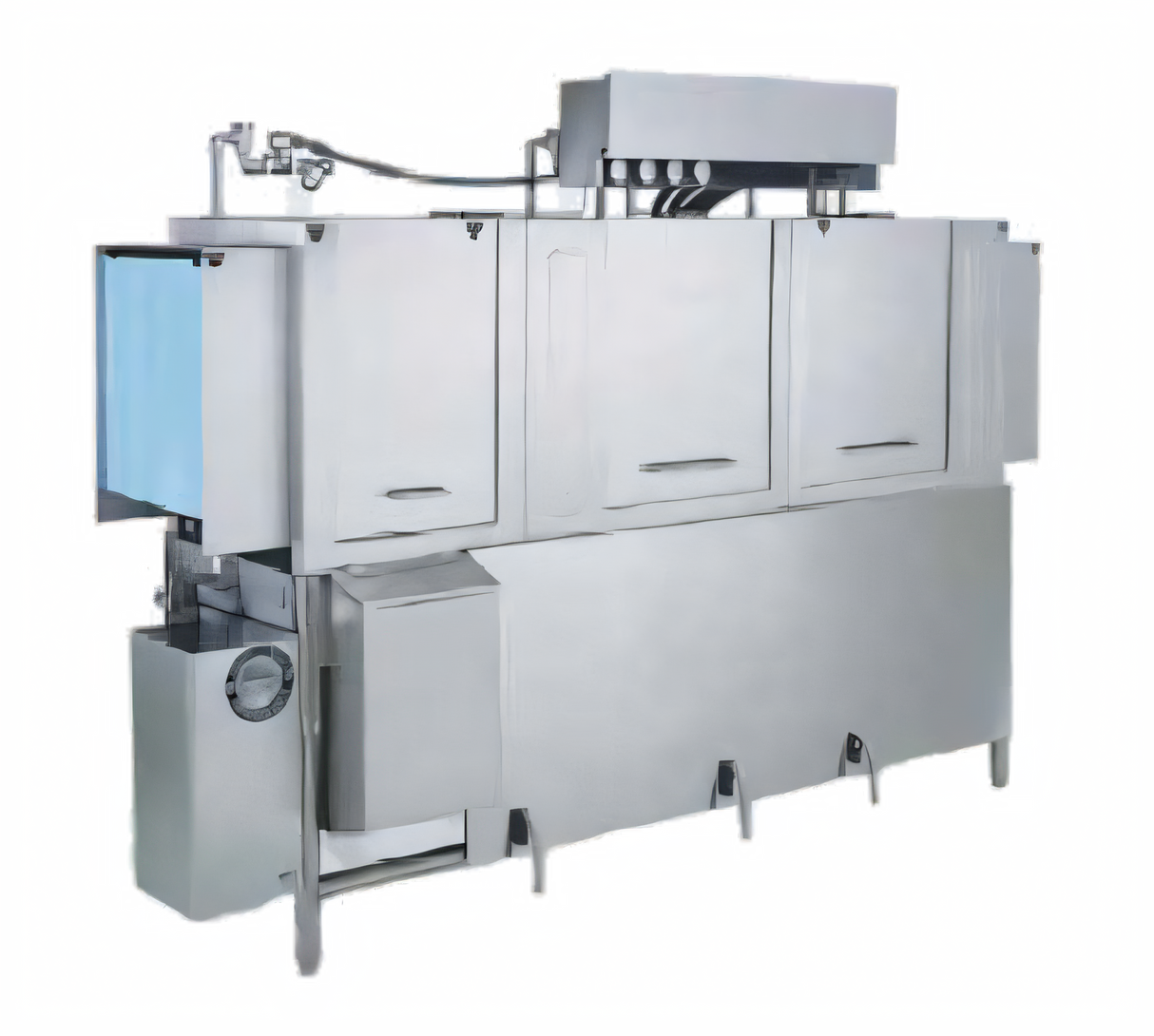

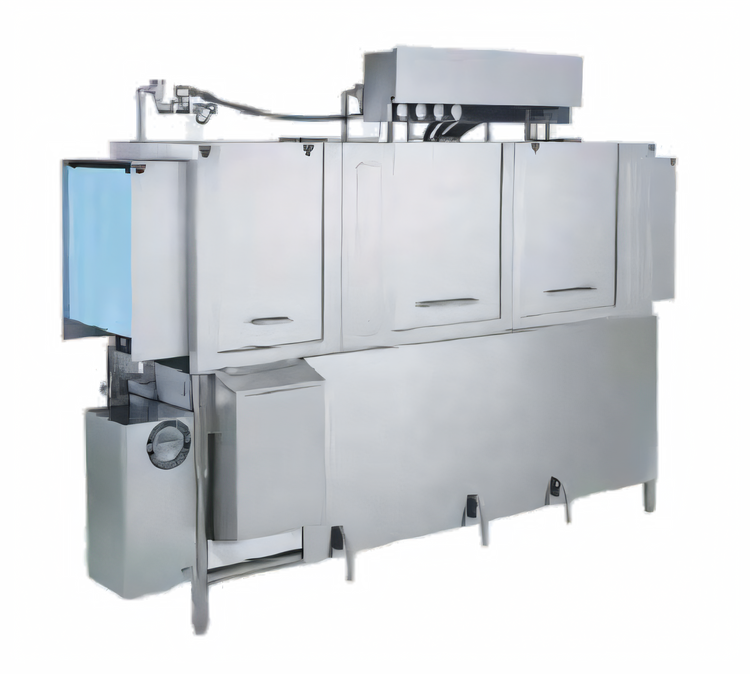

Jackson AJ-86CE High-Temperature Adjustable-Speed Multiple-Tank Rack Conveyor Dishwasher with Electric Tank Heat

SKU: AJ-86CE
$68,750.93
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Dishwashers Conveyor Dishwashers Conveyor Dishwashers Dishwashers Jackson WWS New Arrivals Restaurant Equipment

Jackson AJ-86CE High-Temperature Adjustable-Speed Multiple-Tank Rack Conveyor Dishwasher with Electric Tank Heat

287 Racks/Hour, 25-Inch Clearance, 304 Stainless Steel

Built for nonstop dishroom throughput, the AJ-86CE combines adjustable conveyor speed, hi-temp sanitizing, and rugged all-stainless construction.

  • Adjust-A-Peak conveyor drive lets operators dial speed from 144 to 287 racks per hour.
  • High-temp final rinse sanitizes with 180°F to 195°F water at 0.77 gallons per rack.
  • 25-inch chamber clearance handles sheet pans, trays, bun pans, and other oversized ware.
  • 304 stainless steel construction and self-draining pumps are built for heavy-duty use.
  • Electro-mechanical Energy Guard controls, automatic fill, and lever drains simplify operation.
  • Standard 8-inch vent cowls, splash shields, and strip curtains support exhaust integration.

Overall Dimensions:

102.0"W x 25.0"D x 75.5"H

Product Weight:

1040.0 lb

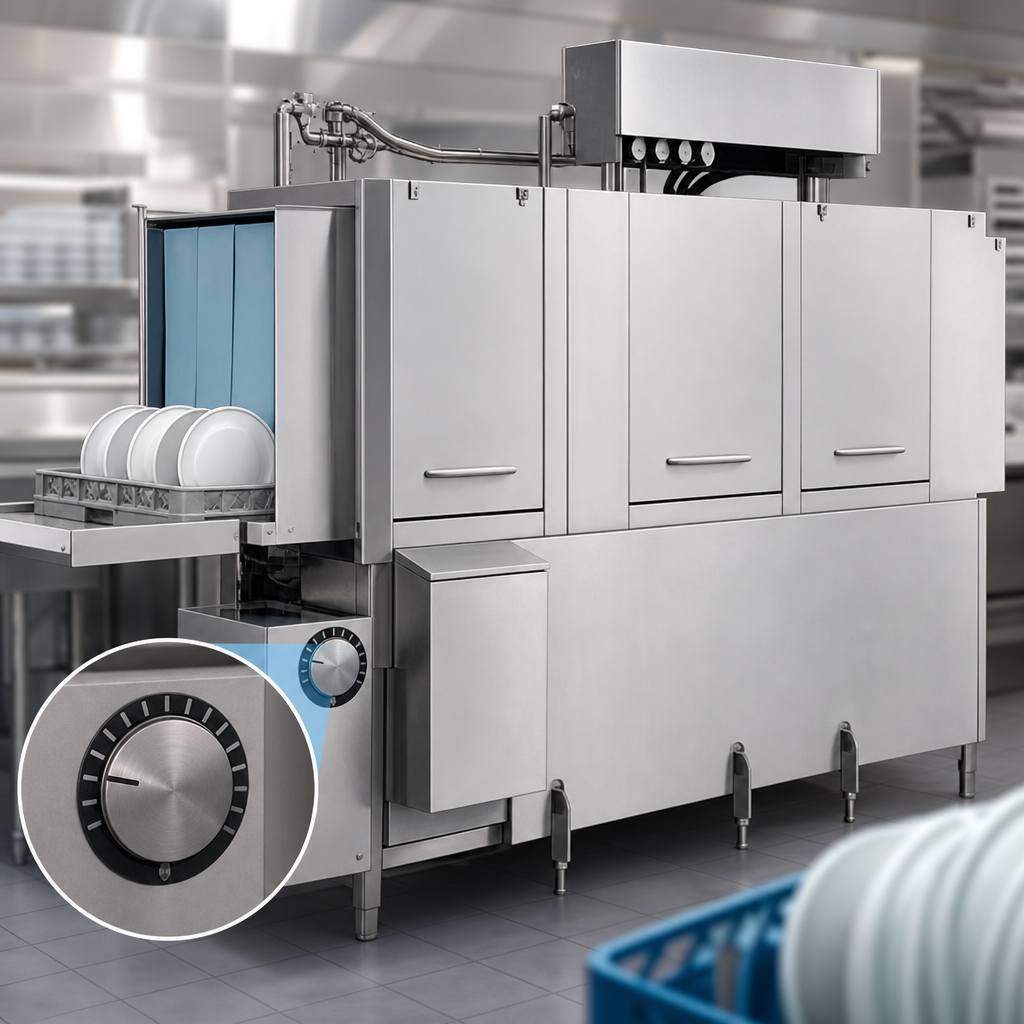

Adjustable Conveyor Speed

Adjust-A-Peak lets the operator slow or speed the conveyor from 144 to 287 racks per hour to match soil levels and throughput needs.

Adjustable Conveyor Speed

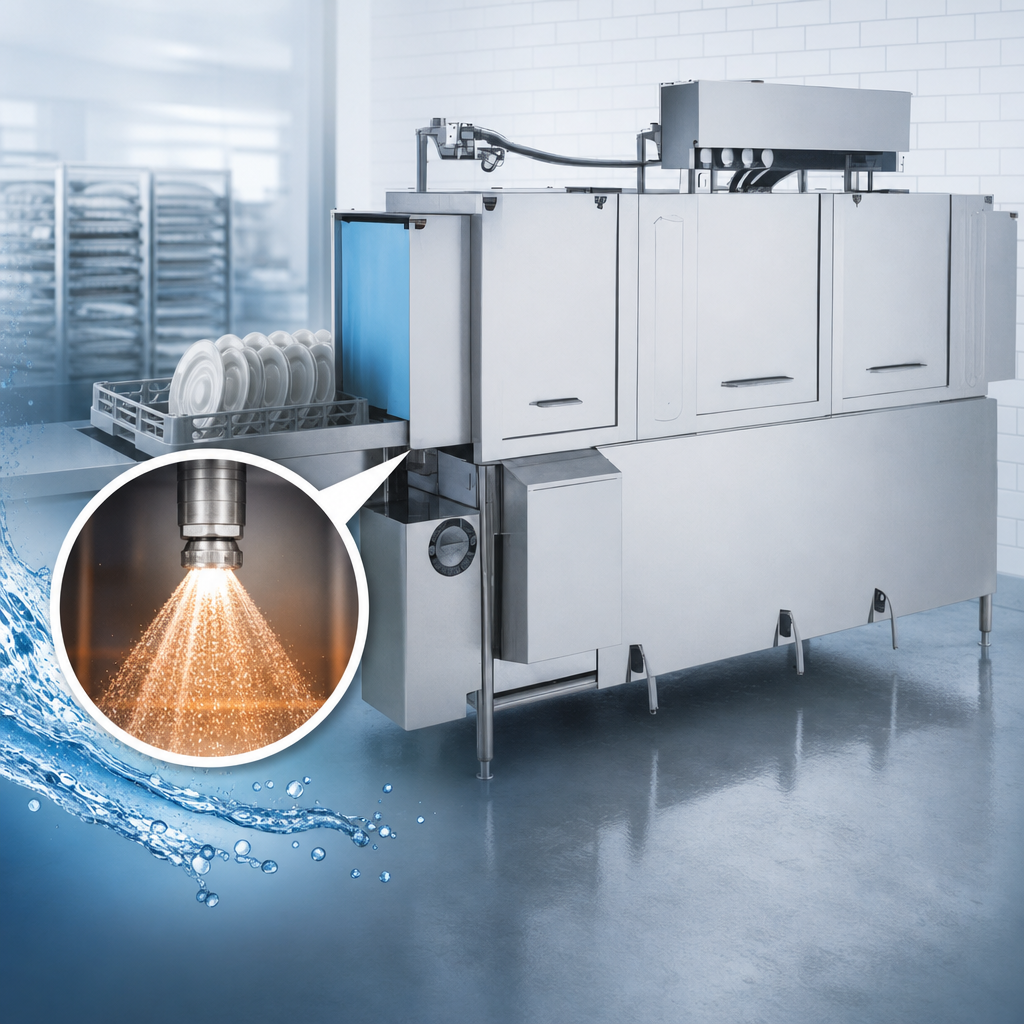

High-Temp Sanitizing Rinse

Fresh water final rinse sanitizes at 180°F to 195°F and uses 0.77 gallons per rack at maximum capacity.

High-Temp Sanitizing Rinse

Recirculating Multi-Tank Wash System

The machine uses a recirculating prewash, wash, power rinse, and final rinse sequence for multi-stage cleaning and sanitizing.

25-Inch Chamber Clearance

Standard 25-inch clearance through the machine helps accommodate sheet pans, trays, bun pans, and other oversized ware.

304 Stainless Steel Construction

All major components use 304 series stainless steel, with no plastics or 400-series stainless steel.

Electro-Mechanical Energy Guard Controls

The control system is fully electro-mechanical and energizes the wash sections only when a rack is in place.

Automatic Fill and Self-Draining Pumps

The unit fills automatically at startup and includes stainless steel, self-draining prewash, wash, and recirculating rinse pumps with external lever drains.

Vent Cowls, Splash Shields, and Strip Curtains

Standard 8-inch vent cowls and splash shields include removable plates and flexible strip curtains to help manage exhaust and splash control.

Incoming Water Pressure Regulator

A factory-installed regulator is included on the incoming water line to help stabilize water pressure.

Type Multiple Tank Rack Conveyor Dishwasher
Style High Temperature
Installation Type Floor Model
Controls Electro-Mechanical
Capacity 287 Racks Per Hour
Temperature Range 180°F to 195°F
Water Inlet Size 3/4 Inch IPS
Drain Connection Size 1 1/2 Inch IPS
Material 304 Stainless Steel
Shipping Width 102 Inches
Shipping Depth 25 Inches
Shipping Height 76 Inches
Shipping Weight 1040 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Product page PDF Download PDF Catalog PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is rated for approximately 287 racks per hour, and the Adjust-A-Peak conveyor system can slow the machine down to 144 racks per hour when needed.
It uses a high-temperature fresh water final rinse at 180°F to 195°F for sanitizing.
The machine provides 25 inches of clearance through the chamber, which is suitable for sheet pans, trays, bun pans, and other oversized ware.
The series is offered in 60 Hz configurations at 208V, 230V, and 460V, with 1- and 3-phase options where listed. 50 Hz configurations are also available in the series.
The unit uses 3/4 inch IPS water inlet connections and a 1 1/2 inch IPS drain connection.
Jackson provides a 1-year limited parts and labor warranty in the United States and Canada, with accessory components and replacement parts covered under shorter terms as stated in the warranty.
