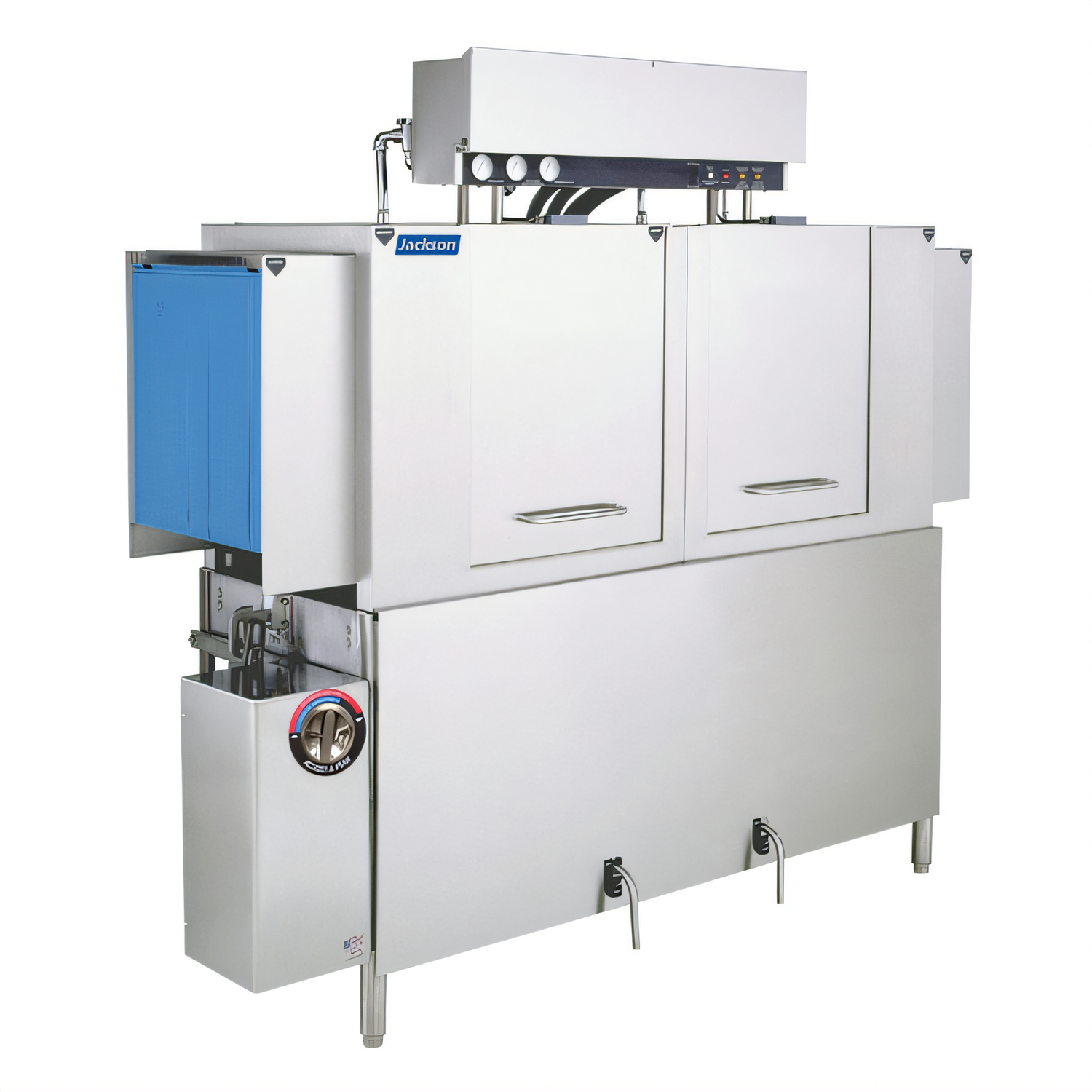

Jackson AJ-64 Vision Series Conveyor Dishwasher – Steam Heated
287 racks/hr • 2-tank wash & power-rinse • 25" pan clearanceEngineered for uncompromising throughput and economy, the Jackson AJ-64 Vision Series powers through up to 7,200 dishes every hour while sipping only 0.77 gallons of fresh water per rack. The patented Adjust-A-Peak™ conveyor lets you slow or speed production on the fly, giving you the perfect balance of performance and efficiency during every service window.
Why Choose the AJ-64?
- High-capacity output – up to 287 racks (≈7,200 dishes) per hour.

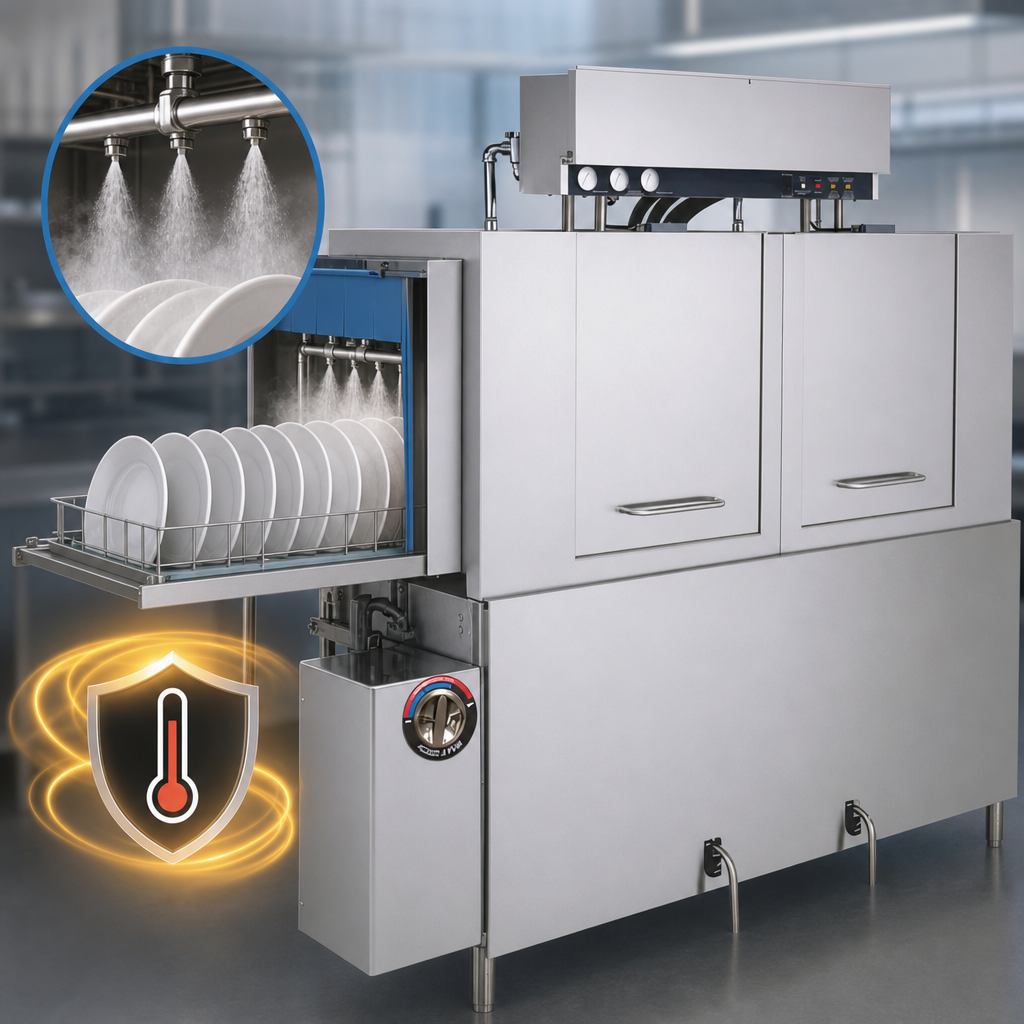

- Hi-temp sanitizing rinse – 180 °F final rinse meets NSF standards; cETLus listed.
- Steam-heated tanks – stainless steel coils maintain 150 °F wash & 160 °F power-rinse temps without electric elements.
- Water-smart operation – only 0.77 gal of fresh water per rack saves thousands of gallons weekly.

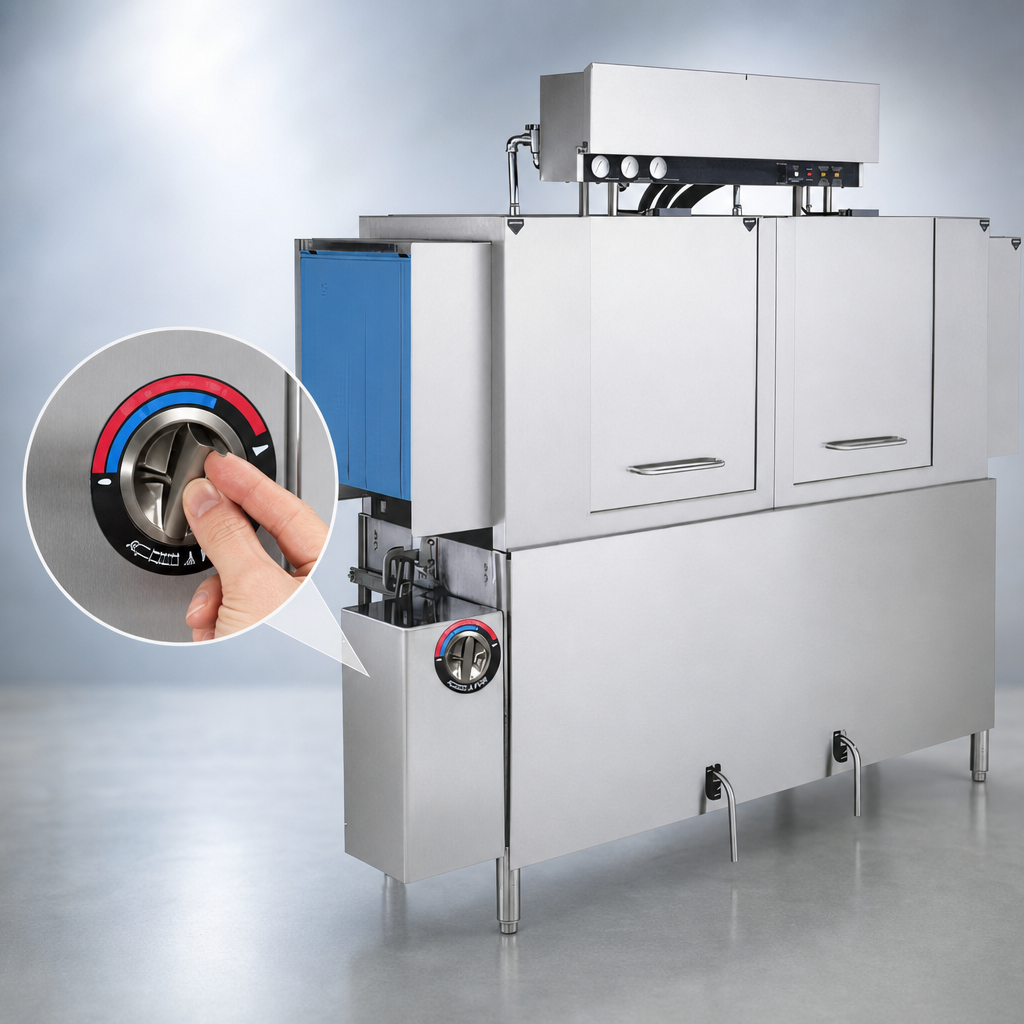

- Adjust-A-Peak™ variable speed – dial rack speed from 144-287 racks/hr to match demand.
- Energy Guard® system – wash, recirculating rinse and final rinse sections energize only when a rack is present.
- 25" vertical clearance – handles sheet pans, mixing bowls and other oversized wares.
- All-stainless construction – 304-series frame, tanks, legs & panels resist corrosion and chemicals.
- Vent-fan control included – factory-wired circuit starts your exhaust fan automatically with the machine.
- Self-draining pumps & external lever drains – speed up nightly clean-down and reduce soil carry-over.
Performance & Specifications
| Rack capacity (adjustable) | Up to 287 racks/hour |
|---|---|
| Water usage | 0.77 gal per rack • ≈222 gal/hour |
| Tank configuration | 2 tanks – dedicated wash & power-rinse (15.4 gal wash) |
| Tank heat source | Steam coils (10-20 PSIG supply, 100 lb/hr @ 15 PSIG) |
| Operating temperatures | Wash 150 °F min | Power-rinse 160 °F min | Final rinse 180 °F min |
| Conveyor opening | 25" H × 21" W |
| Conveyor speed | 8 ft/min (287 racks) – adjustable down to 4 ft/min (144 racks) |
| External dimensions | 96" L × 25" W × 78" H |
| Shipping weight | Approx. 890 lb |
| Utilities | 3/4" IPS 180 °F incoming water • 1-1/2" IPS drain • 3/4" IPS steam |
| Certifications | NSF, cETLus, ASSE 1004 |
Perfect for
- High-volume hotels & resorts
- University dining halls & K-12 cafeterias
- Healthcare & correctional facilities
- Banquet halls, arenas & convention centers
Factory-Included Features
- 8" vent cowls with splash shields – both wash & rinse ends
- Incoming water pressure regulator
- Adjustable stainless bullet feet
- Right-to-left or left-to-right rack flow (specify at order)
Installation note:
180 °F potable water (15-25 PSI flow) is required for the final rinse.
Steam supply must not exceed 20 PSIG without a regulator (by others).
Backed by Jackson’s 1-year parts & labor warranty. Register your machine at jacksonwws-warranty.com.
$52,382.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Jackson WWS AJ-64CS conveyor dishwasher: stainless steel, 287 racks/hr, adjustable speed, high-temp sanitizing rinse, NSF/cETLus certified.
Manufacturer
Jackson WWS
Certifications
NSF, cETLus
Height
75.5in
Width
80.0in
Depth
25.0in
Shipping Weight
890.0lbs
Temperature
high temp without booster
Construction
stainless steel
Rack Capacity
approximately (280) racks/hour
Tank design
(2) tank without pre-wash
Tank Heat
steam
Specifications
Dishwasher, conveyor type, adjustable conveyor speed, approximately (287) racks/hour high temperature sanitizing rinse, (2) tank design (wash/power rinse), 25"H clearance through machine, stainless steel construction, steam tank heat, vent fan control, cETLus, NSF
