Jackson WWS AJ-100CE Conveyor Dishwashers
Description

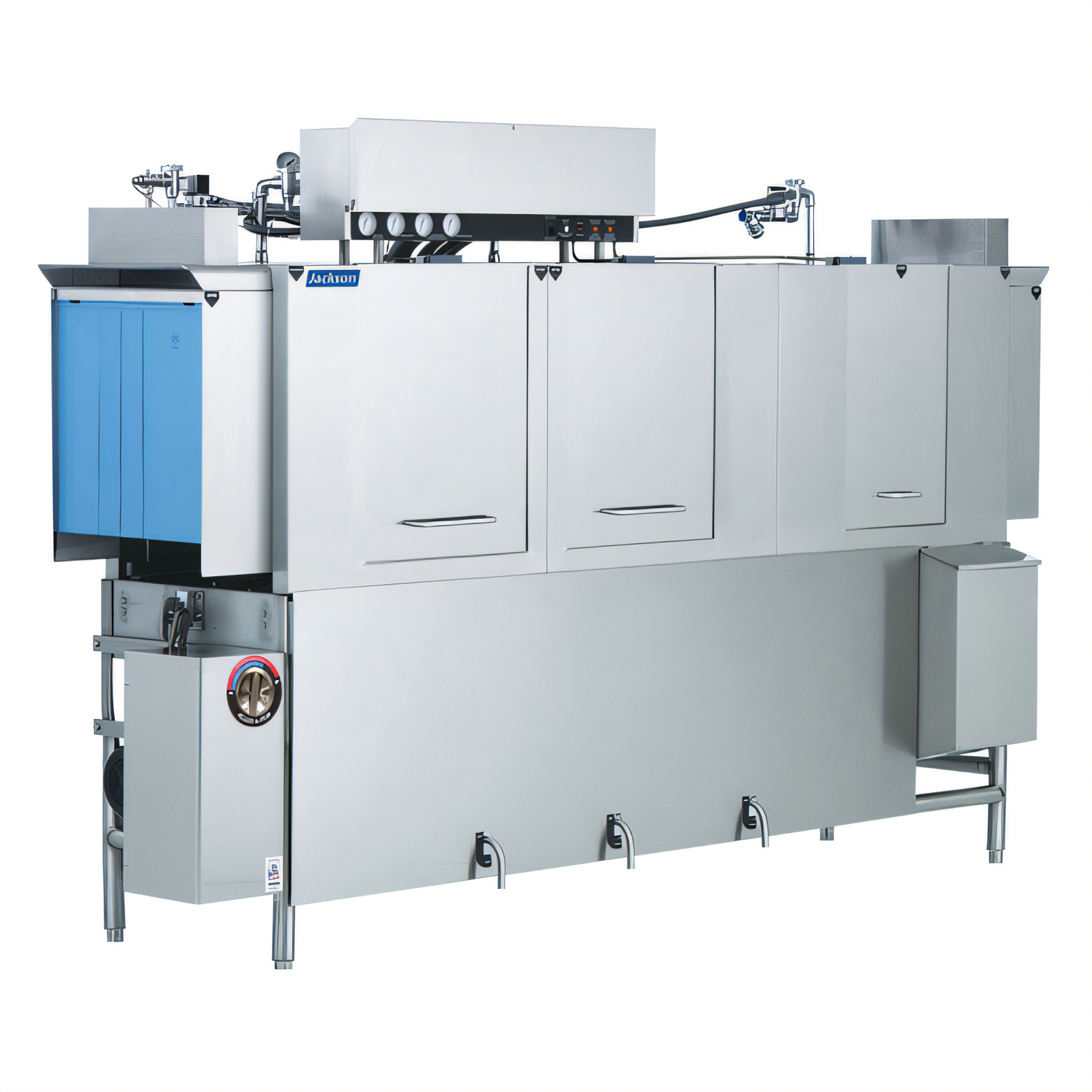

Jackson AJ-100 Vision Series Conveyor Dishwasher
Hi-Temp • 287 Racks/Hour • Electric HeatEngineered for high-volume kitchens that can’t slow down, the Jackson AJ-100 Vision Series packs a 36 inch recirculating prewash, two heated wash/power-rinse tanks, and a 180 °F final sanitizing rinse into a rugged all-stainless chassis that moves up to 7,175 dishes every hour—while sipping just 0.77 gallons of water per rack. From sheet pans to ramekins, everything comes out NSF-clean and table-ready.
Why Your Operation Will Love It
- True high-volume throughput – up to 287 racks per hour.

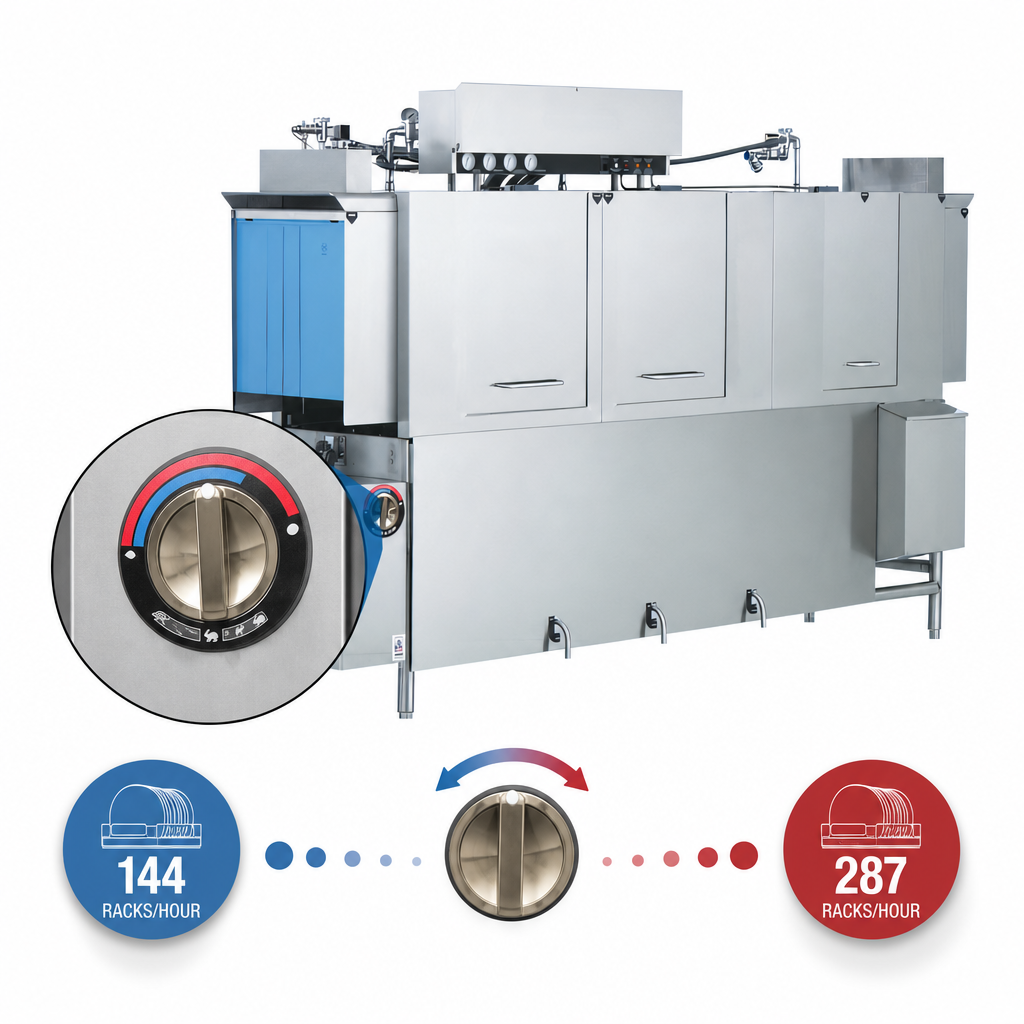

- Patented Adjust-A-Peak conveyor lets you slow or speed the line (144-287 racks/hr) on demand.
- Energy Guard sensors only power each section when a rack is present—no wasted water or kW.
- Generous 25 inch internal clearance handles sheet pans, trays, and other bulky ware.
- All-304 stainless steel frame, tanks, legs, and panels for unbeatable corrosion resistance.
- Self-draining tanks with external lever drains speed end-of-shift clean-up.
- 8 inch vent cowls & splash shields with built-in fan control keep steam out of the dishroom.
- cETLus & NSF listed; meets ASSE 1004 backflow requirements.
Performance at a Glance
| Rack capacity | 287 racks/hr (adjustable) |
|---|---|
| Water use | 0.77 gal per rack • ≈222 gal/hr |
| Final rinse temp | 180 °F (sanitizing) |
| Wash / Power-rinse temps | 150 °F / 160 °F minimum |
| Prewash tank | 36 in. recirculating • 16 gal |
| Wash tank | 15.4 gal • 10 kW electric heater |
| Power-rinse tank | 15.4 gal • 15 kW electric heater |
| Pumps | Prewash 2 HP • Wash 2 HP • Power-rinse 2 HP |
| Conveyor motor | ¼ HP, 8 ft/min default |
| Clearance through machine | 25 in. H × 21 in. W |
| Overall size | 116 in. L × 25 in. W × 78 in. H |
| Ship weight | ≈1,150 lb |
Electrical / Utility Requirements
| 208 V / 60 Hz / 3-Phase | 87.4 A total load |
|---|---|
| 230 V / 60 Hz / 3-Phase | 80.7 A total load |
| 460 V / 60 Hz / 3-Phase | 40.4 A total load |
| Hot water connection | 3/4 in. NPT • 180 °F • 3.7 GPM @ 15-25 psi |
| Drain connection | 1-1/2 in. IPS |
| Exhaust requirement | 600 CFM (200 CFM input / 400 CFM output) |
Built-In Efficiency
- Adjust-A-Peak eliminates timer cams—simply set your rack-per-hour target.

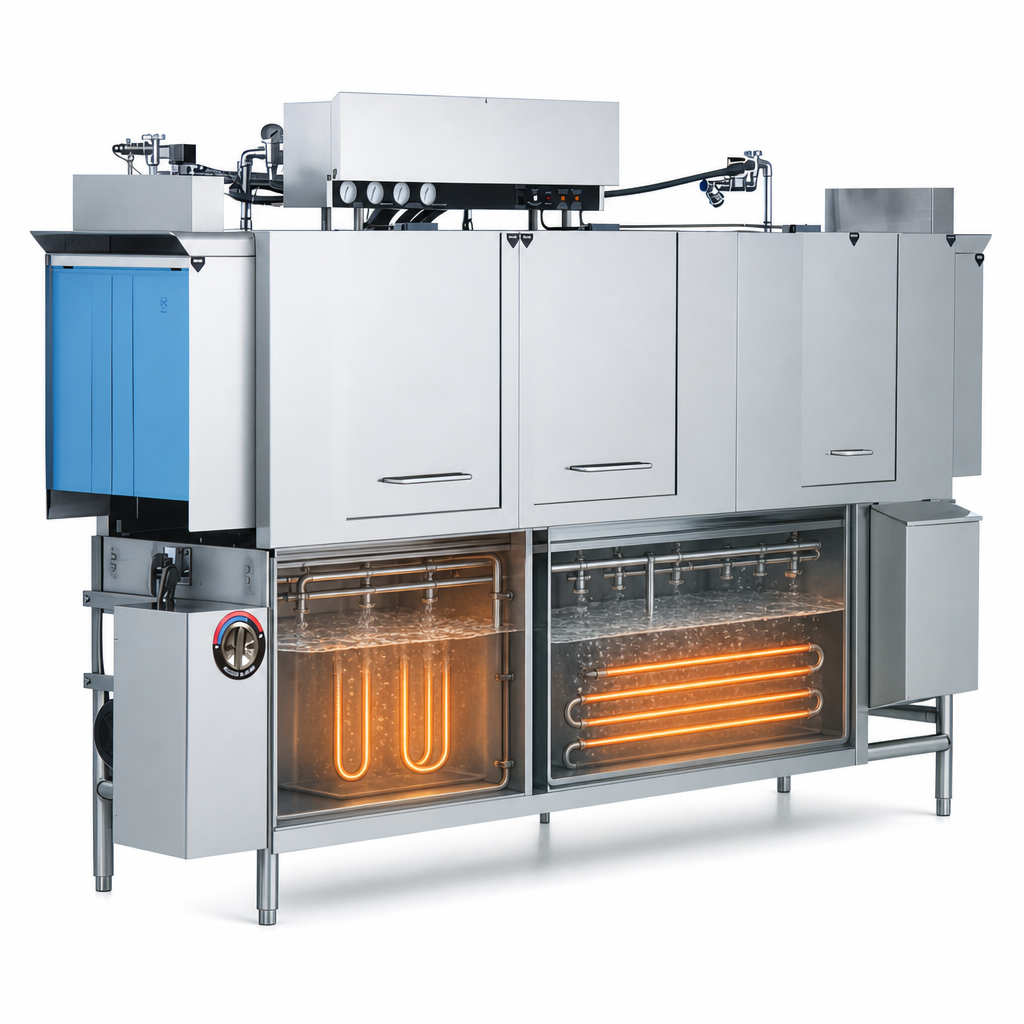

- Low-watt density in-tank heaters extend element life and reduce scale build-up.
- Totally electro-mechanical design—no fragile PC boards to replace.
- Self-draining pumps prevent standing water and off-shift odor.
Included with the Machine
- 8 in. vent cowls & splash shields with 4 × 16 in. collars & dampers.
- Vent-fan control relay—activates hood fan only when racks pass through.
- Pre-wired table-limit switch (9 ft lead) prevents backing up on the discharge table.
- Adjustable stainless legs with bullet feet.
Installation Notes
Allow 4 ½ in. rear clearance and a level floor capable of supporting 1,150 lb. Machine must be hard-wired by a qualified electrician and connected to an adequate make-up air & exhaust system for best results.
Warranty
1-Year limited parts & labor warranty. Register your machine at jacksonwws-warranty.com within 30 days of installation.
